240V IP20 Power Supply For LED
LumaCircuit offers 240V IP20 Power Supply For LED as a configurable LED driver or power supply for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. Item Type: LED Power Supply Input Voltage: AC100V-AC240V Size: 120 mm*50 mm*32 mm The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- the installer can connect to the public power system without needing an extra adapter, the plug-in power supply for LED, with an input voltage between AC100V and AC240V. There are four types of power plugs available, the installer can choose the UK, USA, AU or EU, the output voltage is DC12V and the max output current is 6A, the installer can connect to the single color LED strips, LED dimmers or LED controllers directly, the LED power supply with multiple protections to ensure it works safety and reliability.
- Item Type: LED Power Supply
- Input Voltage: AC100V-AC240V
- Size: 120 mm*50 mm*32 mm

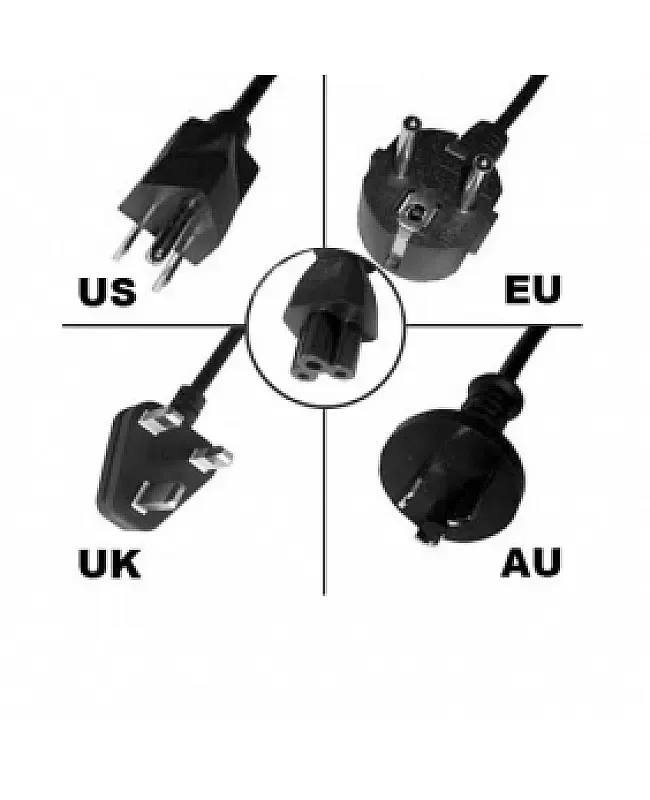

- Power Plug: UK, USA, AU, EU
- Connectors: DC 5.5/2.1mm
- Output Cable Length: 1.2 meters
- Input Frequency Range: 50- 60Hz
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V / 12 V
- LumaCircuit model: LC-PWR-ES7LEM
- Input Voltage: AC100V-AC240V
- Output Voltage: DC12V
- Max Output Current: 6A
- Max Loading Power: 72W
- IP Rating: IP20
- Size: 120 mm*50 mm*32 mm
- Power Plug: UK, USA, AU, EU
- Connectors: DC 5.5/2.1mm
- Output Cable Length: 1.2 meters
- Input Frequency Range: 50- 60Hz
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

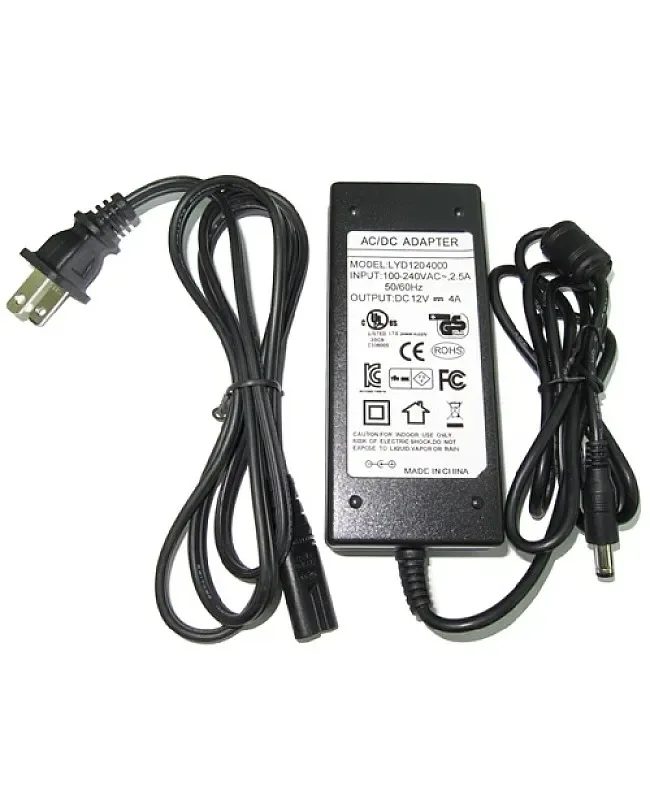

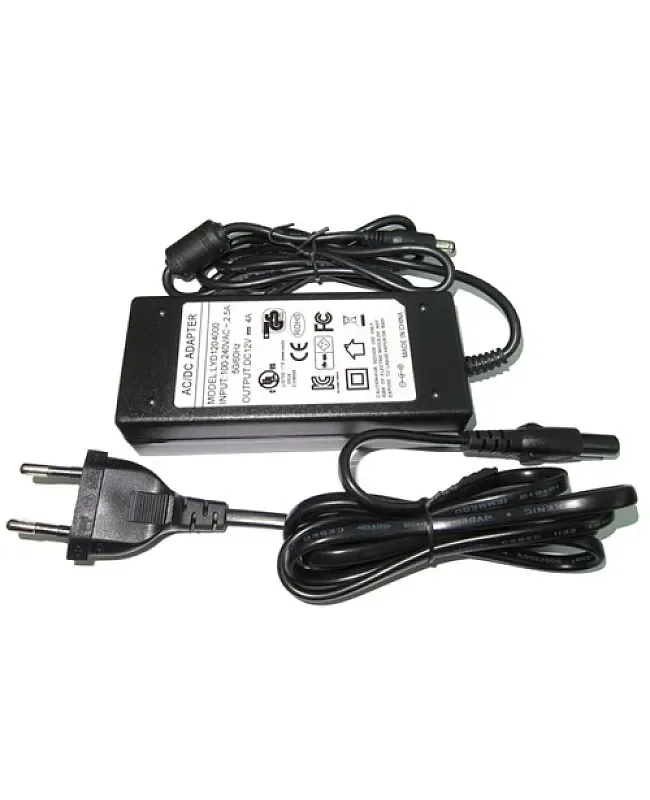

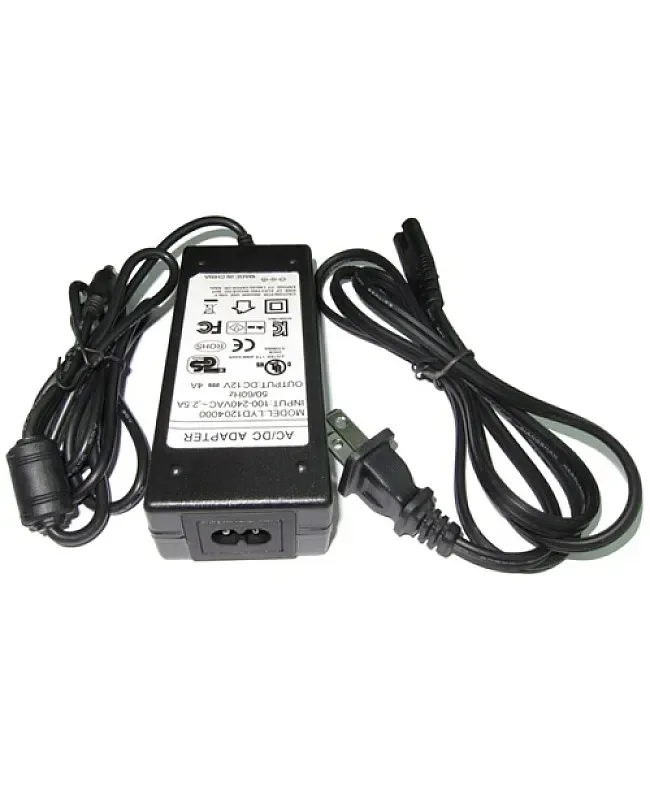

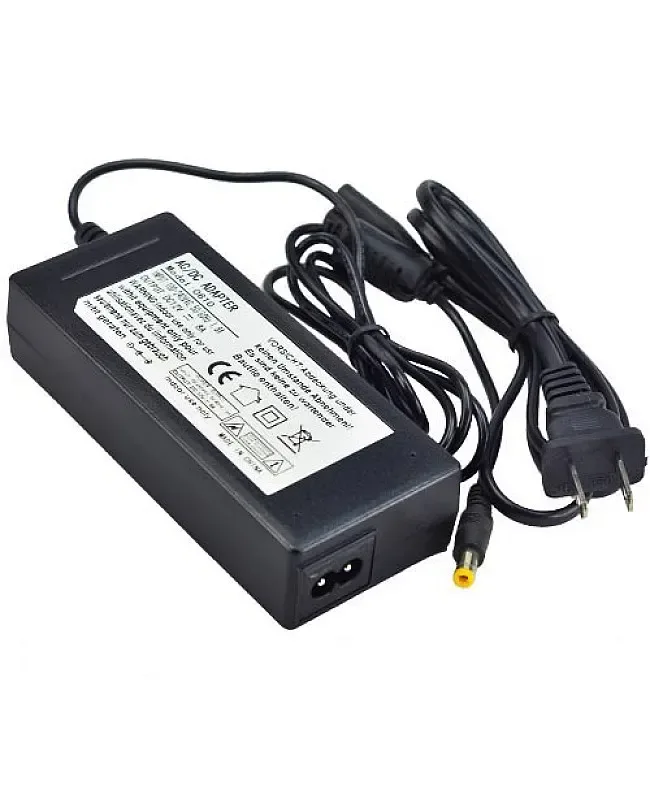

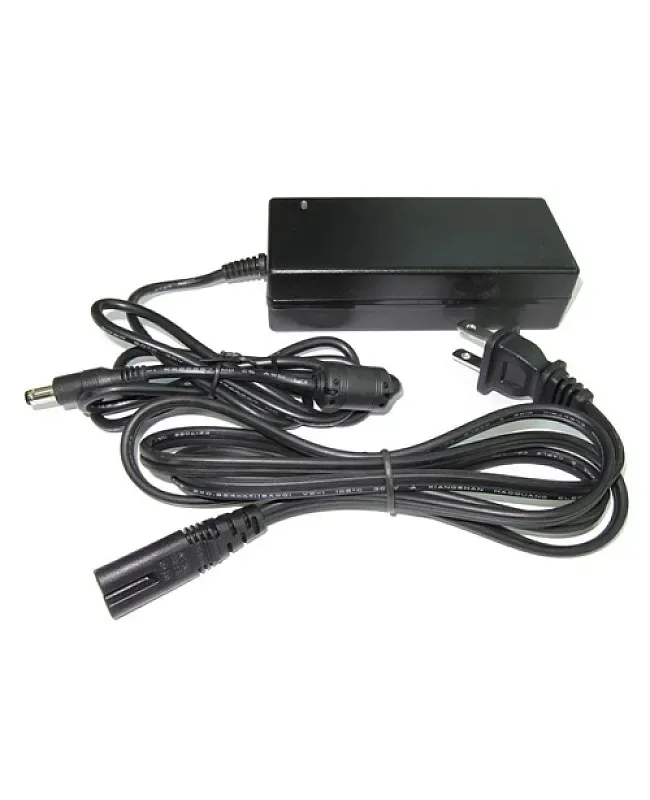

the installer can connect to the public power system without needing an extra adapter, the plug-in power supply for LED, with an input voltage between AC100V and AC240V. There are four types of power plugs available, the installer can choose the UK, USA, AU or EU, the output voltage is DC12V and the max output current is 6A, the installer can connect to the single color LED strips, LED dimmers or LED controllers directly, the LED power supply with multiple protections to ensure it works safety and reliability. The black plastic shell power supply is non-waterproof, only recommended works indoor.
Specifications
Item Type: LED Power Supply
Input Voltage: AC100V-AC240V
Output Voltage: DC12V
Max Output Current: 6A
Max Loading Power: 72W
IP Rating: IP20
Size: 120 mm*50 mm*32 mm
Power Plug: UK, USA, AU, EU
Connectors: DC 5.5/2.1mm
Efficiency: 88%
Output Cable Length: 1.2 meters
Turn-on Delay Time: <
Input Frequency Range: 50- 60Hz
Dimmable: NO
Over-Voltage Protection
Overcurrent Protection
Over Temperature Protection
Overloading Protection
Working Temperature: -20-60℃
1 * IP20 Power Supply For LED
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
