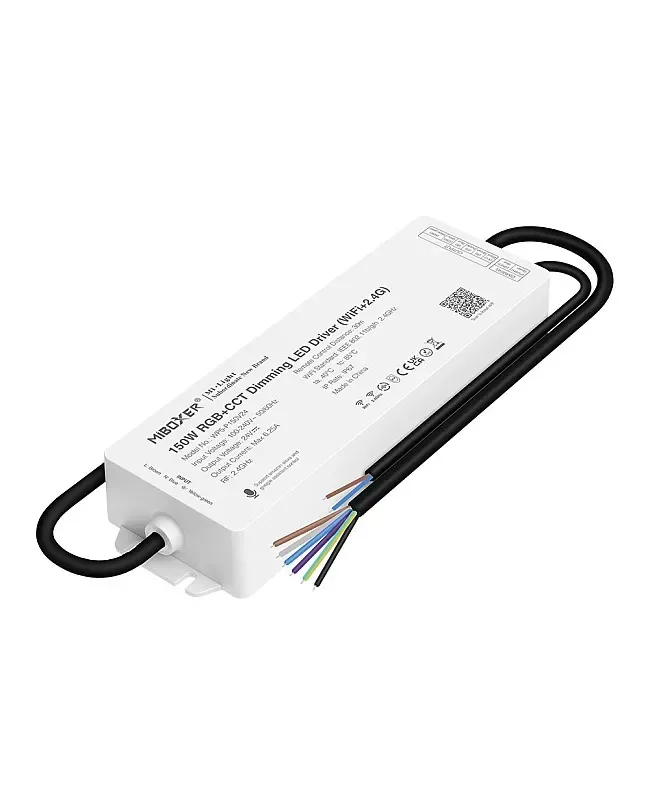

150W IP67 Waterproof 24V LED Driver Dimmable
LumaCircuit offers 150W IP67 Waterproof 24V LED Driver Dimmable as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Type: IP67 Waterproof LED Driver Input Voltage: -240V, 50/60Hz Output Current: Max 6.25A The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller constant voltage LED driver is a high-quality, reliable 5 in 1 LED driver suited to outdoor lighting applications. The installer can use it for single color, dual white, RGB, RGBW, and RGB+CCT LED lights. It's a stable output voltage design with five output channels. There are three versions available: RGB, RGBW, and RGB+CCT, which the installer can use to light up various LED lighting. The LED driver has a waterproof design, and the waterproof level is IP67.
- Type: IP67 Waterproof LED Driver
- Input Voltage: -240V, 50/60Hz
- Output Current: Max 6.25A
- WiFi Standard: IEEE 802.11 b/g/n 2.
- 4G RF Remote Controllable
- Smartphone APP Controllable
- Brightness And Color Temperature Adjustable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 240 V
- LumaCircuit model: LC-PWR-OOKLMP
- Size: 204*73*34.6mm
- Input Voltage: -240V, 50/60Hz
- Output Voltage: DC24V
- Output Current: Max 6.25A
- Max Loading Power: 150W
- Remote Control Distance: ≤30m
- Compatible With Remotes: B, B, B, B, B, W, B, G
- IP Rate: IP67 Waterproof
- Dimensions found: 204x73x34.6mm / 34.6mm / 30m
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

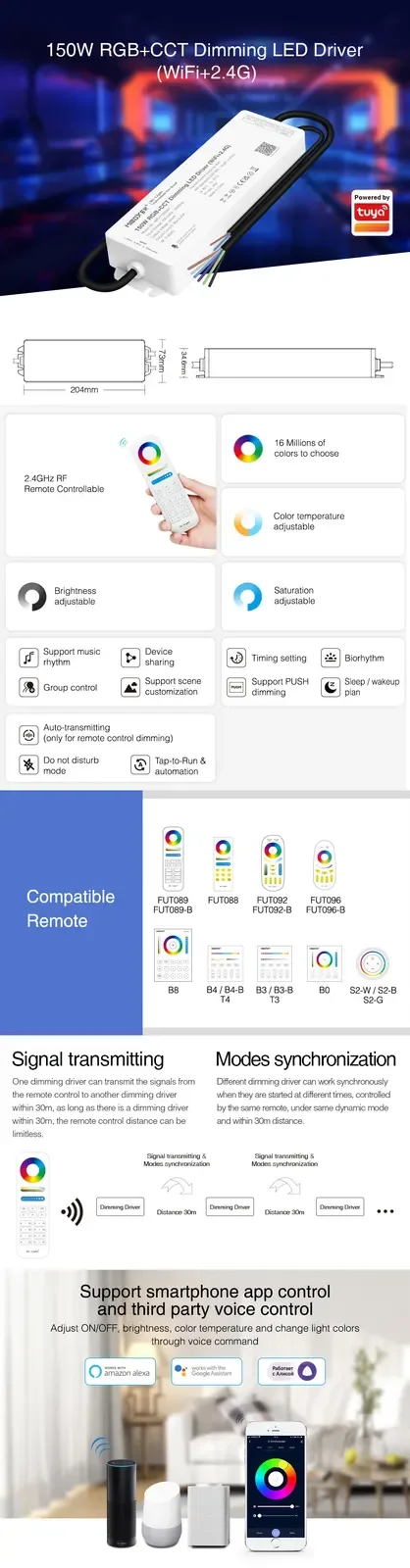

The wireless controller constant voltage LED driver is a high-quality, reliable 5 in 1 LED driver suited to outdoor lighting applications. The installer can use it for single color, dual white, RGB, RGBW, and RGB+CCT LED lights. It's a stable output voltage design with five output channels. There are three versions available: RGB, RGBW, and RGB+CCT, which the installer can use to light up various LED lighting. The LED driver has a waterproof design, and the waterproof level is IP67. The installer can install it in a rainy or humid location for outdoor lighting applications. With 5 output channels designed and a max loading power of 150W, the IP67 LED driver integrates WiFi and 2.4G communication modules and can be controlled by a 2.4G RF remote, smartphone APP, and third-party voice commands. The installer can turn ON/OFF and remotely adjust the brightness, color temperature, and saturation. One IP67 constant voltage LED driver can transmit the signals from the remote control to another LED driver within 30m. Different drivers can work synchronously when they are started at various times, controlled by the same remote, under the same dynamic mode, and within a 30m distance. The remote control distance can be limitless if a driver is within 30m. The wireless controller dimming LED driver can work with Amazon Alexa and Google Assistant.
Specifications
Type: IP67 Waterproof LED Driver
Model

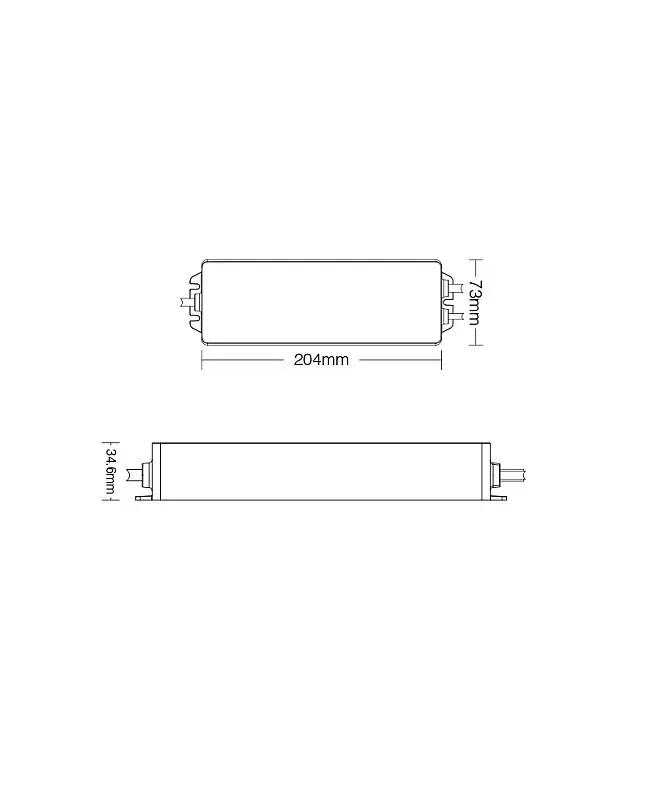

Size: 204*73*34.6mm
Input Voltage: -240V, 50/60Hz
Output Voltage: DC24V
Output Current: Max 6.25A
Max Loading Power: 150W
Built-in Power Adapter
WiFi Standard: IEEE 802.11 b/g/n 2.
RF: 2.
4G RF Remote Controllable
Smartphone APP Controllable
16M Colors To Choose
Brightness And Color Temperature Adjustable
Saturation Adjustable
Remote Control Distance: ≤30m
Compatible With Remotes B, B, B, B, B, W, B, G
Can Work With Amazon Alexa/Google Assistant
IP Rate: IP67 Waterproof
Support Music Rhythm
Group Control
Device Sharing
Support Scene Customization
Timing Setting
Biorhythm
Support PUSH Dimming
Sleep/Wakeup Plan
Auto Signal Transmitting
Do Not Disturb Mode
Tap-To-Run&Automation
Modes Synchronization
Includes
1 * wireless controller 150W Constant Voltage LED Driver
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
