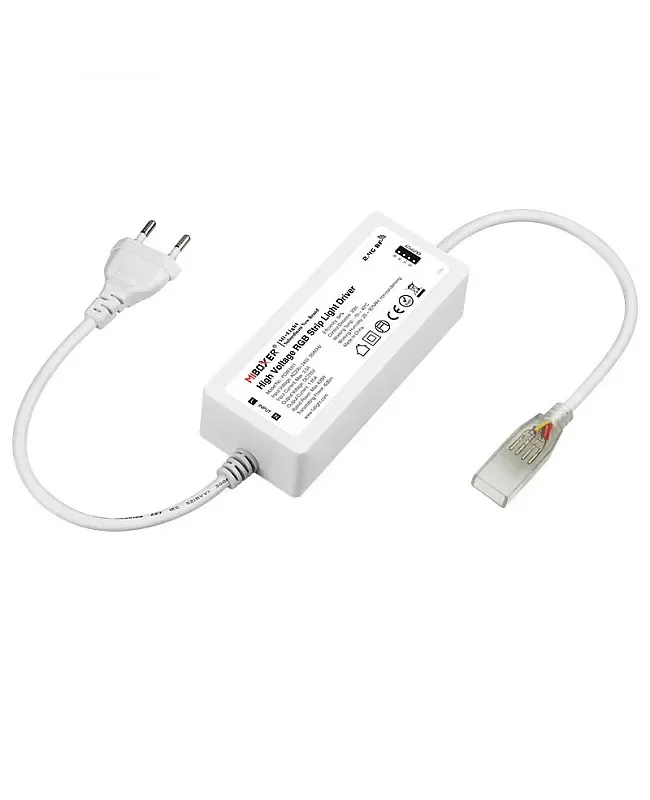

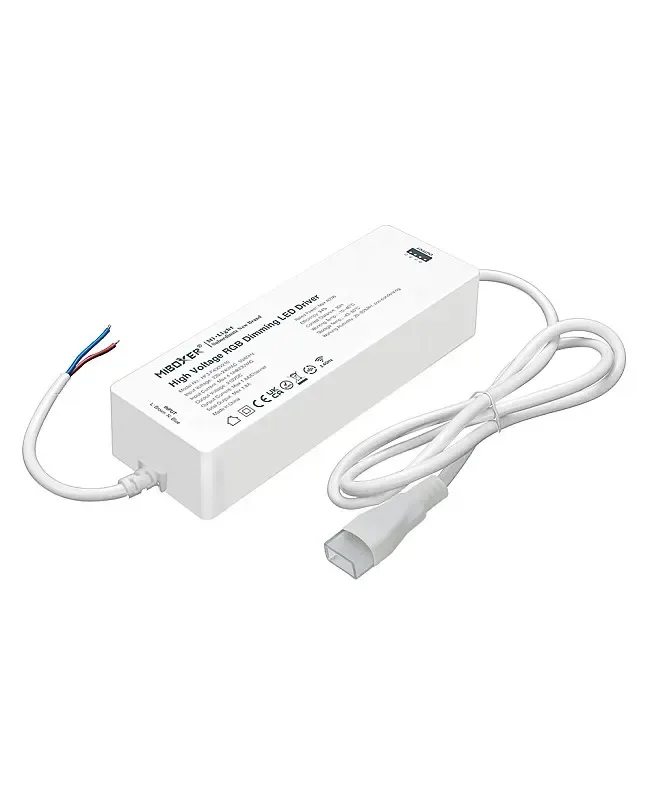

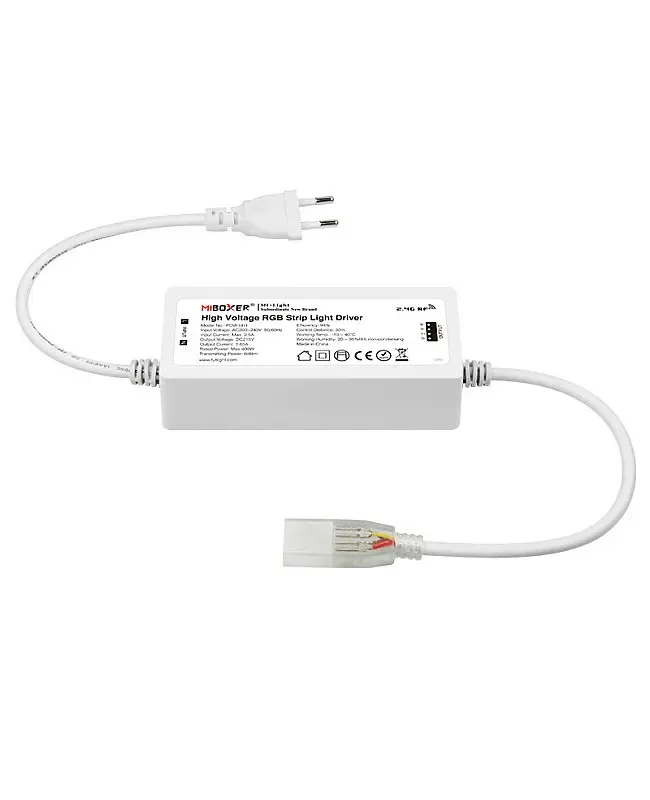

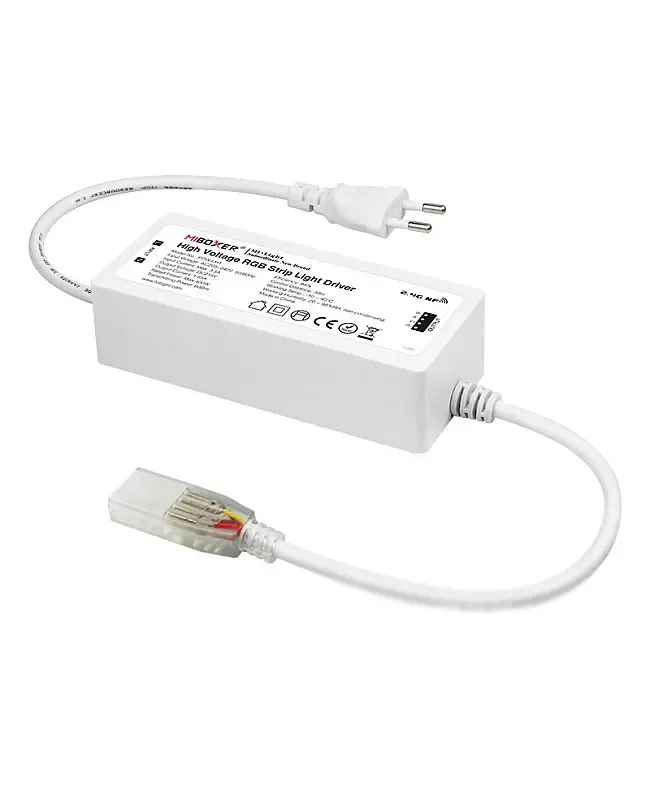

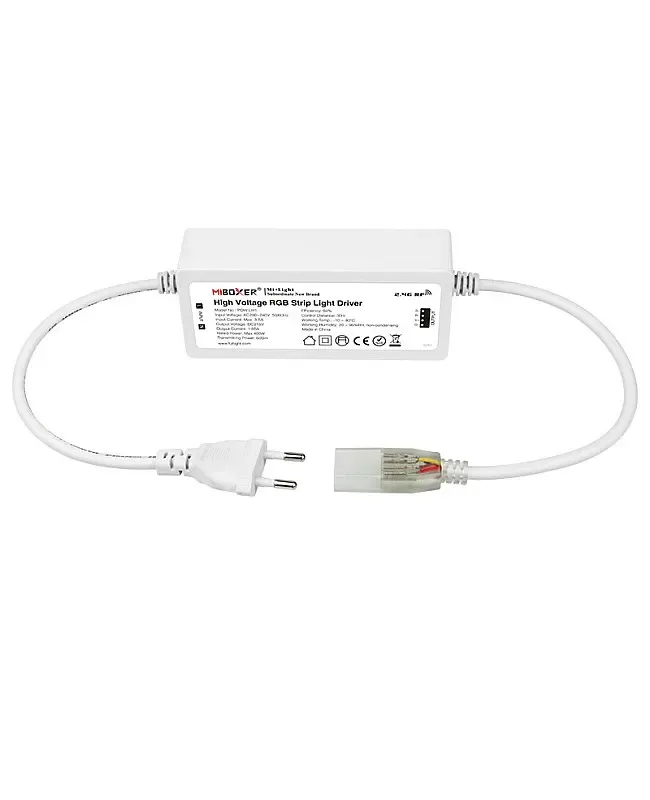

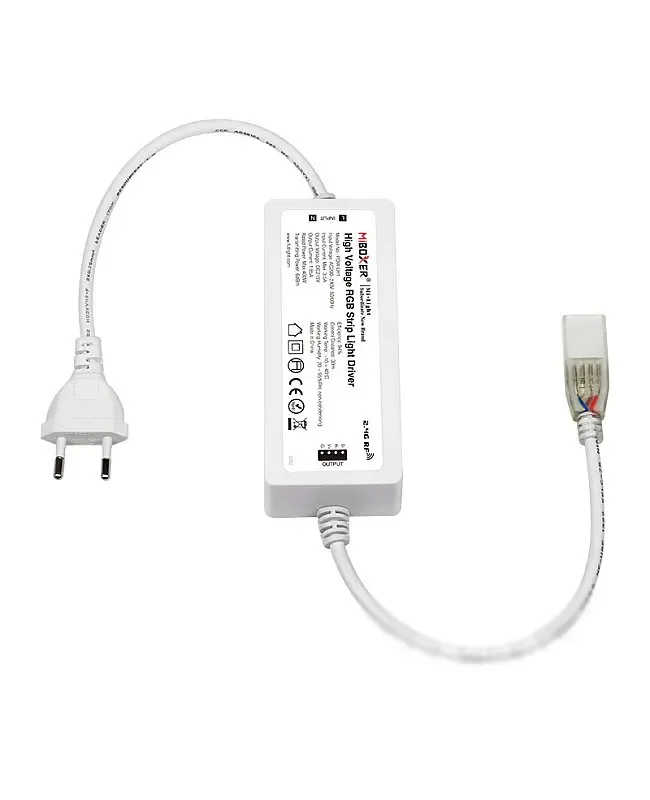

400W High Voltage Dimming LED RGB Drivers
LumaCircuit offers 400W High Voltage Dimming LED RGB Drivers as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Size: 174*59*34.5mm(L*W*H) Input Voltage: -240V, 50/60Hz 16 Million Colors To Choose The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller high voltage dimming LED RGB drivers have a max output wattage of 400W, which adopts 2.4G wireless transfer technology with low power consumption and anti-interference, supports PWM dimming without any flashing, and a built-in power driver that is easy to power on the device and protects LED chips. It can work with high-voltage LED strips, LED lamps, flood Lights, garden Lights, etc.
- Size: 174*59*34.5mm(L*W*H)
- Input Voltage: -240V, 50/60Hz
- 16 Million Colors To Choose
- Color Temperature And Brightness Adjustable
- 4G RF Remote Control T3, T4, WL B, W, G(Sold Separately)
- Switch-Off To Change Colors Function
- Auto Signal Transmitting And Modes Synchronization
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 220-240 V
- Light engine: RGB
- LumaCircuit model: LC-PWR-X4R9CE
- Size: 174*59*34.5mm(L*W*H)
- Input Voltage: -240V, 50/60Hz
- Output Voltage: DC210V
- Total Output: Max 1.9A
- Rated Power: Max 400W
- 2.4G RF Remote Control: T3, T4, WL B, W, G(Sold Separately)
- Control Distance: ≤30m
- Working Humidity: 20- 95% RH, Non-condensing
- Overload Protection: Limited Power
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller high voltage dimming LED RGB drivers have a max output wattage of 400W, which adopts 2.4G wireless transfer technology with low power consumption and anti-interference, supports PWM dimming without any flashing, and a built-in power driver that is easy to power on the device and protects LED chips. It can work with high-voltage LED strips, LED lamps, flood Lights, garden Lights, etc. 2.4 G RF remote controls can control the RGB drivers to turn ON/OFF, select the colors, and adjust the color temperature and brightness for various scenes. The installer can switch OFF and ON, and change the colors and dynamic modes. There are 9 dynamic modes available. The dimmable RGB drivers will receive signals from a remote control and transmit them to another driver within 30 meters. Suppose there is a lighting fixture within 30 meters. In that case, the control distance is limitless, and different lighting fixtures can work synchronously when they are started at various times, controlled by the same remote, under the same dynamic mode, and within a 30m distance. The AC RGB drivers support smartphone apps and third-party voice control after matching to a 2.4G gateway and can work with Amazon Alexa and Google Assistant. The installer can control the LED lights remotely and perform more functions on the app.
Specifications
Model
Size: 174*59*34.5mm(L*W*H)
Input Voltage: -240V, 50/60Hz
Output Voltage: DC210V
Total Output: Max 1.9A
Rated Power: Max 400W
16 Million Colors To Choose
Color Temperature And Brightness Adjustable
Efficiency: 94%
RF: 2.
4G RF Remote Control T3, T4, WL B, W, G(Sold Separately)
Control Distance: ≤30m
Switch-Off To Change Colors Function
Auto Signal Transmitting And Modes Synchronization
Support Smartphone APP And Third-Party Voice Control(2.4G Gateway Needed)
Can Work With Amazon Alexa And Google Assistant(2.4G Gateway Needed)
Working Humidity: 20- 95% RH, Non-condensing
Overload Protection: Limited Power
Working Temperature: -10-40℃
Storage Temperature: -40-80℃
Includes
1 * High Voltage LED RGB Driver
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
