Product details
DC3V 12V 24V Variable Power Supply With Knob Switch
LumaCircuit offers DC3V 12V 24V Variable Power Supply With Knob Switch as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Size: 133*51*47mm(L*W*H) Input Voltage: -240V, 50/60Hz Output Voltage Range: -12V/-24V/-24V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The variable power supply for LED lights, which has 3 type products available, the installer can choose the various output voltage range from DC3V to DC24V, there is a knob switch and LCD on the power supply, the installer can rotate the knob switch to adjust the output voltage and turn off the power conveniently, the LCD will show you the output voltage. Four power plugs are available: US, UK, EU, and AU. The installer can choose the various power plugs and directly connect to the public power system.

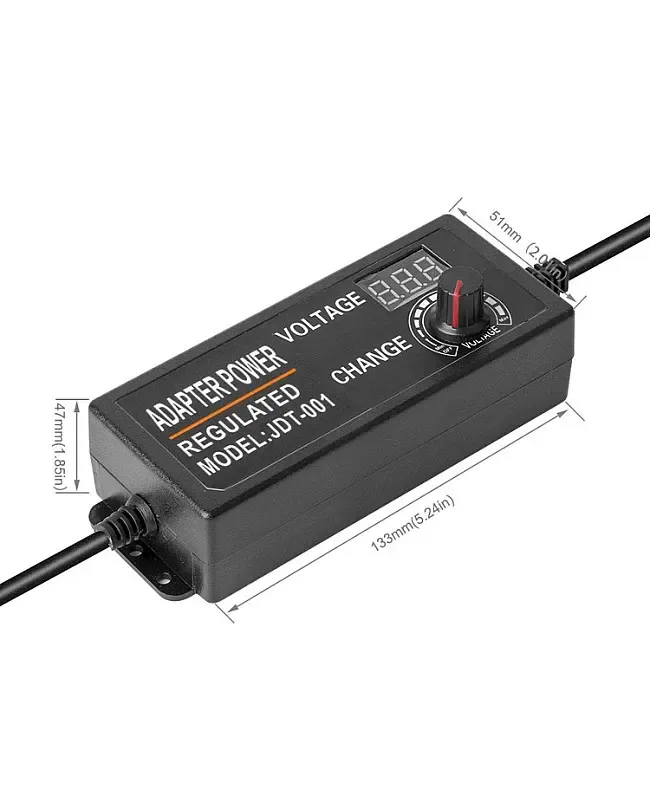

- Size: 133*51*47mm(L*W*H)
- Input Voltage: -240V, 50/60Hz
- Output Voltage Range: -12V/-24V/-24V
- Output Current: 2A, 3A, 5A
- DC Plug Standard: 5.5*2.5mm
- Total Cable Length: 200cm

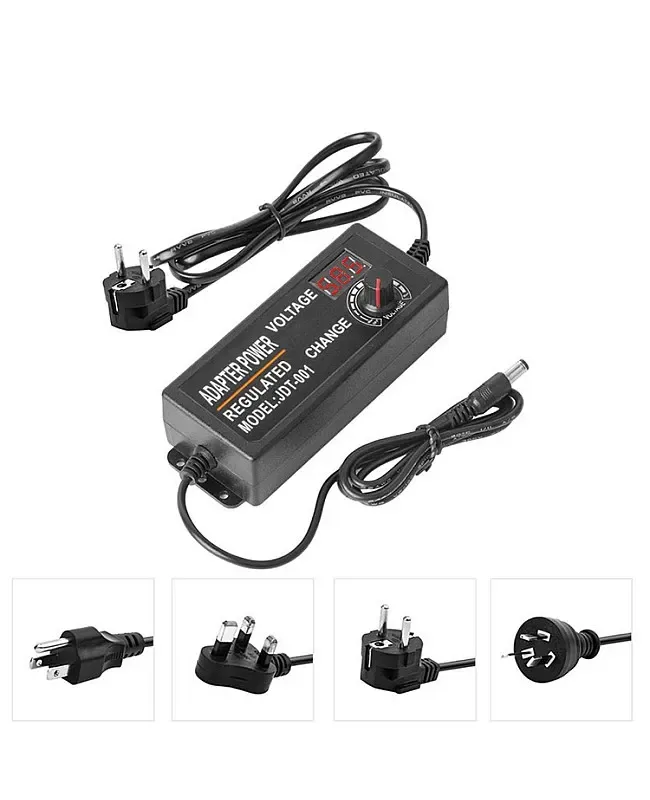

- Power Plug Available: US, UK, EU, AU
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V / 240 V
- LumaCircuit model: LC-PWR-B2NBEZ
- Size: 133*51*47mm(L*W*H)
- Color: Black
- Input Voltage: -240V, 50/60Hz
- Output Voltage Range: -12V/-24V/-24V
- Output Current: 2A, 3A, 5A
- Power Efficiency: 80%
- Total Cable Length: 200cm
- Power Plug Available: US, UK, EU, AU
- Working Temperature: 0-40℃
- Storage Temperature: -20℃-+60℃
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The variable power supply for LED lights, which has 3 type products available, the installer can choose the various output voltage range from DC3V to DC24V, there is a knob switch and LCD on the power supply, the installer can rotate the knob switch to adjust the output voltage and turn off the power conveniently, the LCD will show you the output voltage. Four power plugs are available: US, UK, EU, and AU. The installer can choose the various power plugs and directly connect to the public power system. The adjustable power supply has multiple protections to ensure safety and reliability. The installer can use them for TFT monitors, TV boxes, routers, hard disks, LED strips, etc.
Specifications
Model
Size: 133*51*47mm(L*W*H)
Color: Black
Input Voltage: -240V, 50/60Hz
Output Voltage Range: -12V/-24V/-24V
Output Current: 2A, 3A, 5A
Power Efficiency: 80%
DC Plug Standard: 5.5*2.5mm
Total Cable Length: 200cm
Power Plug Available: US, UK, EU, AU

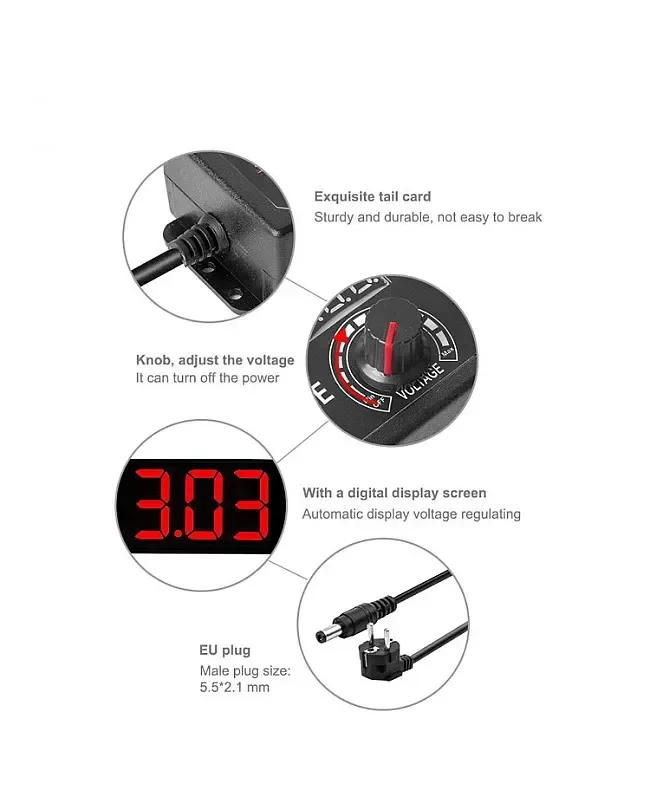

LCD Display
With Knob Switch To Adjust The Output Voltage

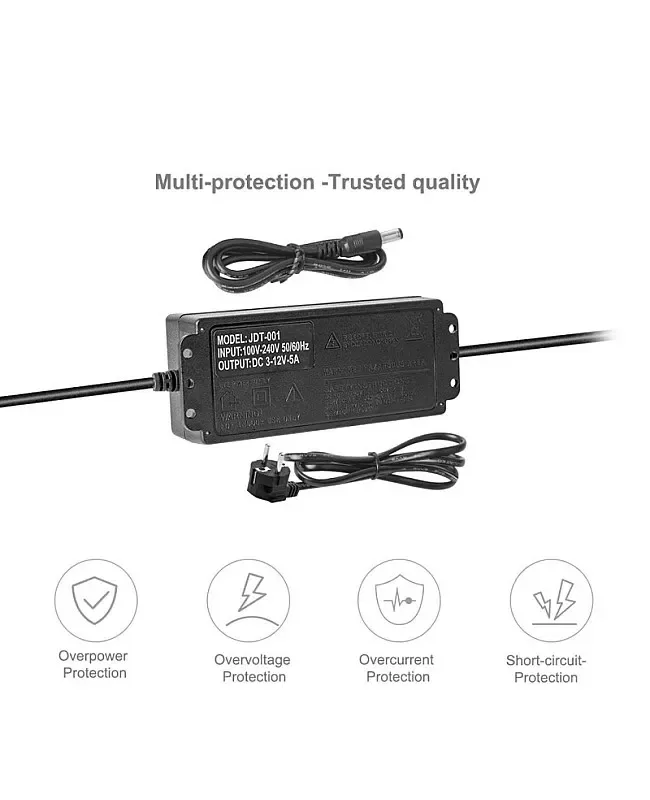

Over-Voltage Protection
Overcurrent Protection
Short Circuit Protection
Over Temperature Protection
Grounded Protection
Electromagnetic Wave Protection
Working Temperature: 0-40℃
Storage Temperature: -20℃-+60℃
Includes
1 * Variable Power Supply With Knob Switch
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
