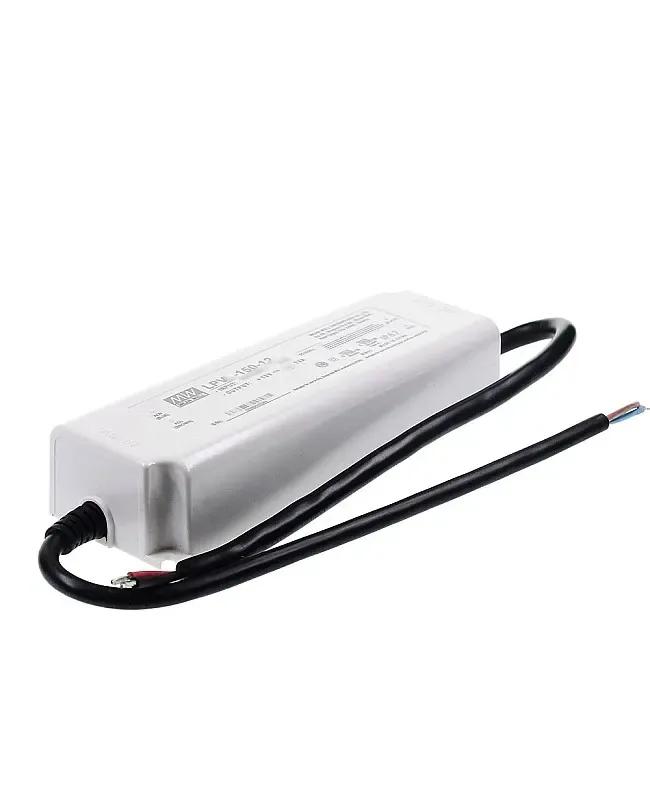

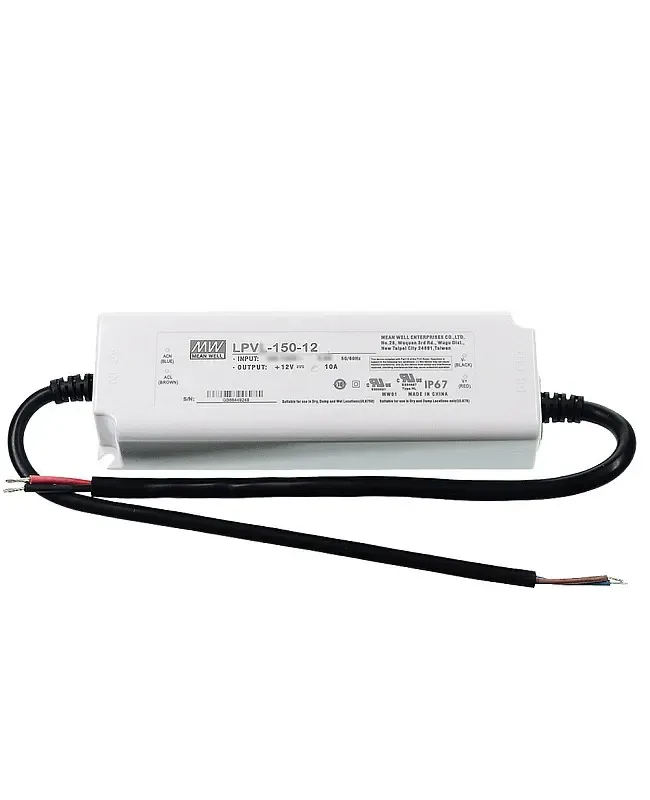

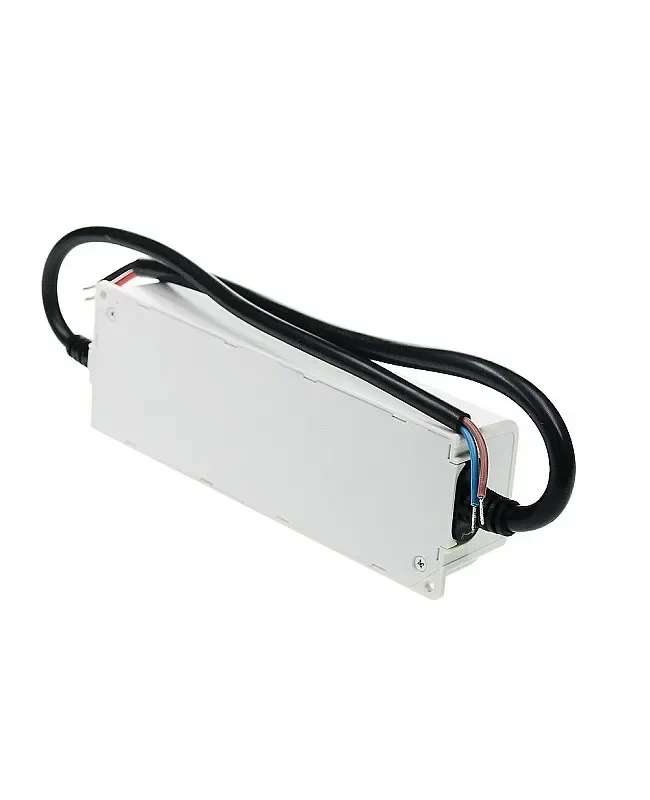

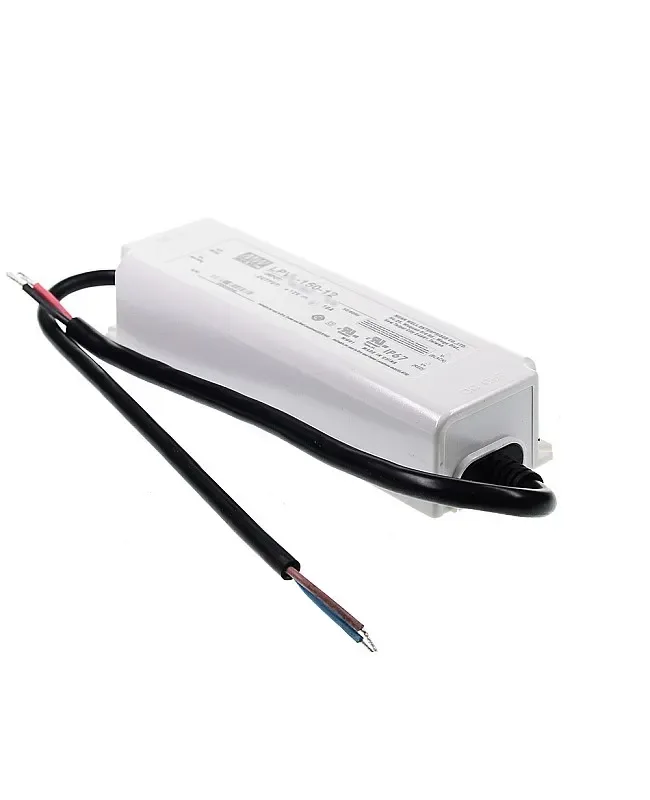

DC Power Supply LPV 150 LPVL 150 Waterproof
LumaCircuit offers DC Power Supply LPV 150 LPVL 150 Waterproof as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Class II Power Unit, no FG Fully Isolated Plastic Case Fanless Design, Cooling By Free Air Convection The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Fully Encapsulated With IP67 Waterproof Level
- Class II Power Unit, no FG
- Fully Isolated Plastic Case
- Fanless Design, Cooling By Free Air Convection
- 100% Full Load Burn-in Test
- Low Cost, High Reliability
- Size: 191*63*37.5mm(L*W*H)
- Input Voltage: 180 90-(LPVL-150)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 5 V / 24 V / 36 V / 48 V
- LumaCircuit model: LC-PWR-XBSP1F
- Size: 191*63*37.5mm(L*W*H)
- Input Voltage: 180 90-(LPVL-150)
- Output Voltage: DC12V, DC15V, DC24V, DC36V, DC48V
- Rated Current: 10A(12V), 8A(15V), 6.3A(24V), 4.2A(36V), 3.2A(48V)
- Rated Power: 120W(12V), 120W(15V), 151.2W(24V), 151.2W(36V), 153.6W(48V)
- Frequency Range: 47- 63Hz
- AC Current: 1.7A 1.5A
- Working Temperature: -25-65℃
- Working Humidity: 20-90% RH Non-condensing
- Dimensions found: 191x63x37.5mm / 37.5mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Constant Voltage Design
Fully Encapsulated With IP67 Waterproof Level
Class II Power Unit, no FG
Fully Isolated Plastic Case
Fanless Design, Cooling By Free Air Convection
100% Full Load Burn-in Test
Low Cost, High Reliability

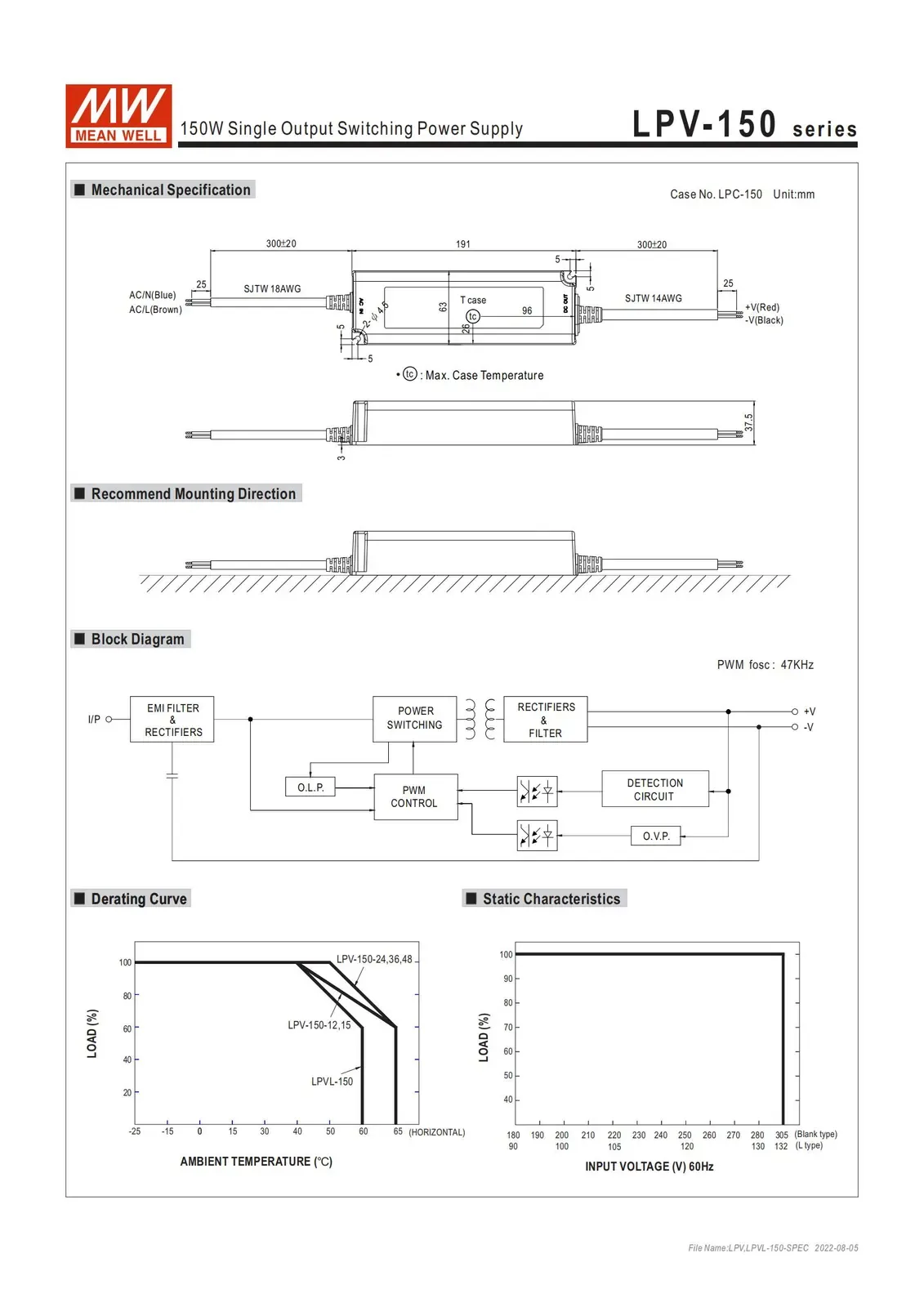

Link: LPVL-150 Manual
Specifications
Model: LPVL-150
Size: 191*63*37.5mm(L*W*H)
Input Voltage: 180 90-(LPVL-150)
Output Voltage: DC12V, DC15V, DC24V, DC36V, DC48V
Rated Current: 10A(12V), 8A(15V), 6.3A(24V), 4.2A(36V), 3.2A(48V)
Rated Power: 120W(12V), 120W(15V), 151.2W(24V), 151.2W(36V), 153.6W(48V)
Setup, Rise Time
Hold Up Time At Full Load
Frequency Range: 47- 63Hz
Efficiency: 87%(12V), 88%(15V), 89%(24V), 89%(36V), 90%(48V)
AC Current: 1.7A 1.5A
Working Temperature: -25-65℃
Working Humidity: 20-90% RH Non-condensing
Vibration: 10-500Hz, 2G./1 cycle, Period For each Along X, Y, Z axes
Safety Standards CSA.2 No.250.13-12, CSA.2 No.207 BIS IS 15885(For -12, 24 Only), EAC TP TC 004, IP67, -1, BS EN/-1 Approved
Overload Protection
Overvoltage Protection
Short Circuit Protection
Over Temperature Protection
Includes
1 * 150W DC Power Supply
