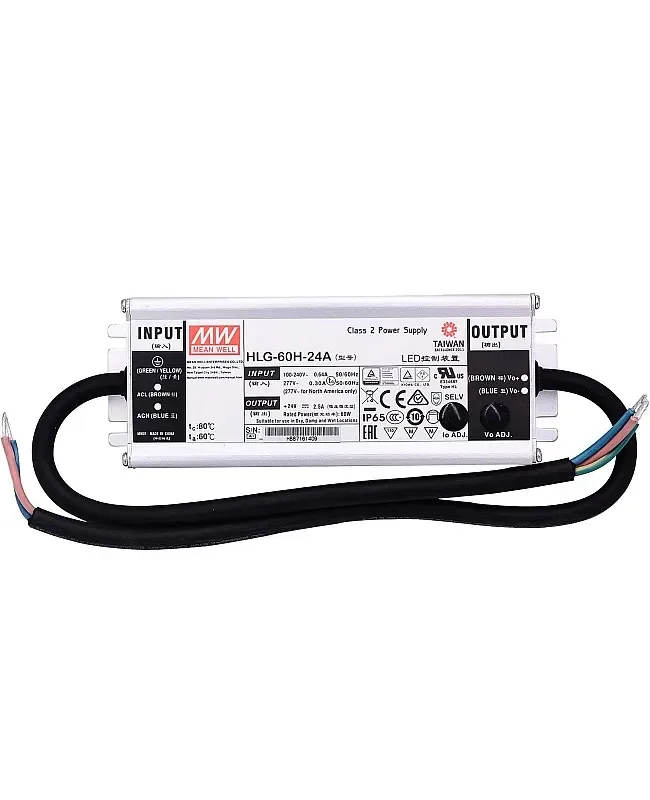

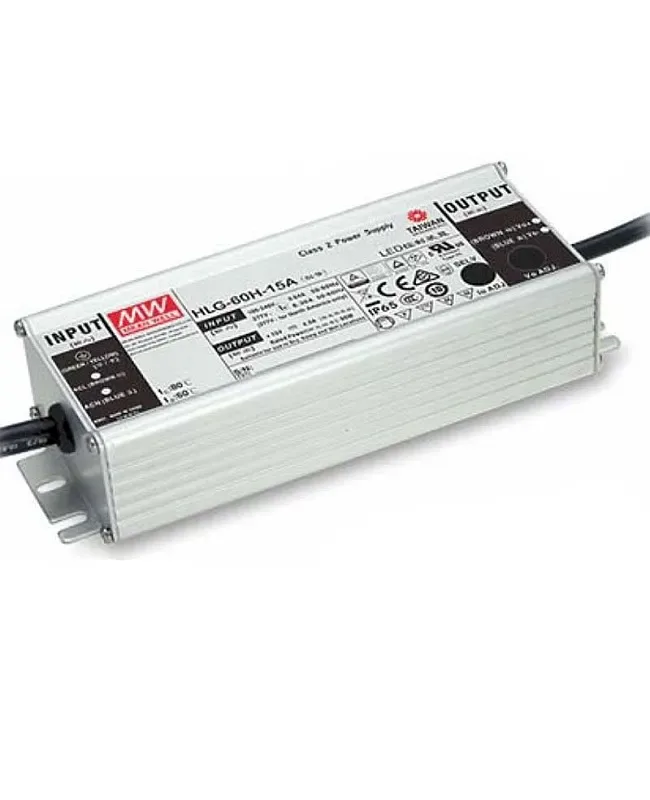

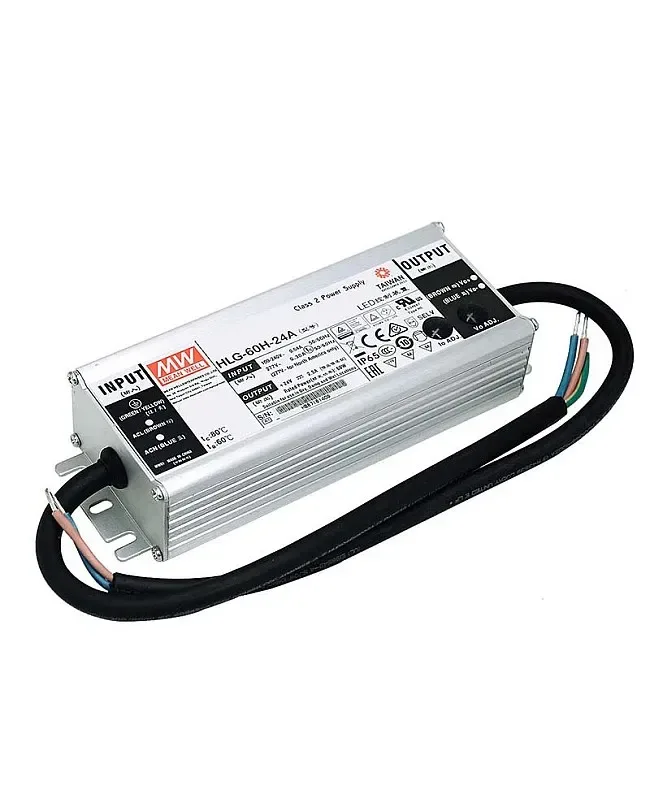

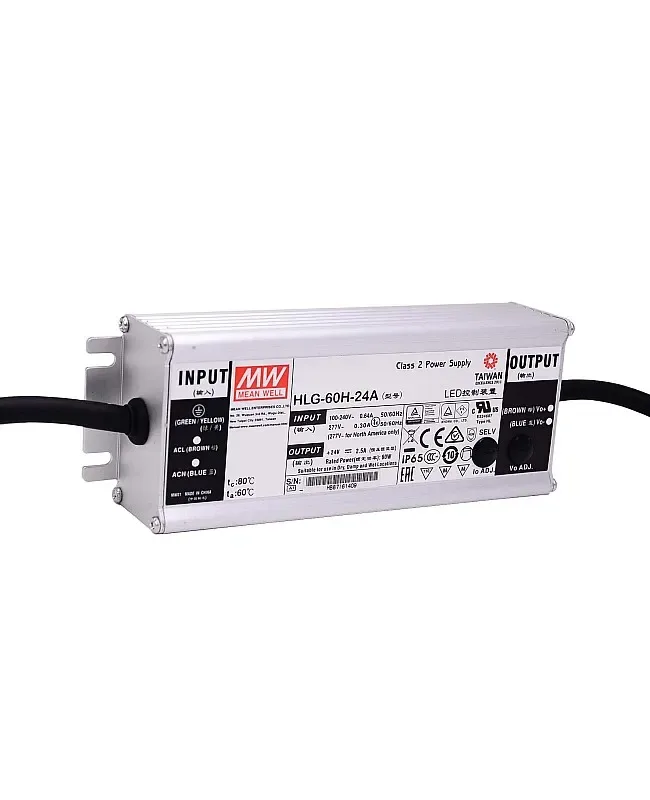

HLG LED Lighting Power Supply

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The Series waterproof LED lighting power supply, which was enclosed in a metal housing and has a class I design, has a waterproof level that can reach IP65 IP67. The installer can use them in dry, damp, or wet locations for indoor or outdoor applications. Five types of LED power supplies are available: the A and AB with output voltage and output current adjustable through the potentiometer, the B, AB, and D Types with dimming function.
• Constant Voltage + Constant Current Mode Output
• Metal Housing With Class I Design
• Built-in Active PFC Function
• IP65 IP67 Rating For Indoor Or Outdoor Installations
• Function Options: Output Adjustable Via Potentiometer; 3 In 1 Dimming; Timer Dimming
• Applications: LED Street Lights, High-Bay Lighting, Parking Space Light, Fishing Lamps, Greenhouse Lighting
• Size: 171*61.5*36.8mm(L*W*H)

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 5 V / 24 V / 36 V / 48 V
• LumaCircuit model: LC-PWR-A5PX3S
• Size: 171*61.5*36.8mm(L*W*H)
• Input Voltage Range: 90
• Frequency Range: 47- 63Hz
• Power Factor: PF≥0.98 PF≥0.95 PF≥0.92
• AC Current: 0.64A 0.32A 0.3A
• Output Voltage: DC15V, DC20V, DC24V, DC30V, DC36V, DC42V, DC48V, DC54V
• Rated Current: 4A(DC15V), 3A(DC20V), 2.5A(DC24V), 2A(DC30V), 1.7A(DC36V), 1.45A(DC42V), 1.3A(DC48V), 1.15A(DC54V)
• Rated Power: 60W(DC15V), 60W(DC20V), 60W(DC24V), 60W(DC30V), 61.2W(DC36V), 60.9W(DC42V), 62.4W(DC48V), 62.1W(DC54V)
• Working Temperature: -40℃-+80℃
• Applications: LED Street Lights, High-Bay Lighting, Parking Space Light, Fishing Lamps, Greenhouse Lighting

Control and installation

Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.

Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The Series waterproof LED lighting power supply, which was enclosed in a metal housing and has a class I design, has a waterproof level that can reach IP65 IP67. The installer can use them in dry, damp, or wet locations for indoor or outdoor applications. Five types of LED power supplies are available: the A and AB with output voltage and output current adjustable through the potentiometer, the B, AB, and D Types with dimming function. The input voltage ranges from AC90V to AC305V and offers modes with different rated voltage ratings from DC15V to DC54V. The installer can choose the various products for your LED lights. Thanks to the high-efficiency rate up to 90.5%, with fanless design, the HLG lighting power supplies can operate for -40℃ to 80℃ case temperature under free air convection. The installer can use the power supplies for the outdoor LED lights, street lamps, high-bay lights, waterproof fishing lamp, greenhouse lights, etc.

Constant Voltage + Constant Current Mode Output

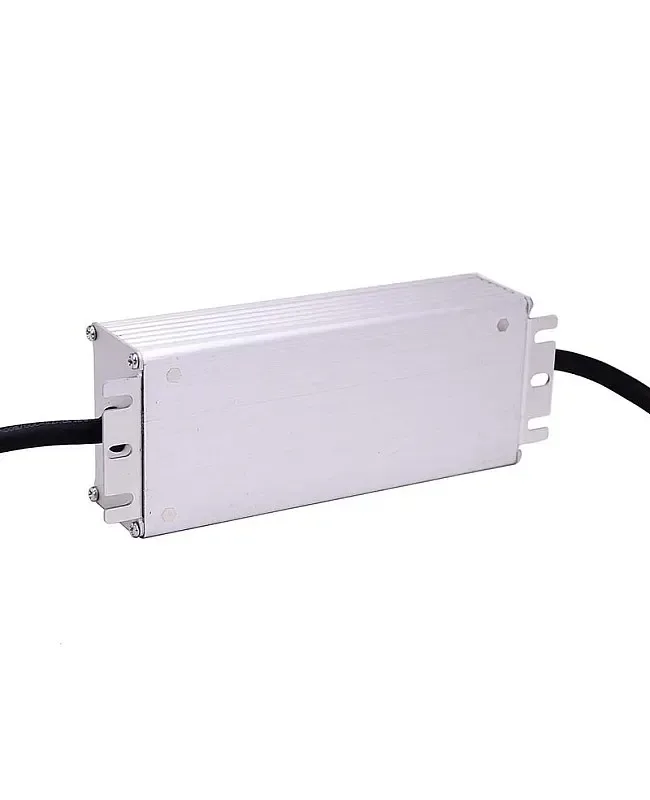

Metal Housing With Class I Design

Built-in Active PFC Function

Class 2 Power Unit

IP65 IP67 Rating For Indoor Or Outdoor Installations

Function Options: Output Adjustable Via Potentiometer; 3 In 1 Dimming; Timer Dimming

Applications: LED Street Lights, High-Bay Lighting, Parking Space Light, Fishing Lamps, Greenhouse Lighting

Quick Links

Specifications

Model

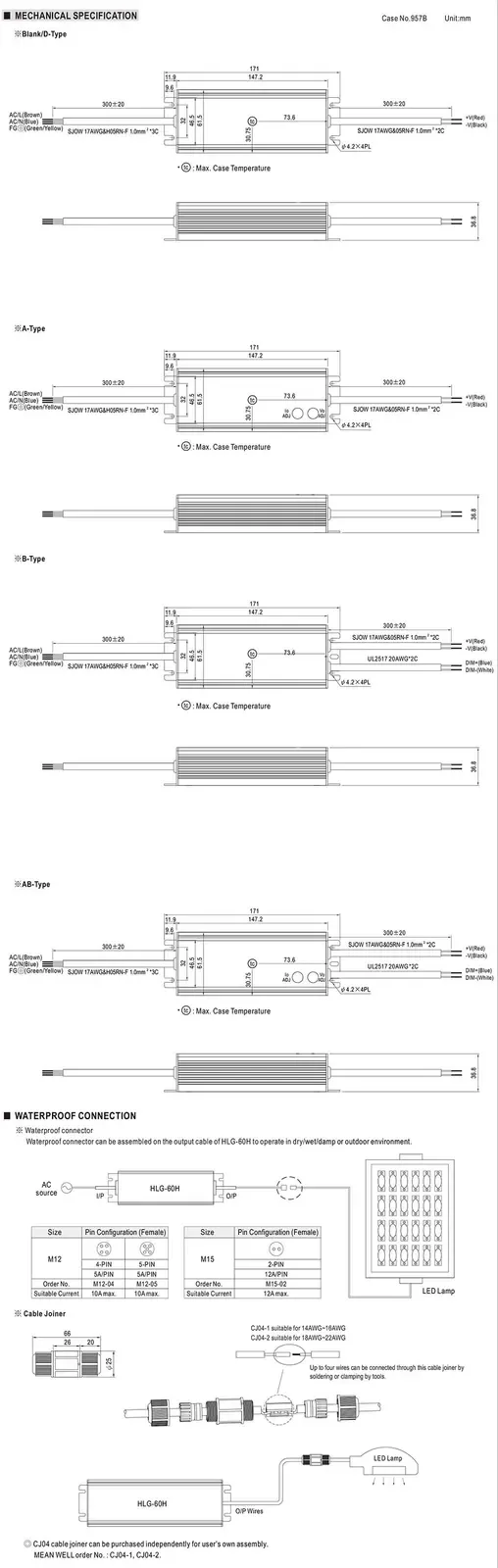

Size: 171*61.5*36.8mm(L*W*H)

Blank: IP67 Waterproof Level, Voltage, And Current Fixed

A: IP65 Waterproof Level, Voltage, And Current Adjustable Through Built-in Potentiometer

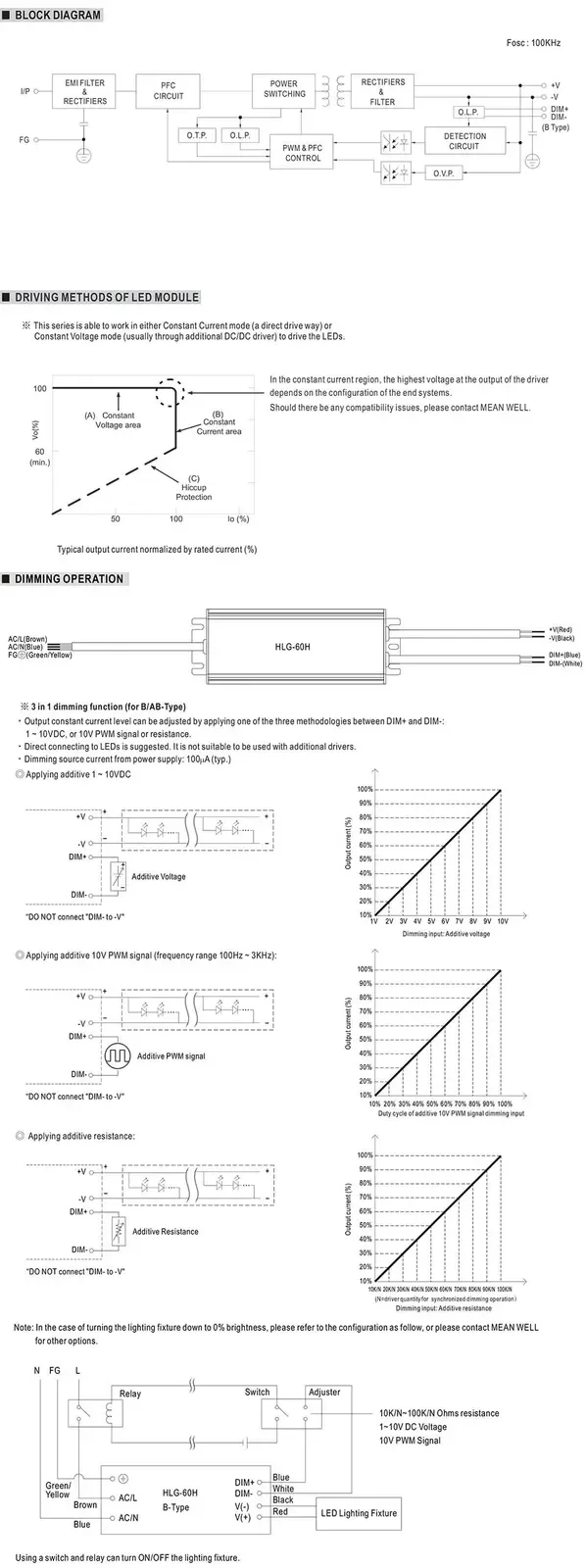

B: IP67 Waterproof Level, 3 In 1 Dimming Function(1 10V PWM Signal And Resistance)

AB: IP65 Waterproof Level, Voltage And Current Adjustable Through Built-in Potentiometer & 3 In 1 Dimming Function(1 10V PWM Signal And Resistance)

D: IP67 Waterproof Level, Timer Dimming Function

Input Voltage Range: 90

Frequency Range: 47- 63Hz

Power Factor: PF≥0.98 PF≥0.95 PF≥0.92

Efficiency: 87.5%(DC15V), 89%(DC20V), 89.5%(DC24V), 90%(DC30V), 90%(DC36V), 90%(DC42V), 90.5%(DC48V), 90.5%(DC54V)

AC Current: 0.64A 0.32A 0.3A

Output Voltage: DC15V, DC20V, DC24V, DC30V, DC36V, DC42V, DC48V, DC54V

Rated Current: 4A(DC15V), 3A(DC20V), 2.5A(DC24V), 2A(DC30V), 1.7A(DC36V), 1.45A(DC42V), 1.3A(DC48V), 1.15A(DC54V)

Rated Power: 60W(DC15V), 60W(DC20V), 60W(DC24V), 60W(DC30V), 61.2W(DC36V), 60.9W(DC42V), 62.4W(DC48V), 62.1W(DC54V)

Current Adjustable Range(For A/AB Type Only Via Built-in Potentiometer): 2.4-4A(DC15V), 1.8-3A(DC20V), 1.5-2.5A(DC24V), 1.2-2A(DC30V), 1-1.7A(DC36V), 0.87-1.45A(DC42V), 0.78-1.3A(DC48V), 0.69-1.15A(DC54V)

Voltage Adjustable Range( For A/AB Type Only Via Built-in Potentiometer): 13.5-17V(DC15V), 17-22V(DC20V), 22-27V(DC24V), 27-33V(DC30V), 33-40V(DC36V), 40-46V(DC42V), 44-53V(DC48V), 49-58V(DC54V)

Working Temperature: -40℃-+80℃

Vibration: 10-500Hz, 5G period for each along X, Y, Z axes

Safety Standards: (Type "HL"), CSA.2 No.250.0-08, EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13 Independent,1,14, EAC TP TC 004, -2-13(Except For AB-Type), IP67 Or IP65 Approved

Short Circuit Protection

Over-Voltage Protection

Over Temperature Protection

Includes

1 * LED Lighting Power Supply
