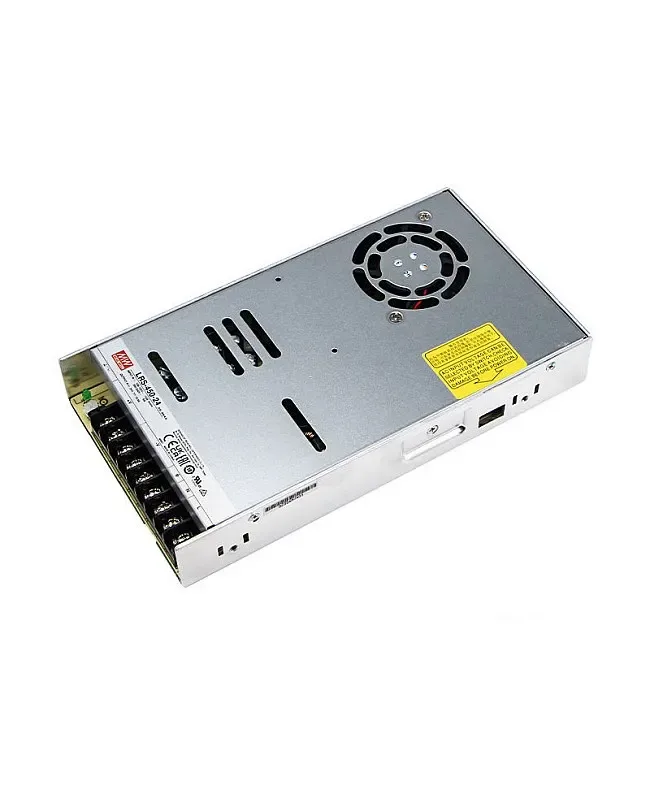

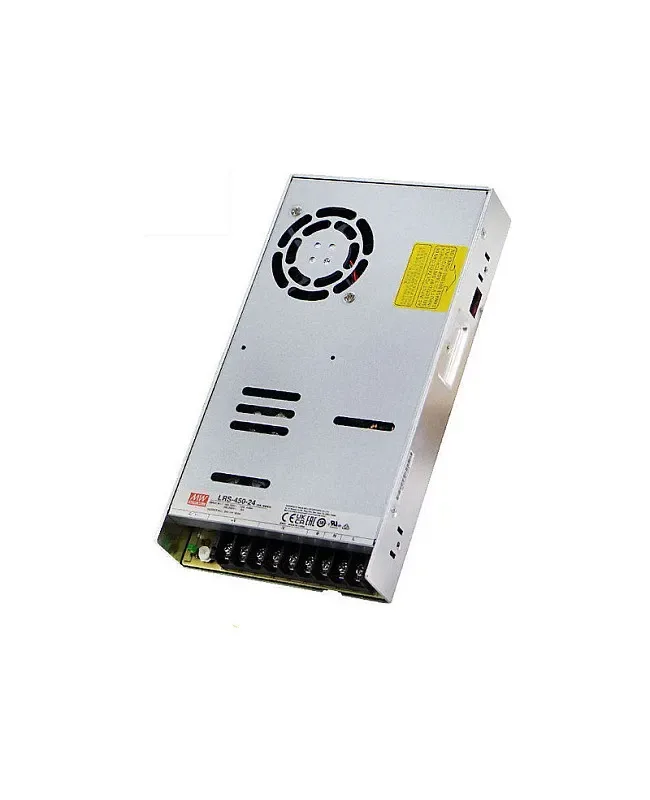

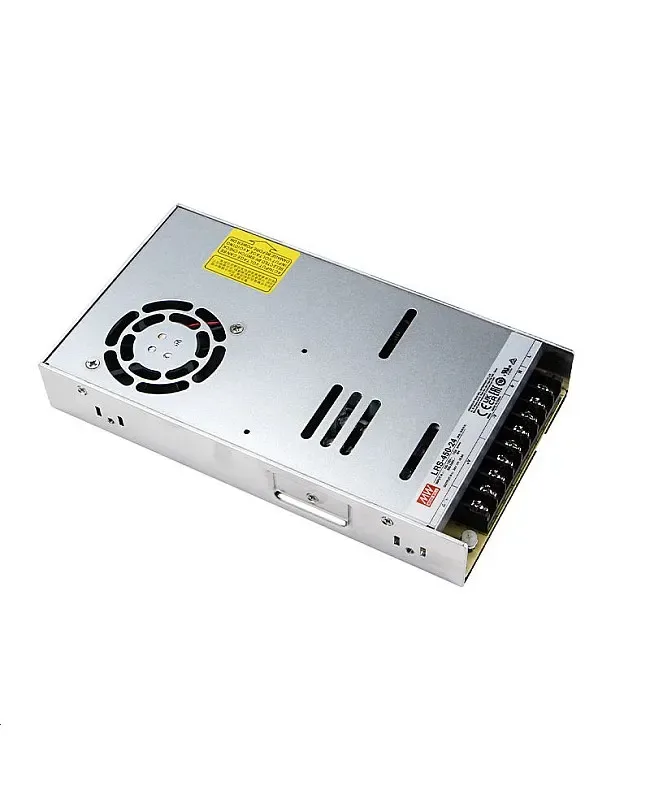

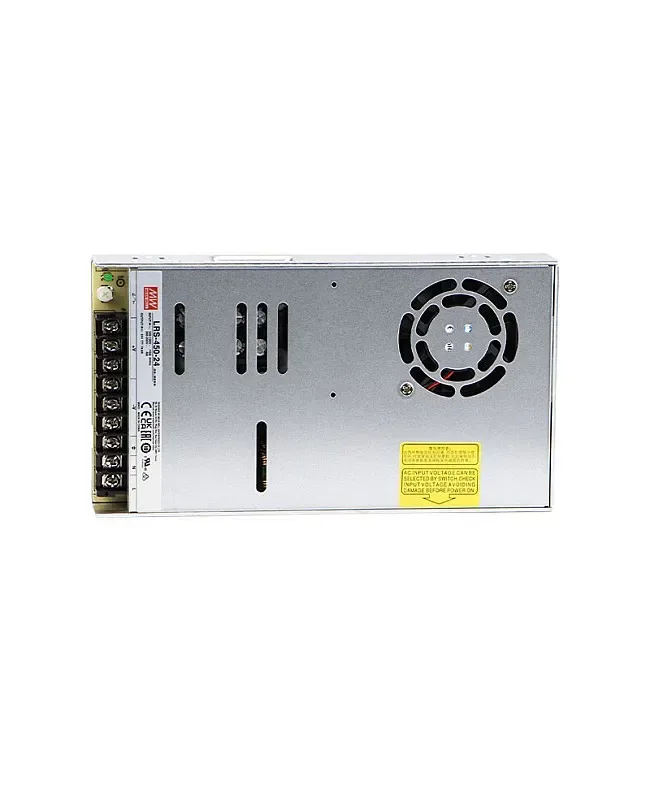

LRS 450 12V Power Supply
LumaCircuit offers LRS 450 12V Power Supply as a configurable LED driver or power supply for project builds. Typical applications include Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. AC Input Range Selectable By Switch Withstand Surge Input for 5 seconds Built-in Cooling Fan ON-OFF Control The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The power supply is a 450W lighting driver with a 35mm low-profile design. A switch on the side of the power supply can select the input voltage of or The power supplies provide an output voltage line of 5V, 12V, 15V, 24V, 36V, and 48V. With a high efficiency of up to 92% and a built-in long-life fan, it can work from -20℃ to +70℃ with a full load has complete protection functions and 5G anti-vibration capability.
- AC Input Range Selectable By Switch
- Withstand Surge Input for 5 seconds
- Built-in Cooling Fan ON-OFF Control
- Withstand 5G Vibration Test
- High Operating Temperature Up To 70℃
- Operating Altitude Up To 5000 Meters
- Type: Single Output Switching Power Supply
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V / 48 V / 5 V
- Models: -12 / -24 / -48
- Size: 225*124*35mm(L*W*H)
- Output Voltage: DC12V DC24V DC48V
- Rated Current: 37.5A(12V) / 18.8A(24V) / 9.4A(48V)
- Current Range: 0-37.5A(12V) / 0-18.8A(24V) / 0-9.4A(48V)
- Rated Power: 450W(12V) / 451.2W(24V) /451.2W(48V)
- Voltage Range: 90- / 180- By Switch
- Frequency Range: 47- 63Hz
- AC Current: 10A 6A
- Inrush Current: 35A 60A
- Leakage Current: <
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The power supply is a 450W lighting driver with a 35mm low-profile design. A switch on the side of the power supply can select the input voltage of or The power supplies provide an output voltage line of 5V, 12V, 15V, 24V, 36V, and 48V. With a high efficiency of up to 92% and a built-in long-life fan, it can work from -20℃ to +70℃ with a full load has complete protection functions and 5G anti-vibration capability. It complies with international safety regulations and is a high-performance-to-price power supply solution for various industrial applications. The installer can use it to power up RGBW LED tape lights for large lighting projects.
AC Input Range Selectable By Switch
Withstand Surge Input for 5 seconds
Forced Air Cooling
Built-in Cooling Fan ON-OFF Control
Low Profile
Withstand 5G Vibration Test
High Operating Temperature Up To 70℃
Operating Altitude Up To 5000 Meters
MTBF> Hrs
Specifications
Type: Single Output Switching Power Supply
Models: -12 / -24 / -48
Size: 225*124*35mm(L*W*H)
Output Voltage: DC12V DC24V DC48V
Rated Current: 37.5A(12V) / 18.8A(24V) / 9.4A(48V)
Current Range: 0-37.5A(12V) / 0-18.8A(24V) / 0-9.4A(48V)
Rated Power: 450W(12V) / 451.2W(24V) /451.2W(48V)
Setup Rise Time At Full Load
Hold Up Time At Full Load
Voltage Range: 90- / 180- By Switch
Frequency Range: 47- 63Hz
Efficiency: 90%(12V)/ 91%(24V) /92%(48V)
AC Current: 10A 6A
Inrush Current: 35A 60A
Leakage Current: <
Working Temp: -20-+70℃(Refer to " Derating Curve")
Working Humidity: 20-90% RH non-condensing
Storage Temp, Humidity: -40-+85℃, 10-95% RH
Vibration: 10-500Hz, 5G each along X, Y, Z axes
Safety Standards: BS IEC/-1. EAC TP TC 004, -1(Except For 5V), BIS IS 13252:2010/-1:2005(NOTE 13), BSMI CNS 15598-1, GB 4943.1, BS EN/-1, BS EN/-2-16 Approved, Designed by AS/NZS 61558.1/2.16, AS/NZS 62368.1
Withstand Voltage: I/P-O/P: 3., I/P-FG O/P-FG:0.
Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M ohms/ /25℃/70%RH
Over-load Protection
Over-voltage Protection
Over-temperature Protection
Short-circuit Protection
Applications: Industrial automation machinery Industrial control system Mechanical and electrical equipment Electronic instruments, equipment or apparatus
Includes
1 * Power Supply
Typical applications
- Recessed and surface channels
- Cabinet and furniture integration
- Linear fixture BOMs
