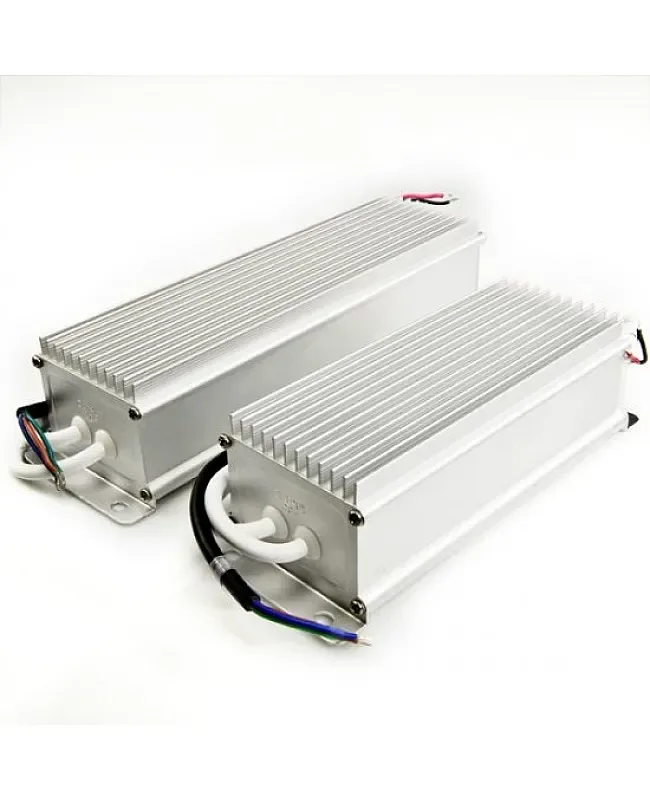

Waterproof DC12V LED Power Supply
LumaCircuit offers Waterproof DC12V LED Power Supply as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Item Type: LED Power Supply Input Voltage: AC100V-AC240V Size: 135 mm*29 mm*20 mm The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The DC12V waterproof LED power supply works in DC12V, with a max output wattage of 60 watts. It has a full-range AC input and a waterproof level of IP67. It has CC/CV Mode, a high PFC function, and PF>0.9 for 70-100% load short circuit, overload, and over-voltage protection. The lighting proof level is differential mode 4 kV and common-mode 6 kV.
- Item Type: LED Power Supply
- Input Voltage: AC100V-AC240V
- Size: 135 mm*29 mm*20 mm
- 1 * DC12V 60W waterproof LED power supply
- LED power supply, working in DC12V, max output waterproof level IP67.
- A serviceable power component for a complete lighting BOM.
- The configured light engine is System component.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 240 V
- LumaCircuit model: LC-PWR-521RWP
- Input Voltage: AC100V-AC240V
- Output Voltage: DC12V
- Power: 60W
- IP Rating: IP67
- Size: 135 mm*29 mm*20 mm
- Power plug: Just wire
- Power Factor: >85%
- Dimensions found: 135 mm / 29 mm / 20 mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The DC12V waterproof LED power supply works in DC12V, with a max output wattage of 60 watts. It has a full-range AC input and a waterproof level of IP67. It has CC/CV Mode, a high PFC function, and PF>0.9 for 70-100% load short circuit, overload, and over-voltage protection. The lighting proof level is differential mode 4 kV and common-mode 6 kV.
Specifications
Manufacturer
Item Type: LED Power Supply
Input Voltage: AC100V-AC240V
Output Voltage: DC12V
Power: 60W
IP Rating: IP67
Size: 135 mm*29 mm*20 mm
Power plug: Just wire
Power Factor: >85%
1 * DC12V 60W waterproof LED power supply
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
