IR Aluminium Shell Flexible LED Strip Controller
LumaCircuit offers IR Aluminium Shell Flexible LED Strip Controller as a configurable LED aluminum profile for project builds. Typical applications include Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Size: 128mm*65mm*25mm(L*W*H) Working temperature: -20-60℃ Static power consumption: <1W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

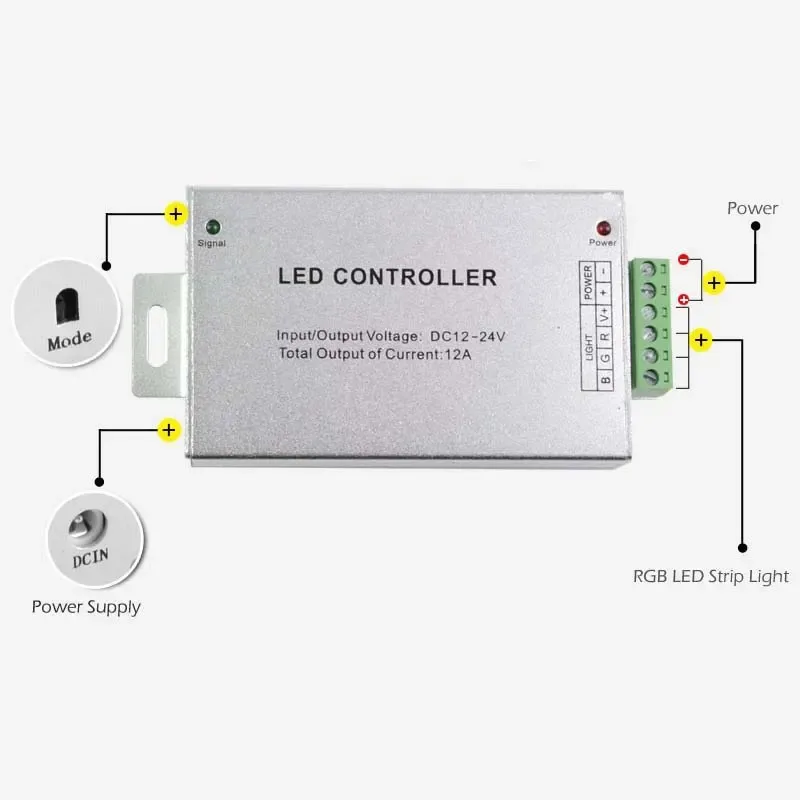

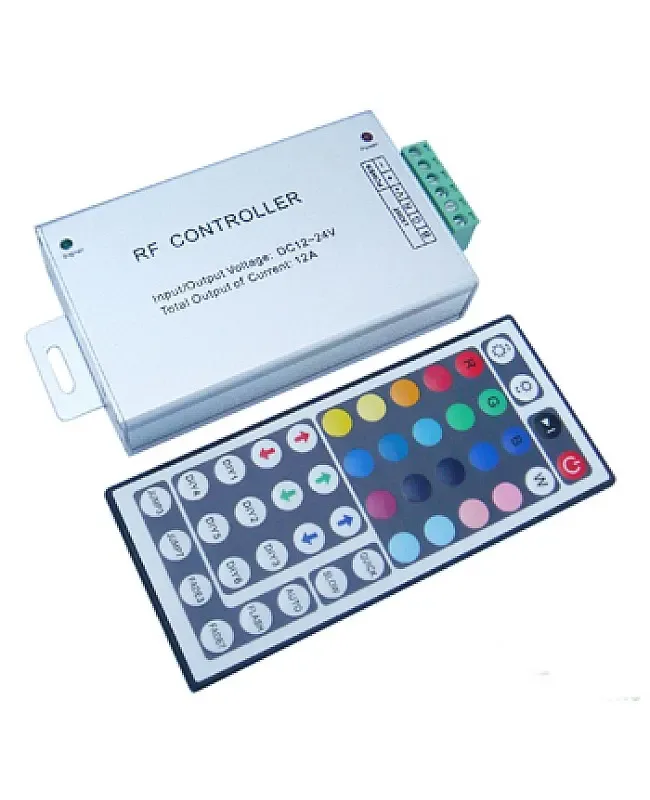

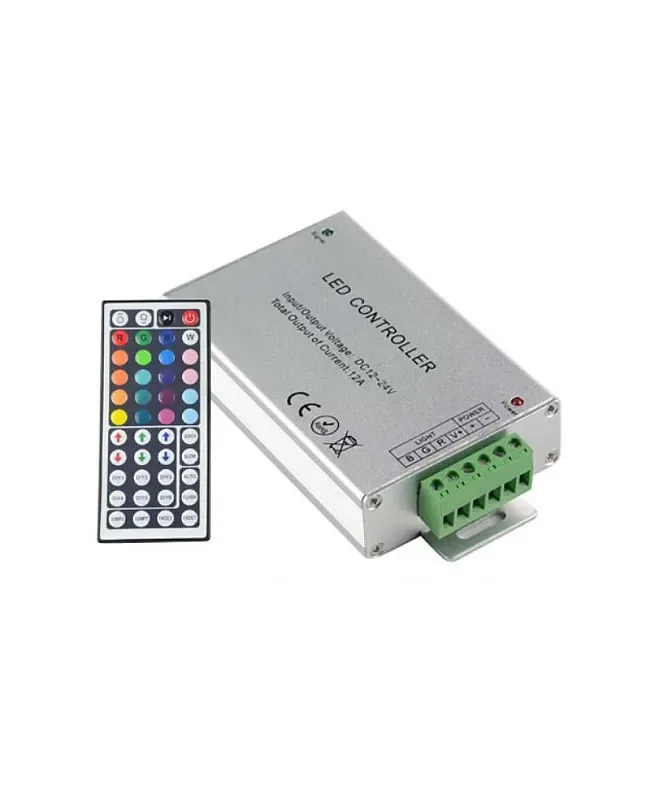

- The LED strip controller is enclosed in an aluminum shell for better heat dissipation, with a 3-output-channel design. The max output current is 4A, and the max loading power is up to 288W when working in DC24V. The LED light controller adopts an advanced micro control unit, which can control various RGB LED lights, flexible LED strips, and wall washer lamps.
- Size: 128mm*65mm*25mm(L*W*H)
- Working temperature: -20-60℃
- Static power consumption: <1W
- Working voltage: DC12V-DC24V
- Connecting Mode: Common Anode
- Max Power: DC12V: ≤144W 24V: ≤288W
- Infrared LED Remote With 44 Keys Included
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 12 V
- LumaCircuit model: LC-PRF-GB6X8I
- Size: 128mm*65mm*25mm(L*W*H)
- Working temperature: -20-60℃
- Static power consumption: <1W
- Working voltage: DC12V-DC24V
- Connecting Mode: Common Anode
- Output Channels: 3
- Max Current: ≤3*4A
- Max Power: DC12V: ≤144W 24V: ≤288W
- Dimensions found: 128mm / 65mm / 25mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

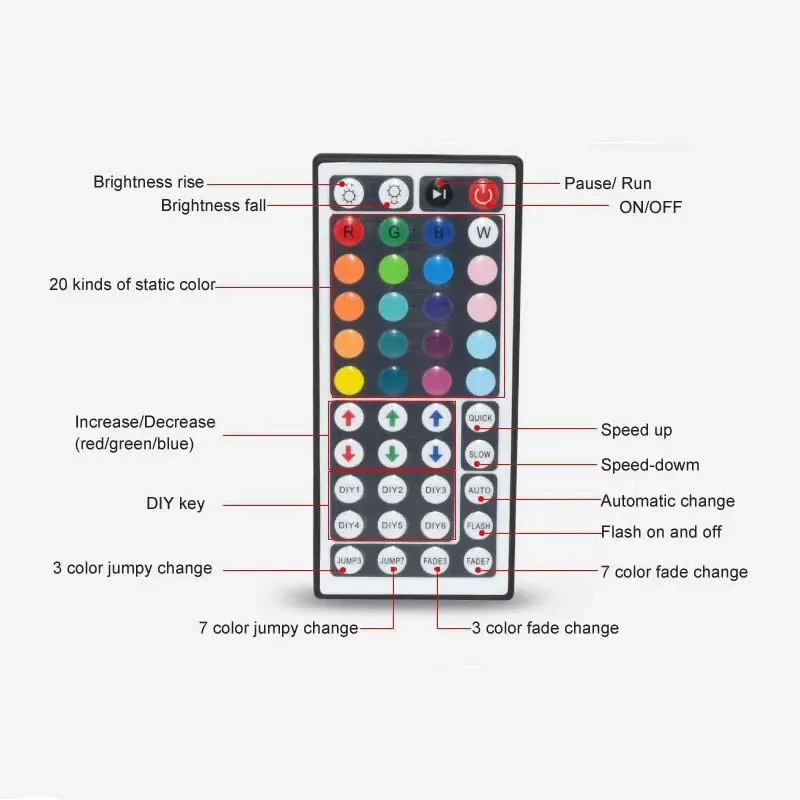

The LED strip controller is enclosed in an aluminum shell for better heat dissipation, with a 3-output-channel design. The max output current is 4A, and the max loading power is up to 288W when working in DC24V. The LED light controller adopts an advanced micro control unit, which can control various RGB LED lights, flexible LED strips, and wall washer lamps. The infrared 44-key remote included, 28 models in total, 20 static colors, and 8 dynamic changes, the brightness of static colors and the speed of dynamic changes are adjustable. The installer can use the IR LED remote to adjust the brightness of static colors or make dynamic changes in lighting effects.
Specifications
TY-L-C-005
Size: 128mm*65mm*25mm(L*W*H)
Working temperature: -20-60℃
Static power consumption: <1W
Working voltage: DC12V-DC24V
Connecting Mode: Common Anode
Output Channels: 3
Max Current: ≤3*4A
Max Power: DC12V: ≤144W 24V: ≤288W
Infrared LED Remote With 44 Keys Included
28 Modes In Total, 20 Static Colors And 8 Dynamic Modes
Weight: 215g

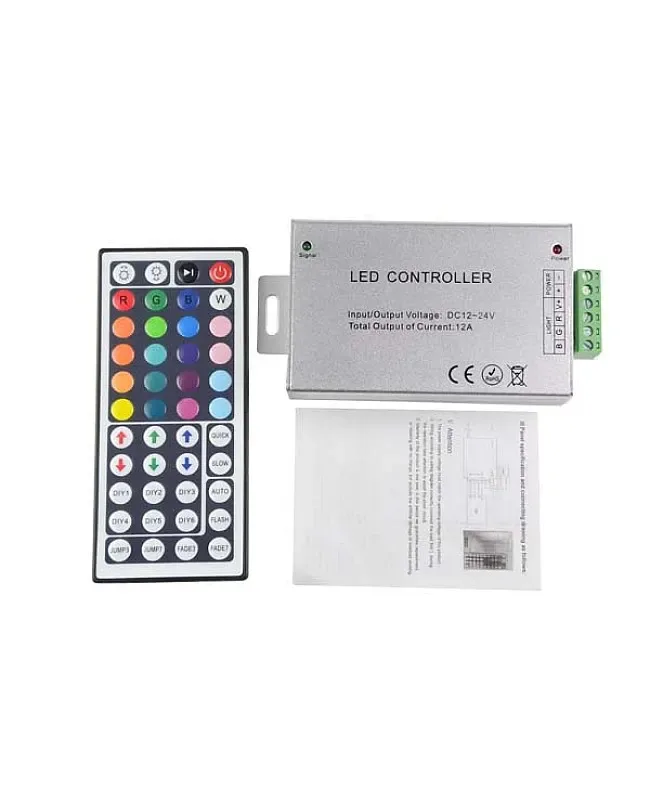

1 * IR LED Strip LED Controller
1 * Remote
Typical applications
- Recessed and surface channels
- Cabinet and furniture integration
- Linear fixture BOMs
