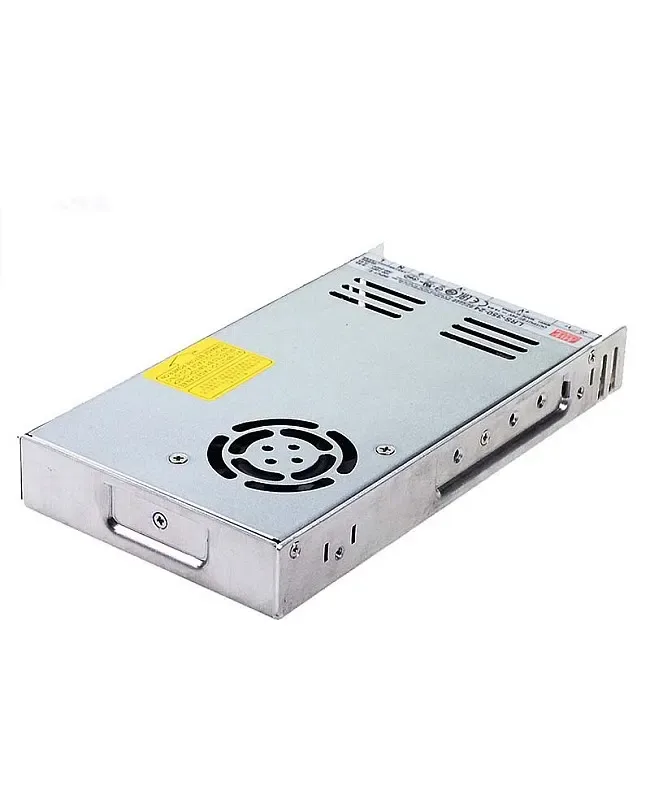

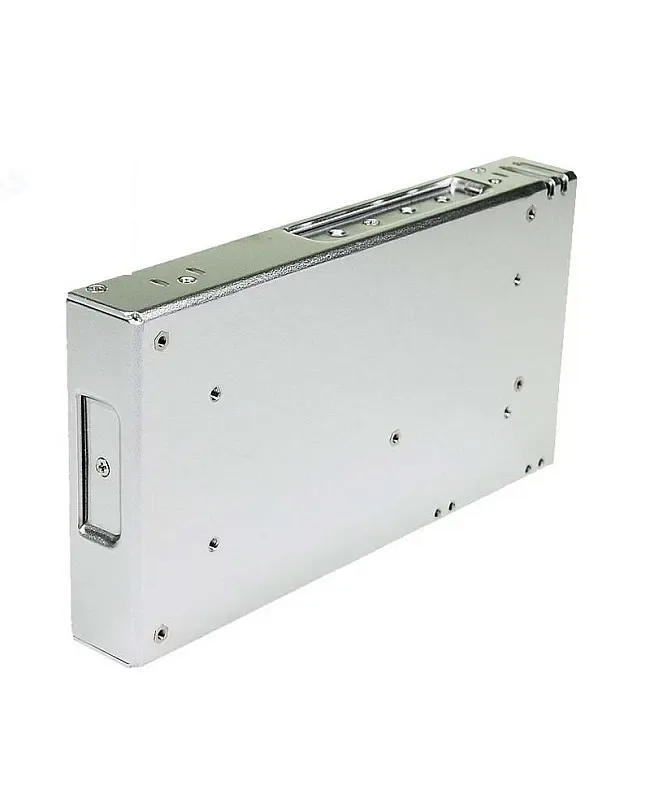

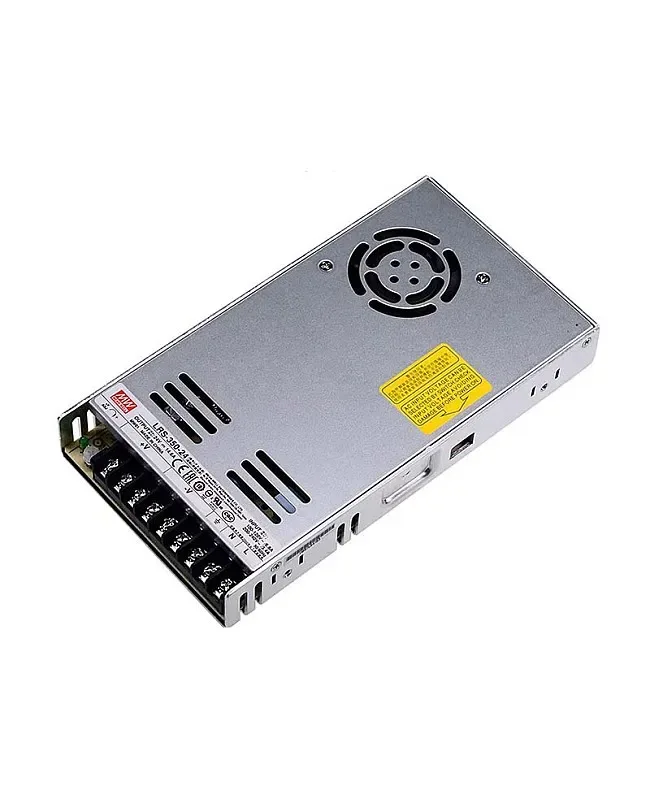

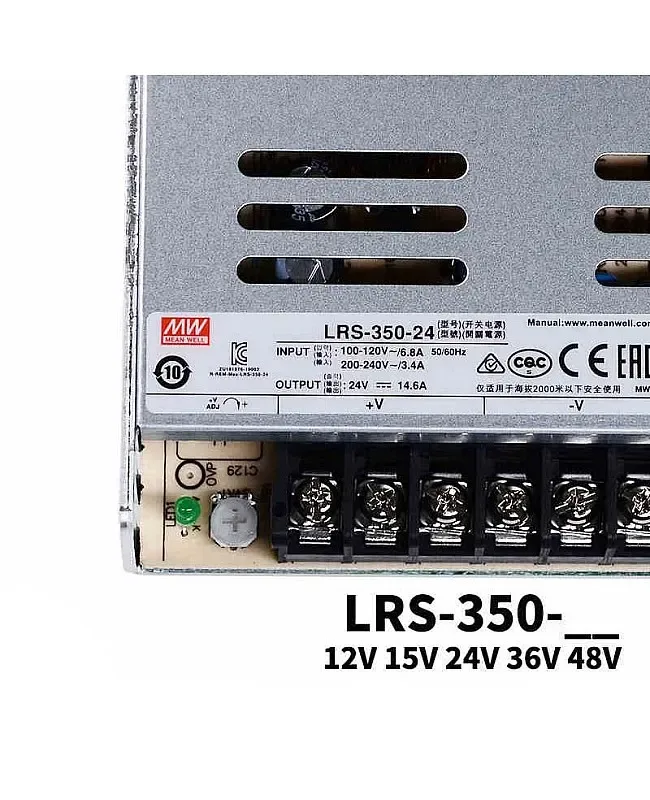

LRS 350 AC DC Converters
LumaCircuit offers LRS 350 AC DC Converters as a configurable LED aluminum profile for project builds. Typical applications include Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Working Temperature: -25℃-70℃ Input Voltage: AC90V-AC132V---AC180V-AC264V By Switch Output Voltage: DC5V, DC12V, DC15V, DC24V, DC36V, DC48V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

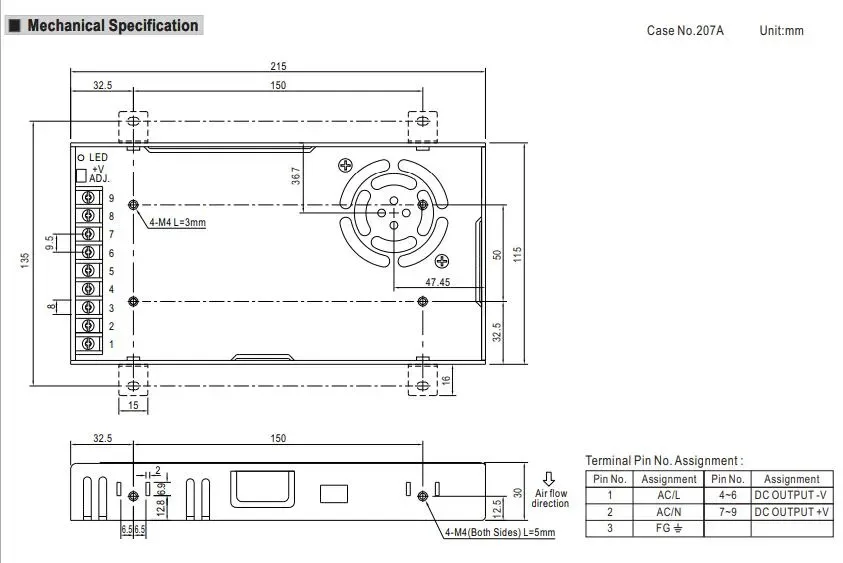

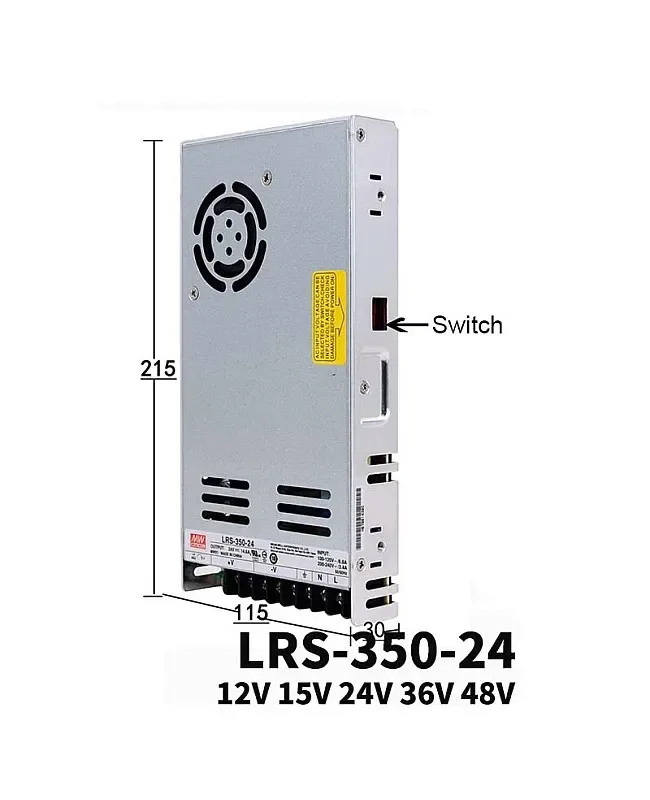

- Size: 215*115*30mm(L*W*H)
- Working Temperature: -25℃-70℃
- Input Voltage: AC90V-AC132V---AC180V-AC264V By Switch
- Output Voltage: DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
- Rated Current: 60A(DC5V), 29A(DC12V), 23.2A(DC15V), 14.6A(DC24V), 9.7A(DC36V), 7.3A(DC48V)
- Rated Power: 300W(DC5V), 348W(DC12V), 348W, 350.4W(DC24V), 349.2W(DC36V), 350.4W(DC48V)
- No Load Power Consumption: <0.75W
- Frequency Range: 47- 63Hz
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 48 V / 5 V / 12 V / 24 V / 36 V
- LumaCircuit model: LC-PRF-LKA7BP
- Size: 215*115*30mm(L*W*H)
- Working Temperature: -25℃-70℃
- Input Voltage: AC90V-AC132V---AC180V-AC264V By Switch
- Output Voltage: DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
- Rated Current: 60A(DC5V), 29A(DC12V), 23.2A(DC15V), 14.6A(DC24V), 9.7A(DC36V), 7.3A(DC48V)
- Rated Power: 300W(DC5V), 348W(DC12V), 348W, 350.4W(DC24V), 349.2W(DC36V), 350.4W(DC48V)
- No Load Power Consumption: <0.75W
- Frequency Range: 47- 63Hz
- AC Current: 6.8A 3.4A
- Inrush Current: 60A 60A
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Quick Links
Specifications Document

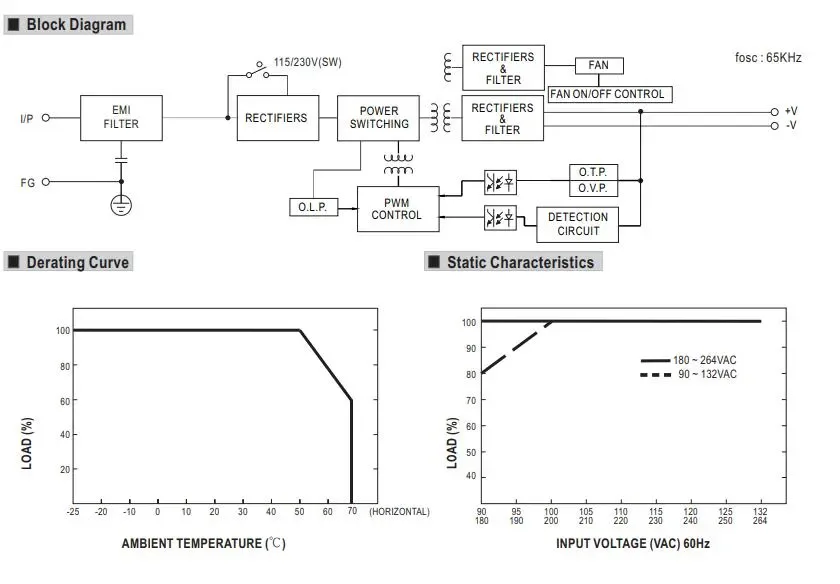

Specifications
Model
Size: 215*115*30mm(L*W*H)
Working Temperature: -25℃-70℃
Input Voltage: AC90V-AC132V---AC180V-AC264V By Switch
Output Voltage: DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
Rated Current: 60A(DC5V), 29A(DC12V), 23.2A(DC15V), 14.6A(DC24V), 9.7A(DC36V), 7.3A(DC48V)
Rated Power: 300W(DC5V), 348W(DC12V), 348W, 350.4W(DC24V), 349.2W(DC36V), 350.4W(DC48V)
No Load Power Consumption: <0.75W
Frequency Range: 47- 63Hz
Efficiency: 83.5%(DC5V), 85%(DC12V), 86%(DC15V), 88%(DC24V)
AC Current: 6.8A 3.4A
Inrush Current: 60A 60A
Leakage Current: <
Vibration: 10-500Hz, 5G each along X, Y, Z axes
Forced Air Cooling By Built-In DC Fan
Built-in Cooling Fan ON-OFF Control
Low Profile
Withstand 5G Vibration Test
LED Indicator Light For Power On
100% Full Load Burn-In Test
Overload Protection
Over-Voltage Protection
Over Temperature Protection
Short Circuit Protection
Weight: 0.
Includes
1 * AC DC Converters
Product resources
Technical documents
Typical applications
- Recessed and surface channels
- Cabinet and furniture integration
- Linear fixture BOMs
