Product details
LRS 50 5V Power Supplies
LumaCircuit offers LRS 50 5V Power Supplies as a configurable LED aluminum profile for project builds. Typical applications include Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Universal AC Input Full Range Withstand Surge Input For 5 Seconds No Load Power Consumption<0.2W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

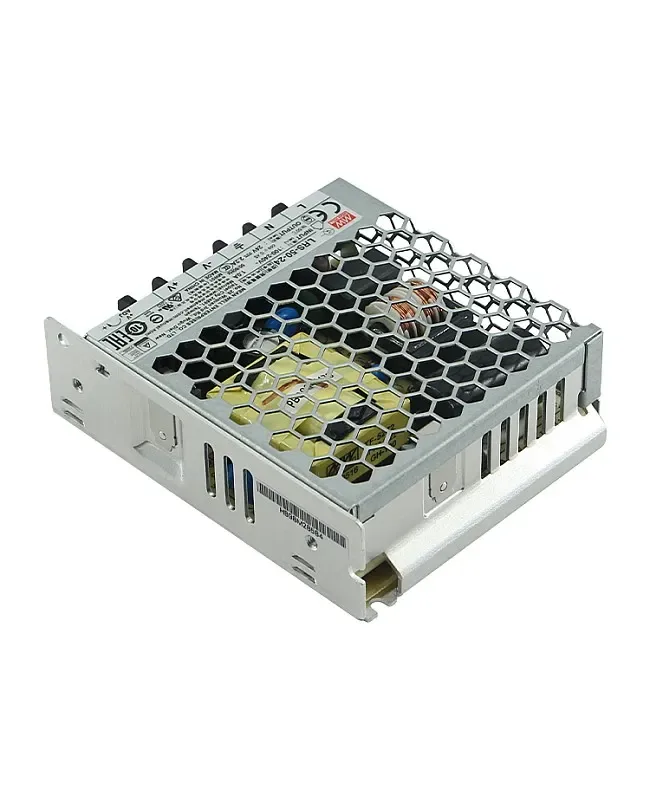

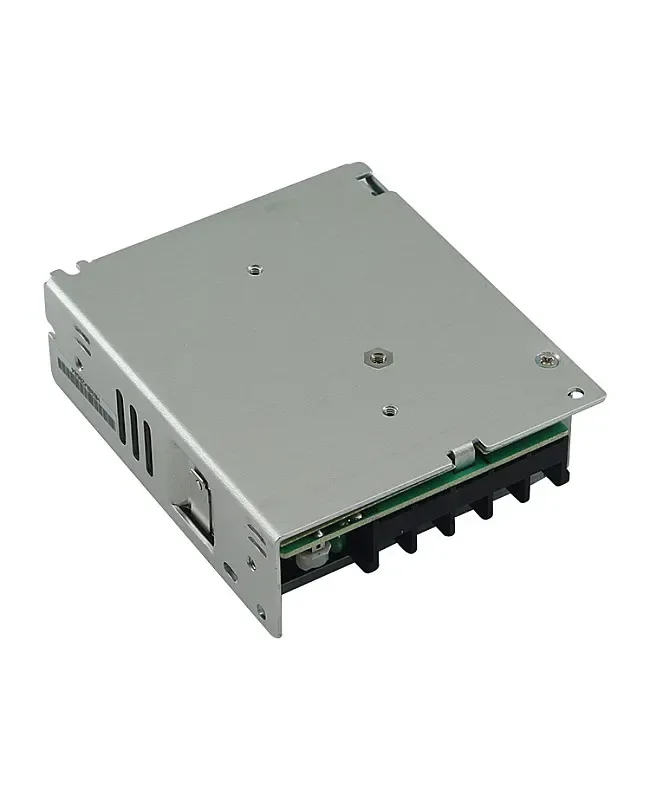

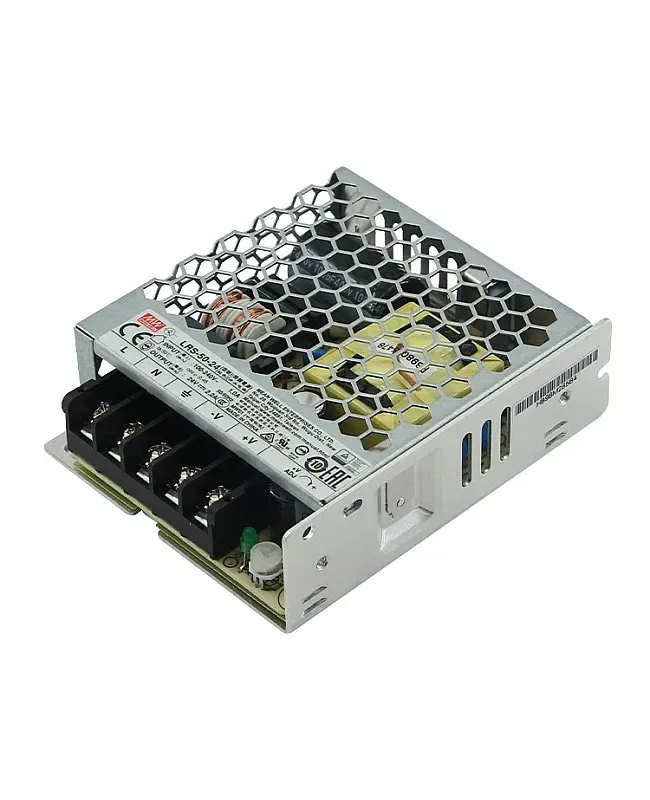

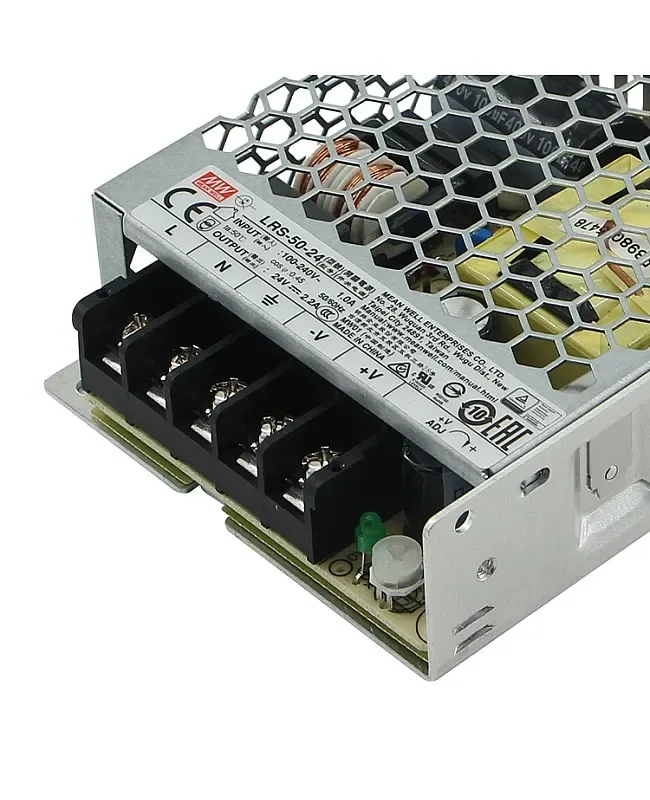

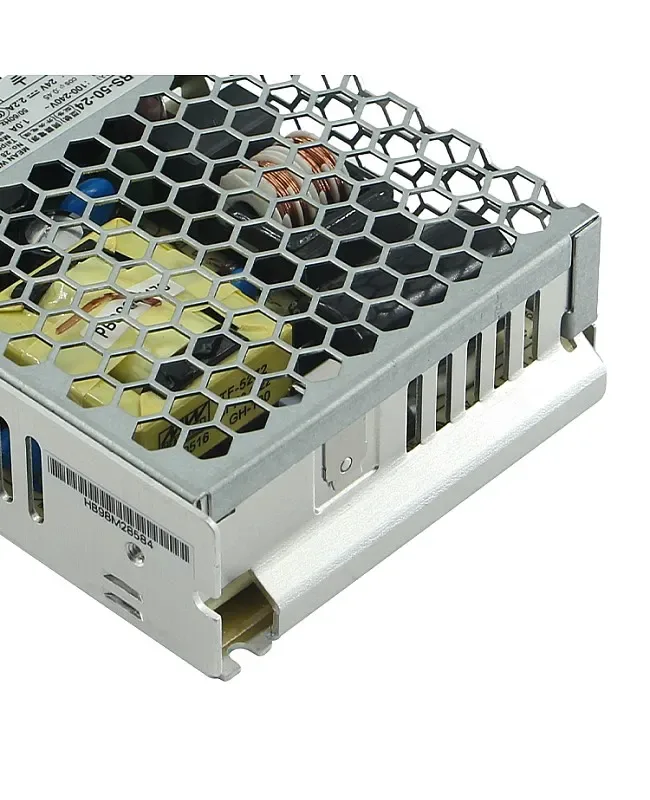

- The 5V power supplies, with the small size and low profile design, the universal AC input range from AC85V to AC264V, can connect to the public power system directly without an adapter, with single-output design and max loading power up to 50W, can choose the various DC output products from.3V to DC48V. The metallic mesh case enhances the heat dissipation, allowing the whole power supply to operate from -30℃ through 70℃ under air convection without a fan.
- Universal AC Input Full Range
- Withstand Surge Input For 5 Seconds
- No Load Power Consumption<0.2W
- Miniature Size And Low Profile
- High Operating Temperature Up To 70℃
- Protections: Short Circuit Overload Over Voltage
- Cooling By Free Air Convection
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 48 V / 12 V / 24 V / 36 V
- LumaCircuit model: LC-PRF-SNY9MO
- Size: 99*82*30mm(L*W*H)
- Input Voltage: 85- 264 VAC
- Frequency Range: 47- 63Hz
- AC Current: 0.95A/ 0.56A
- Output Voltage: .3V, DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
- Rated Current: 10A(.3V), 10A(DC5V), 4.2A(DC12V), 3.4A(DC15V), 2.2A(DC24V), 1.45A(DC36V), 1.1A(DC48V)
- Rated Power: 33W(.3V), 50W(DC5V), 50.4W(DC12V), 51W(DC15V), 52.8W(DC24V), 52.2W(DC36V), 52.8W(DC48V)
- Working Temperature: -30℃-+70℃
- Protections: Short Circuit Overload Over Voltage
- Dimensions found: 99x82x30mm / 30mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 5V power supplies, with the small size and low profile design, the universal AC input range from AC85V to AC264V, can connect to the public power system directly without an adapter, with single-output design and max loading power up to 50W, can choose the various DC output products from.3V to DC48V. The metallic mesh case enhances the heat dissipation, allowing the whole power supply to operate from -30℃ through 70℃ under air convection without a fan. Delivering an extremely low no-load power consumption of less than 0.2W, the end system allows it to meet the worldwide energy requirement easily the product has complete protection functions and 5G anti-vibration capacity, the installer can use it for the LED lights indoors.
Universal AC Input Full Range
Withstand Surge Input For 5 Seconds
No Load Power Consumption<0.2W
Miniature Size And Low Profile
High Operating Temperature Up To 70℃
Protections: Short Circuit Overload Over Voltage
Cooling By Free Air Convection
Compliance To IEC/EN 60335-1 And IEC/-1, -2-16 For Household Appliances
Operating Altitude Up To 5000 Meters
Withstand 5G Vibration Test
Intuitive LED Indicator Light For Power On
Over Voltage Category III
100% Full Load Burn-in Test
Quick Links

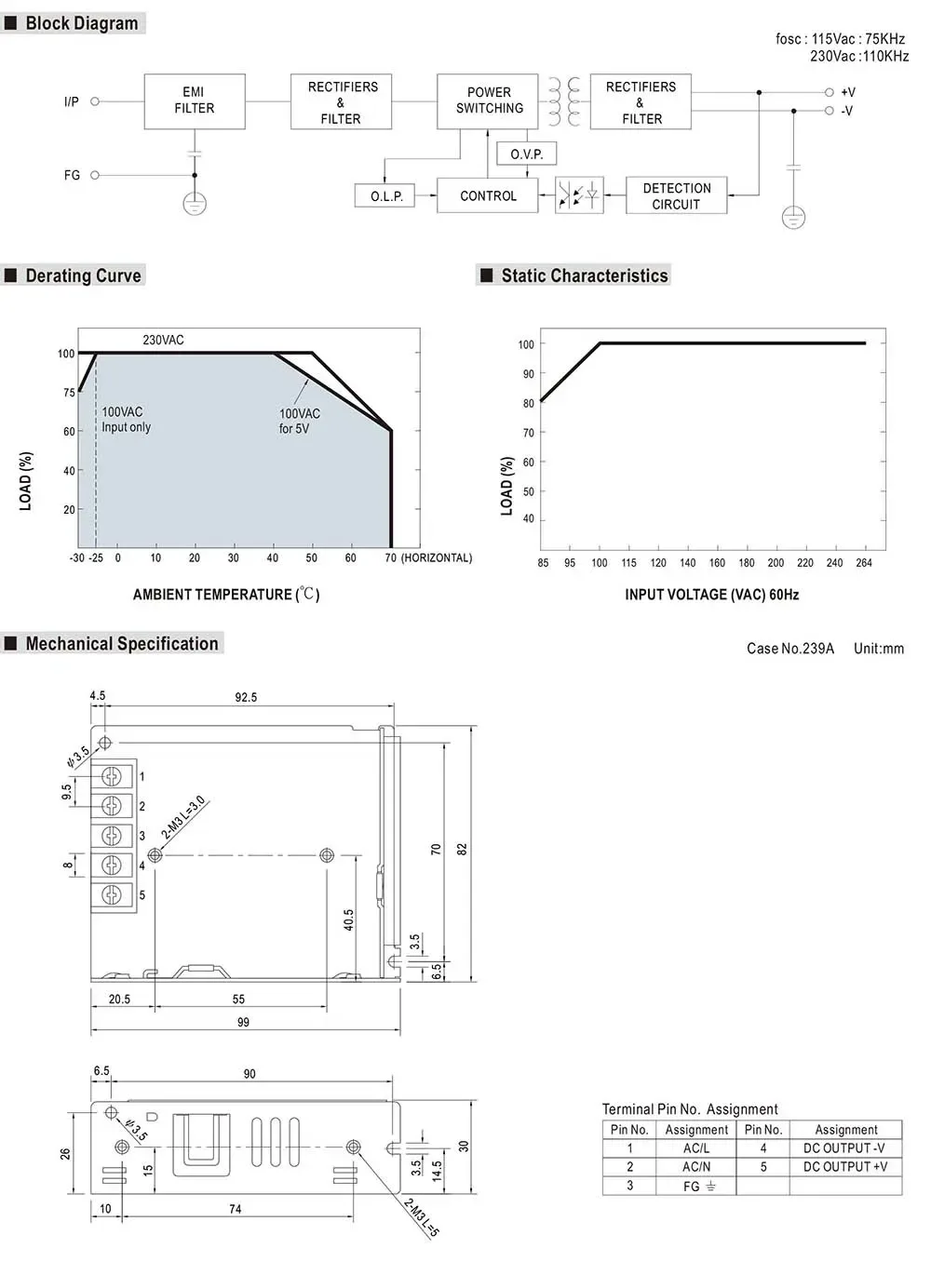

Specifications
Model
Size: 99*82*30mm(L*W*H)
Input Voltage: 85- 264 VAC
Frequency Range: 47- 63Hz
Efficiency: 80%(3V), 83%(DC5V), 86%(DC12V), 88%(DC15V), 88%, 89%(DC36V), 90%(DC48V)
AC Current: 0.95A/ 0.56A
Output Voltage.3V, DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
Rated Current: 10A(3V), 10A(DC5V), 4.2A(DC12V), 3.4A(DC15V), 2.2A(DC24V), 1.45A(DC36V), 1.1A(DC48V)
Rated Power: 33W(3V), 50W(DC5V), 50.4W(DC12V), 51W(DC15V), 52.8W(DC24V), 52.2W(DC36V), 52.8W(DC48V)
Working Temperature: -30℃-+70℃
Vibration: 10-500Hz, 5G each along X, Y, Z axes
Safety Standards: -1, TUV -1, -1, -1/-2-16, CCC.1, etc
Overload Protection
Over-Voltage Protection
Over Temperature Protection
Includes
1 * 5V Power Supply
Product resources
Technical documents
Typical applications
- Recessed and surface channels
- Cabinet and furniture integration
- Linear fixture BOMs
