Product details
12V Addressable WS2811 Pixel LED Modules With Diffusers
LumaCircuit offers 12V Addressable WS2811 Pixel LED Modules With Diffusers as a configurable LED aluminum profile for project builds. Typical applications include Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Type: Addressable Module Lights Luminous Flux: 180LM/Piece Back With Double-Sided Adhesive Tape The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The waterproof 12V addressable WS2811 pixel LED modules with diffusers are an excellent choice for indoor and outdoor lighting projects. The module lights with smart ICs can work with pixel controllers to achieve fantastic lighting effects. They feature a waterproof IP67 rating and can withstand harsh conditions. The modules are addressable, meaning each can be programmed individually and linked in a chain.
- Type: Addressable Module Lights
- Luminous Flux: 180LM/Piece
- Back With Double-Sided Adhesive Tape
- 1 * WS2811 Pixel LED Modules(20PCS/String)
- The Waterproof 12V Addressable WS2811 Pixel LED Modules with diffusers are a great choice for indoor and outdoor lighting projects.
- A serviceable profile component for a complete lighting BOM.
- The configured light engine is Addressable.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: Addressable
- LumaCircuit model: LC-PRF-BP60EO
- Size: 85*18mm(L*W)
- LED: 5050 SMD LEDs
- LED Quantity: 3PCS
- Working Voltage: DC12V
- Power: 0.96W/Piece
- Color: Full Color
- Dimensions found: 85x18mm / 18mm
- Model: 8518
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

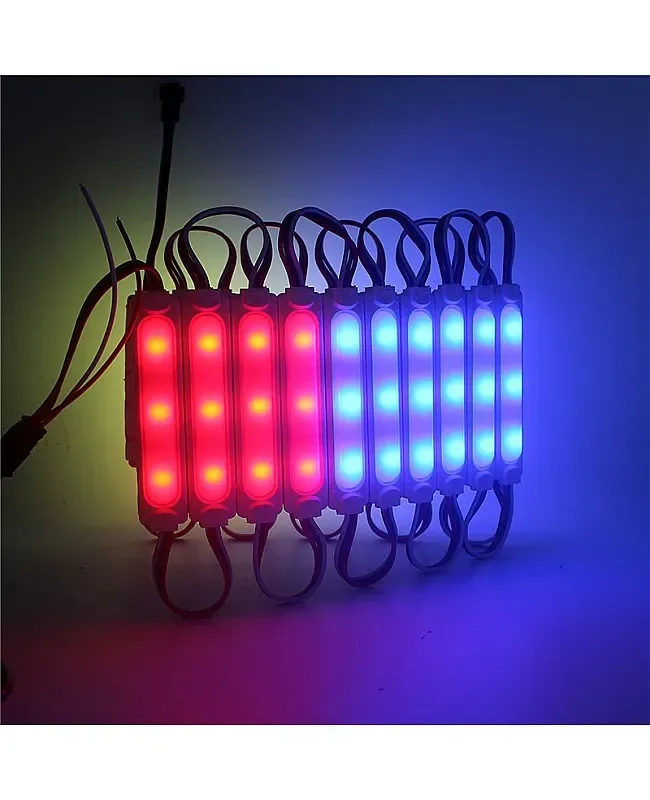

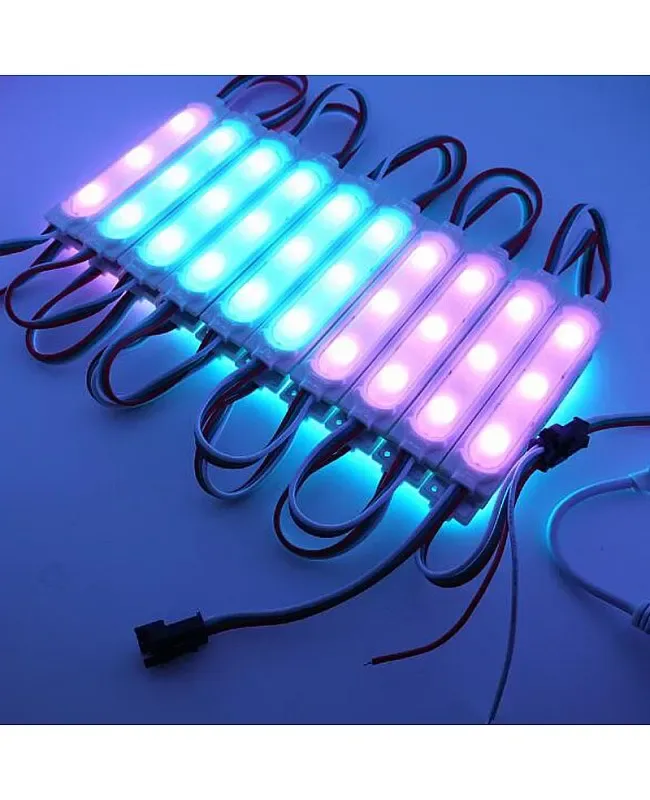

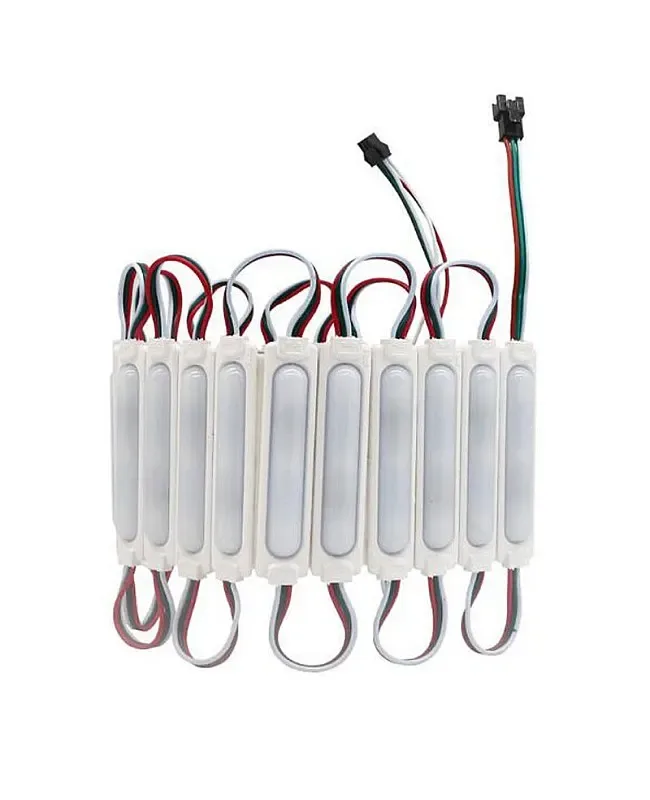

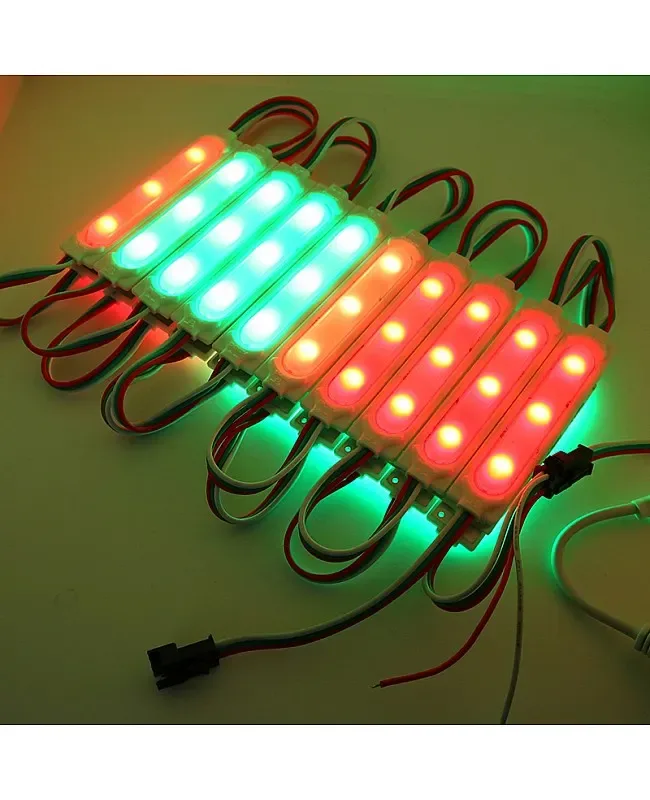

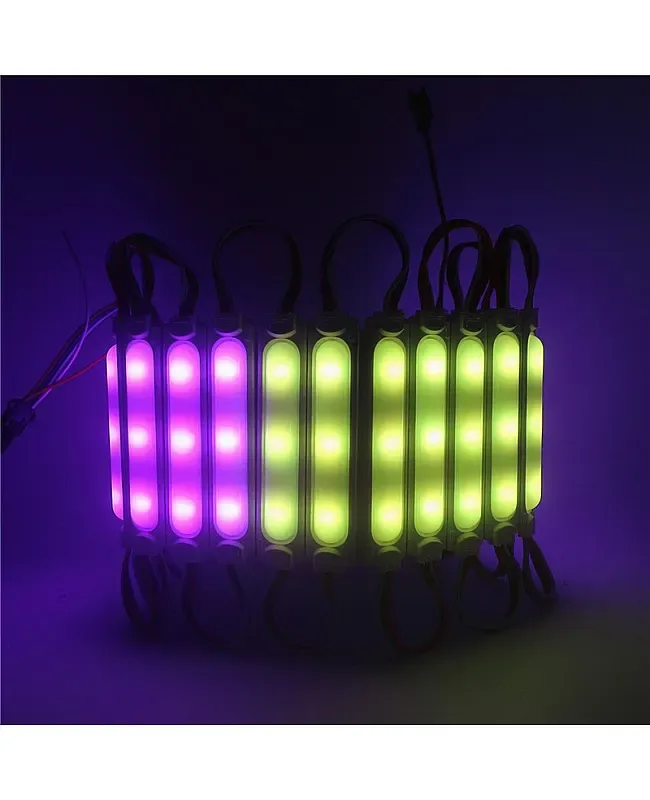

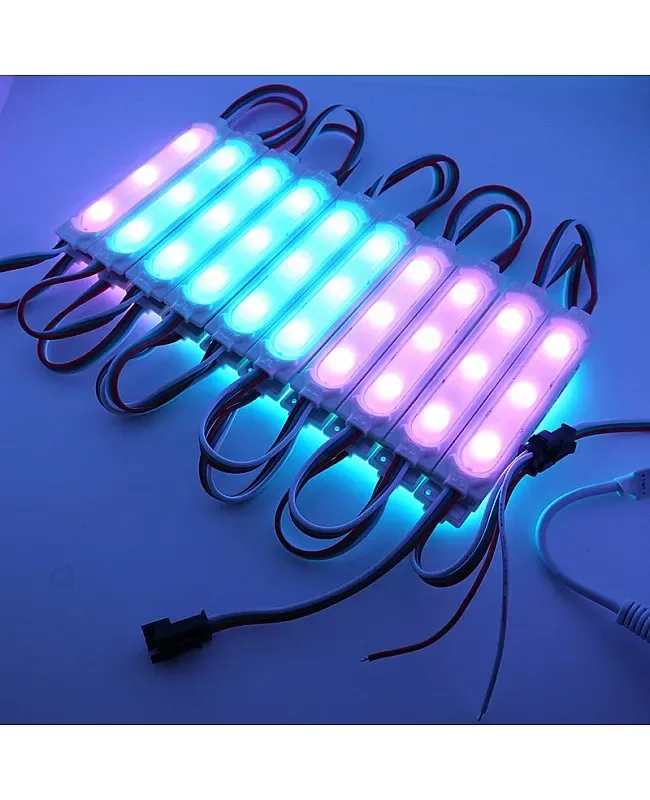

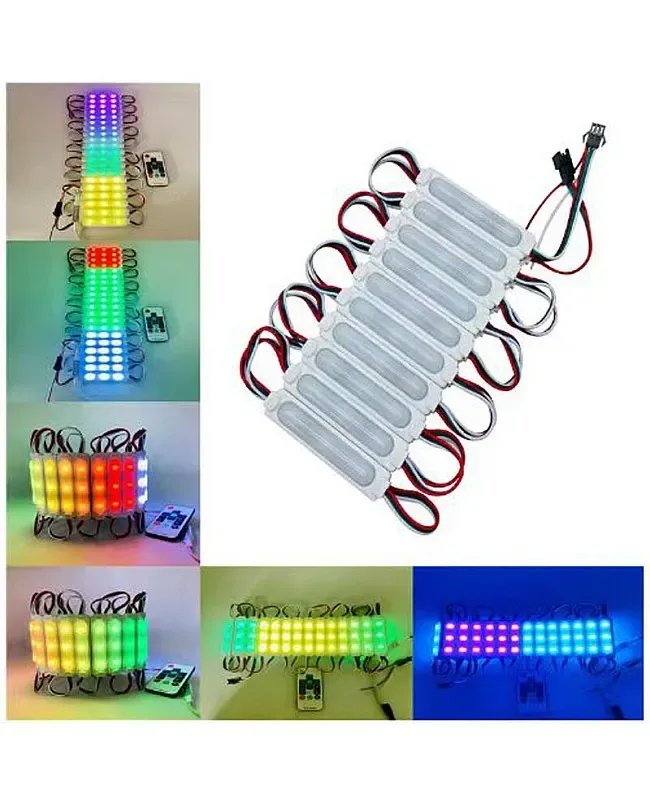

The waterproof 12V addressable WS2811 pixel LED modules with diffusers are an excellent choice for indoor and outdoor lighting projects. The module lights with smart ICs can work with pixel controllers to achieve fantastic lighting effects. They feature a waterproof IP67 rating and can withstand harsh conditions. The modules are addressable, meaning each can be programmed individually and linked in a chain. They feature a diffuser lens to spread the light evenly and are compatible with Arduino, Raspberry Pi, and other controllers. These LED modules are an excellent choice for any project that requires bright, efficient, and reliable lighting. The module lights are 20 pieces per string and end with male and female JST-SM connectors, cuttable and connectable, which make it easy to connect to the controller conveniently. The back side has double-sided adhesive tape, making it easy to stick to where you want to install.
Specifications
Type: Addressable Module Lights
Model: 8518

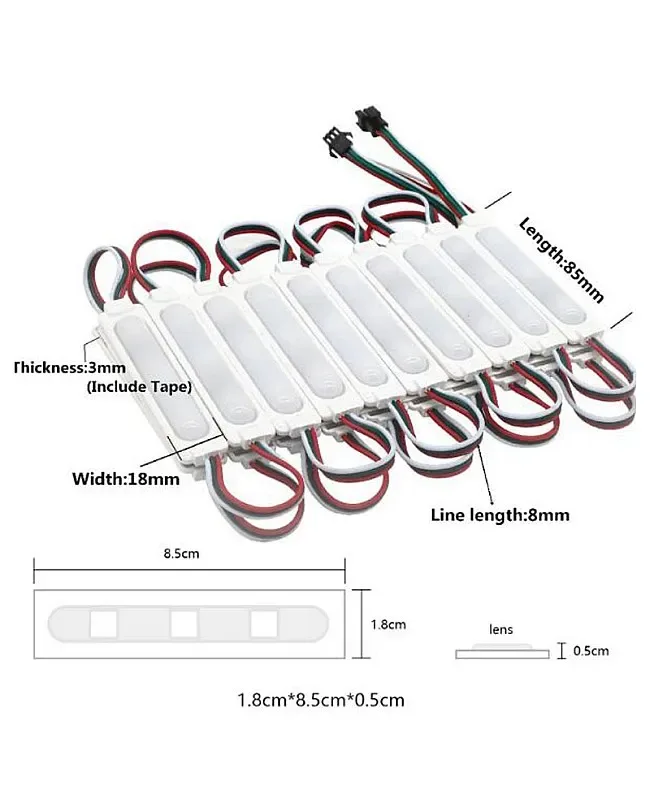

Size: 85*18mm(L*W)
LED: 5050 SMD LEDs
IC Type: WS2811 / 16703
LED Quantity: 3PCS
Working Voltage: DC12V
Power: 0.96W/Piece

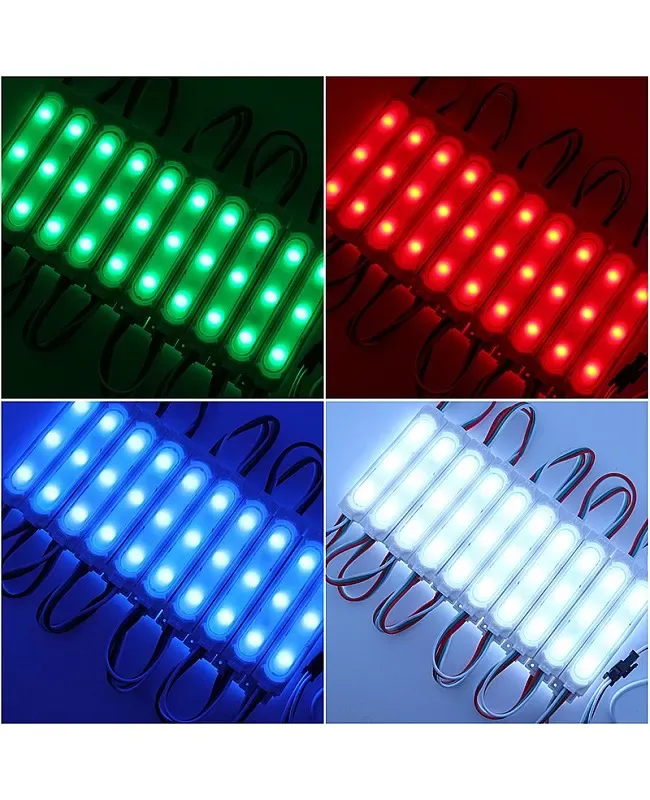

Color: Full Color
Luminous Flux: 180LM/Piece
Waterproof Level: IP65
Back With Double-Sided Adhesive Tape
20PCS Per String
Includes
1 * WS2811 Pixel LED Modules(20PCS/String)
Typical applications
- Recessed and surface channels
- Cabinet and furniture integration
- Linear fixture BOMs
