12 Volt Power Supplies LRS 200
LumaCircuit offers 12 Volt Power Supplies LRS 200 as a configurable LED aluminum profile for project builds. Typical applications include Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. AC Input Range Selectable By Switch Withstand Surge Input For 5 Seconds Protections: Short Circuit Overload Over Voltage Over Temperature The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 12-Volt series is a 200W single-output enclosed-type power supply with a 30 mm low-profile design. The installer can choose the output voltage from.3V to DC48V, the max loading power up to 212.4W when working in DC36V, and the input voltage range from AC90V to AC264V by the switch. The installer can connect to the public power system without an extra adapter.
- AC Input Range Selectable By Switch
- Withstand Surge Input For 5 Seconds
- Protections: Short Circuit Overload Over Voltage Over Temperature
- Cooling By Free Air Convection
- Withstand 5G Vibration Test
- LED Indicator For Power On
- No Load Power Consumption: <0.75W
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 48 V / 36 V / 5 V / 12 V / 24 V
- LumaCircuit model: LC-PRF-2WQIUP
- Size: 215*115*30mm(L*W*H)
- Input Voltage: 90-/180- By Switch
- Frequency Range: 47- 63Hz
- Output Voltage: .3V,.2V, DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
- Rated Current: 40A(3.3V), 40A(4.2V), 40A(5V), 17A(12V), 14A(15V), 8.8A(24V), 5.9A(36V), 4.4A(48V)
- Rated Power: 132W(3.3V), 168W(4.2V), 200W(5V), 204W(12V), 210W(15V), 211.2W(24V), 212.4W(36V), 211.2W(48V)
- Working Temperature: -25℃-+85℃
- Protections: Short Circuit Overload Over Voltage Over Temperature
- No Load Power Consumption: <0.75W
- Dimensions found: 215x115x30mm / 30mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 12-Volt series is a 200W single-output enclosed-type power supply with a 30 mm low-profile design. The installer can choose the output voltage from.3V to DC48V, the max loading power up to 212.4W when working in DC36V, and the input voltage range from AC90V to AC264V by the switch. The installer can connect to the public power system without an extra adapter.
AC Input Range Selectable By Switch
Withstand Surge Input For 5 Seconds
Protections: Short Circuit Overload Over Voltage Over Temperature
Cooling By Free Air Convection
Low Profile
Withstand 5G Vibration Test
LED Indicator For Power On
No Load Power Consumption: <0.75W
100% Full Load Burn-In Test
High Operating Temperature Up To 70℃
Operating Altitude Up To 5000 Meters
Quick Links
Specification Document

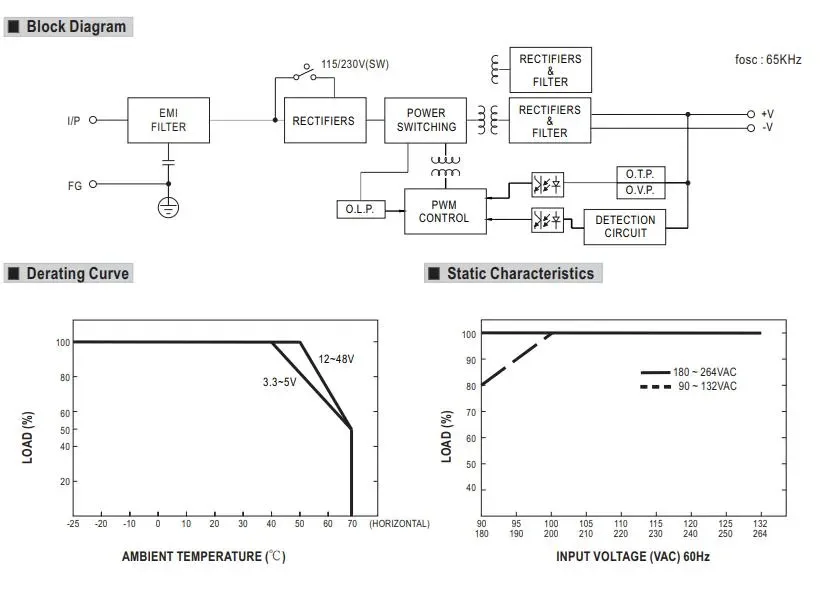

Specifications
Model

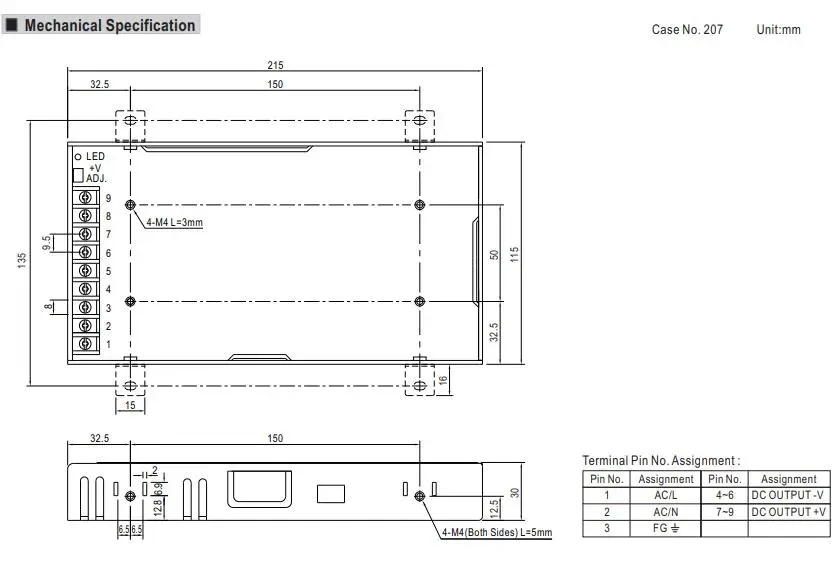

Size: 215*115*30mm(L*W*H)
Input Voltage: 90-/180- By Switch
Frequency Range: 47- 63Hz
Output Voltage.3V,2V, DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
Rated Current: 40A(3.3V), 40A(4.2V), 40A(5V), 17A(12V), 14A(15V), 8.8A(24V), 5.9A(36V), 4.4A(48V)
Rated Power: 132W(3.3V), 168W(4.2V), 200W(5V), 204W(12V), 210W(15V), 211.2W(24V), 212.4W(36V), 211.2W(48V)
Working Temperature: -25℃-+85℃
Vibration: 10-500Hz, 5G each along X, Y, Z axes
Overload Protection
Over-Voltage Protection
Over Temperature Protection
Includes

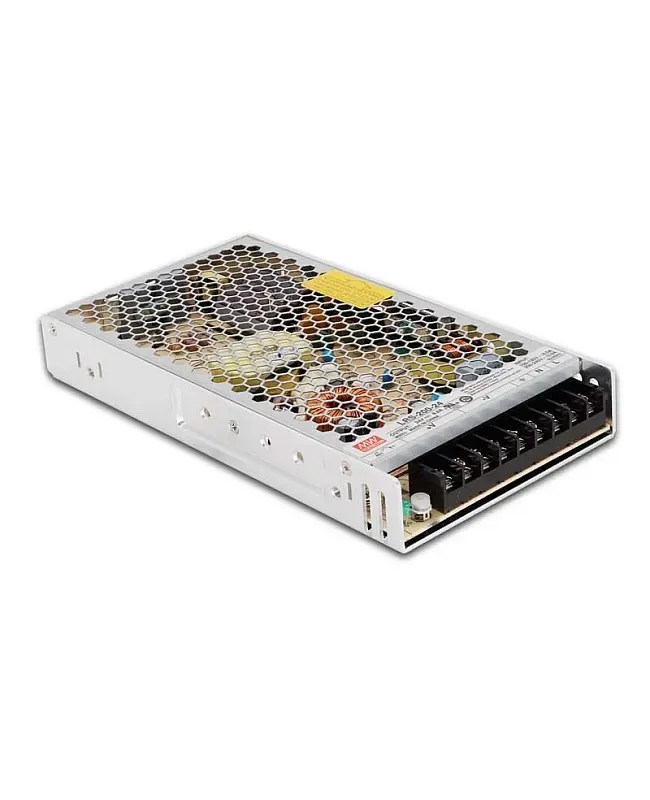

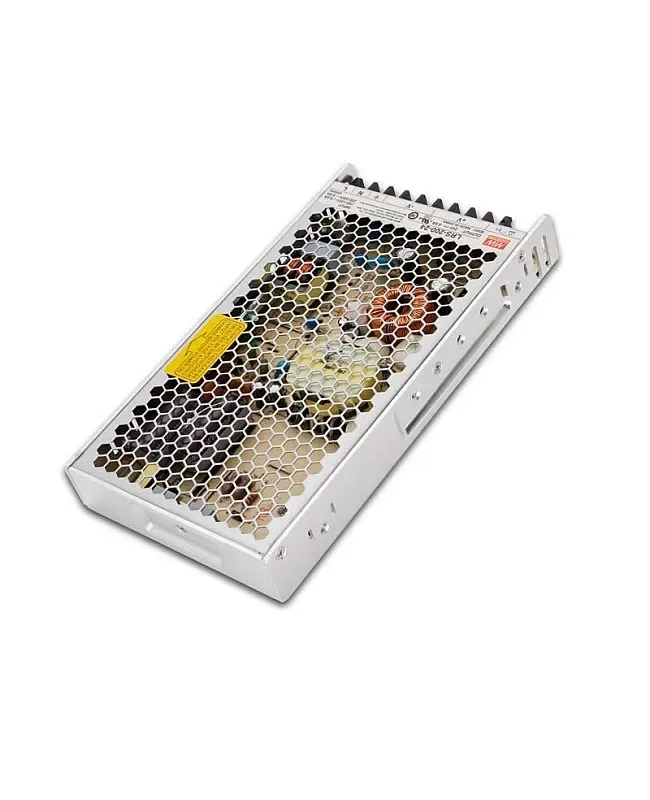

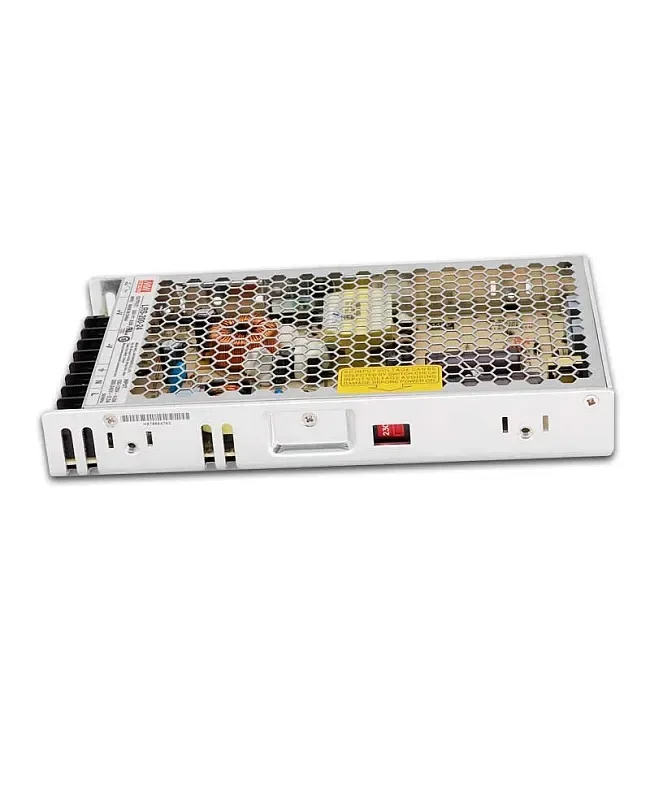

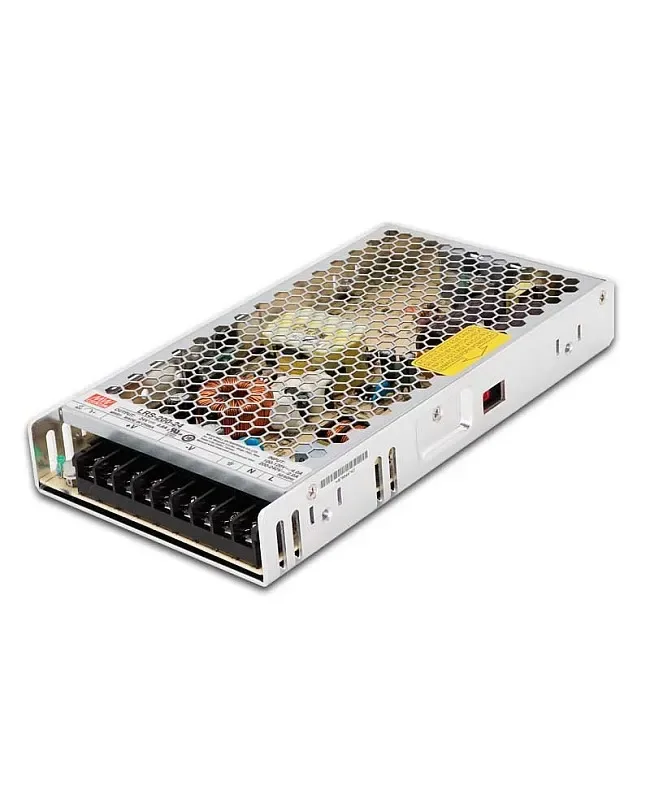

1 * LRS 200 Power Supply For LED Light Strip
Product resources
Technical documents
Typical applications
- Recessed and surface channels
- Cabinet and furniture integration
- Linear fixture BOMs
