Waterproof 12V LED Strip Modules With Diffuser
LumaCircuit offers Waterproof 12V LED Strip Modules With Diffuser as a configurable LED aluminum profile for project builds. Typical applications include Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Luminous Flux: 120-140lm Colors: Warm White（3000-3200K), Natural White(4000-4500K), White(6000-6500K), Cool White(8000-12000K), Red, Green, Blue, Yellow, Pink IP Rating: IP65 Waterproof The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The LED strip modules come with a diffuser for the wide beam angle and do not show visible light dots. 6PCS high-quality and super bright LED chips are used as the light source, and the LEDs are mounted on the aluminum plate for better heat dissipation and sealed in the injection PVC shell. The waterproof level is IP65 and can be used for indoor and outdoor light projects. 20PCS per string, cuttable and connectable. The installer can cut any quantity and reconnect them for the project.
- Luminous Flux: 120-140lm

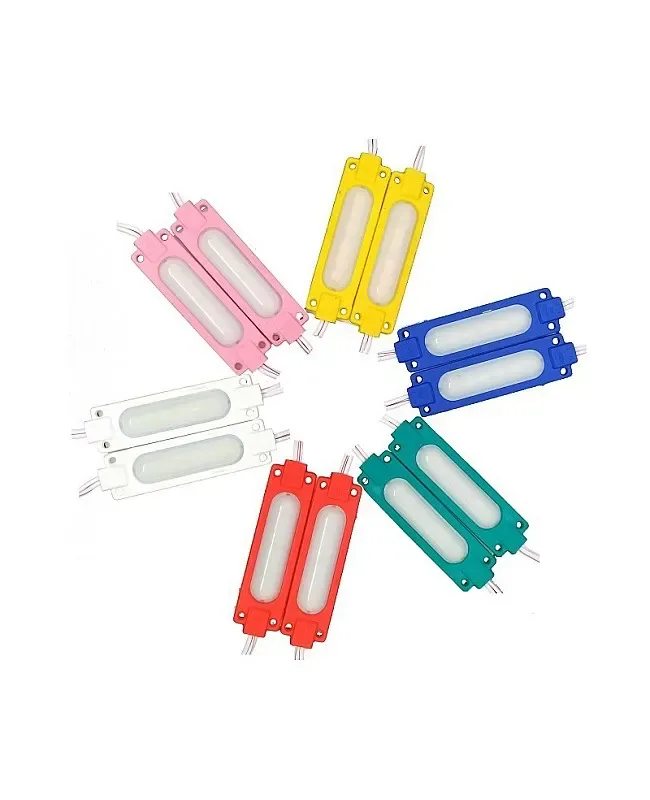

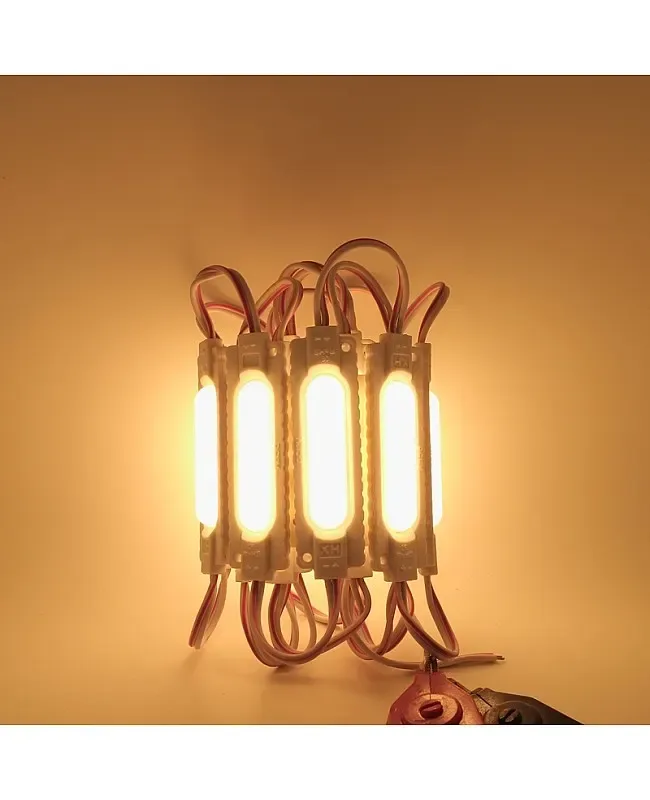

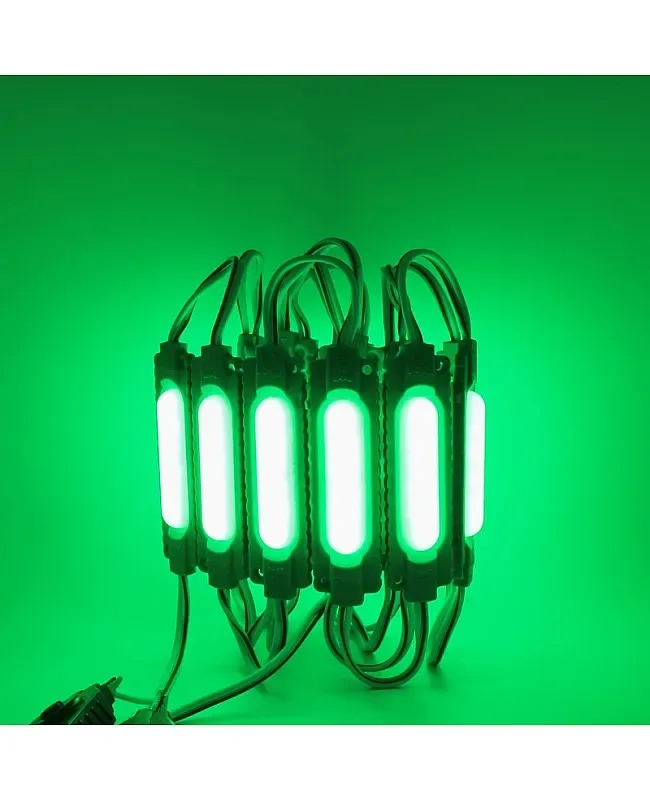

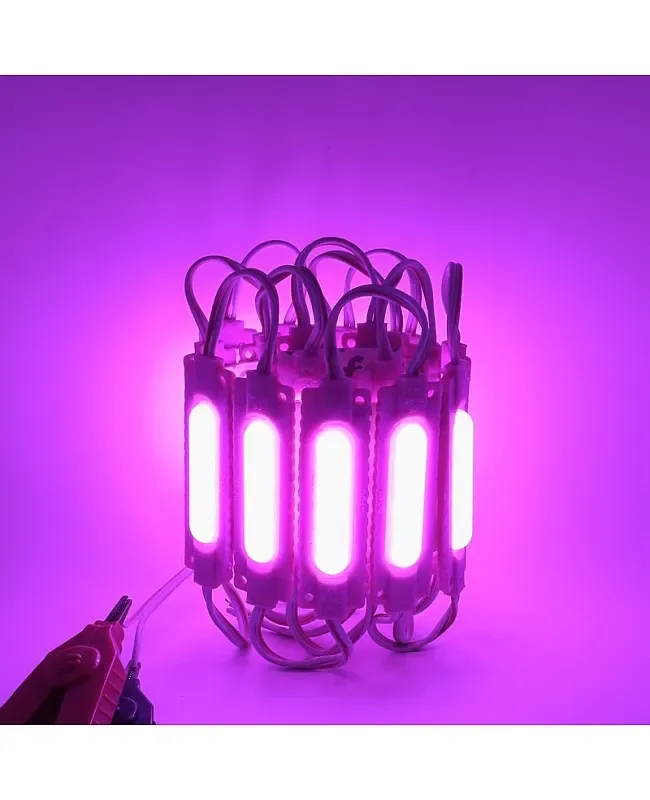

- Colors: Warm White（3000-3200K), Natural White(4000-4500K), White(6000-6500K), Cool White(8000-12000K), Red, Green, Blue, Yellow, Pink
- IP Rating: IP65 Waterproof
- Cuttable And Reconnectable

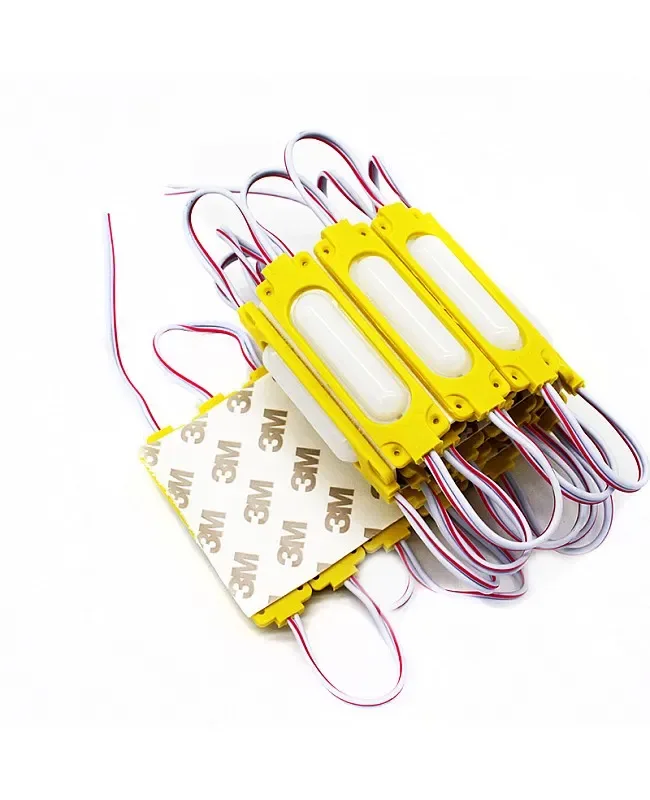

- Back With Double-sided Adhesive Tape
- Working Temperature: -20°-+50°
- Applications: For Signage, Display Lighting, Stages, Theaters, Machine Building, Accent Lighting, Windows, Trade Shows, Backlighting, Channel Letters, Interior Homes, Retrofits, Cars, Trucks, etc
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-PRF-J8HKAA
- Material: PVC
- Size: 70*19mm(L*W)
- LED Type: COB LEDs
- LED Quantity: 6PCS/PC
- Working Voltage: DC12V
- Power: 1.8W
- Colors: Warm White（3000-3200K), Natural White(4000-4500K), White(6000-6500K), Cool White(8000-12000K), Red, Green, Blue, Yellow, Pink
- IP Rating: IP65 Waterproof
- Working Temperature: -20°-+50°
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

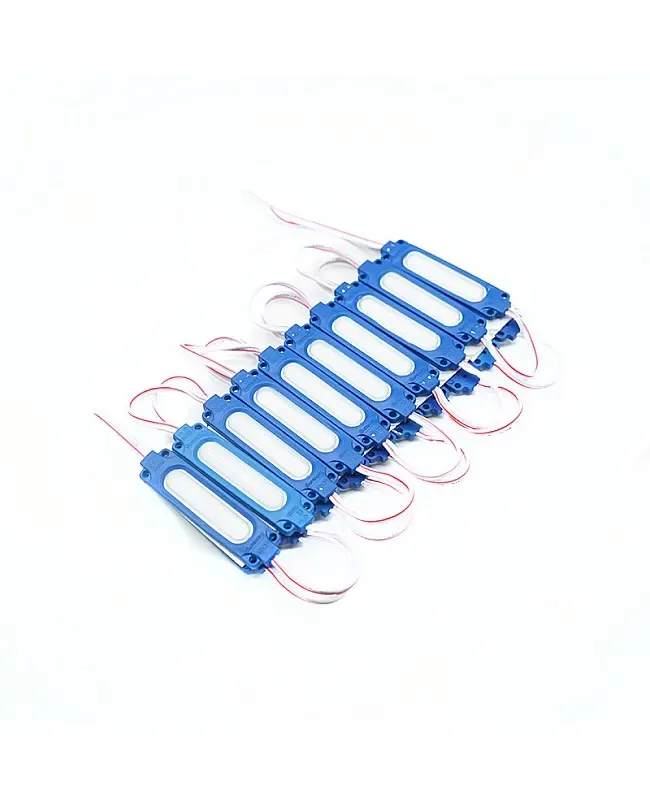

The LED strip modules come with a diffuser for the wide beam angle and do not show visible light dots. 6PCS high-quality and super bright LED chips are used as the light source, and the LEDs are mounted on the aluminum plate for better heat dissipation and sealed in the injection PVC shell. The waterproof level is IP65 and can be used for indoor and outdoor light projects. 20PCS per string, cuttable and connectable. The installer can cut any quantity and reconnect them for the project. The back has double side adhesive tape and four screw holes, the installer can remove the protective paper on the tape and stick them on the place you want to install, or the installer can use the screws to fix them in a wet, damp, or water location. The installer can use them for signage, acrylic letters, lightboxes, advertisement signs, and backlighting. The light modules working on DC12V must work with the LED drivers whose output is. The installer can add the LED light dimmers to adjust the brightness.
Specifications
Model
Material: PVC
Size: 70*19mm(L*W)
LED Type: COB LEDs
LED Quantity: 6PCS/PC
Working Voltage: DC12V
Power: 1.8W
Luminous Flux: 120-140lm
Colors: Warm White（3000-3200K), Natural White(4000-4500K), White(6000-6500K), Cool White(8000-12000K), Red, Green, Blue, Yellow, Pink
IP Rating: IP65 Waterproof
Dimmable: YES
With Milky Lens
20PCS Per String
Cuttable And Reconnectable
Wire: -8cm
Back With Double-sided Adhesive Tape
With Four Screw Holes
Working Temperature: -20°-+50°
Applications: For Signage, Display Lighting, Stages, Theaters, Machine Building, Accent Lighting, Windows, Trade Shows, Backlighting, Channel Letters, Interior Homes, Retrofits, Cars, Trucks, etc
Includes
1 * LED Strip Modules(20PCS/String)
Typical applications
- Recessed and surface channels
- Cabinet and furniture integration
- Linear fixture BOMs
