12 3W RGB Outdoor LED Spotlight

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

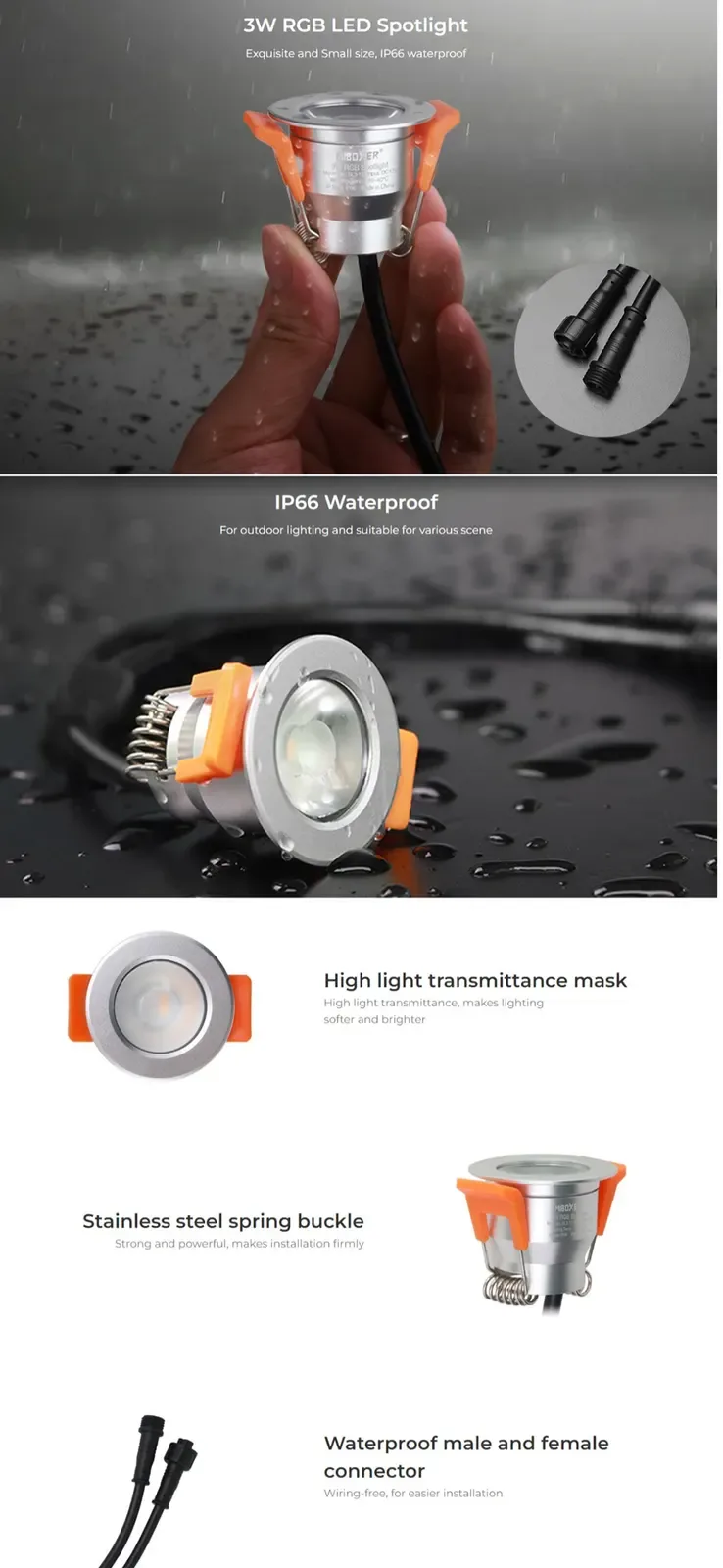

• The wireless controller 3W RGB outdoor LED spotlight is an energy-efficient and versatile outdoor lighting solution. This spotlight features a sleek, modern design and is intended to be weather-resistant and durable. It's aluminum and has a high light transmittance mask for softer and brighter lighting. The waterproof level is IP66 and comes with male and female connectors, which the installer can use for outdoor applications. The stainless steel spring buckles are included, easy to install, and light up.
• wireless controller RGB 3W Outdoor Spotlight Instruction
• Waterproof Male And Female Connectors Included
• Color And Brightness Adjustable

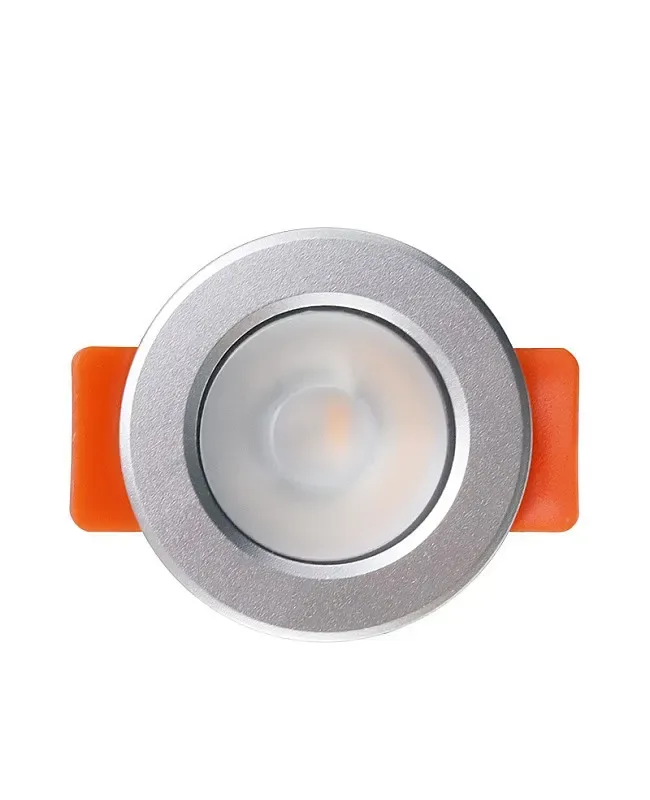

• High Light Transmittance Mask

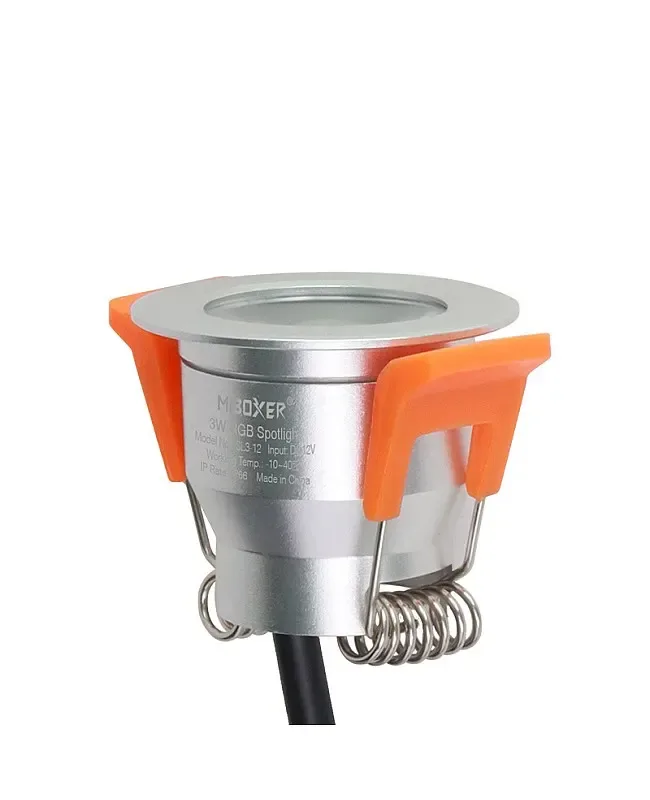

• Stainless Steel Spring Buckles Included

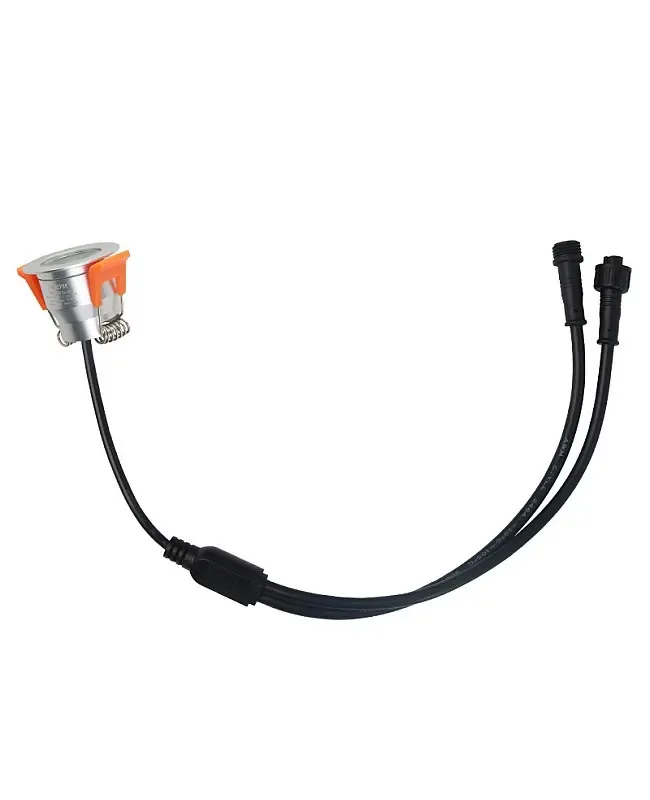

• 4 Pin Connecting Cable Included
• Working Temperature: -10-40℃

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V
• Light engine: RGB
• Material: Aluminum
• Size: 52*36mm(W*H)
• Power: 3W
• Input Voltage: DC12V
• Beam Angle: 36°
• IP Rating: IP66
• Hole Size: Φ33-36mm
• Working Temperature: -10-40℃
• LumaCircuit model: LC-SPT-FIY2T2
• Dimensions found: 52x36mm / 36mm

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The wireless controller 3W RGB outdoor LED spotlight is an energy-efficient and versatile outdoor lighting solution. This spotlight features a sleek, modern design and is intended to be weather-resistant and durable. It's aluminum and has a high light transmittance mask for softer and brighter lighting. The waterproof level is IP66 and comes with male and female connectors, which the installer can use for outdoor applications. The stainless steel spring buckles are included, easy to install, and light up. The wireless controller waterproof spotlight works in DC12V and is safe for children and pets. It uses one high-power LED as the light source, can work with RGB controllers, and uses the remote control or smartphone APP to set the color or adjust the brightness conveniently. There are 16 million colors available, and the installer can choose various colors and adjust the brightness for multiple scenes. This spot light is suited to adding color and brightness to any outdoor area.

Quick Links

wireless controller RGB 3W Outdoor Spotlight Instruction

Specifications

Material: Aluminum

Size: 52*36mm(W*H)

Power: 3W

Input Voltage: DC12V

Beam Angle: 36°

IP Rating: IP66

Hole Size: Φ33-36mm

Waterproof Male And Female Connectors Included

Compatible With

Color And Brightness Adjustable

16 Million Colors Available

High Light Transmittance Mask

Stainless Steel Spring Buckles Included

4 Pin Connecting Cable Included

Working Temperature: -10-40℃

Includes

1 * wireless controller RGB Outdoor LED Spotlight

4 Pin Connecting Cable
