Product details

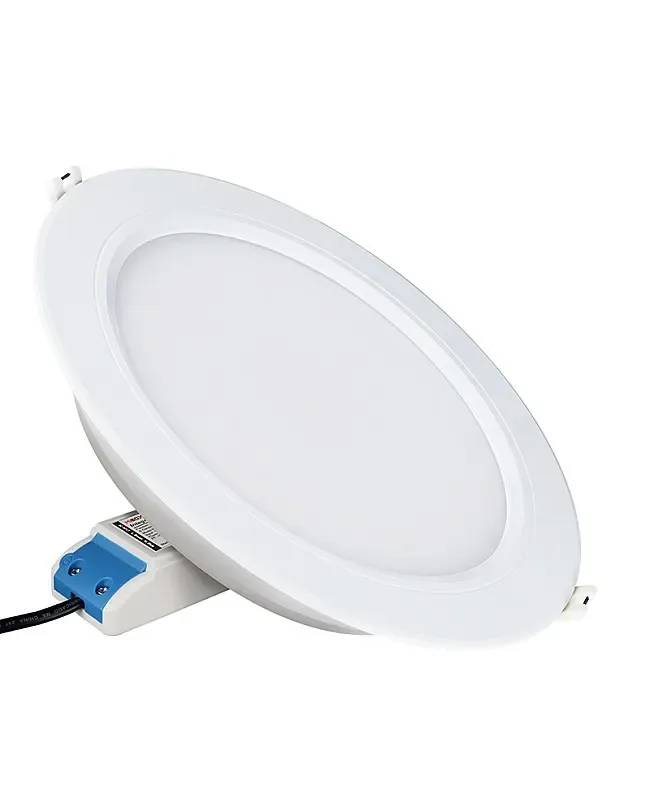

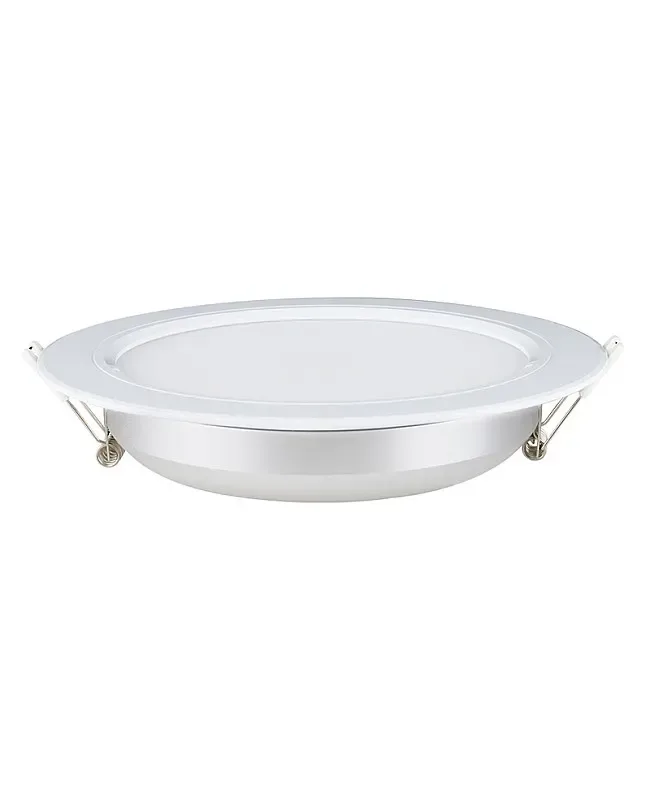

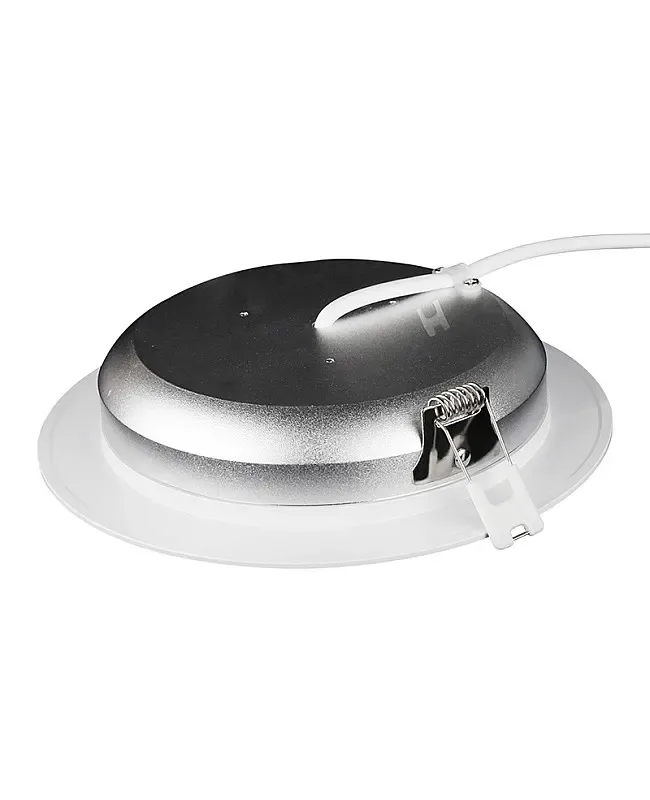

12W RGB CCT Zigbee 3.0 Recessed Spotlights
LumaCircuit offers 12W RGB CCT Zigbee 3.0 Recessed Spotlights as a configurable spotlight for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Material: Aluminum + PMMA Input Voltage: -240V, 50/60Hz Luminous Efficiency: 90LM/W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller Zigbee 3.0 recessed spotlights are versatile, energy-efficient lighting solutions for commercial and residential settings. The lights feature adjustable color temperature and brightness settings, making them easy to control and customize. Following the Zigbee 3.0 standard protocol, Zigbee remotes and the smartphone APP can be controlled after pairing with a Zigbee gateway. The control distance is up to 100m in the open area.
- Material: Aluminum + PMMA
- Input Voltage: -240V, 50/60Hz
- Luminous Efficiency: 90LM/W
- Color Temperature Adjustable From 2700K To 6500K
- Brightness Adjustable from 1% to 100%
- Communication Protocol: Zigbee 3.0 +2.
- Wireless Technology: Zigbee 802.15.4
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGBW
- LumaCircuit model: LC-SPT-LN60CJ
- Material: Aluminum + PMMA
- Size: Φ180*
- Hole Size: Φ145-150mm
- Input Voltage: -240V, 50/60Hz
- Power: 12W
- CRI: >
- Beam Angle: 120°
- Communication Protocol: Zigbee 3.0 +2.
- Zigbee Wireless Frequency: 2.400- 2.
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller Zigbee 3.0 recessed spotlights are versatile, energy-efficient lighting solutions for commercial and residential settings. The lights feature adjustable color temperature and brightness settings, making them easy to control and customize. Following the Zigbee 3.0 standard protocol, Zigbee remotes and the smartphone APP can be controlled after pairing with a Zigbee gateway. The control distance is up to 100m in the open area. The installer can use the remote to set the color and adjust the color temperature, brightness, and saturation for various scenes. There are 16 million colors available, and the color temperature is adjustable from 2700K to 6500K, with brightness from 1% to 100% the installer can also download the "mobile app" APP to your phone and control the LED lights with it to access additional features such as music rhythm, biorhythm, timing function, scene customization, sleep/wakeup plan, etc. The Zigbee recessed downlights support third-party voice control by Amazon Alexa or Google Assistant. They can control ON/OFF and adjust brightness and colors through voice commands. The RGBWW spotlights feature a high-quality aluminum housing for improved heat dissipation, a highly efficient transmitting cover made of PMMA, a light transmittance rate of over 95%, even illumination, and no flickering. Both sides feature stainless steel spring snaps for reliable, straightforward installation. The 12W constant-current and constant-voltage power supply is included, widely used for AC100V to AC240V, and is easy to light up. The Zigbee Spotlights can enter into Philips Hue, IKEA TRADFRI, Amazon Echo Plus, Amazon Echo, Echo Studio, and Echo Show standard Zigbee 3.0 Gateways.
Specifications
Model
Material: Aluminum + PMMA
Size: Φ180*
Hole Size: Φ145-150mm
Input Voltage: -240V, 50/60Hz
Power: 12W
Luminous Flux: 1100LM
Luminous Efficiency: 90LM/W
16 Million Colors Available
Color Temperature Adjustable From 2700K To 6500K
Brightness Adjustable from 1% to 100%
Saturation Adjustable
CRI: >
Beam Angle: 120°
Communication Protocol: Zigbee 3.0 +2.
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400- 2.
Zigbee 3.0 Remote Controllable(Zigbee Gateway Needed)
Support Third-Party Voice Control(Zigbee Gateway Needed)
Can Work With Amazon Alexa and Google Assistant
APP Controllable
APP Name: mobile app
Control Distance: Zigbee: ≤100m(Open Area); 2.4G: ≤30m
IP Rate: IP20 Non-waterproof
Working Temperature: -10-40℃
Includes
1 * 12W Zigbee low profile LED ceiling light
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
