DC24V 3W RGBW Spotlights For House
LumaCircuit offers DC24V 3W RGBW Spotlights For House as a configurable spotlight for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Type: Subordinate Lamp-3W RGBW Spotlight Size: 54*38mm(Width*Height) Color Temperature: 3000K And Customizable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

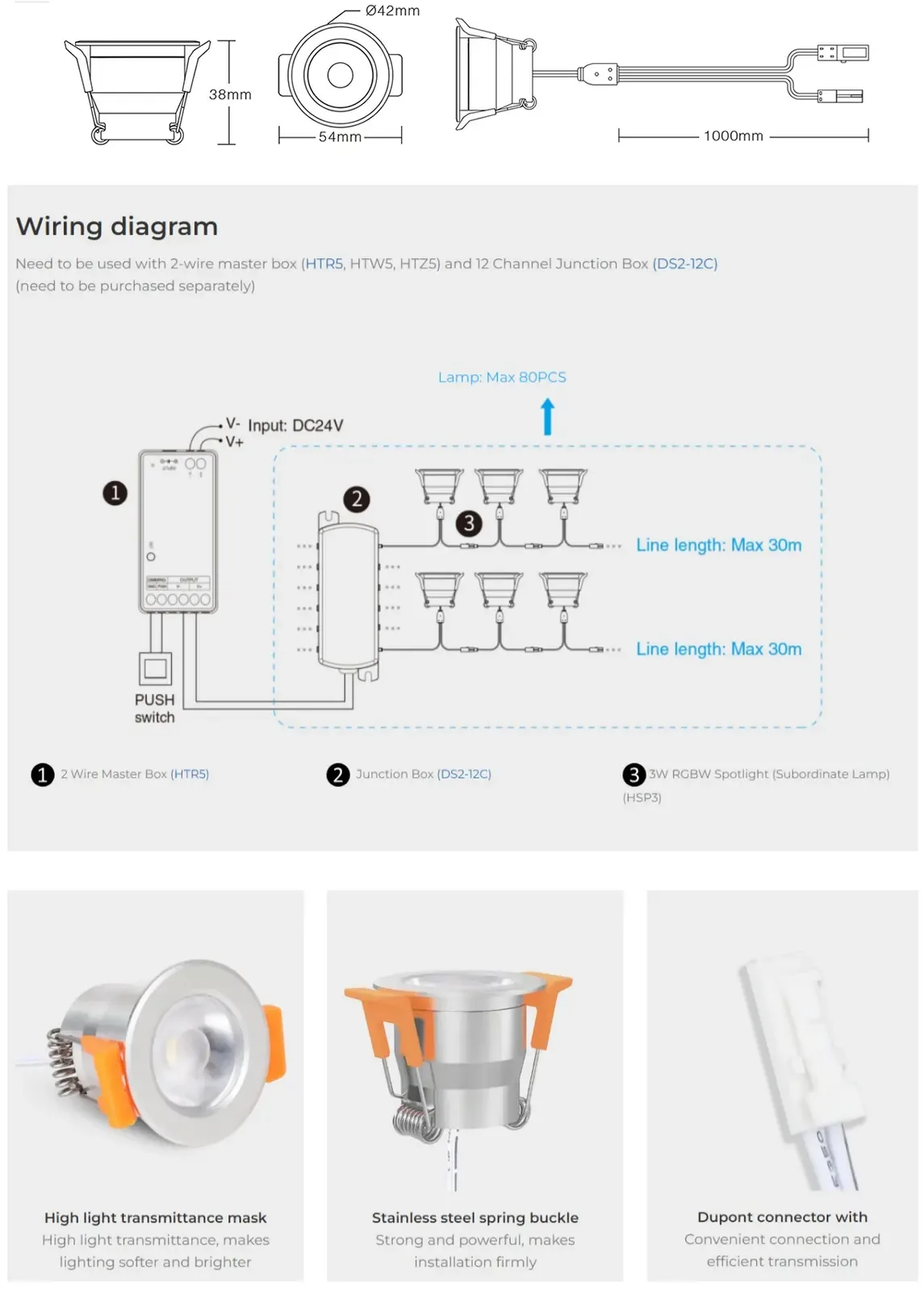

- The wireless controller 3W RGBW spotlights for the house come with DuPont male and female plugs and need to work with the 2-wire master boxes like and to change the colors, saturation, and adjust the brightness for various scenes. They can work with 12-Channel Junction Boxes, allowing as many as 80 pieces of RGBW spot lights together. The 24V RGBW spotlights adopt highly transparent masks for soft and bright light output. The color temperature is 3000K, 2000K, 4000K, 5000K, and 6000K, which are customized.
- Type: Subordinate Lamp-3W RGBW Spotlight
- Size: 54*38mm(Width*Height)
- Color Temperature: 3000K And Customizable
- Dimming Grayscale: 4096 Levels
- Dimming Range: 0.1%-100%
- Dimming Curve: Logarithmic
- EMC Standard(EMC): ETSI EN 301 489-1.2.3, ETSI EN 301 489-3.1.1, ETSI EN 301 489-17 V 3.2.4
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: RGBW
- LumaCircuit model: LC-SPT-QLIW77
- Size: 54*38mm(Width*Height)
- Diameter: Φ42mm
- Hole Size: Φ33-36mm
- Working Voltage: DC24V
- Power: 3W
- Color Temperature: 3000K And Customizable
- Beam Angle: 36°
- Cable Length: 1000mm
- IP Rate: IP20 Non-waterproof
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

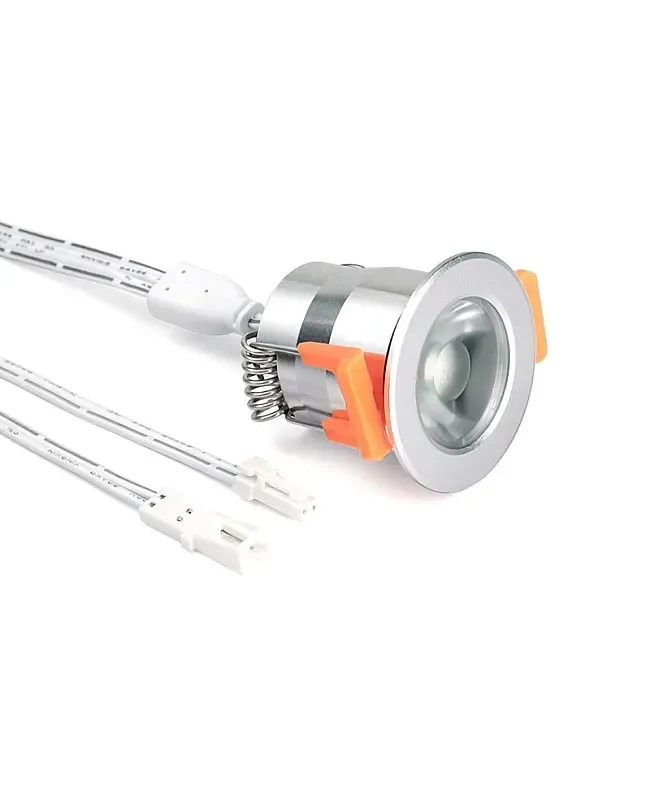

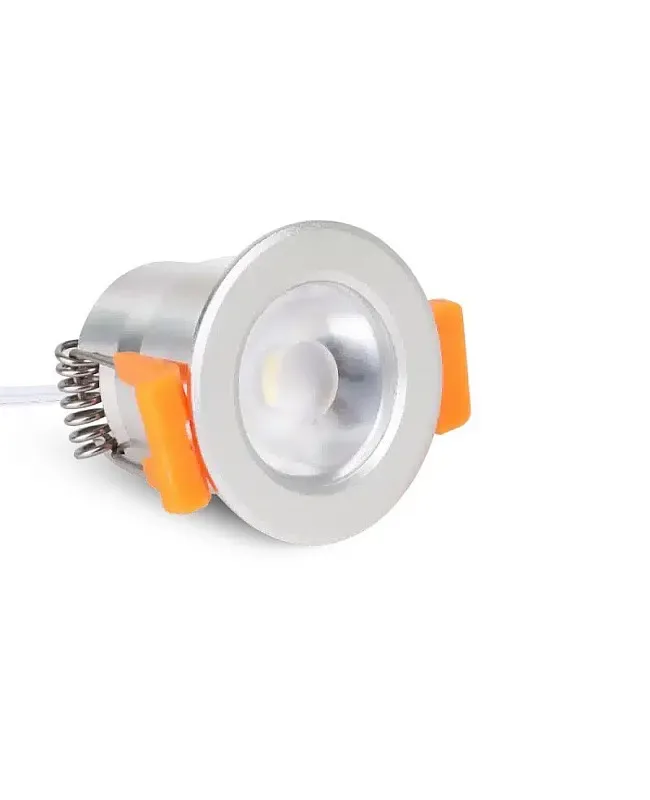

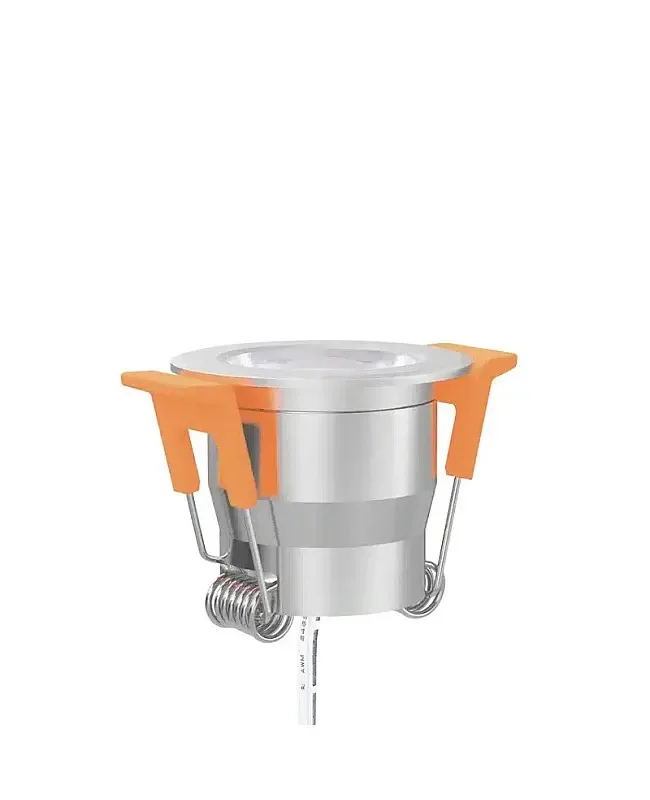

The wireless controller 3W RGBW spotlights for the house come with DuPont male and female plugs and need to work with the 2-wire master boxes like and to change the colors, saturation, and adjust the brightness for various scenes. They can work with 12-Channel Junction Boxes, allowing as many as 80 pieces of RGBW spot lights together. The 24V RGBW spotlights adopt highly transparent masks for soft and bright light output. The color temperature is 3000K, 2000K, 4000K, 5000K, and 6000K, which are customized. There are 4096 smooth dimming levels, and the minimum brightness is as low as 0.1%. The stainless steel spring buckle is included, easily and firmly installed on the ceiling as subordinate lighting.
Specifications
Type: Subordinate Lamp-3W RGBW Spotlight
Model

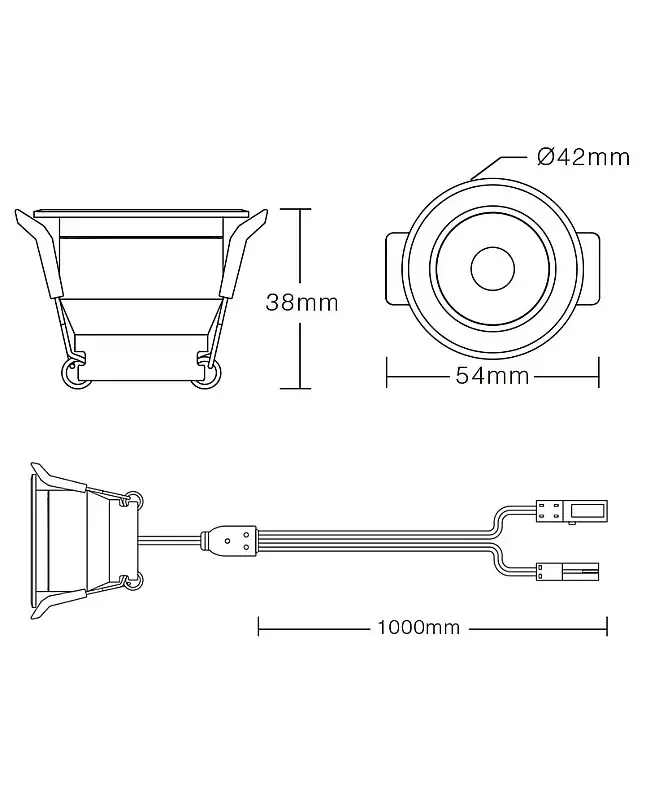

Size: 54*38mm(Width*Height)
Diameter: Φ42mm
Hole Size: Φ33-36mm
Working Voltage: DC24V
Power: 3W
CIR: >
Color Temperature: 3000K And Customizable
Luminous Flux: 61LM
Beam Angle: 36°
Dimming Grayscale: 4096 Levels
Dimming Range: 0.1%-100%
Dimming Curve: Logarithmic
Cable Length: 1000mm
EMC Standard(EMC): ETSI EN 301 489-1.2.3, ETSI EN 301 489-3.1.1, ETSI EN 301 489-17 V 3.2.4
Safety Standard(LVD): EN -2-1:2021; EN -1:2021; EN IEC 62031:2020; EN 62493:2015/:2022
Radio Equipment(RED): ETSI EN 300 440.2.1, ETSI EN 300 328.2.2
IP Rate: IP20 Non-waterproof
Working Temperature: -10-40℃

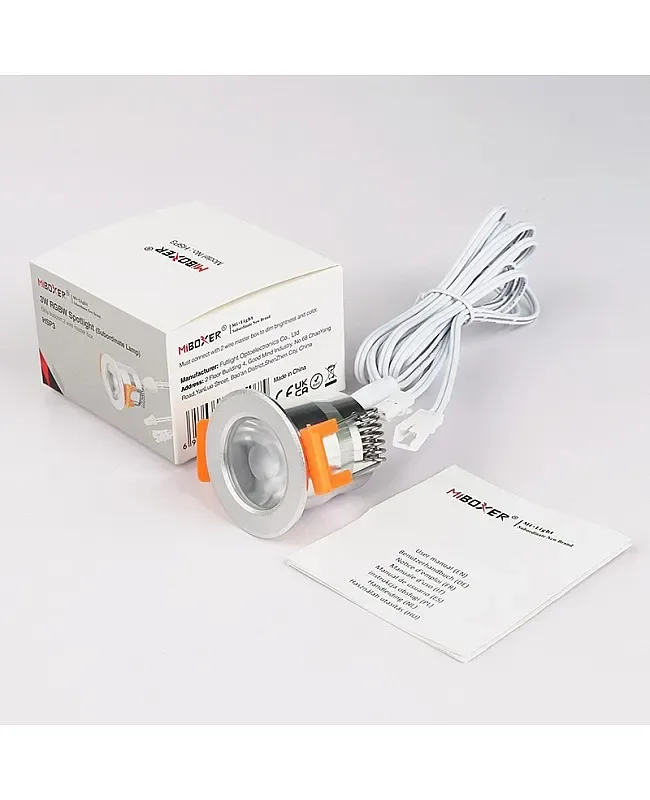

Includes
1 * RGBW Spotlight For House
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
