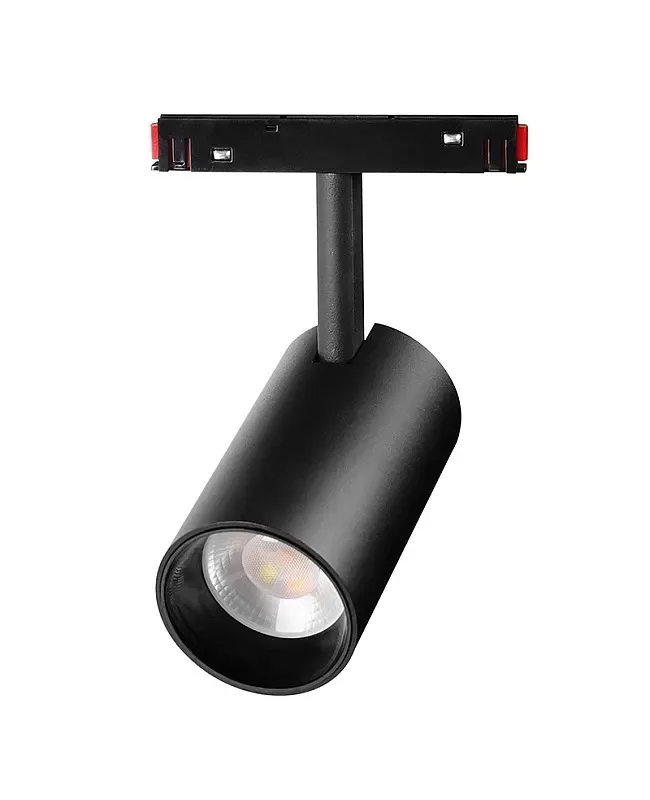

6W Zigbee+2.4G Dual White Magnetic Track Lighting

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The wireless controller dual white magnetic track lighting for the living room has Zigbee 3.0 + 2.4G and 2.4G only series available. The installer can use a 2.4G remote control, smartphone apps, and voice commands to adjust the brightness and color temperature for various scenes in homes, offices, shops, museums, galleries, restaurants, etc. The wireless controller Track Lights have a magnetic insulating base, are easy to insert into, and are powered by rail. They can move randomly on the rail.
• Models: Zigbee 3.0+2.4G Series: (6W) / ZR(12W) / ZR(25W) / 2.4G Series: RF(6W) / RF(12W) / RF(25W)
• Size(H*Φ): 172*51mm(6W) / 180*63mm(12W) / 212*76mm(25W)
• Color Temperature: 2700 K- 6500 K
• Luminous Flux: 520LM(6W) / 1100LM(12W) / 2000LM(25W)
• Luminous Efficiency: 86LM/W(6W) / 93LM/W(12W) / 79LM/W(25W)
• Beam Angle: 30°(6W) / 60°(12W) / 36°(25W)
• Communication Protocol: Zigbee 3.0 + 2.4G

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 48 V
• Light engine: CCT
• Models: Zigbee 3.0+2.4G Series: (6W) / ZR(12W) / ZR(25W) / 2.4G Series: RF(6W) / RF(12W) / RF(25W)
• Size(H*Φ): 172*51mm(6W) / 180*63mm(12W) / 212*76mm(25W)
• Input Voltage: DC48V

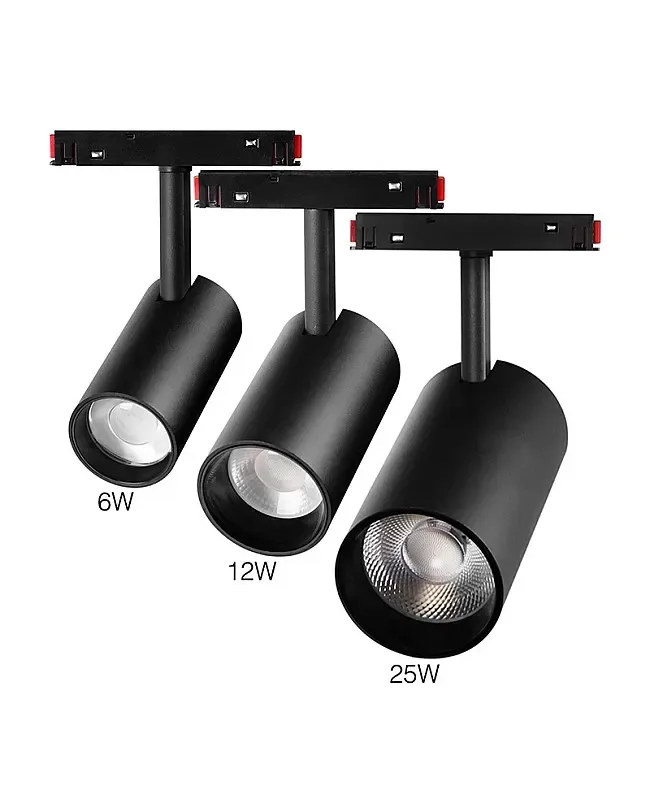

• Power: 6W, 12W, 25W
• Color Temperature: 2700 K- 6500 K
• Beam Angle: 30°(6W) / 60°(12W) / 36°(25W)
• CRI: >
• Communication Protocol: Zigbee 3.0 + 2.4G
• Compatible With 2.4 GHz wireless wireless controller 2.4G Remote Controls: T1, T2, B, WL- 2.4G Gateway
• Control Distance: Zigbee 3.0: ≤100m(Open Area) / 2.4G RF Remote: ≤30m

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

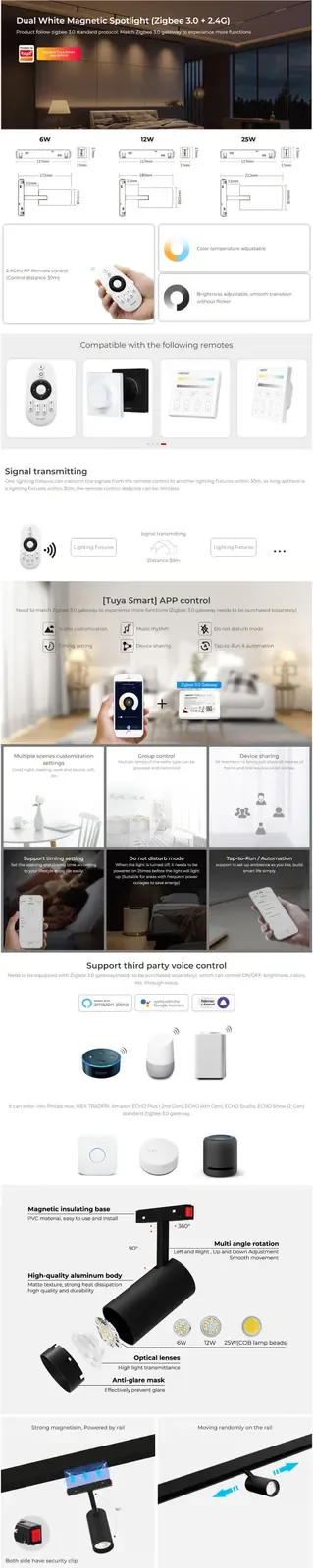

The wireless controller dual white magnetic track lighting for the living room has Zigbee 3.0 + 2.4G and 2.4G only series available. The installer can use a 2.4G remote control, smartphone apps, and voice commands to adjust the brightness and color temperature for various scenes in homes, offices, shops, museums, galleries, restaurants, etc. The wireless controller Track Lights have a magnetic insulating base, are easy to insert into, and are powered by rail. They can move randomly on the rail. The lamp base has a multi-angle rotation design so that the installer can adjust the lighting direction freely. The tunable white track lighting uses high-quality LEDs as the light source. 6W, 12W, and 25W products are available can be controlled by the 2.4 GHz wireless 2.4G series dual white remote controls. The installer can use Remotes to adjust the color temperature from warm white 2700K to 6500K cool white. Adjust the brightness from 1% to 100%, and smooth the transition without flicker. The magnetic track lights will transmit the signals from the remote control to another track lighting within 30 meters, and all of them will work synchronously. After matching to a Zigbee 3.0 gateway(Zigbee 3.0+2.4G Version) or 2.4G gateway(2.4G version), a smartphone APP and voice commands can control them. They can work with Amazon Alexa and Google Assistant. It can achieve more functions on the app, such as timing, scene customization, group control, device sharing, etc. Those lights are non-waterproof and are only for interior lighting projects.

Specifications

Models: Zigbee 3.0+2.4G Series: (6W) / ZR(12W) / ZR(25W) / 2.4G Series: RF(6W) / RF(12W) / RF(25W)

Size(H*Φ): 172*51mm(6W) / 180*63mm(12W) / 212*76mm(25W)

Input Voltage: DC48V

Power: 6W, 12W, 25W

Color Temperature: 2700 K- 6500 K

Luminous Flux: 520LM(6W) / 1100LM(12W) / 2000LM(25W)

Luminous Efficiency: 86LM/W(6W) / 93LM/W(12W) / 79LM/W(25W)

Beam Angle: 30°(6W) / 60°(12W) / 36°(25W)

CRI: >

Dimmable: YES

Communication Protocol: Zigbee 3.0 + 2.4G

Compatible With 2.4 GHz wireless wireless controller 2.4G Remote Controls T1, T2, B, WL- 2.4G Gateway

Control Distance: Zigbee 3.0: ≤100m(Open Area) / 2.4G RF Remote: ≤30m

APP Control(Zigbee 3.0 Gateway Or 2.4G Gateway Needed)

APP Name: Tuya Smart(Zigbee 3.0) wireless controller(2.4G)

Support Third-Party Voice Control

Can Work With Amazon Alexa And Google Assistant

IP Rate: IP20 Non-waterproof

Wireless Technology: Zigbee 802.15.4

Wireless Frequency: 2.400- 2.

Auto Signal Transmitting

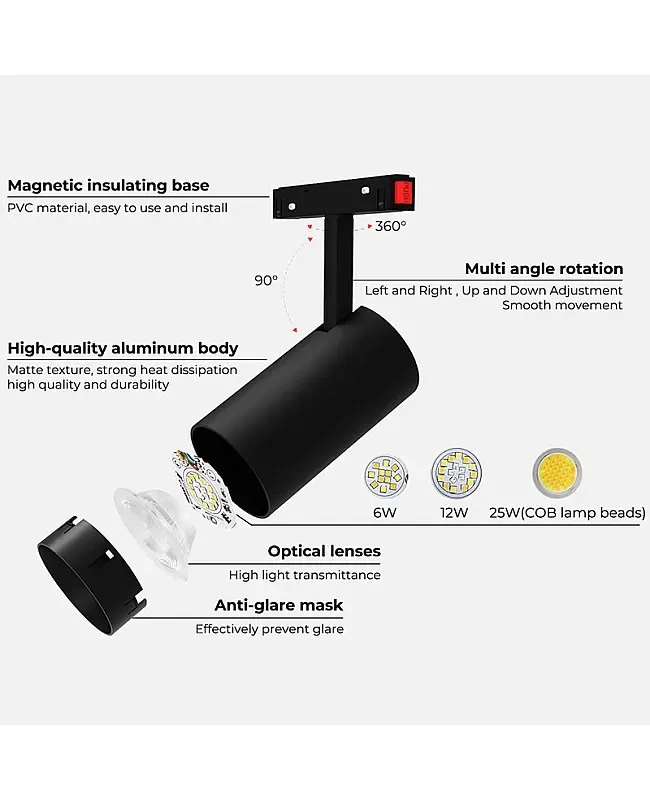

Magnetic Insulating Base

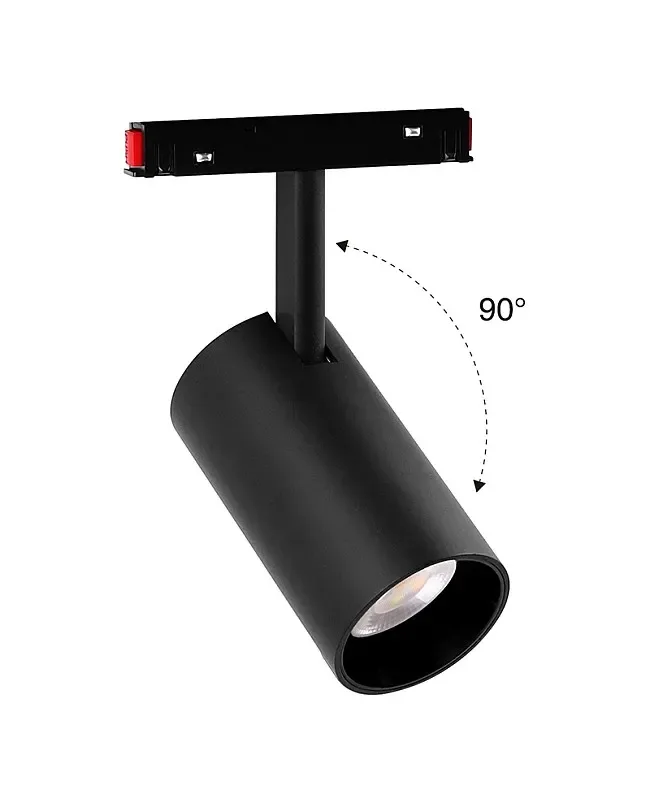

Lamp Base Multi-Angle Rotation

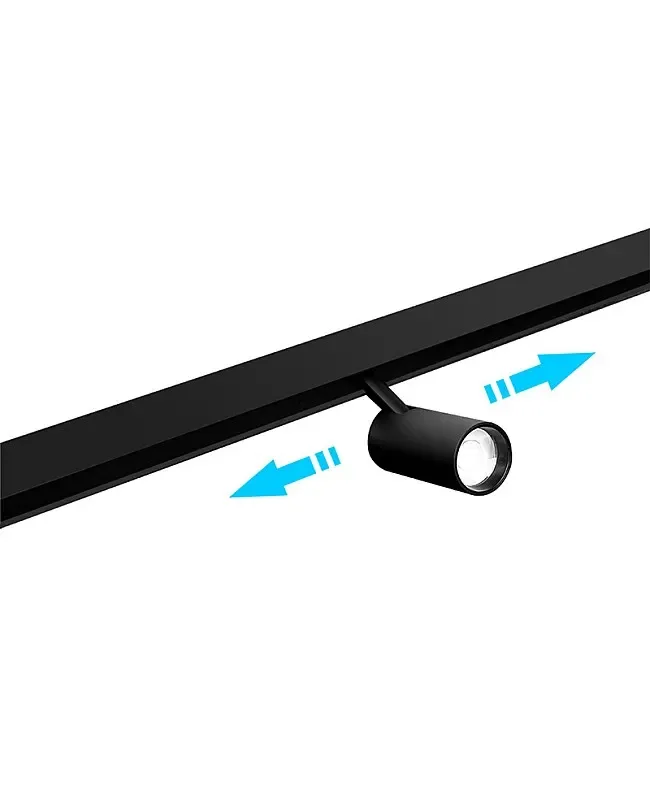

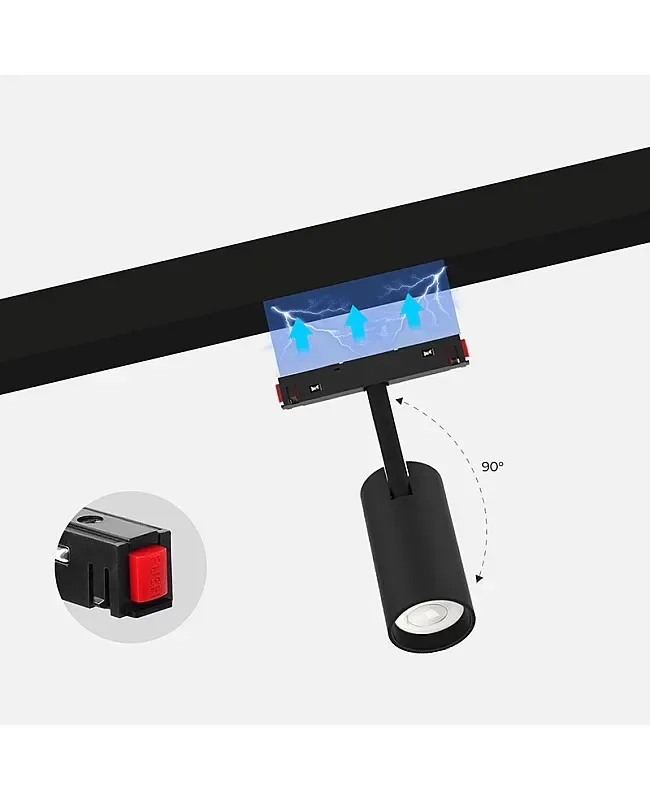

Powered By Rail And Moving Randomly On The Rail

Working Temperature: -10-40℃

Includes

1 * Dual White Magnetic Track Lighting
