Product details
4G Dual White Foldable Magnetic Track Lighting System
LumaCircuit offers 4G Dual White Foldable Magnetic Track Lighting System as a configurable spotlight for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Size(L*W*H): 224*102.5*22mm / 440*102.5*22mm Luminous Flux: 800LM(10W) / 1530LM(20W) Luminous Efficiency: 80LM/W(10W) / 75LM/W(20W) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller foldable magnetic track lighting systems, which have a strong magnetic base, are easy to insert into and powered by rail, and can move randomly on the rail. It can be controlled by 2.4G RF remotes, smartphone apps, and voice commands to adjust the color temperature and brightness for various scenes in homes, offices, hotels, galleries, museums, shops, and restaurants. It can be used for accent lighting and task lighting for interior projects.
- Size(L*W*H): 224*102.5*22mm / 440*102.5*22mm
- Luminous Flux: 800LM(10W) / 1530LM(20W)
- Luminous Efficiency: 80LM/W(10W) / 75LM/W(20W)
- Color Temperature: 2700 K- 6500 K
- 4G Remote Control T2, WL
- Auto Signal Transmitting
- Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 48 V
- Light engine: CCT
- Models: (10W) / RF(20W)
- Size(L*W*H): 224*102.5*22mm / 440*102.5*22mm
- Input Voltage: DC48V
- Power: 10W / 20W
- Color Temperature: 2700 K- 6500 K
- Beam Angle: 24°
- CRI: >
- 2.4G Remote Control: T2, WL
- Control Distance: ≤30M
- IP Rate: IP20 Non-waterproof
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller foldable magnetic track lighting systems, which have a strong magnetic base, are easy to insert into and powered by rail, and can move randomly on the rail. It can be controlled by 2.4G RF remotes, smartphone apps, and voice commands to adjust the color temperature and brightness for various scenes in homes, offices, hotels, galleries, museums, shops, and restaurants. It can be used for accent lighting and task lighting for interior projects. The magnetic track lights use warm white and cool white LEDs as the light source, and the color temperature is adjustable from 2700K to 6500 K. The brightness can be adjusted from 1% to 100%, and a smooth transition without flicker. The foldable track lights adopt widely used 2.4G wireless technology with low power consumption and can be controlled by 2.4 GHz wireless 2.4G remote controls. The track lights receive signals and transmit to other rail lights within 30 meters. All of them will work synchronously. After matching to a 2.4G gateway, it can be controlled by a smartphone APP and third-party voice commands and can work with Amazon Alexa and Google Assistant. The installer can use your phone or voice commands to remotely control the dual white track lamps.
Specifications
Models: (10W) / RF(20W)
Size(L*W*H): 224*102.5*22mm / 440*102.5*22mm
Input Voltage: DC48V
Power: 10W / 20W
Luminous Flux: 800LM(10W) / 1530LM(20W)
Luminous Efficiency: 80LM/W(10W) / 75LM/W(20W)
Color Temperature: 2700 K- 6500 K
Dimmable Yes
Beam Angle: 24°
CRI: >
RF: 2.
4G Remote Control T2, WL
Control Distance: ≤30M
Auto Signal Transmitting
Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
Can Work With Amazon Alexa And Google Assistant

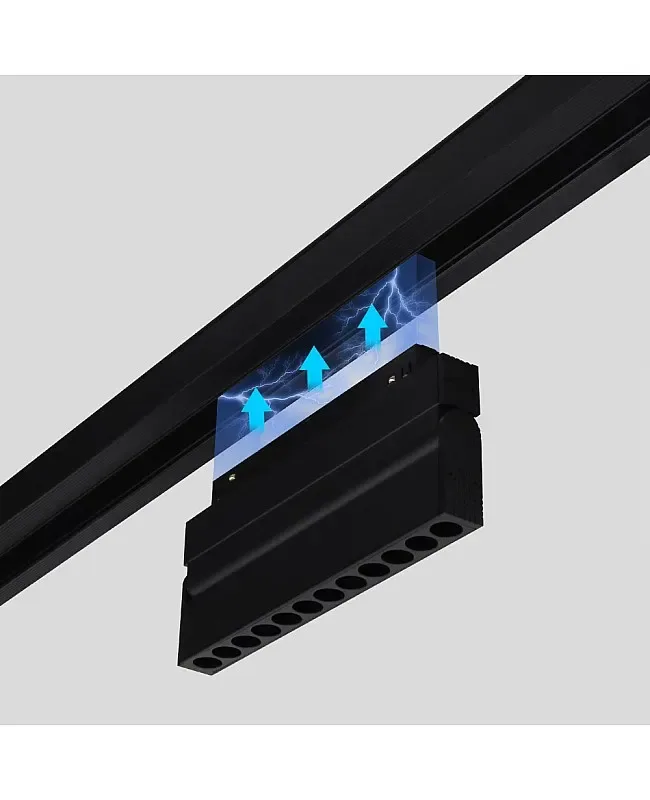

Strong Magnetism Base And Powered By Rail Tracks

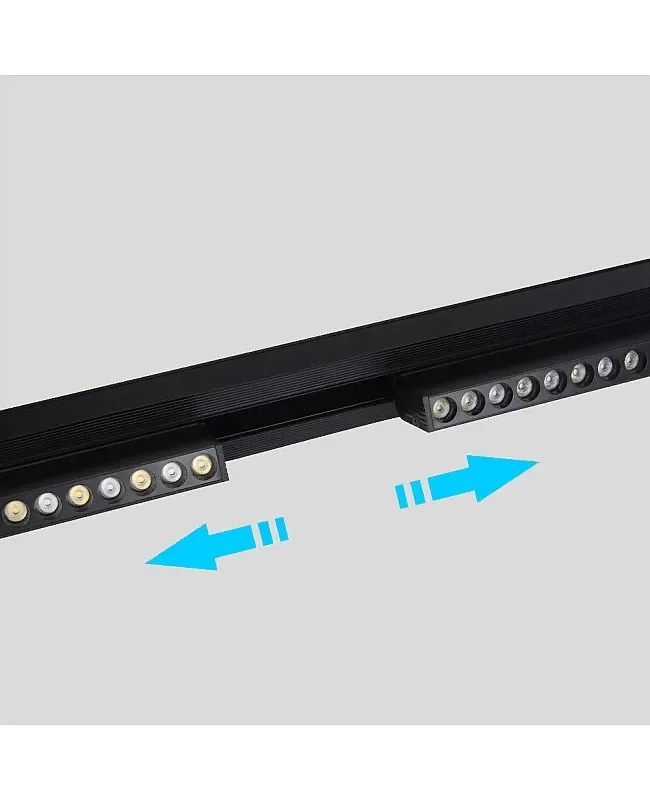

Moving Randomly On The Rail
IP Rate: IP20 Non-waterproof
Working Temperature: -10℃-+40℃
Includes
1 * wireless controller Foldable Magnetic Track Lighting
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
