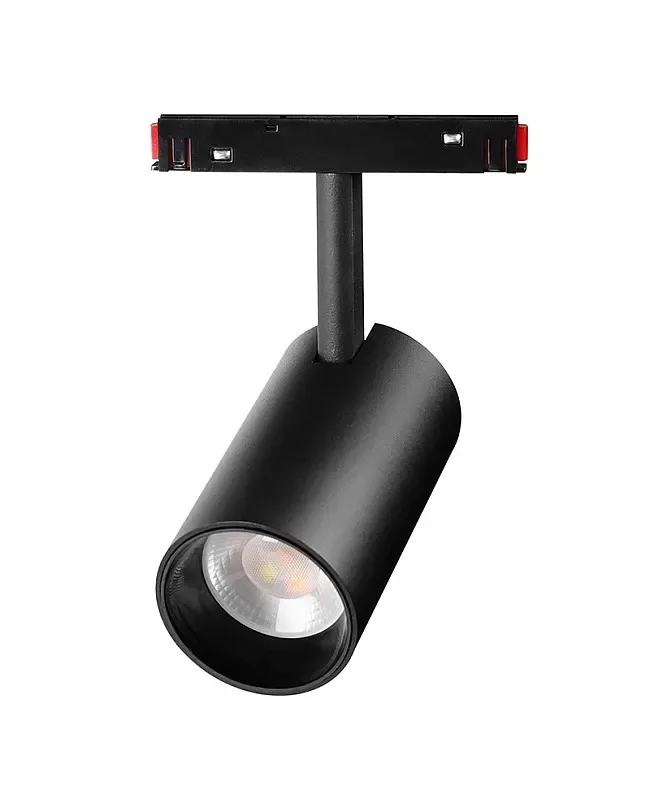

12W RGB+CCT Magnetic Track Lighting Ceiling Zigbee

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The wireless controller magnetic track lighting ceiling is available in two versions: Zigbee 3.0 + 2.4G and 2.4G only. They have a magnetic insulating base that is easy to insert into the rail and pull out, powered by the rail, and moves randomly. With the magnetic track spotlights with a multi-angle rotation design, the installer can adjust the lighting direction for various scenes. The installer can use them in homes, offices, galleries, museums, hotels, restaurants, and other public spaces.
• Models: ( 6W ) / ZR ( 12W ) / ZR ( 25W ) / RF( 6W ) / RF( 12W ) / RF ( 25W )
• Size(H*Φ): 172 mm x 51 mm(6W) / 180 mm x 63 mm(12W) / 212 mm x 76 mm(25W)
• Color Temperature Adjustable Range: 2700-6500K
• Brightness and saturation are adjustable
• Luminous Flux: 420 LM ( 6W ) / 1000 LM ( 12W ) / 1800 LM ( 25W )
• Luminous Efficiency: 72 LM/W ( 6W ) / 82 LM/W ( 12W ) / 75 LM/W( 25W )
• Beam Angle: 30° ( 6W ) / 60° ( 12W )/ 36°( 25W )

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 48 V
• Light engine: RGB+CCT
• Models: ( 6W ) / ZR ( 12W ) / ZR ( 25W ) / RF( 6W ) / RF( 12W ) / RF ( 25W )
• Size(H*Φ): 172 mm x 51 mm(6W) / 180 mm x 63 mm(12W) / 212 mm x 76 mm(25W)
• Input Voltage: DC48V
• Power: 6W, 12W, 25W
• Color Temperature Adjustable Range: 2700-6500K
• CRI: >
• Beam Angle: 30° ( 6W ) / 60° ( 12W )/ 36°( 25W )
• Communication Protocol: Zigbee 3.0 + 2.4G
• 2.4G RF Remote Controllable: T3, T4,
• Control Distance: Zigbee: ≤100m ( open area ) / 2.4G Remote: ≤30m

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The wireless controller magnetic track lighting ceiling is available in two versions: Zigbee 3.0 + 2.4G and 2.4G only. They have a magnetic insulating base that is easy to insert into the rail and pull out, powered by the rail, and moves randomly. With the magnetic track spotlights with a multi-angle rotation design, the installer can adjust the lighting direction for various scenes. The installer can use them in homes, offices, galleries, museums, hotels, restaurants, and other public spaces. The wireless controller color-changing track lamps can be controlled by 2.4G RF remotes, which allow for selection of static and dynamic modes, 18 dynamic modes, and 16 million colors. The color temperature, brightness, and saturation are adjustable. The tracking light fixtures will transmit the signals from a remote to another track lighting within 30 meters, and different lights can work synchronously. After pairing with a 2.4G or Zigbee 3.0 gateway, the magnetic rail lights can be controlled via a smartphone app and third-party voice commands, and are compatible with Amazon Alexa and Google Assistant. The installer can achieve more functions on your phone, such as scene customization, music rhythm, timing, device sharing, group control, etc. It can also connect to standard Zigbee gateways, such as Philips Hue, IKEA TRADFRI, and Amazon Echo series, among others.

Specifications

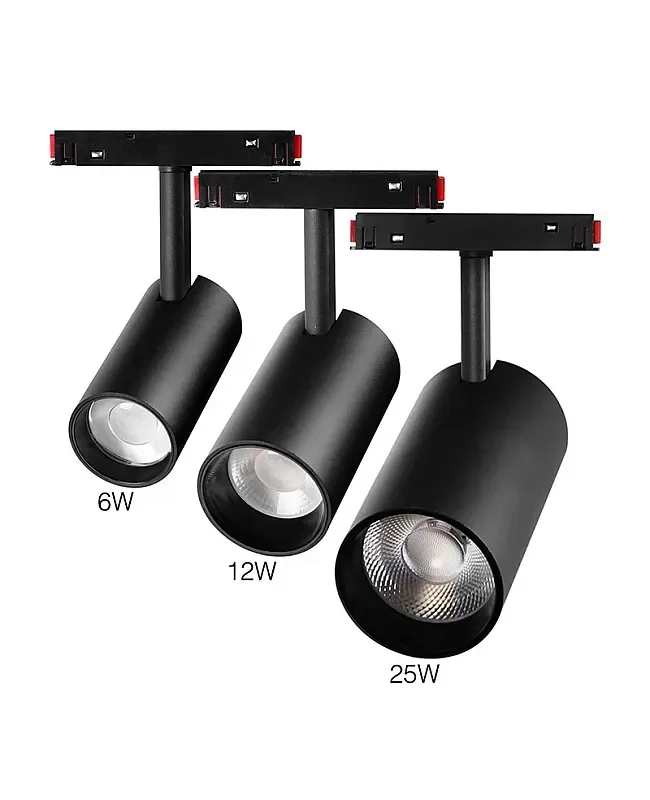

Models: ( 6W ) / ZR ( 12W ) / ZR ( 25W ) / RF( 6W ) / RF( 12W ) / RF ( 25W )

Size(H*Φ): 172 mm x 51 mm(6W) / 180 mm x 63 mm(12W) / 212 mm x 76 mm(25W)

Input Voltage: DC48V

Power: 6W, 12W, 25W

16 million colors available

Color Temperature Adjustable Range: 2700-6500K

Brightness and saturation are adjustable

Luminous Flux: 420 LM ( 6W ) / 1000 LM ( 12W ) / 1800 LM ( 25W )

Luminous Efficiency: 72 LM/W ( 6W ) / 82 LM/W ( 12W ) / 75 LM/W( 25W )

CRI: >

Beam Angle: 30° ( 6W ) / 60° ( 12W )/ 36°( 25W )

Communication Protocol: Zigbee 3.0 + 2.4G

4G RF Remote Controllable T3, T4,

Auto signal transmitting and mode synchronization

Control Distance: Zigbee: ≤100m ( open area ) / 2.4G Remote: ≤30m

Tuya smart APP control and third-party voice control(Zigbee 3.0 gateway needed)

Can work with Amazon Alexa and Google Assistant

Wireless Technology: Zigbee 802.15.4

Wireless Frequency: 2.400- 2.

Support DMX512 controllable( DMX512 LED transmitter needed)

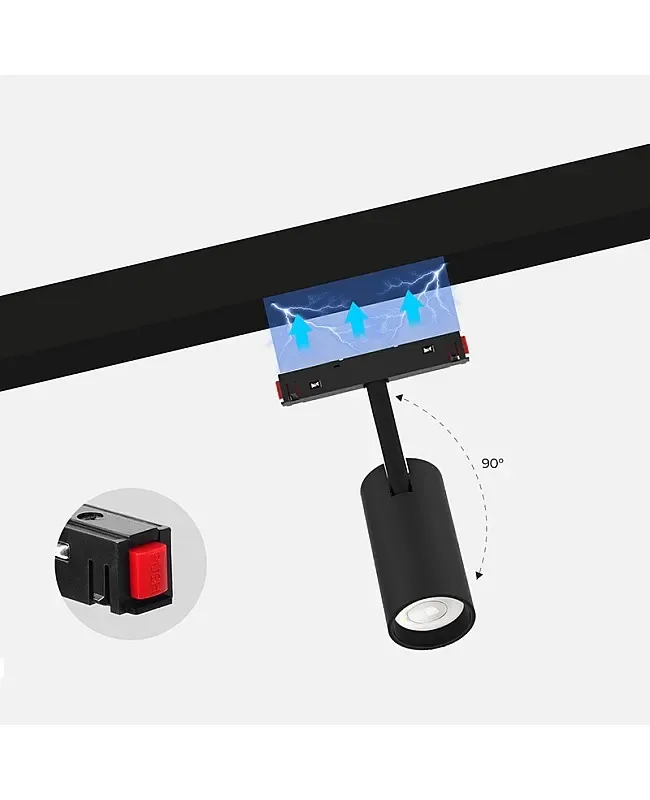

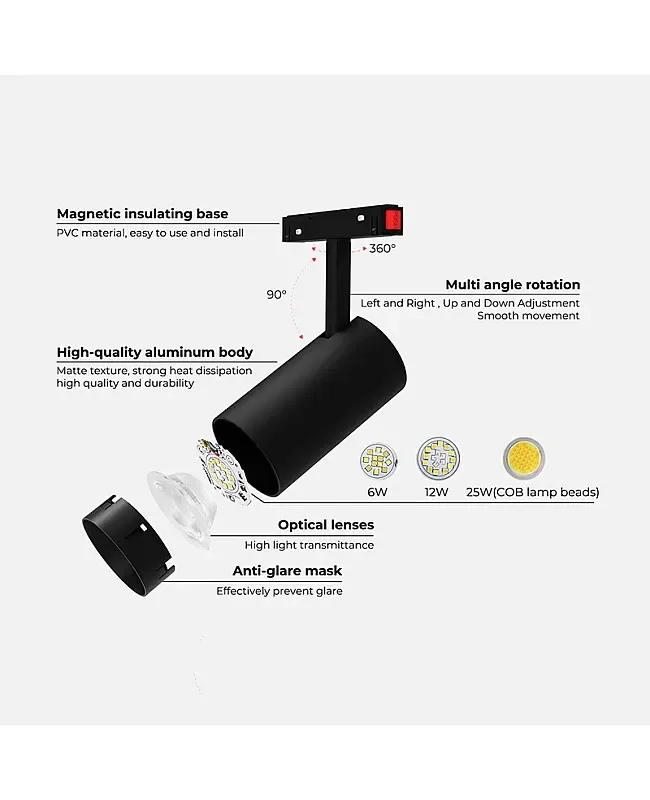

Magnetic insulating base

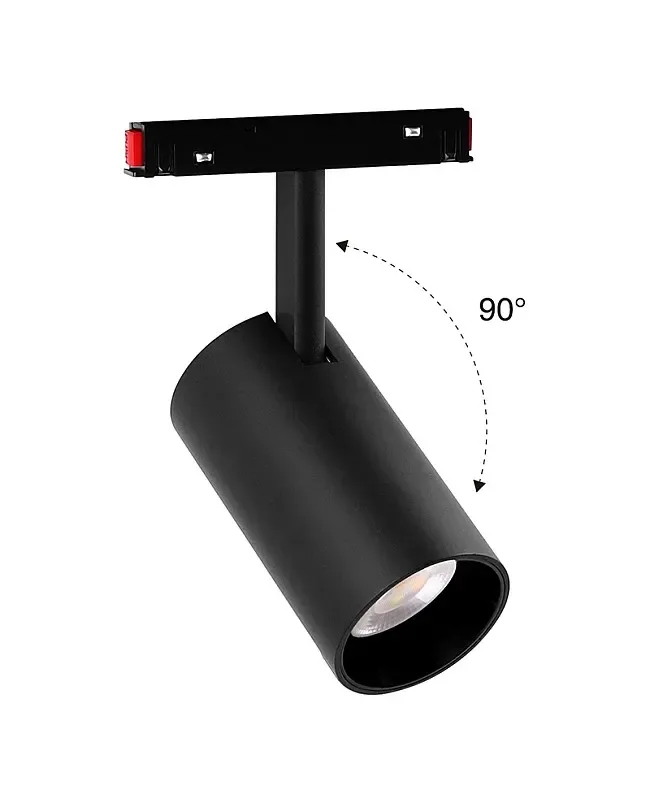

Lamp base adjustable

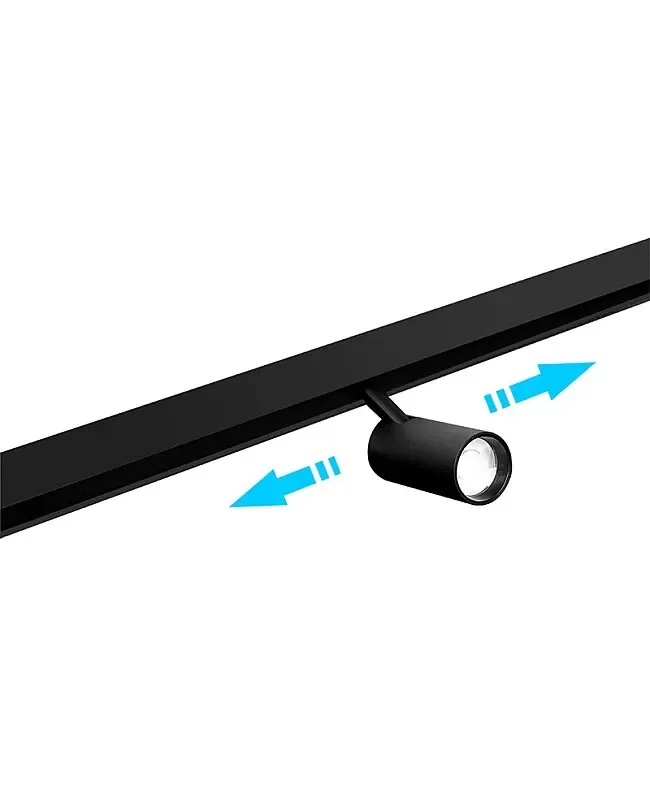

Moving randomly on the rail and powered by the rail

IP Rate: IP20 non-waterproof

Working Temperature: -10-40℃

Includes

1 * RGB+CCT magnetic ceiling track lighting
