Product details
12 Dual White CCT Outdoor Waterproof Spotlight Lamp
LumaCircuit offers 12 Dual White CCT Outdoor Waterproof Spotlight Lamp as a configurable spotlight for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. wireless controller Dual White Outdoor Spotlight Lamp Manual Color Temperature: 1800-6500K Compatible With CCT Controllers The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller dual white outdoor spotlight Lamp is an excellent choice for lighting outdoor areas. It has two adjustable white-temperature LEDs that can be adjusted to meet the desired lighting conditions. With a small size and IP66 waterproof level design, the installer can install them in a damp, wet, or wet location for outdoor lighting applications. The waterproof male and female connectors are included, and the wiring is free for easier installation.
- wireless controller Dual White Outdoor Spotlight Lamp Manual
- Color Temperature: 1800-6500K
- Compatible With CCT Controllers
- Brightness And Color Temperature Adjustable
- Waterproof Male And Female Connectors Included
- High Light Transmittance Mask
- Stainless Steel Spring Buckles Included
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- Material: Aluminum
- Size: 52*36mm(W*H)
- Input Voltage: DC12V
- Power: 3W
- Color Temperature: 1800-6500K
- Beam Angle: 36°
- IP Rating: IP66
- Hole Size: Φ33-36mm
- Working Temperature: -10-40℃
- LumaCircuit model: LC-SPT-HAERK2
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

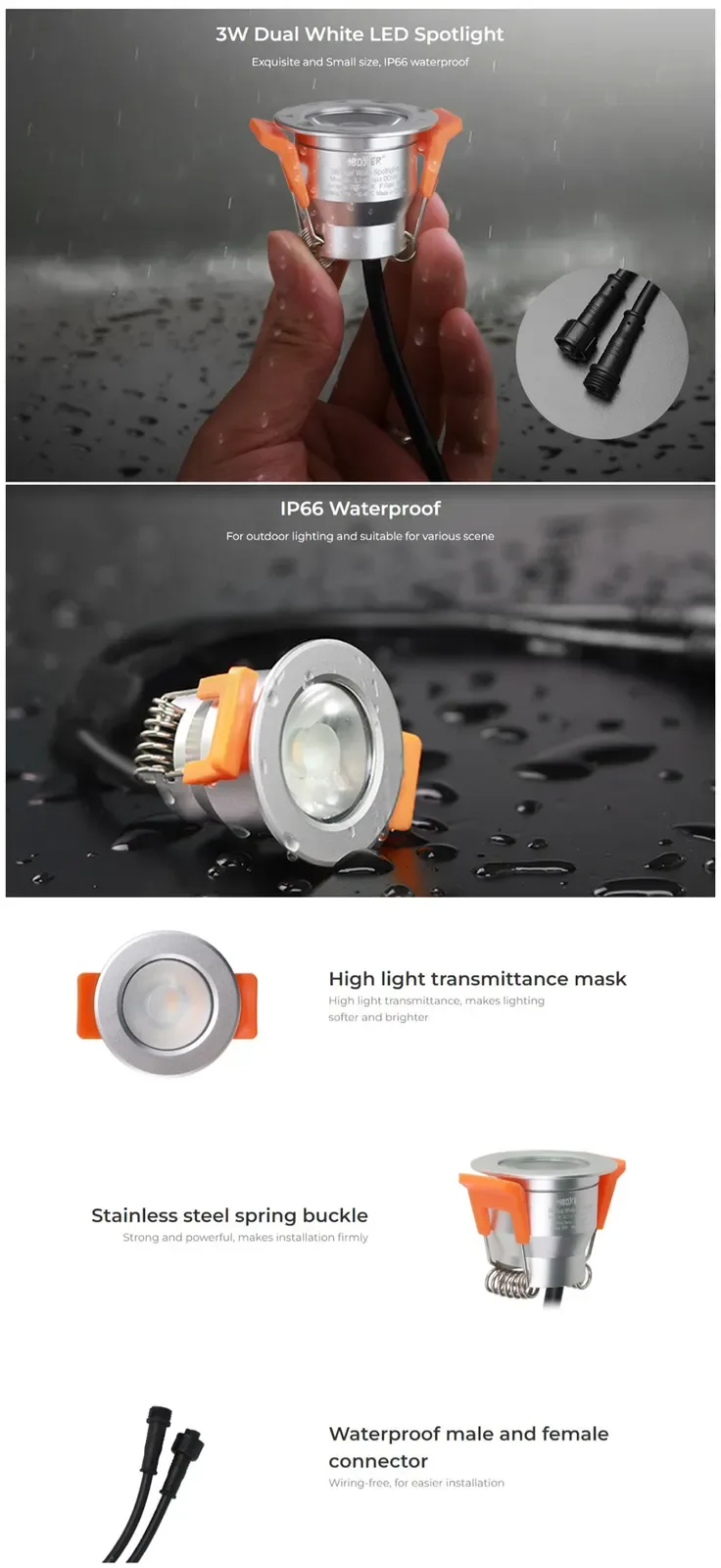

The wireless controller dual white outdoor spotlight Lamp is an excellent choice for lighting outdoor areas. It has two adjustable white-temperature LEDs that can be adjusted to meet the desired lighting conditions. With a small size and IP66 waterproof level design, the installer can install them in a damp, wet, or wet location for outdoor lighting applications. The waterproof male and female connectors are included, and the wiring is free for easier installation. The Lamp has stainless steel spring buckles for easy installation, with a high light transmittance mask for softer and brighter lighting. The wireless controller outdoor spotlight works in DC12V and uses a one-piece high-quality LED as the light source. After adding the CCT controller, the installer can use the remote control or smartphone APP to adjust the brightness and color temperature for various scenes. The installer can change the color temperature from 1800K to 6500 K.
Quick Links
wireless controller Dual White Outdoor Spotlight Lamp Manual
Specifications
Material: Aluminum
Size: 52*36mm(W*H)
Input Voltage: DC12V
Power: 3W
Color Temperature: 1800-6500K
Beam Angle: 36°
Compatible With CCT Controllers
Brightness And Color Temperature Adjustable
IP Rating: IP66
Hole Size: Φ33-36mm
Waterproof Male And Female Connectors Included
High Light Transmittance Mask
Stainless Steel Spring Buckles Included
3 Pin Connecting Cable Included
Working Temperature: -10-40℃
Includes
1 * wireless controller CCT Waterproof Spotlight Lamp

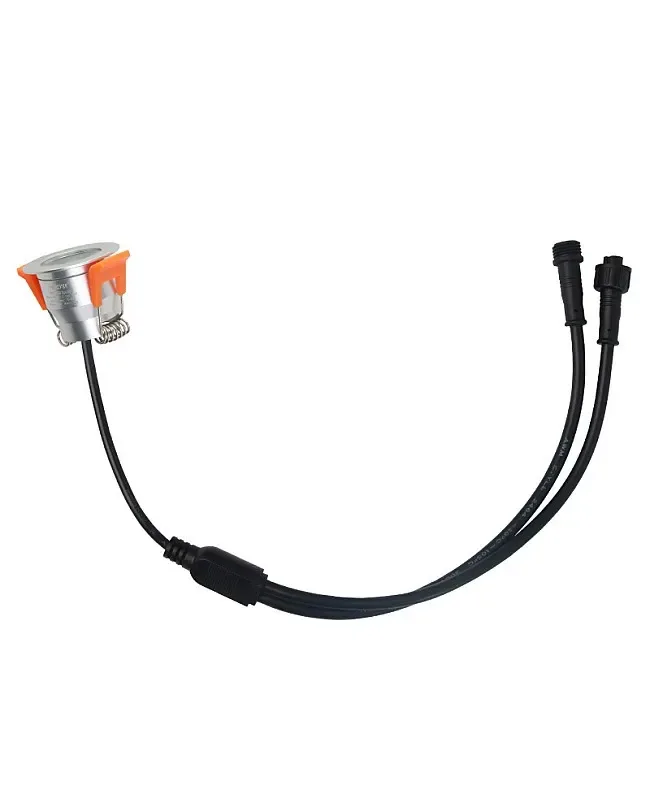

1 * Connecting Cable
Product resources
Technical documents
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
