Product details
6/12W Black Foldable Zigbee 3.0 RGB+CCT Magnetic Track Light
LumaCircuit offers 6/12W Black Foldable Zigbee 3.0 RGB+CCT Magnetic Track Light as a configurable spotlight for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. wireless controller Zigbee 3.0 Remotes Size: 224*102.5*22mm(6W)/440*102.5*22mm(12W) Luminous Flux: 440LM(6W)/900LM(12W) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller black foldable Zigbee 3.0 RGB+CCT magnetic track light is a great way to add extra light to any room. With a foldable structure, strong magnetism design, and dual lock with double protection, it easily fits into any space. The adjustable track system allows you to customize the lighting to your needs. The magnetic lighting follows the Zigbee 3.0 protocols and is powered by rail, which can be moved randomly on the rail. There are two power versions available, 6W and 12W.
- wireless controller Zigbee 3.0 Remotes

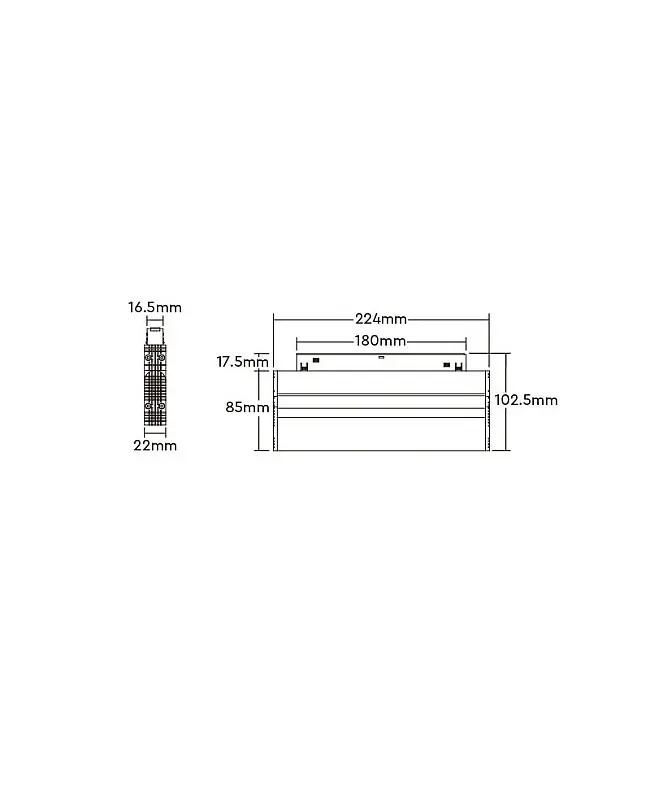

- Size: 224*102.5*22mm(6W)/440*102.5*22mm(12W)
- Luminous Flux: 440LM(6W)/900LM(12W)
- Luminous Efficiency: 65LM/W(6W)/75LM/W(12W)
- Color Temperature Adjustable From 2700K To 6500K
- Brightness Adjustable From 1% To 100%
- Communication Protocol: Zigbee 3.0 + 2.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 48 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-SPT-HC0PVY
- Size: 224*102.5*22mm(6W)/440*102.5*22mm(12W)
- Material: Metal + PMMA
- Colors: Black
- Working Voltage: DC48V
- Power: 6W/12W
- CRI: >
- Beam Angle: 24°
- Communication Protocol: Zigbee 3.0 + 2.
- Zigbee Wireless Frequency: 2.400- 2.
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller black foldable Zigbee 3.0 RGB+CCT magnetic track light is a great way to add extra light to any room. With a foldable structure, strong magnetism design, and dual lock with double protection, it easily fits into any space. The adjustable track system allows you to customize the lighting to your needs. The magnetic lighting follows the Zigbee 3.0 protocols and is powered by rail, which can be moved randomly on the rail. There are two power versions available, 6W and 12W. The Zigbee lights use high-quality LEDs as the light source, and the surface is covered with a PMMA lens for large beam angles. It has a high-quality metal shell for better heat dissipation. After adding to the Zigbee 3.0 network, the remote control and a smartphone app can be controlled, and third-party voice commands can be used to set the color and adjust the color temperature, brightness, and saturation for various scenes. There are 16 million colors available, color temperature adjustable from 2700K to 6500K, and brightness adjustable from 1% to 100%. It can also be entered into Philips Hue, IKEA TRADFRI, Amazon Echo Plus( Gen), Echo( Gen), Echo Studio, and Echo Show( Gen) standard Zigbee 3.0 hubs. The installer can download the APP to your phone to activate further functions like biorhythm, music rhythm, timing setting, scene customization, device sharing, sleep/wakeup plan, do not disturb mode, tap-to-run/automation, etc.
Quick Links
wireless controller Zigbee 3.0 Remotes
Specifications
Model: (6W)/--ZL(12W)
Size: 224*102.5*22mm(6W)/440*102.5*22mm(12W)
Material: Metal + PMMA
Colors: Black
Working Voltage: DC48V
Power: 6W/12W
Luminous Flux: 440LM(6W)/900LM(12W)
Luminous Efficiency: 65LM/W(6W)/75LM/W(12W)
16 Million Colors Available
Color Temperature Adjustable From 2700K To 6500K
Brightness Adjustable From 1% To 100%
Saturation Controllable
CRI: >
Beam Angle: 24°
Communication Protocol: Zigbee 3.0 + 2.
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400- 2.
Control Distance: Zigbee: ≤50m(Open Area) / 2.4G: ≤25m
Zigbee 3.0 Remote Controllable(Zigbee 3.0 Gateway Needed)
Smart Phone APP Controllable(Zigbee 3.0 Gateway Needed)
APP Name: Tuya Smart/mobile app
Support Third-Party Voice Control
Can Work With Amazon Alexa/Google Assistant
Dual Lock With Double Protection
Powered By Rail
Moving Randomly On The Rail
IP Rate: IP20 Non-waterproof
Working Temperature: -10-40℃
Includes
1 * RGBWW Magnetic Track Light
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
