12W RGB+CCT Foldable Magnetic Grille Track Lighting
LumaCircuit offers 12W RGB+CCT Foldable Magnetic Grille Track Lighting as a configurable spotlight for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Size(L*W*H): 224*102.5*22mm(6W) / 440*102.5*22mm(12W) 16 Million Colors To Choose Color Temperature Adjustable Range: 2700 K- 6500 K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

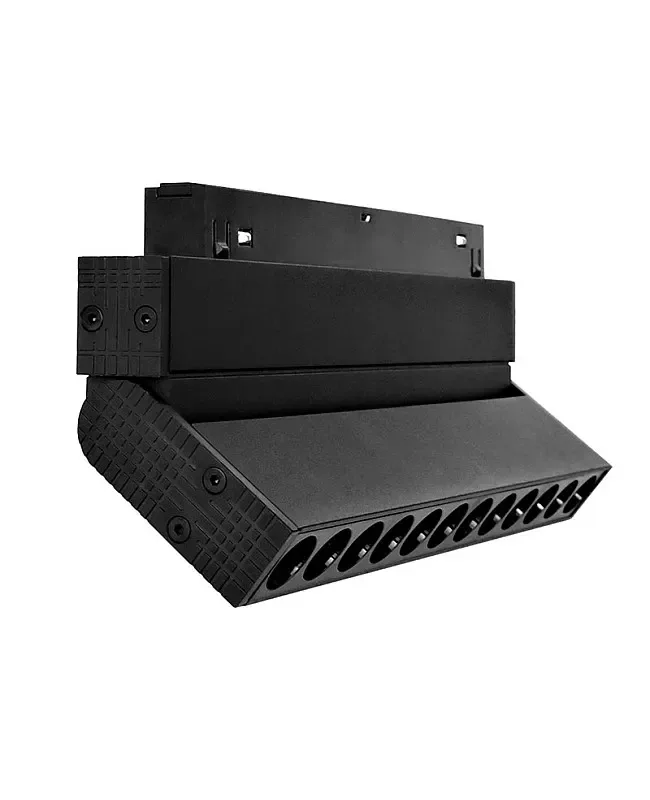

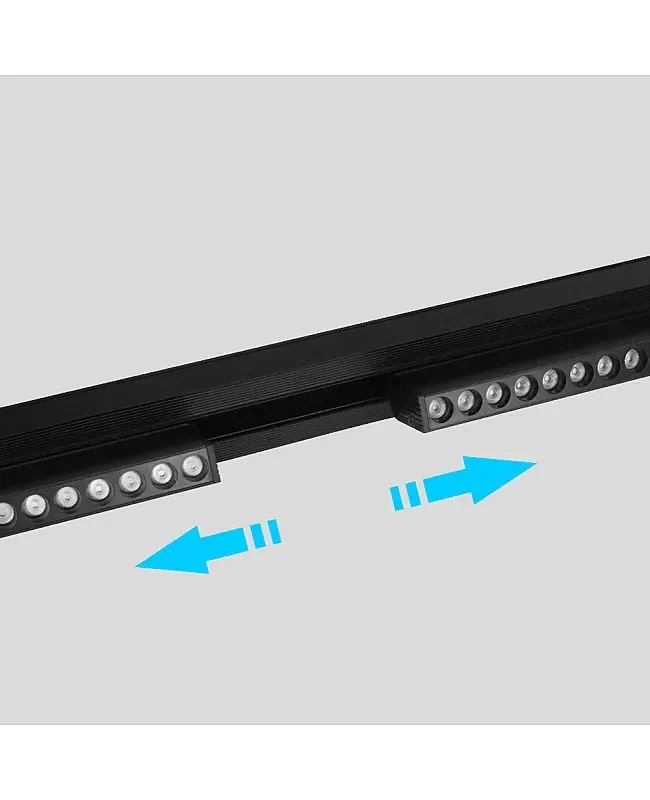

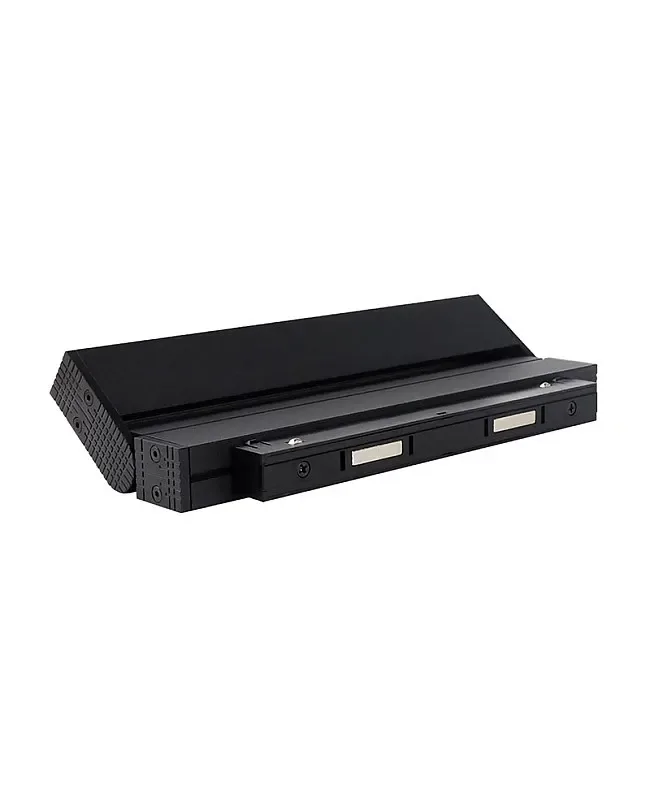

- The wireless controller foldable magnetic track lighting fixtures, which feature grille lighting and a foldable design, allow for lighting direction adjustment, making them a great way to provide directional lighting in rooms in homes, offices, hotels, galleries, museums, shopping malls, etc. With a strong magnetic base, easy to insert into the rail and pull out, powered by the rail, and moving randomly on the rail.
- Size(L*W*H): 224*102.5*22mm(6W) / 440*102.5*22mm(12W)
- 16 Million Colors To Choose
- Color Temperature Adjustable Range: 2700 K- 6500 K
- Luminous Flux: 440LM(6W) / 900LM(12W)
- Luminous Efficiency; 65LM/W(6W) / 75LM/W(12W)
- Saturation Adjustable: YES
- Compatible With 2.4 GHz wireless/wireless controller 2.4G Remotes WL
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 48 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-SPT-KXXVDM
- Size(L*W*H): 224*102.5*22mm(6W) / 440*102.5*22mm(12W)
- Input Voltage: DC48V
- Power: 6W / 12W
- CRI: >
- Color Temperature Adjustable Range: 2700 K- 6500 K
- Beam Angle: 24°
- Compatible With 2.4 GHz wireless/wireless controller 2.4G Remotes: WL
- Control Distance: ≤25M
- IP Rate: IP20 Non-waterproof
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

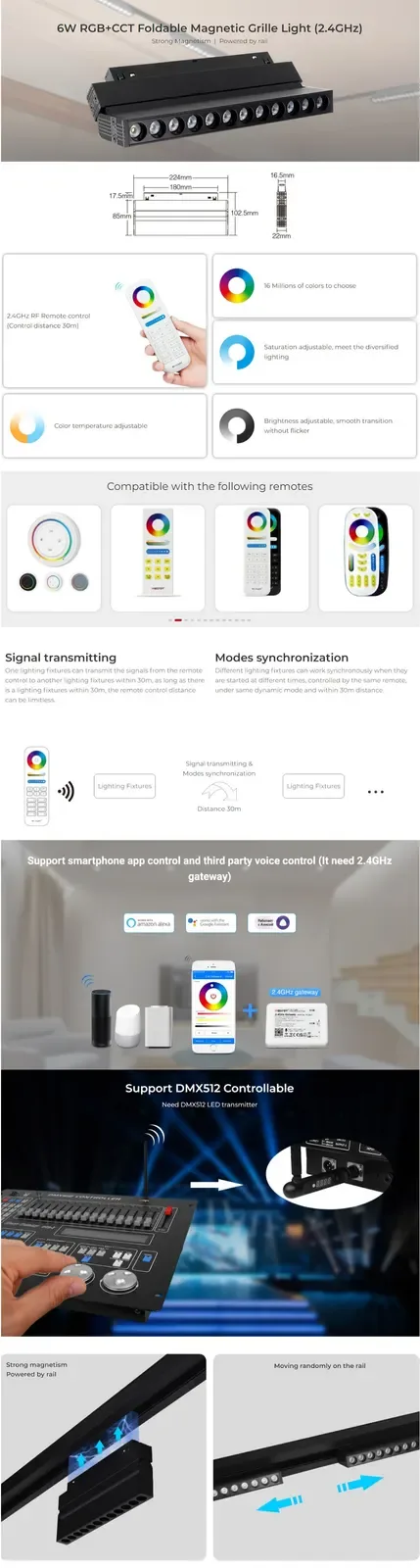

The wireless controller foldable magnetic track lighting fixtures, which feature grille lighting and a foldable design, allow for lighting direction adjustment, making them a great way to provide directional lighting in rooms in homes, offices, hotels, galleries, museums, shopping malls, etc. With a strong magnetic base, easy to insert into the rail and pull out, powered by the rail, and moving randomly on the rail. The wireless controller magnetic track lighting adopts the widely used 2 wireless technology and can be controlled by RF remote controls from 2.4 GHz wireless or wireless controller. The installer can use a remote to turn ON/OFF, choose the dynamic mode or static color, and adjust the color temperature, brightness, and saturation for various scenes. The RGBCCT light fixtures will receive the signals from a remote and transmit them to the same model of track lighting within 30 meters, and different models of track lighting can work synchronously. After matching a 2.4G gateway, the foldable grille track lights can be controlled by a smartphone APP or third-party voice commands, work with Amazon Alexa and Google Assistant, and use your phone or voice commands to control the RGB track lighting lamps remotely.
Specifications
Model: (6W) / RF(12W)
Size(L*W*H): 224*102.5*22mm(6W) / 440*102.5*22mm(12W)
Input Voltage: DC48V
Power: 6W / 12W
CRI: >
16 Million Colors To Choose
Color Temperature Adjustable Range: 2700 K- 6500 K
Luminous Flux: 440LM(6W) / 900LM(12W)
Luminous Efficiency; 65LM/W(6W) / 75LM/W(12W)
Dimmable: YES
Saturation Adjustable: YES
Beam Angle: 24°
RF: 2.
Compatible With 2.4 GHz wireless/wireless controller 2.4G Remotes WL
Control Distance: ≤25M
IP Rate: IP20 Non-waterproof
Auto Signal Transmitting And Modes Synchronization
Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
Can Work With Amazon Alexa And Google Assistant
Support DMX512 Controllable(DMX512 LED Transmitter Needed)

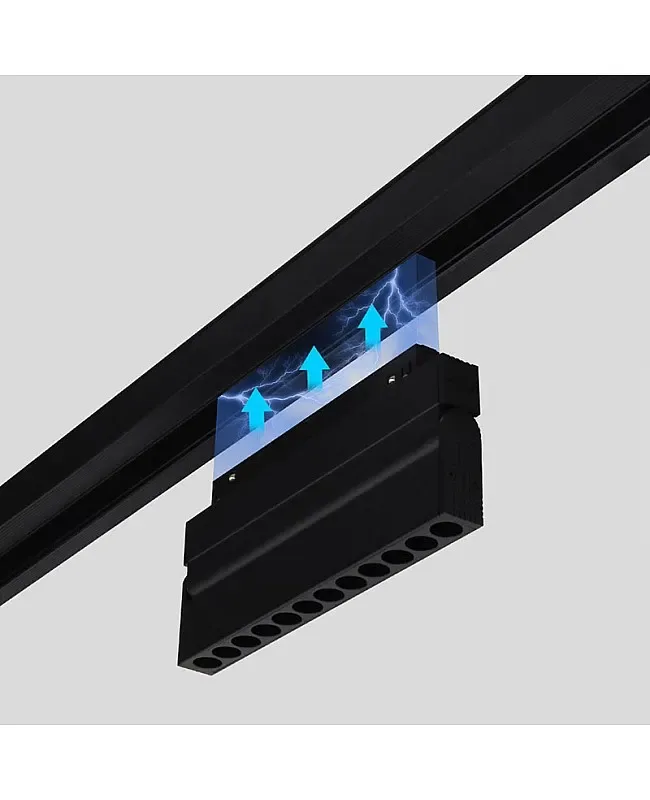

Powered By Rail
Working Temperature: -10-40℃
Includes
1 * wireless controller Foldable Track Lighting Fixture
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
