6W Zigbee RGB+CCT Outdoor Spotlights
LumaCircuit offers 6W Zigbee RGB+CCT Outdoor Spotlights as a configurable spotlight for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Emitting Color: RGB + CCT Color Temperature: 2700 K- 6500 K Luminous Efficiency: 100LM/M The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller 6w Zigbee outdoor spotlight is a great way to illuminate your outdoor space and create a welcoming atmosphere. The waterproof rating reaches IP66, allowing for installation in wet or rainy areas, such as gardens, yards, and lawns. Utilizing RGB and dual white LEDs as the light source, 16 million colors are available, with adjustable color temperature and brightness for various scenes.
- Emitting Color: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- Luminous Efficiency: 100LM/M
- Illumination Distance: >10M
- Communication Protocol: Zigbee 3.0
- Control Distance: 100M(Open Area)
- Wireless Technology: Zigbee 802.15.4
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-SPT-KAADXC
- Size: 108*60mm(L*W)
- Input Voltage: DC24V
- Power: 6W
- Emitting Color: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- CRI: >
- Beam Angle: 25°
- Communication Protocol: Zigbee 3.0
- Control Distance: 100M(Open Area)
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

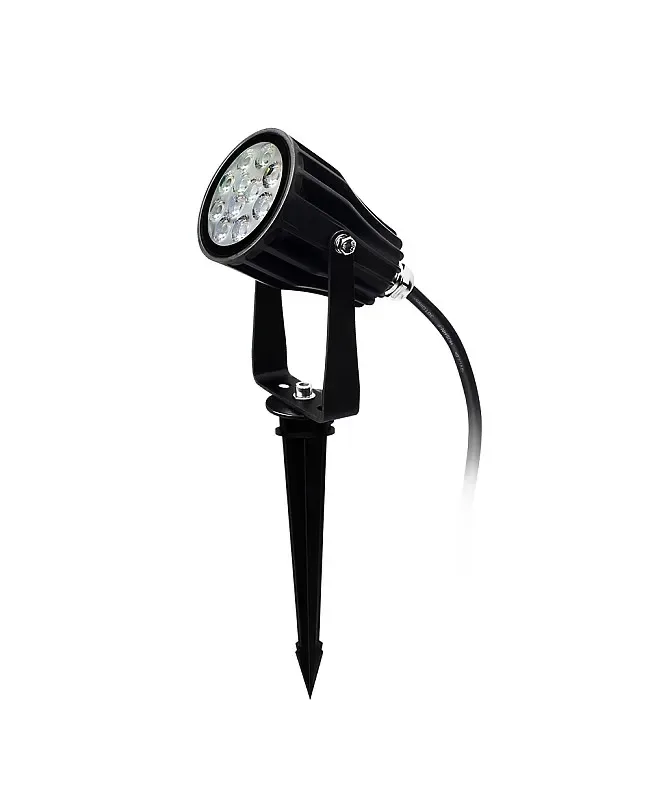

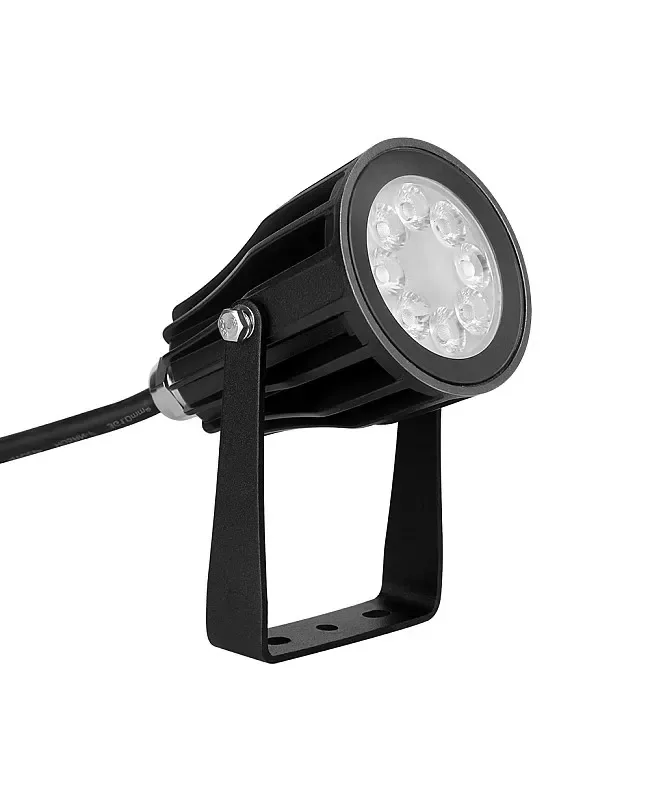

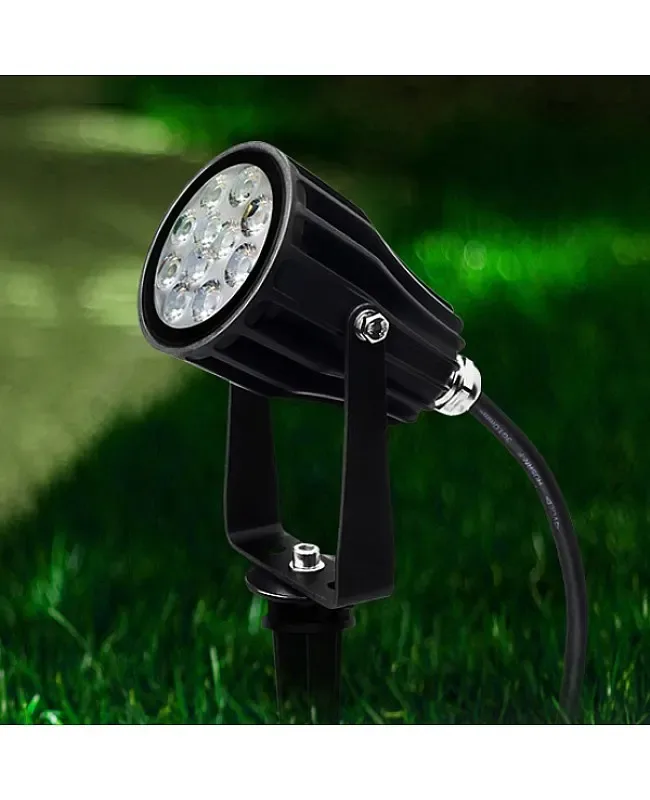

The wireless controller 6w Zigbee outdoor spotlight is a great way to illuminate your outdoor space and create a welcoming atmosphere. The waterproof rating reaches IP66, allowing for installation in wet or rainy areas, such as gardens, yards, and lawns. Utilizing RGB and dual white LEDs as the light source, 16 million colors are available, with adjustable color temperature and brightness for various scenes. The MIBoxe yard light integrates the Zigbee 3.0 communication protocol and can be controlled by Zigbee remote controls, with a control distance of up to 100 meters in an open area. After matching with Zigbee 3.0 gateways, the installer can download and use the smartphone app "Tuya Smart" to fully control the LED lamps and achieve additional functions, such as music rhythm, timing, sleep/wake-up plans, biorhythm, and device sharing. It supports third-party voice control and can work with Amazon Alexa and Google Assistant to control ON/OFF, adjust brightness and CCT, select colors, and more, through voice commands. The 6W LED yard lamps can be quickly integrated with Philips Hue, IKEA TRADFRI, and Amazon Echo Standard Zigbee gateways.
Specifications
Model

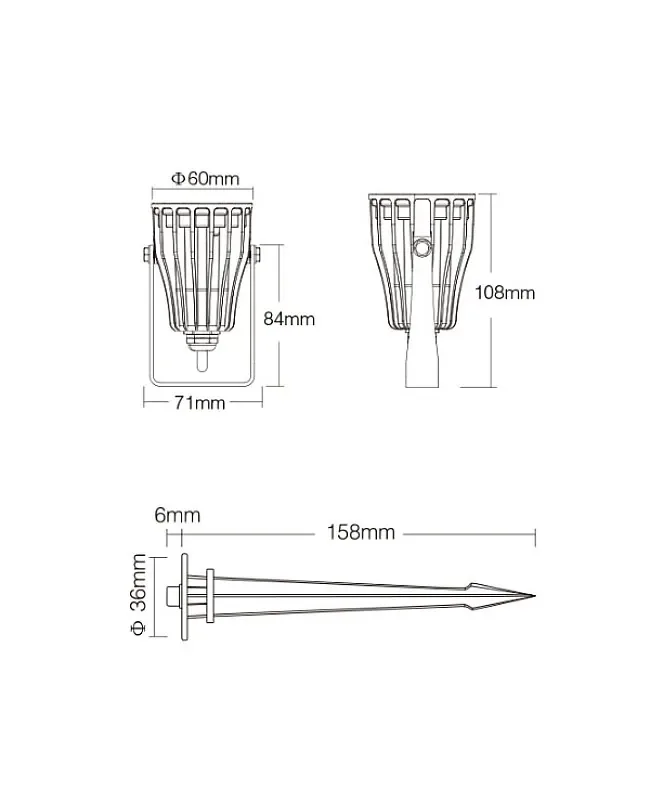

Size: 108*60mm(L*W)
Input Voltage: DC24V
Power: 6W
Emitting Color: RGB + CCT
16 Million Colors
Color Temperature: 2700 K- 6500 K
Luminous Flux: 570LM
Luminous Efficiency: 100LM/M
CRI: >
Beam Angle: 25°
Illumination Distance: >10M
Communication Protocol: Zigbee 3.0
Control Distance: 100M(Open Area)
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400- 2.
APP Control(Zigbee 3.0 Gateway Needed)
APP Name: Tuya Smart
Third-Party Voice Control
Can Work With Amazon Alexa And Google Assistant
Compatible With Philips Hue, IKEA TRADFRI, Amazon Zigbee Gateways
Music Rhythm Function(Zigbee 3.0 Gateway Needed)
Group Control(Zigbee 3.0 Gateway Needed)
IP Rate: IP66 Waterproof
Working Temperature: -20℃-+45℃
Includes
1 * Front Yard Light

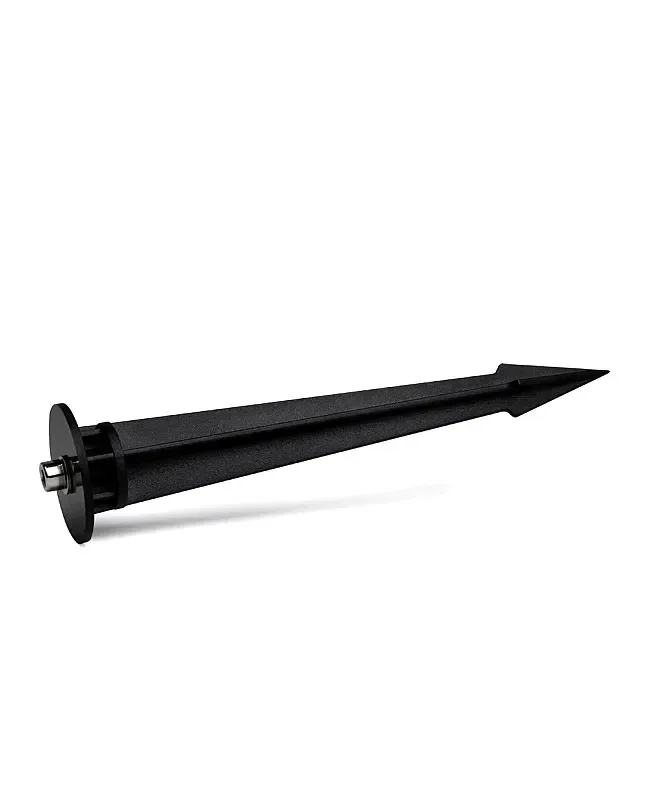

1 * Inserting Pole
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
