Product details
30W Zigbee 3.0+2.4G RGB+CCT Plug In Track Lighting
LumaCircuit offers 30W Zigbee 3.0+2.4G RGB+CCT Plug In Track Lighting as a configurable spotlight for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Models: (Zigbee 3.0 + 2.4G) / -30W-RF(2.4G) Input Voltage: 100-240V, 50/60Hz 16 Millions Of Colors To Choose The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

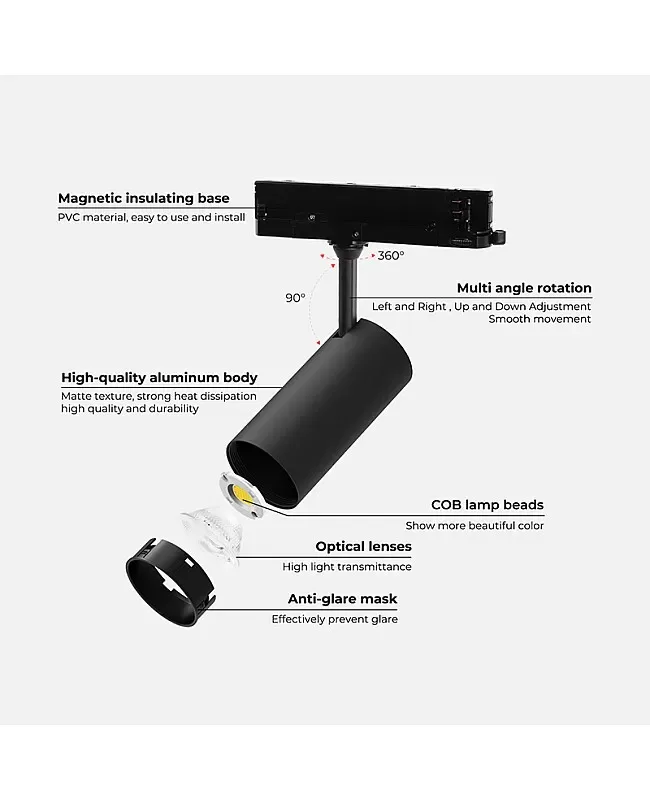

- The wireless controller 30W plug-in track lighting is compatible with a 4-wire rail and can move randomly on the rail. With a magnetic insulating base that is easy to install and use, the lamp base has a multi-angle rotation design. The installer can rotate to the left and right, up and down smoothly.
- Models: (Zigbee 3.0 + 2.4G) / -30W-RF(2.4G)
- Input Voltage: 100-240V, 50/60Hz
- 16 Millions Of Colors To Choose
- Color Temperature Adjustable Range: 2700 K- 6500 K
- Saturation Color Temperature Brightness Adjustable
- Luminous Efficiency: 63LM/W
- Communication Protocol: Zigbee 3.0 + 2.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- Models: (Zigbee 3.0 + 2.4G) / -30W-RF(2.4G)
- Material: Aluminum

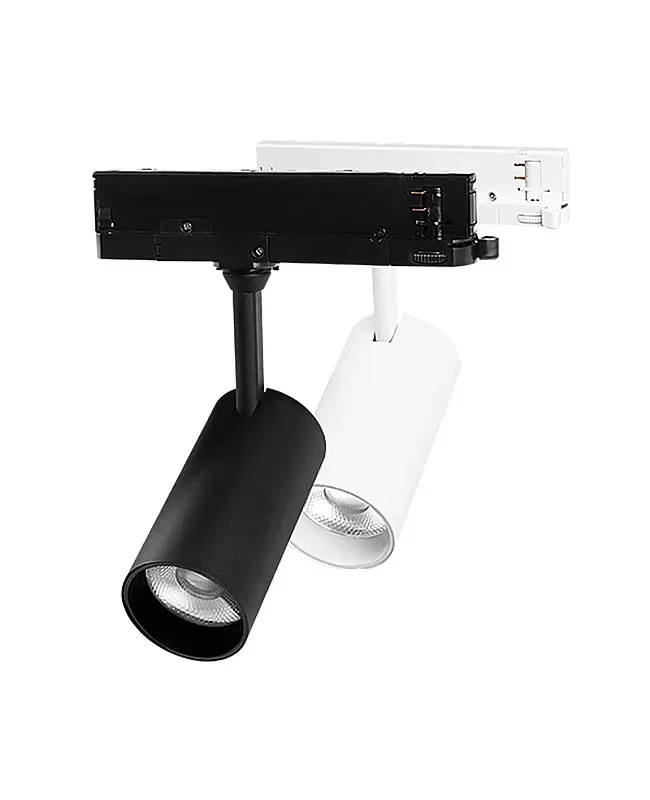

- Colors: Black White
- Size: 246*205mm(L*W)
- Input Voltage: 100-240V, 50/60Hz
- Power: 30W
- Color Temperature Adjustable Range: 2700 K- 6500 K
- CRI: >
- Beam Angle: 36°
- Communication Protocol: Zigbee 3.0 + 2.
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

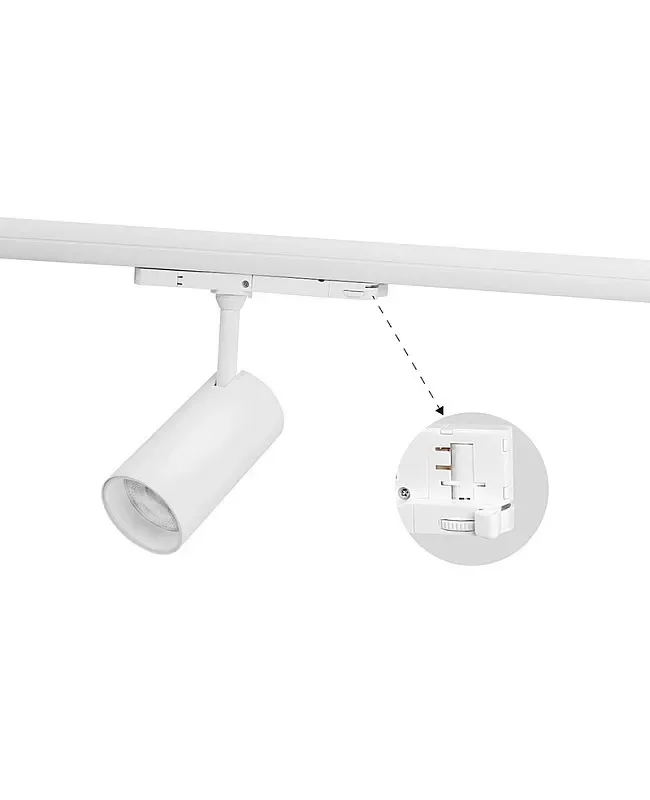

The wireless controller 30W plug-in track lighting is compatible with a 4-wire rail and can move randomly on the rail. With a magnetic insulating base that is easy to install and use, the lamp base has a multi-angle rotation design. The installer can rotate to the left and right, up and down smoothly. Ideal solution for accent lights and task lighting applications in shopping malls, offices, restaurants, galleries, museums, etc., the Zigbee track light uses one piece of COB LED as the light source, integrates Zigbee 3.0 and 2.4G protocols, can be controlled by 2.4G RF remote controls to choose the colors, 16 millions of colors to choose, the saturation, brightness and color temperature adjustable for various scenes. The track spotlights can transmit the signals from the remote control to other track lighting fixtures within 30 meters. All of them can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode, and within a 30m distance. After matching a Zigbee gateway, the wireless controller track spotlight can be controlled by a smartphone APP and third-party voice commands and can work with Amazon Alexa and Google Assistant. It can also enter into Philips Hue, IKEA TRADFRI, Amazon ECHO series standard Zigbee 3.0 gateways.
Specifications
Models: (Zigbee 3.0 + 2.4G) / -30W-RF(2.4G)
Material: Aluminum
Colors: Black White
Size: 246*205mm(L*W)
Input Voltage: 100-240V, 50/60Hz
Power: 30W
16 Millions Of Colors To Choose
Color Temperature Adjustable Range: 2700 K- 6500 K
Saturation Color Temperature Brightness Adjustable
Luminous Flux: 1800LM
Luminous Efficiency: 63LM/W
CRI: >
Beam Angle: 36°
Communication Protocol: Zigbee 3.0 + 2.
4G RF Remote Control
Wireless Technology: Zigbee 802.15.4
Wireless Frequency: 2.400- 2.
APP Controllable(Zigbee Gateway Needed)
APP Name: Tuya Smart
Support Third-Party Voice Control(Zigbee 3.0 Gateway Needed)
Can Work With Amazon Alexa And Google Assistant
Control Distance: Zigbee: ≤50m(Open Area) / 2.4G RF Remote: ≤30m
Compatible With RF Remote Controls
Auto Signal Transmitting And Modes Synchronization
Support DMX512 Controllable(DMX512 Transmitter Needed)
Compatible With 4 Wire Rail
IP Rate: IP20 Non-waterproof
Working Temperature: -10℃-+40℃
Includes
1 * 30W RGB+CCT Plug-In Track Lighting
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
