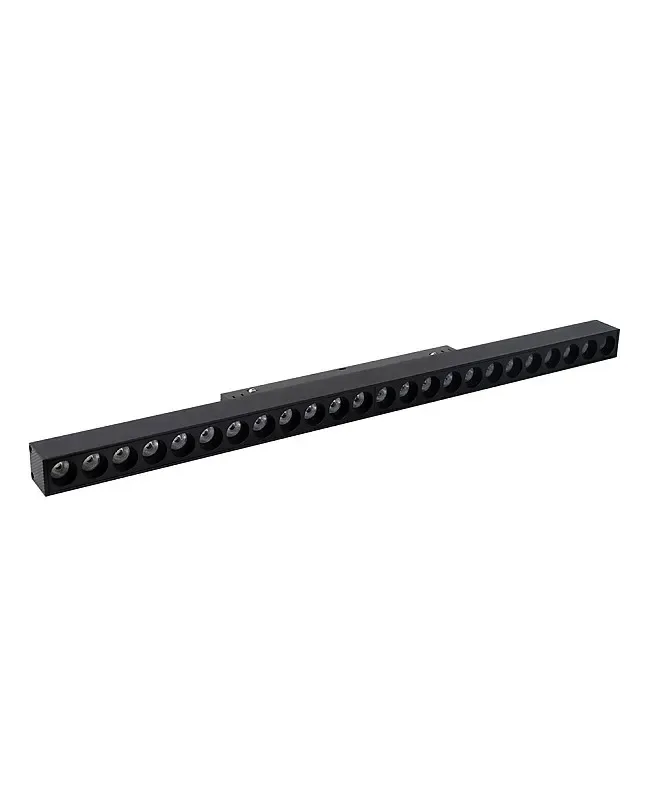

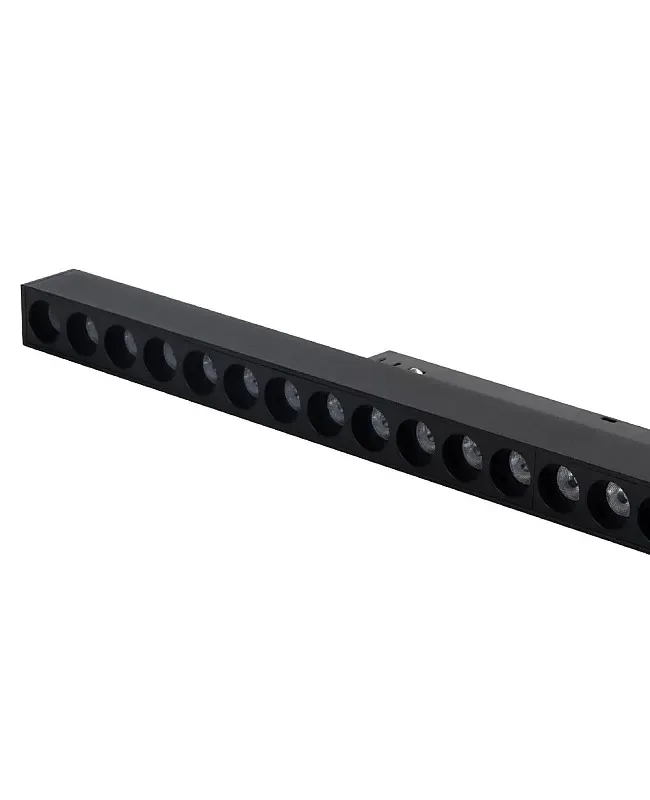

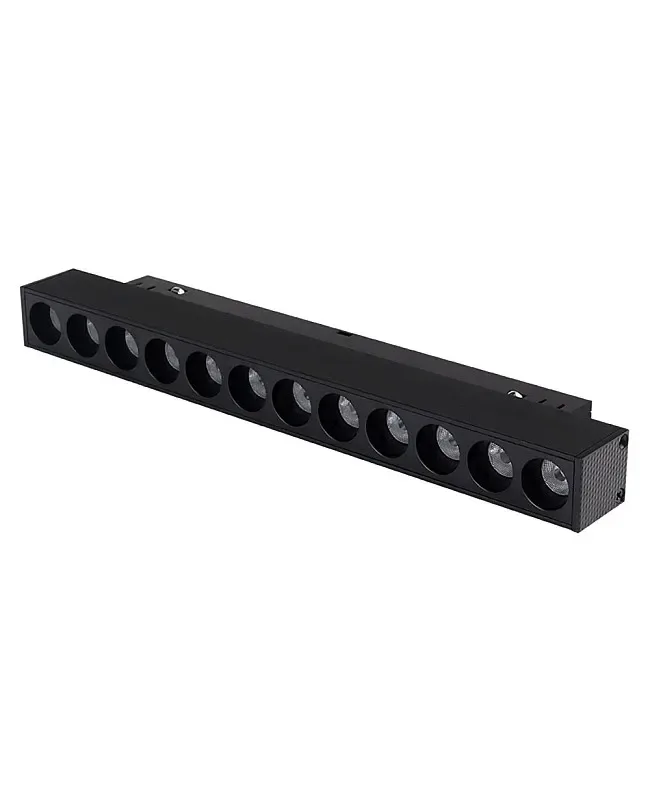

4 RF Magnetic Grille Black Commercial Track Lighting

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The wireless controller 2.4G RF magnetic grille commercial track lighting, CCT series, and RGB+CCT series are available, which are excellent choices for commercial lighting needs. It features a black finish that adds a modern touch to any room. It is intended to be used with standard recessed and linear track lighting systems.
• RGB+CCT Series: (6W) / RF(12W)
• CCT Series: RF(10W) / RF(20W)
• Size(L*W*H): 221*42.5*22mm(6W RGB+CCT / 10W CCT) / 436*42.5*22mm(12W RGB+CCT /20W CCT)
• Luminous Flux: 440LM(6W RGB+CCT)/ 900LM(12W RGB+CCT) / 800LM(10W CCT) / 1530LM(20W CCT)
• Luminous Efficiency: 65LM/W(6W RGB+CCT) / 75LM/W(12W RGB+CCT) / 80LM/W(10W CCT) / 75LM/W(20W CCT)
• 16 Millions Of Colors To Choose(Only RGB+CCT Version)
• Color Temperature Range: 2700 K- 6500 K

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 48 V
• Light engine: RGB+CCT
• RGB+CCT Series: (6W) / RF(12W)
• CCT Series: RF(10W) / RF(20W)
• Size(L*W*H): 221*42.5*22mm(6W RGB+CCT / 10W CCT) / 436*42.5*22mm(12W RGB+CCT /20W CCT)
• Input Voltage: DC48V
• Power: 6W/12W/10W/20W
• Color Temperature Range: 2700 K- 6500 K
• Beam Angle: 24°
• Control Distance: ≤25m
• IP Rate: IP20 Non-waterproof
• Working Temperature: -10-40℃

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

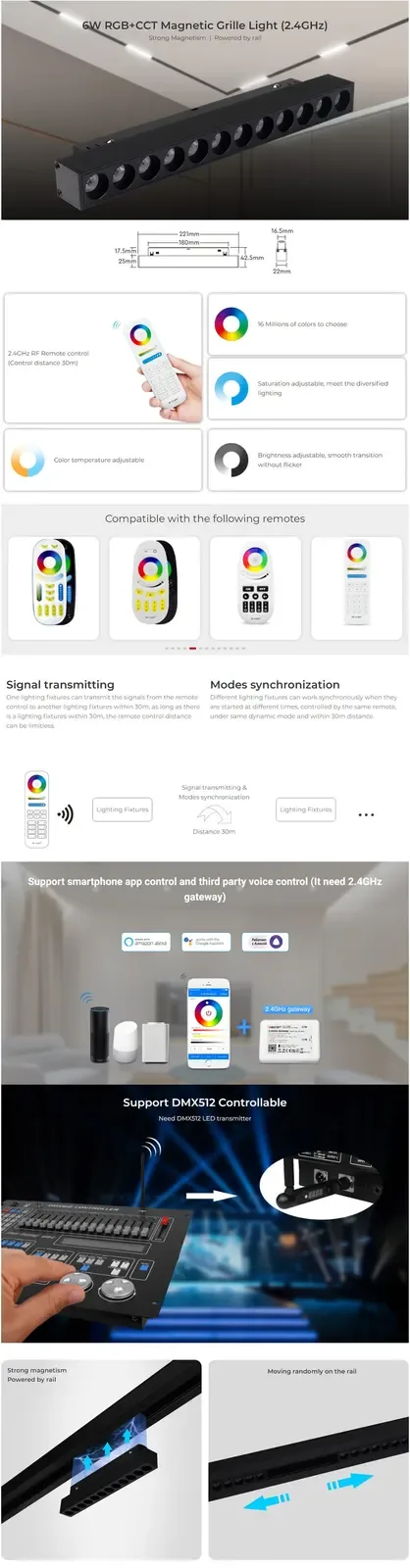

The wireless controller 2.4G RF magnetic grille commercial track lighting, CCT series, and RGB+CCT series are available, which are excellent choices for commercial lighting needs. It features a black finish that adds a modern touch to any room. It is intended to be used with standard recessed and linear track lighting systems. Adopt the 2.4G wireless technology with low power consumption, which 2.4G RF remote controls can control to turn ON/OFF, choose the dynamic modes and static colors, and adjust the color temperature, brightness, and saturation for various scenes. The RGB+CCT series has 18 dynamic modes and 16 million colors available, with the color temperature adjustable from 2700K warm white to 6500K cool white. The grille track lighting with a magnetic base, easy to insert into the rail, and powered by the rail, can move randomly on the rail. The track lights will transfer the signals from the RF LED remotes to another magnetic track light within 30 meters, and different track lights can work synchronously. After matching to a 2.4G gateway, the wireless controller track lamp can be controlled by a smartphone APP and third-party voice control, can achieve more functions on your phone like timing, group control, scene customization, device sharing, etc., can work with Amazon Alexa and Google Assistant, the installer can use your voice to control the commercial lights ON/OFF, change the color, adjust the color temp and brightness. The black grille lamps are not waterproof and are only recommended for use in interior lighting projects in homes, offices, hotels, galleries, museums, restaurants, shops, etc.

Specifications

RGB+CCT Series: (6W) / RF(12W)

CCT Series: RF(10W) / RF(20W)

Size(L*W*H): 221*42.5*22mm(6W RGB+CCT / 10W CCT) / 436*42.5*22mm(12W RGB+CCT /20W CCT)

Input Voltage: DC48V

Power: 6W/12W/10W/20W

Luminous Flux: 440LM(6W RGB+CCT)/ 900LM(12W RGB+CCT) / 800LM(10W CCT) / 1530LM(20W CCT)

Luminous Efficiency: 65LM/W(6W RGB+CCT) / 75LM/W(12W RGB+CCT) / 80LM/W(10W CCT) / 75LM/W(20W CCT)

16 Millions Of Colors To Choose(Only RGB+CCT Version)

Color Temperature Range: 2700 K- 6500 K

Beam Angle: 24°

Dimmable: YES

Compatible With wireless controller 2.4G RF Remote Control

Control Distance: ≤25m

Auto Signal Transmitting And Modes Synchronization

Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)

Can Work With Amazon Alexa And Google Assistant

Support DMX512 Controllable(DMX512 LED Transmitter Needed, Only RGB+CCT Version)

IP Rate: IP20 Non-waterproof

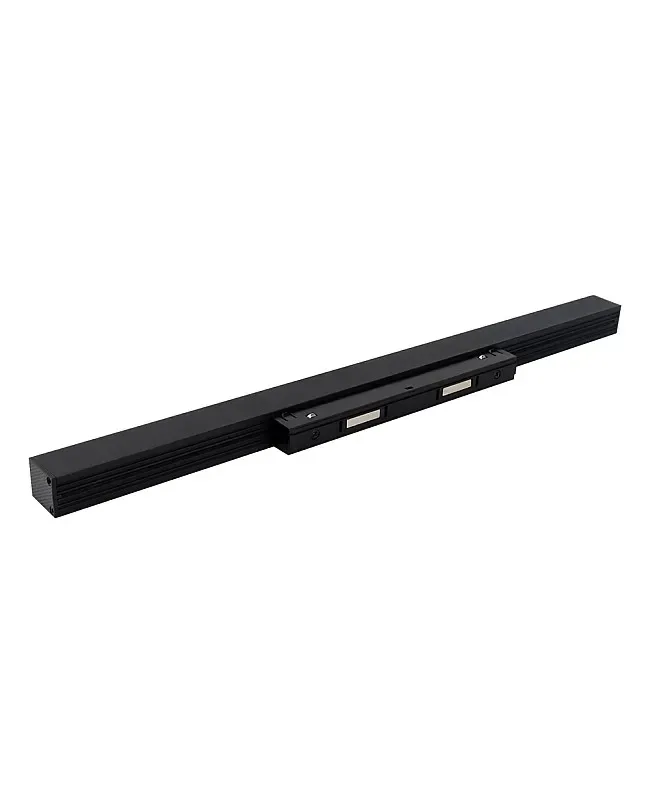

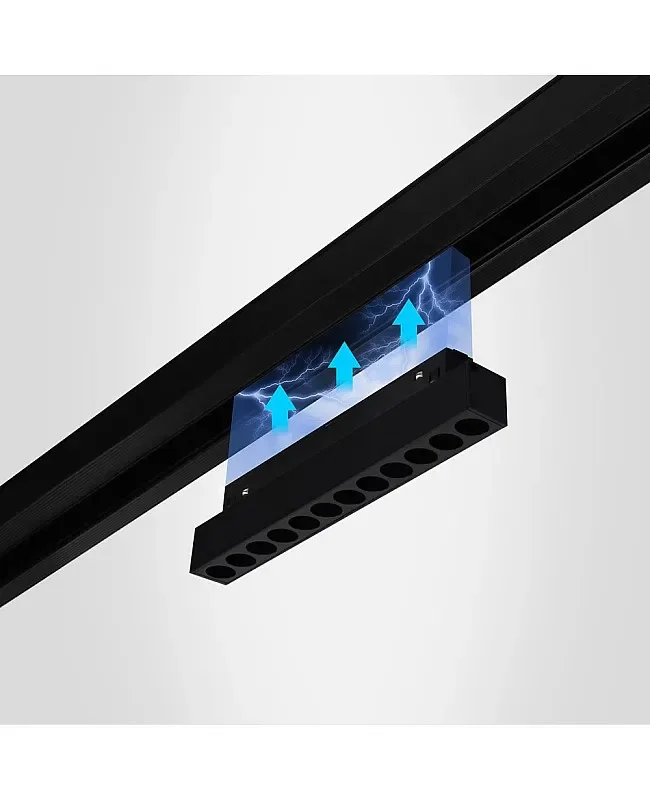

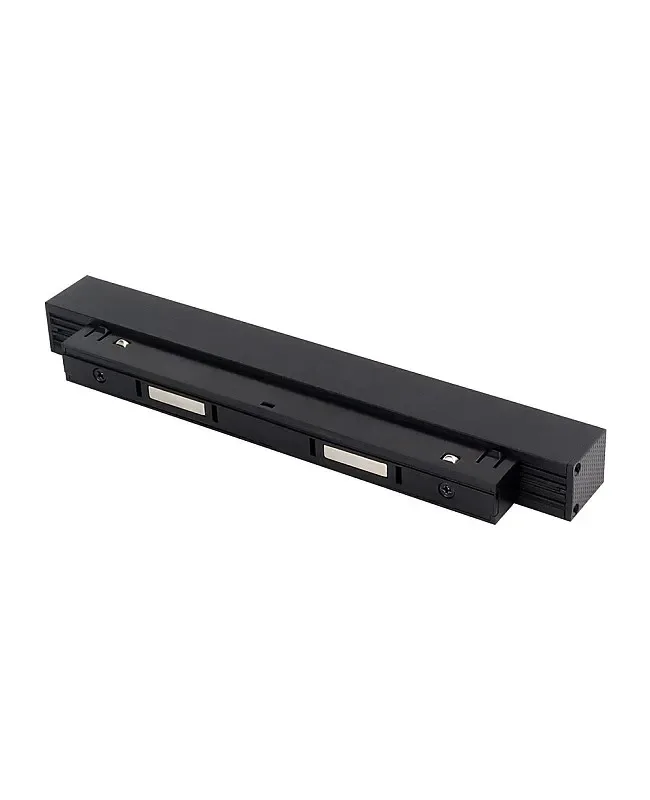

Strong Magnetism Base

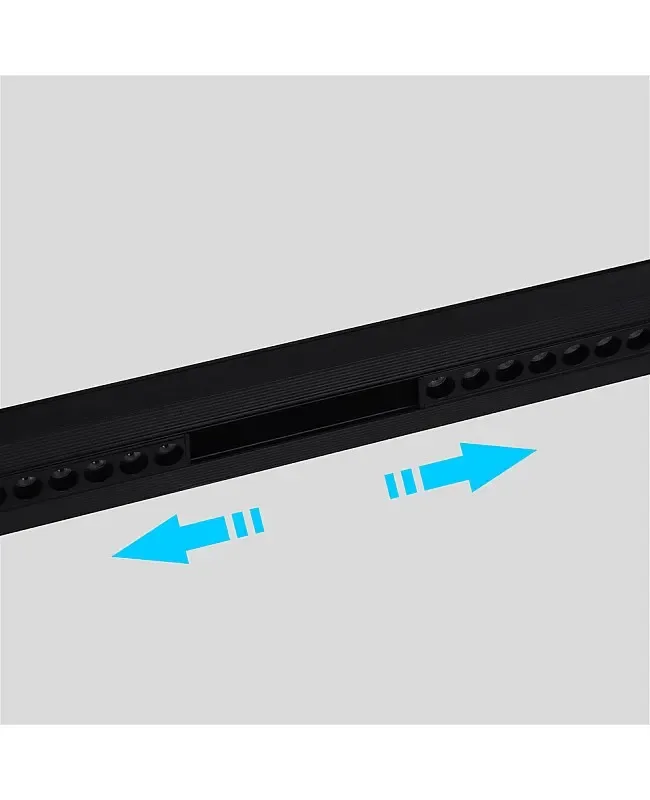

Powered By Rail And Move Randomly On The Rail

Working Temperature: -10-40℃

Includes

1 * Black Grille Commercial Track Light
