Product details
30W Dual White Modern Track Lighting Zigbee+2.4G
LumaCircuit offers 30W Dual White Modern Track Lighting Zigbee+2.4G as a configurable spotlight for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Models: (Zigbee 3.0 + 2.4G) / -30W-RF(2.4G) Input Voltage: -240V, 50/60Hz Color Temperature Adjustable Range: 2700-6500K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

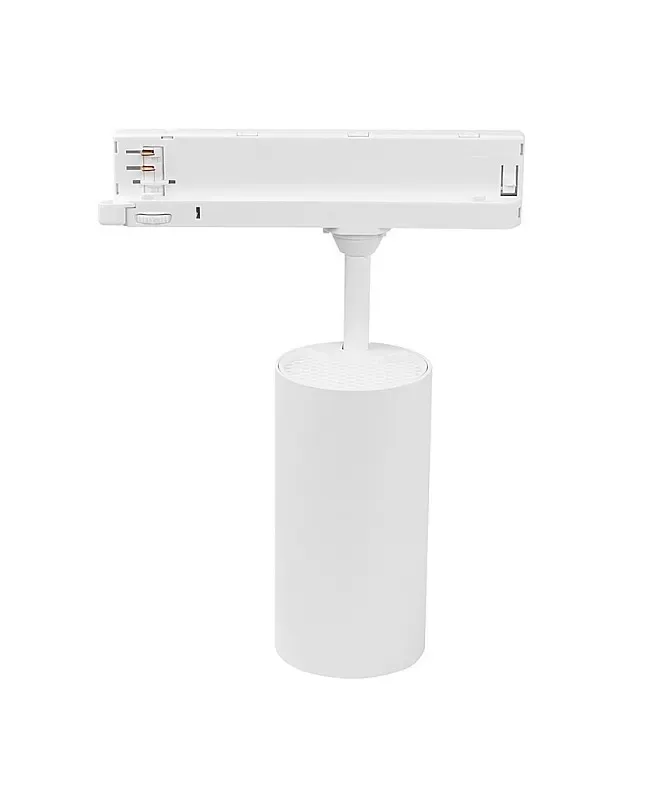

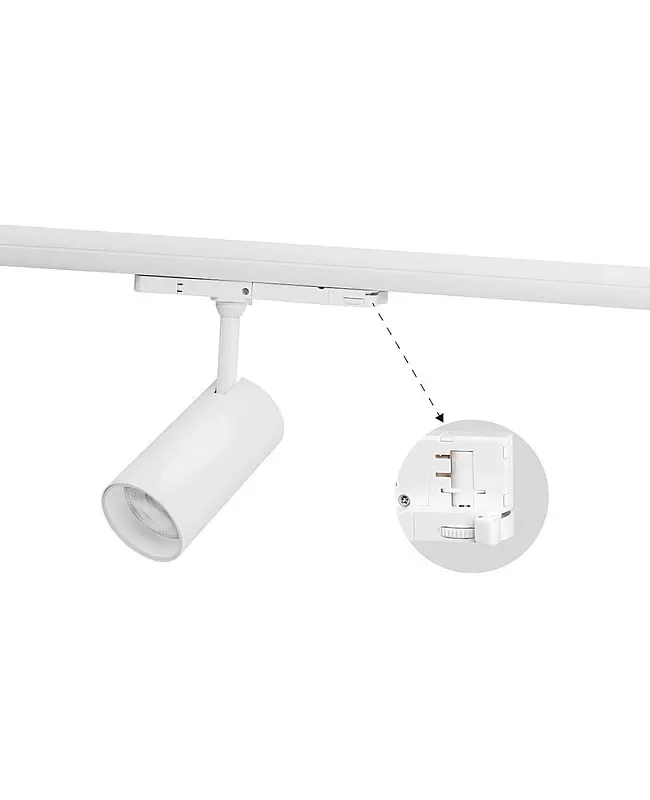

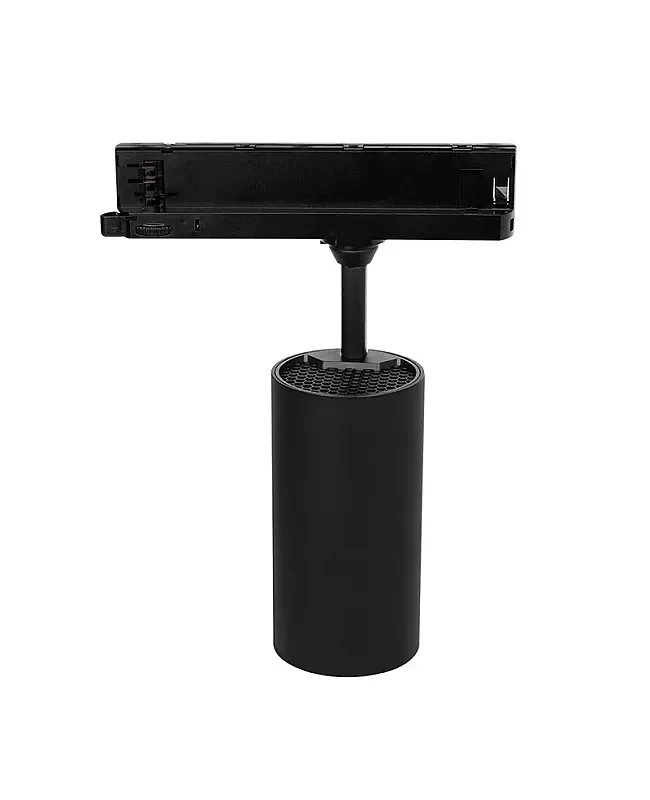

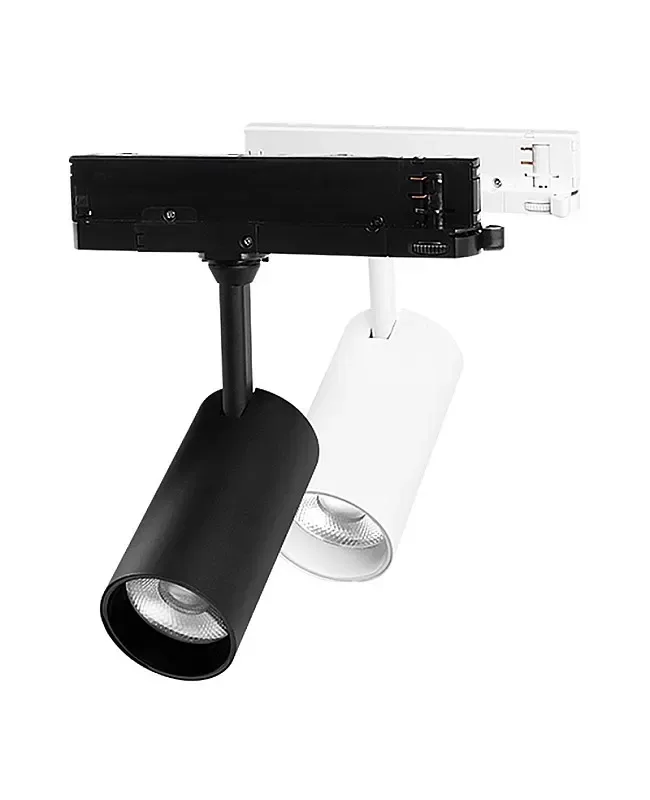

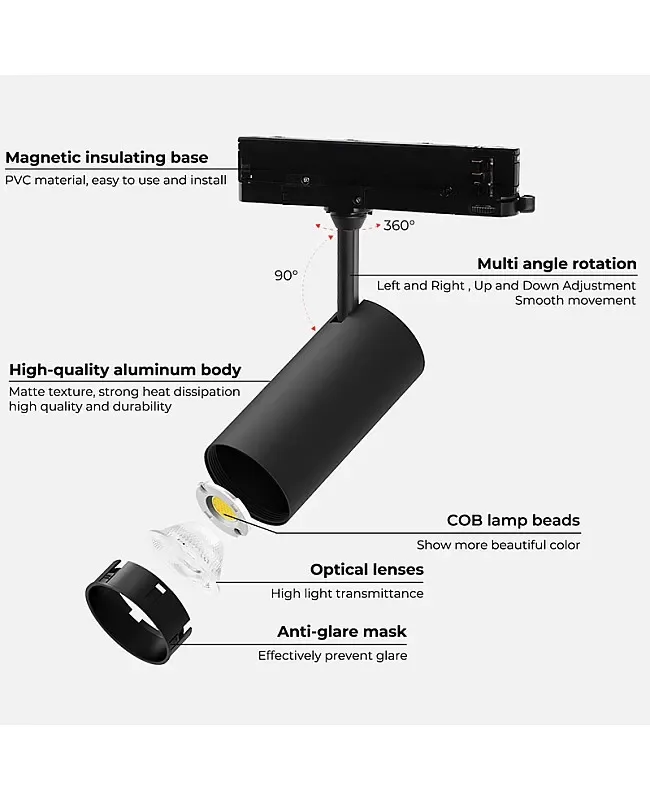

- The wireless controller dual white modern track lighting has a magnetic insulating base and is compatible with 4-wire track lighting channels powered by rail, and can move randomly on the rail. The color temperature and brightness are adjustable for various scenes, and the installer can use them for accent lighting or task lighting in offices, restaurants, homes, bars, galleries, museums, hotels, etc.
- Models: (Zigbee 3.0 + 2.4G) / -30W-RF(2.4G)
- Input Voltage: -240V, 50/60Hz
- Color Temperature Adjustable Range: 2700-6500K
- Color Temperature And Brightness Adjustable
- Luminous Efficiency: 70LM/W
- Communication Protocol: Zigbee 3.0 + 2.4G
- Control Distance: Zigbee: ≤100m(Open Area)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: CCT
- Models: (Zigbee 3.0 + 2.4G) / -30W-RF(2.4G)
- Colors: Black White
- Material: Aluminum
- Size: 246*205mm(H*W)
- Input Voltage: -240V, 50/60Hz
- Power: 30W
- Color Temperature Adjustable Range: 2700-6500K
- CRI: >
- Beam Angle: 30°
- Communication Protocol: Zigbee 3.0 + 2.4G
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

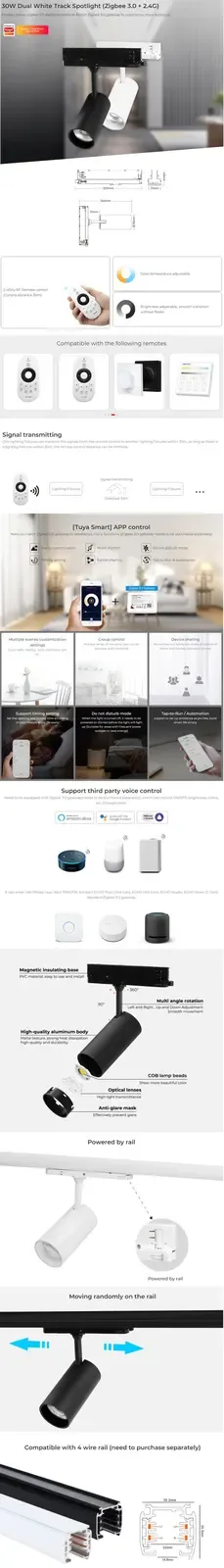

The wireless controller dual white modern track lighting has a magnetic insulating base and is compatible with 4-wire track lighting channels powered by rail, and can move randomly on the rail. The color temperature and brightness are adjustable for various scenes, and the installer can use them for accent lighting or task lighting in offices, restaurants, homes, bars, galleries, museums, hotels, etc. The wireless controller track lights follow Zigbee 3.0 and 2.4G RF standard protocols, can be controlled by CCT RF remote controls, smartphone APP, and voice commands, can adjust the color temperature from 2700K to 6500K, and brightness from 1% to 100%, with a smooth transition without flicker. The modern track lighting will receive the remote signals and transmit them to other track lights within 30 meters. All of them will keep the same color temperature and brightness. After matching to a Zigbee 3.0 gateway, the wireless controller track lamps can be controlled by a smartphone APP and third-party voice commands to turn ON/OFF, adjust color temp and brightness, etc. The installer can download the Tuya Smart APP to your phone to achieve more functions like scene customization, music rhythm, timing, device sharing, etc. The can also enter the standard Zigbee gateways like Philips Hue, IKEA TRADFRI, Amazon ECHO series, etc.
Specifications
Models: (Zigbee 3.0 + 2.4G) / -30W-RF(2.4G)
Colors: Black White
Material: Aluminum
Size: 246*205mm(H*W)
Input Voltage: -240V, 50/60Hz
Power: 30W
Color Temperature Adjustable Range: 2700-6500K
Color Temperature And Brightness Adjustable
Luminous Flux: 2000LM
Luminous Efficiency: 70LM/W
CRI: >
Beam Angle: 30°
Communication Protocol: Zigbee 3.0 + 2.4G
Control Distance: Zigbee: ≤100m(Open Area)
Compatible With 2.4 GHz wireless/wireless controller 2.4G Remotes T1, T2, WL
4G RF Remote Control Distance: ≤30m
Auto Signal Transmitting
Smartphone APP Control And Third-Party Voice Control(Zigbee 3.0 Gateway Needed)
APP Name: Tuya Smart
Can Work With Amazon Alexa And Google Assistant
IP Rate: IP20 Non-waterproof
Wireless Technology: Zigbee 802.15.4
Wireless Frequency: Z. 400- 2.
Powered By Rail And Moving Randomly On The Rail
Compatible With 4-Wire Track Rails (Sold Separately)
Working Temperature: -10-40℃
Includes
1 * wireless controller 30W Dual White Modern Track Lighting
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
