Product details
Zigbee Foldable Magnetic Black Track Lighting
LumaCircuit offers Zigbee Foldable Magnetic Black Track Lighting as a configurable spotlight for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. wireless controller Zigbee 3.0 Remote Control Size:(L*W*H) 224*102.5*22mm(10W) / 440*102.5*22mm(20W) Color Temperature: 2700 K- 6500 K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller foldable magnetic black track lighting adopts Zigbee 3.0 wireless transmitting technology with low power consumption, a strong ability to build a network automatically, and anti-interference. Zigbee remote, a smartphone APP, can control it, and voice commands to adjust the brightness and color temperature for various scenes. The tunable white track lighting has a strong magnetic base, and it is easy to insert the magnetic rail, powered by the rail, which can move randomly on it.
- wireless controller Zigbee 3.0 Remote Control
- Size:(L*W*H) 224*102.5*22mm(10W) / 440*102.5*22mm(20W)
- Color Temperature: 2700 K- 6500 K
- Luminous Flux: 800LM(10W) / 1530LM(20W)
- Luminous Efficiency: 80LM/W(10W) / 75LM/W(20W)
- Communication Protocol: Zigbee 3.0 +2.4G
- Wireless Technology: Zigbee 802.15.4
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 48 V
- Light engine: CCT
- Models: (10W) / ZL(20W)
- Size: (L*W*H) 224*102.5*22mm(10W) / 440*102.5*22mm(20W)
- Input Voltage: DC48V
- Power: 10W/20W
- CRI: >
- Color Temperature: 2700 K- 6500 K
- Beam Angle: 24°
- Communication Protocol: Zigbee 3.0 +2.4G
- Zigbee Wireless Frequency: 2.400- 2.
- Control Distance: Zigbee: ≤50m(Open Area) / 2.G: ≤25m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller foldable magnetic black track lighting adopts Zigbee 3.0 wireless transmitting technology with low power consumption, a strong ability to build a network automatically, and anti-interference. Zigbee remote, a smartphone APP, can control it, and voice commands to adjust the brightness and color temperature for various scenes. The tunable white track lighting has a strong magnetic base, and it is easy to insert the magnetic rail, powered by the rail, which can move randomly on it. After matching a Zigbee 3.0 gateway, the installer can use the Zigbee remote to control ON/OFF, adjust the color temperature from 2700K to 6500K, and brightness from 1% to 100%, and achieve a smooth transition without flicker. Download the Tuya Smart APP to your phone to achieve more functions like scene customization, timing, device sharing, etc. The wireless controller tunable white lighting can work with Amazon Alexa and Google Assistant. It can enter into Philips Hue, IKEA TRADFRI, and other standard Amazon Zigbee gateways, which the installer can use for accent lighting or task lighting in homes, offices, bars, restaurants, shops, etc.
Quick Links
wireless controller Zigbee 3.0 Remote Control
Specifications
Models: (10W) / ZL(20W)
Size:(L*W*H) 224*102.5*22mm(10W) / 440*102.5*22mm(20W)
Input Voltage: DC48V
Power: 10W/20W
CRI: >
Color Temperature: 2700 K- 6500 K
Luminous Flux: 800LM(10W) / 1530LM(20W)
Luminous Efficiency: 80LM/W(10W) / 75LM/W(20W)
Beam Angle: 24°
Communication Protocol: Zigbee 3.0 +2.4G
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400- 2.
Control Distance: Zigbee: ≤50m(Open Area) / 2. G: ≤25m
Smartphone APP Control And Third-Party Voice Control(Zigbee 3.0 Gateway Needed)
Can Work With Amazon Alexa And Google Assistant
Dimmable: YES

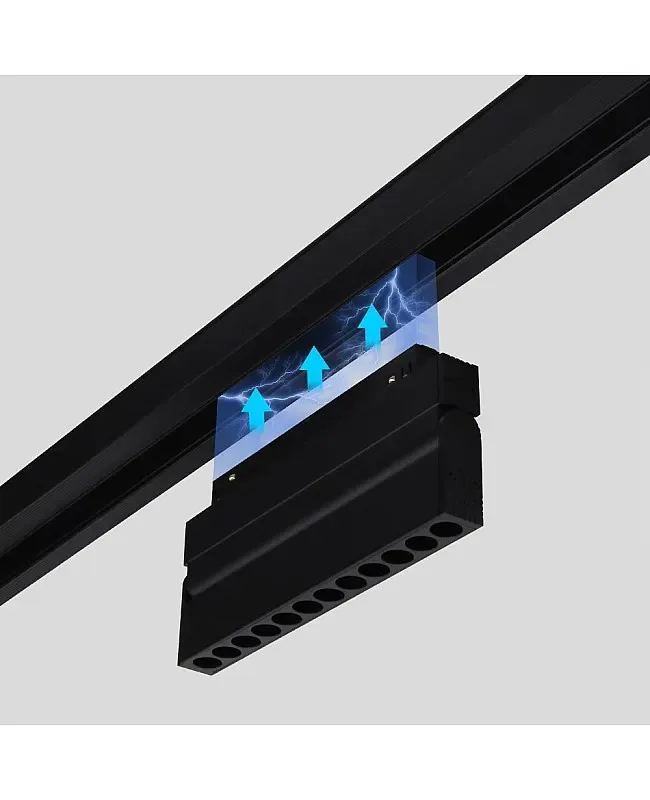

Strong Magnetism, Powered By Rail

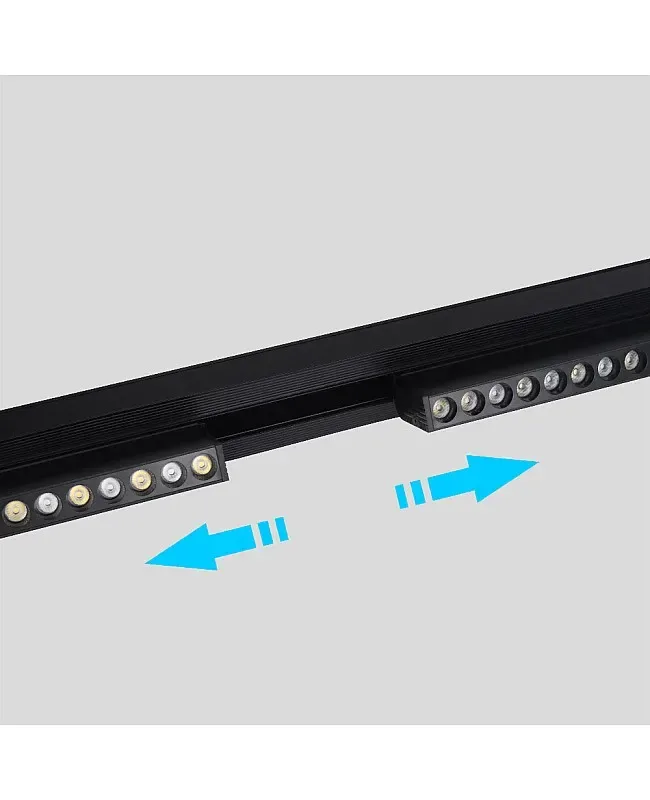

Moving Randomly On The Track Lighting Rails
IP Rate: IP20 Non-waterproof
Working Temperature: -10-40℃
Includes
1 * Tunable White Magnetic Black Track Lighting
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
