Product details
Double Sided 360° Emitting White LED Tapes DC24V
LumaCircuit offers Double Sided 360° Emitting White LED Tapes DC24V as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Type: Double-sided emitting LED tapes LED quantity: 336LEDs/m ( double-sided ) Colors: 3000K warm white, 4000K natural white, 6500K cool white, blue, yellow, pink, red, green The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

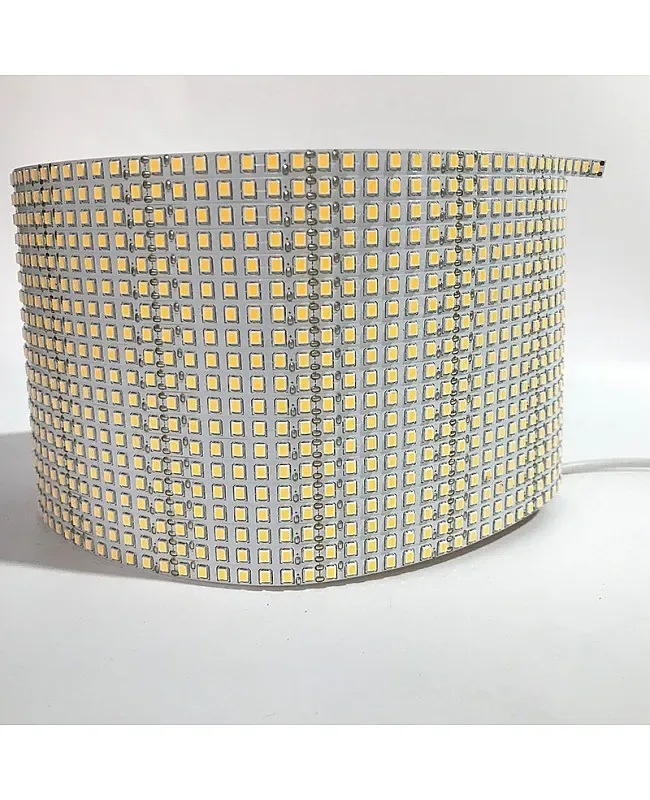

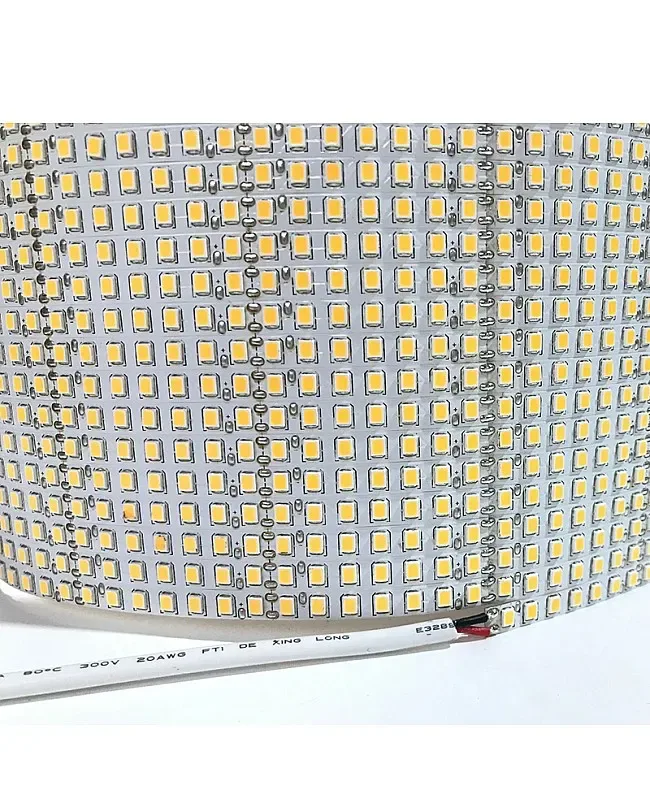

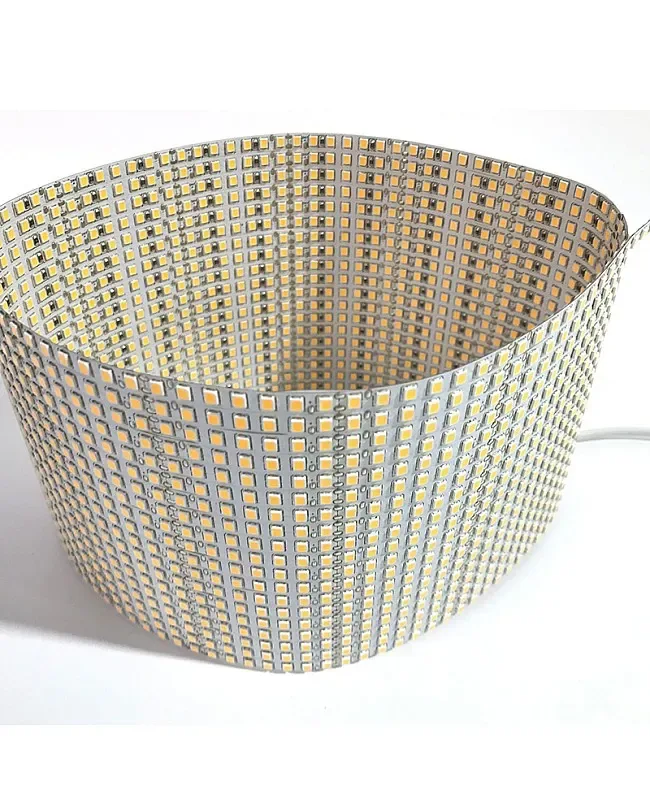

- Unlike traditional LED strips that emit light from one side only, the double-sided white LED tapes have bright 2835 SMD LEDs on both sides, each side has 168PCS and 336PCS LEDs per meter, providing 360° bright and efficient illumination. With LEDs on both sides, these LED strips offer a 360-degree viewing angle, providing uniform lighting in multiple directions. Various single-emitting color products are available: warm white, natural white, cool white, and other single colors.
- Type: Double-sided emitting LED tapes
- LED quantity: 336LEDs/m ( double-sided )
- Colors: 3000K warm white, 4000K natural white, 6500K cool white, blue, yellow, pink, red, green
- Minimum cutting length: 4 cm ( 14 LEDs )
- IP rating: IP20 non-waterproof
- 1 * Double-sided emitting LED tape
- The double-sided White LED Tapes provide 360° uniform light. Recommend working with 22mm Silicone Channels to create a uniform and bright illumination indoors and outdoors.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: CCT
- LED chip brand: San An
- LED type: 2835 SMD LEDs
- LED quantity: 336LEDs/m ( double-sided )
- Length: 5m / 16.4 ft
- Width: 6mm
- Working voltage: DC24V
- Power: 12W±10%/m
- Colors: 3000K warm white, 4000K natural white, 6500K cool white, blue, yellow, pink, red, green
- Color index: >
- Minimum cutting length: 4 cm ( 14 LEDs )
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

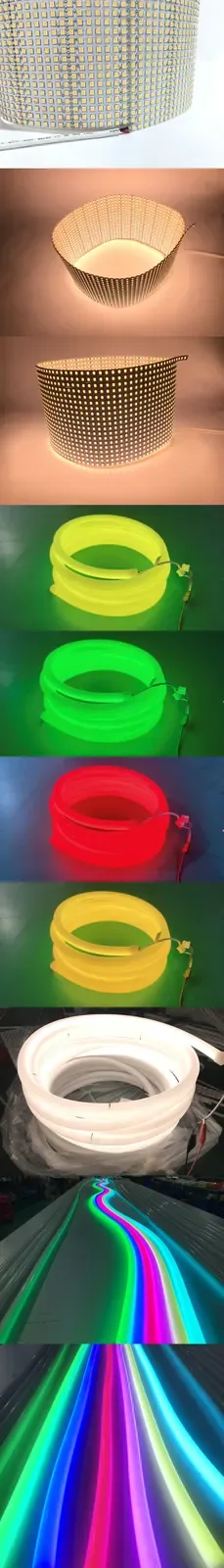

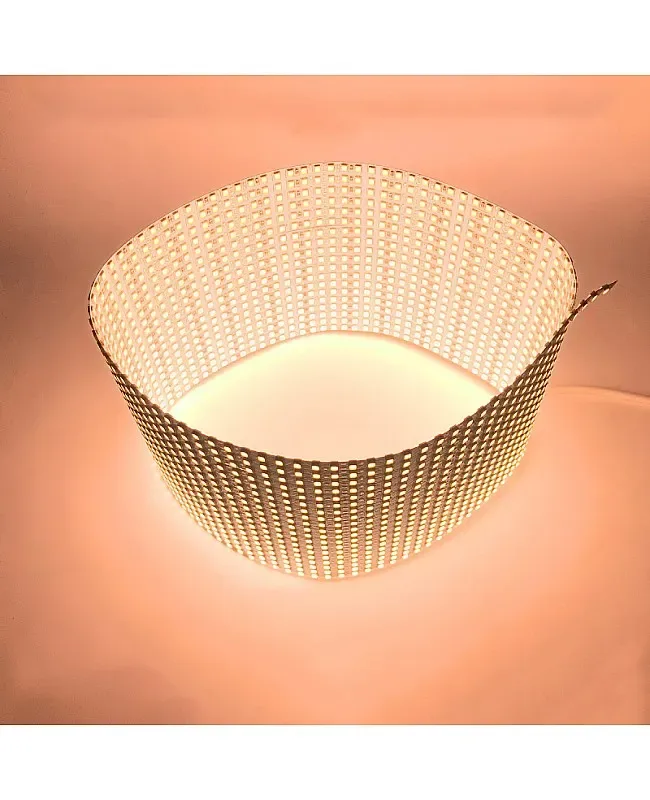

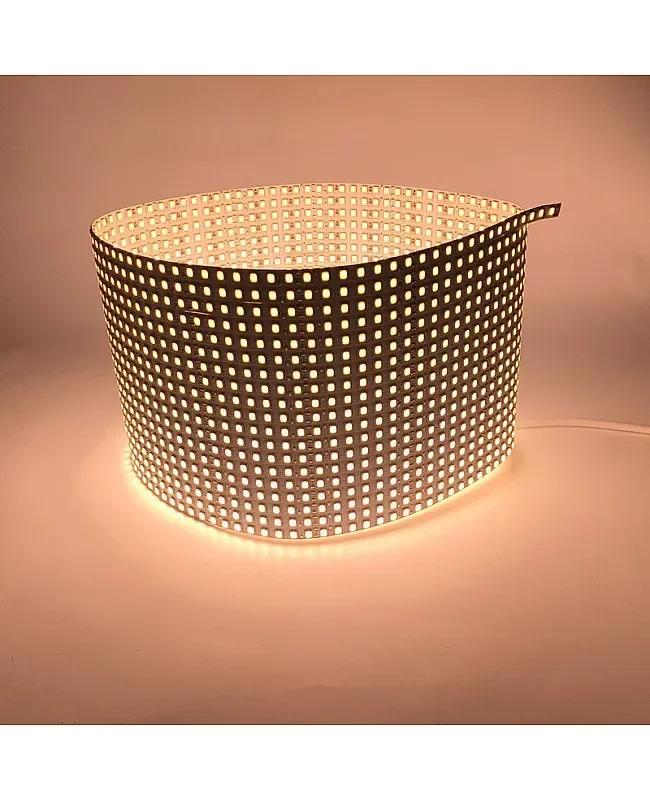

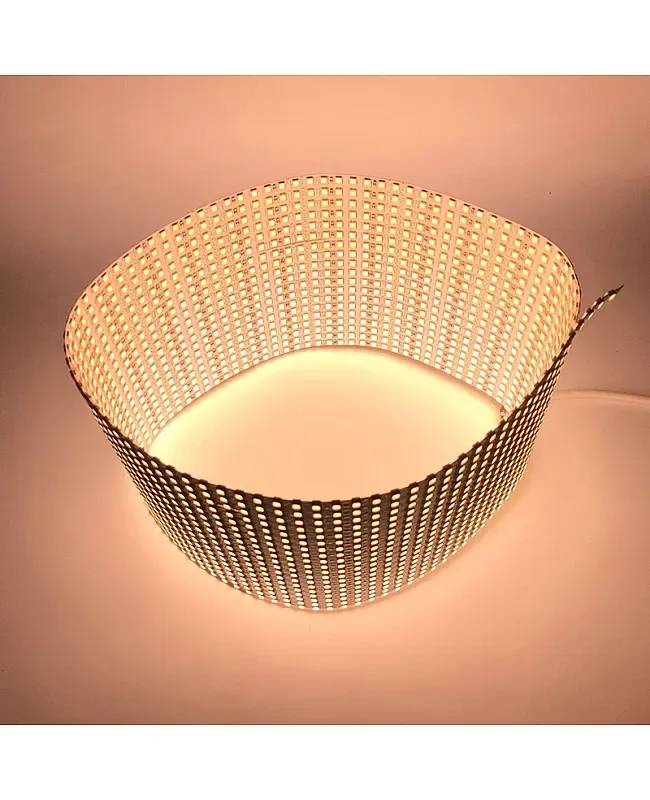

Unlike traditional LED strips that emit light from one side only, the double-sided white LED tapes have bright 2835 SMD LEDs on both sides, each side has 168PCS and 336PCS LEDs per meter, providing 360° bright and efficient illumination. With LEDs on both sides, these LED strips offer a 360-degree viewing angle, providing uniform lighting in multiple directions. Various single-emitting color products are available: warm white, natural white, cool white, and other single colors. It is easy to connect to a 24V power supply to light up or connect to a light dimmer to adjust the brightness for various scenes. The default length is 5 meters per roll, and the minimum cutting length is 4cm. The installer can cut to any size to fulfill your needs. The width is only 6mm, and it can work with 22mm round silicone channels to create a 360° lighting tube for indoor or outdoor applications. Whether you want to add ambiance to a room, make a stunning visual display, or enhance the visibility of a space, these 360-degree white LED strips can meet your lighting needs.
Specifications
Type: Double-sided emitting LED tapes
LED chip brand: San An
LED type: 2835 SMD LEDs
LED quantity: 336LEDs/m ( double-sided )
Length: 5m / 16.4 ft
Width: 6mm
Working voltage: DC24V
Power: 12W±10%/m
Colors: 3000K warm white, 4000K natural white, 6500K cool white, blue, yellow, pink, red, green
View angle: 360°
Color index: >
Dimmable: YES
Minimum cutting length: 4 cm ( 14 LEDs )
IP rating: IP20 non-waterproof
Includes
1 * Double-sided emitting LED tape
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
