RGBW Strip Light Music Controller
LumaCircuit offers RGBW Strip Light Music Controller as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. RGB & RGBW 2 In 1 Music LED Controllers Size: 108*63*28mm(L*W*H) Working Temperature: -20-60℃ The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The RGBW strip light music controller adopts the advanced PWM pulse width modulation digital technology, and has a 4-output-channel design. The max output current of each channel is 4A, working in DC12V or DC24V, the max loading power is up to 384W when working on It can work with RGBW LED lights and horse racing lighting. The RGBW LED music controller comes with 24 24-key RF remote, provides 16 kinds of RGB modes, nine static colors, four dynamic modes, and three music modes available.
- RGB & RGBW 2 In 1 Music LED Controllers

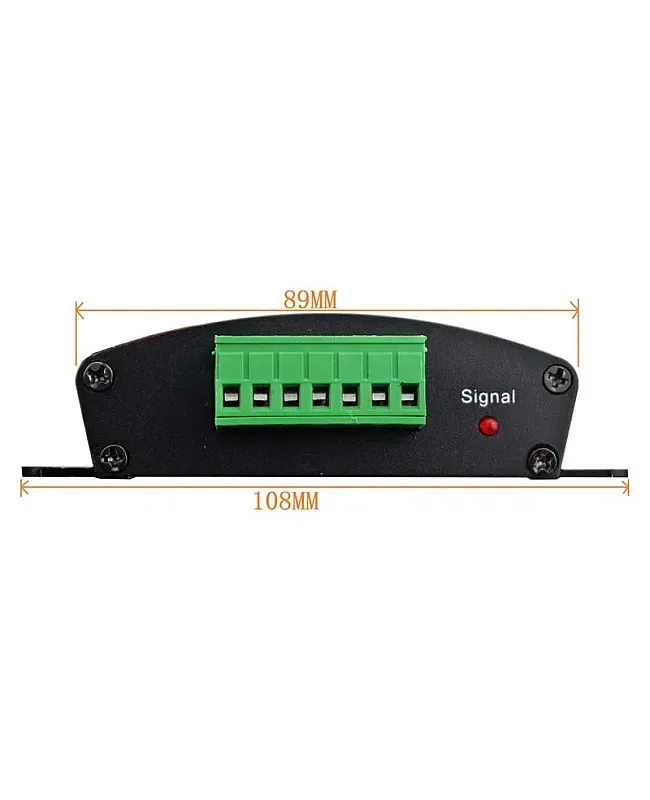

- Size: 108*63*28mm(L*W*H)
- Working Temperature: -20-60℃
- Working Voltage: DC12V-DC24V
- Output Current: <4A Each Channel
- Output Power: 192W ( 12V ) / 384W ( 24V )
- Connecting Mode: Common Anode
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: RGBW
- Size: 108*63*28mm(L*W*H)
- Working Temperature: -20-60℃
- Working Voltage: DC12V-DC24V
- Output Channels: 4
- Output Current: <4A Each Channel
- Output Power: 192W ( 12V ) / 384W ( 24V )
- Output Gray: 256 Levels
- Connecting Mode: Common Anode
- RF Frequency: 433.
- Signal Frequency: 400Hz
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

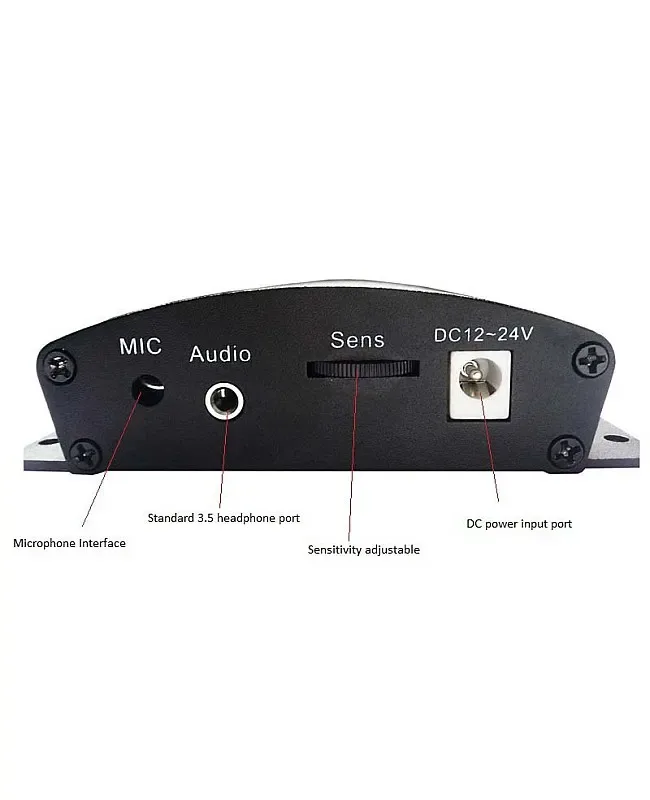

The RGBW strip light music controller adopts the advanced PWM pulse width modulation digital technology, and has a 4-output-channel design. The max output current of each channel is 4A, working in DC12V or DC24V, the max loading power is up to 384W when working on It can work with RGBW LED lights and horse racing lighting. The RGBW LED music controller comes with 24 24-key RF remote, provides 16 kinds of RGB modes, nine static colors, four dynamic modes, and three music modes available. The brightness of static colors and the speed of dynamic modes are adjustable. In the audio mode, the sensitivity can be adjusted via black gear knob, the higher of the sensitivity adjustment is to knob clockwise to achieve music control via two methods: microphone or audio line.
Quick Links
RGB & RGBW 2 In 1 Music LED Controllers
Specifications
Size: 108*63*28mm(L*W*H)
Working Temperature: -20-60℃
Working Voltage: DC12V-DC24V
Output Channels: 4
Output Current: <4A Each Channel
Output Power: 192W ( 12V ) / 384W ( 24V )
Output Gray: 256 Levels
Connecting Mode: Common Anode
RF Frequency: 433.

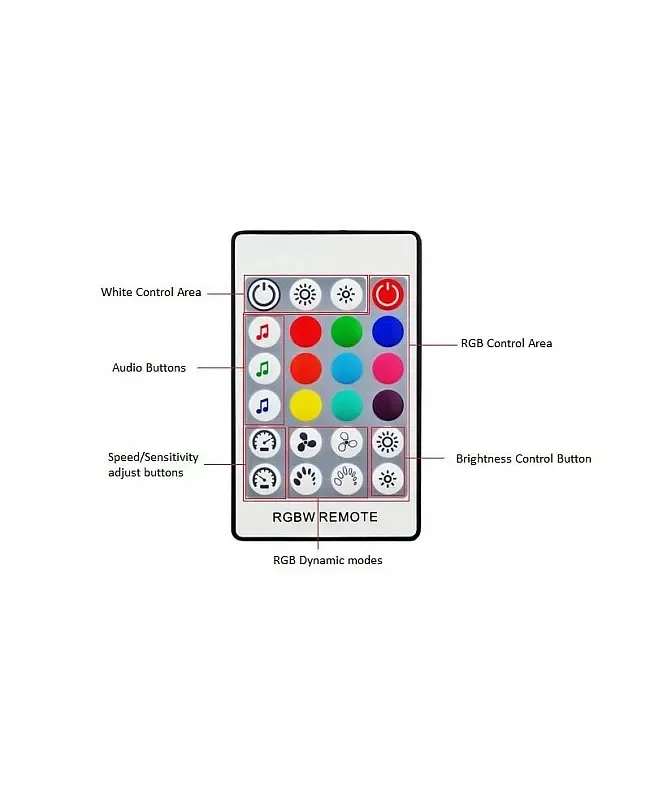

24 Keys RF Remote Control Included
16 Modes In Total, 9 Static Colors, 4 Dynamic Modes, 3 Audio Modes
Brightness Of Static Colors Adjustable
Speed Of Dynamic Modes Adjustable
Sensitivity Can Be Adjusted Via Black Gear Knob
Signal Frequency: 400Hz

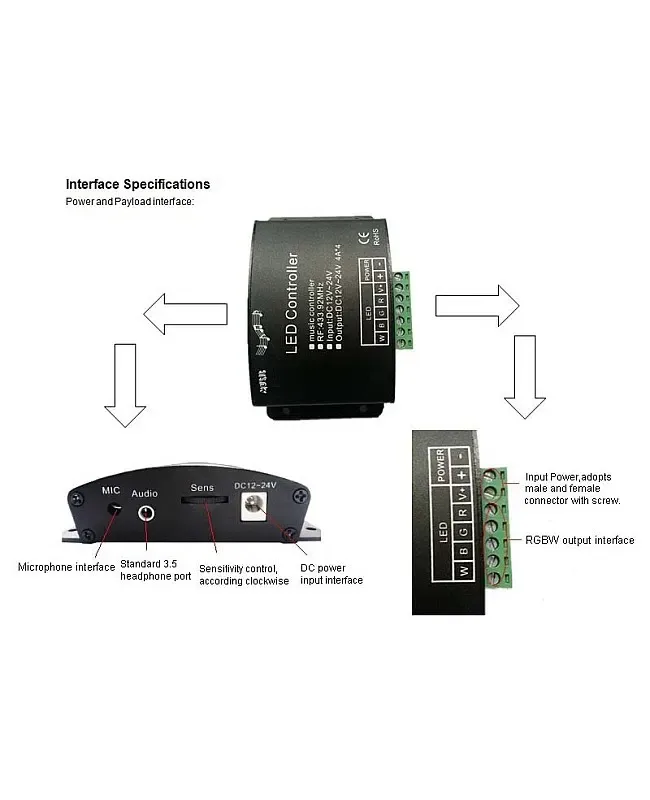

Microphone And Audio Line To Achieve Music Mode
Includes

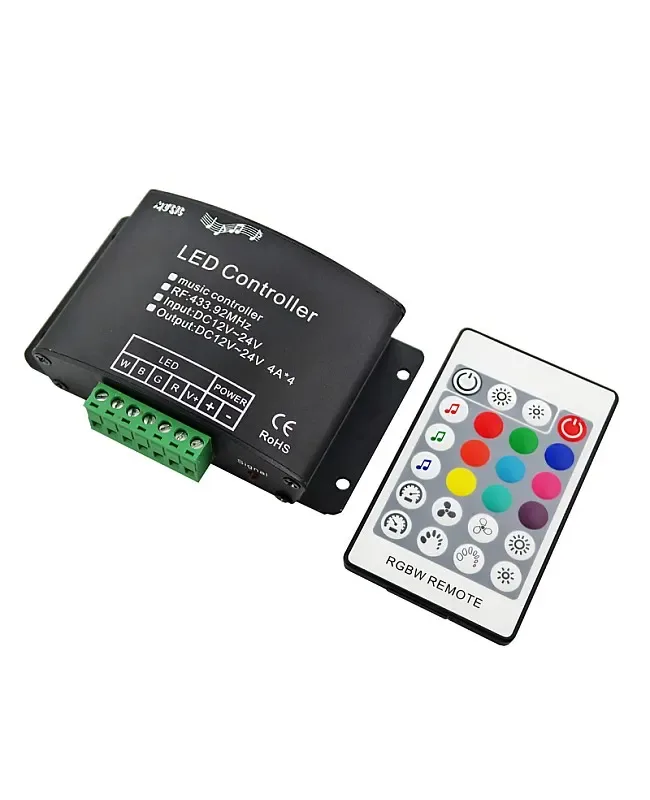

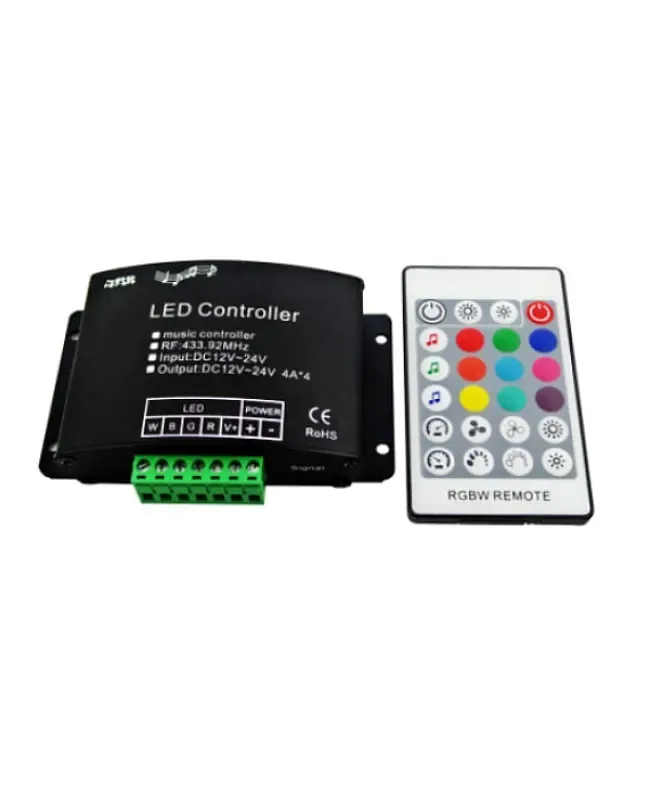

1 * RGBW Light Music Controller
1 * 24 Keys RF Remote
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
