Product details
DMX 72W RGB CCT Wall Wash Lighting Outdoor
LumaCircuit offers DMX 72W RGB CCT Wall Wash Lighting Outdoor as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Size: 1020mm*64mm*62mm(L*W*H) Input Voltage: -240V, 50/60Hz Emitting Color: RGB + CCT The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

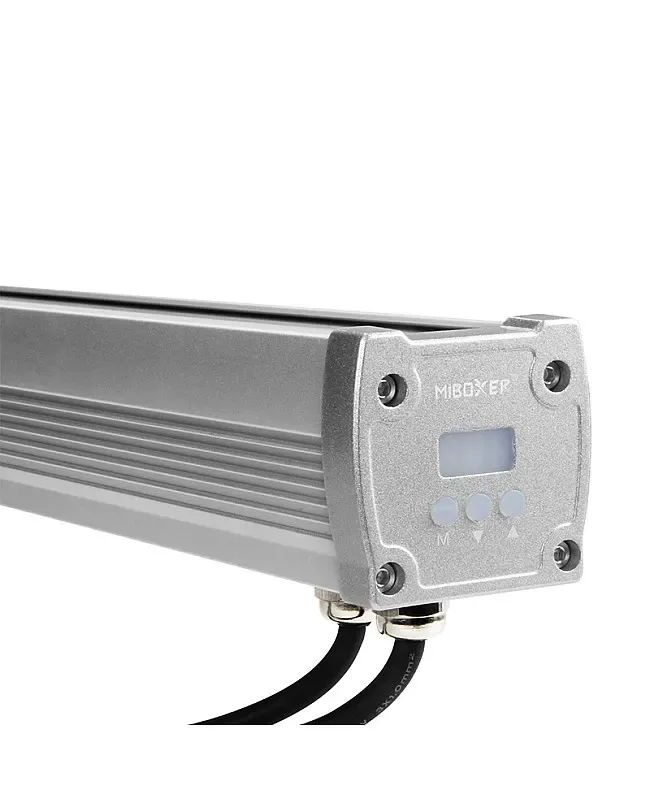

- The wireless controller RGB CCT wall wash lighting outdoor is suited to bringing a unique atmosphere to any outdoor space. Which comply with DMX512, DMX512(1990), DMX512-A, RDM.0 international standard agreement, can work with DMX512 console and DMX RGBWW controller panel to set the color or dynamic modes, the side with a digital display, easy to set the DMX address or choose the dimming curve.
- Size: 1020mm*64mm*62mm(L*W*H)
- Input Voltage: -240V, 50/60Hz
- Emitting Color: RGB + CCT
- Color Temperature Adjustable: 2700 K- 6500 K
- Luminous Flux: 280LM(Red), 540LM(Green), 150LM(Blue), 1800LM(Cool White), 1650LM(Warm White)
- Accord With DMX512 Standard Protocol
- wireless controller Manual
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-STR-L73Q93
- Size: 1020mm*64mm*62mm(L*W*H)
- Input Voltage: -240V, 50/60Hz
- Power: 72W
- Emitting Color: RGB + CCT
- Color Temperature Adjustable: 2700 K- 6500 K
- CRI: >
- Beam Angle: 15*60°
- IP Rate: IP66
- Working Temperature: -20℃-+45℃
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller RGB CCT wall wash lighting outdoor is suited to bringing a unique atmosphere to any outdoor space. Which comply with DMX512, DMX512(1990), DMX512-A, RDM.0 international standard agreement, can work with DMX512 console and DMX RGBWW controller panel to set the color or dynamic modes, the side with a digital display, easy to set the DMX address or choose the dimming curve. The wall wash lighting combines RGB and CCT lighting in one fixture, allowing you to create dynamic lighting effects and multi-zone control. Low power consumption decreases luminance, bright color, and high brightness. The surface has an optical lens for high lighting, transmitting rate, wide beam angle, and long illumination distance. The aluminum alloy housing provides fast heat dissipation and anti-corrosion. The 180° rotatable brackets allow easy installation and beam angle adjustment. The waterproof level is IP66; the installer can install them in a wet location and use them on rainy days. These wall wash lighting Fixtures are suited to lighting various outdoor spaces such as hotels, buildings, bridges, parks, restaurants, etc.
Quick Links
wireless controller Manual
Specifications
Model
Size: 1020mm*64mm*62mm(L*W*H)
Input Voltage: -240V, 50/60Hz
Power: 72W
Emitting Color: RGB + CCT
Color Temperature Adjustable: 2700 K- 6500 K
Luminous Flux: 280LM(Red), 540LM(Green), 150LM(Blue), 1800LM(Cool White), 1650LM(Warm White)
CRI: >
Beam Angle: 15*60°
Accord With DMX512 Standard Protocol
Support RDM Function
Occupy 5 DMX Address
2-Dimming Curves Available
Compatible With DMX512 Console And wireless controller X5 RGBWW DMX Controller Panel
IP Rate: IP66
Intuitive Digital Display
180° Rotatable Brackets
Working Temperature: -20℃-+45℃
Includes
1 * RGB CCT Wall Wash Lighting Outdoor
Product resources
Technical documents
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
