Dotless Dimmable DC12V COB LED Strip Light Flexible
LumaCircuit offers Dotless Dimmable DC12V COB LED Strip Light Flexible as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Working Voltage: DC12V/DC24V Power: 10W/M(8mm), 15W/M(10mm) Width: 8mm(480LEDs/M), 10mm(528LEDs/M) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The DC12V COB LED strip light uses the new COB technology to produce seamless linear lighting. With the high-density LED array design for high CRI, it is brighter, free of hot spots, and delivers uniform light for high-end lighting projects. The Light Strips use 9*22 mil LED chips that can increase brightness and improve heat dissipation. There are and products available; the 24V version has a lower voltage drop even at lengths over 5 meters.
- Working Voltage: DC12V/DC24V
- Power: 10W/M(8mm), 15W/M(10mm)
- Width: 8mm(480LEDs/M), 10mm(528LEDs/M)
- LED QTY: 480LEDs/M, 528 LEDs/M
- Luminous Flux: 950-1250LM/M(480LEDs/M), 1330-1750LM/M(528LEDs/M)
- Luminous Efficiency: 90-120LM/W(480LEDs/M), 85-95LM/W(528LEDs/M)
- Lengths Available: 0.5M, 1M, 2M, 3M, 4M, 5M
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: CCT
- Working Voltage: DC12V/DC24V
- LED Chip Brand: San An
- LED Type: 2110
- LED Size: 9*22 mil
- Power: 10W/M(8mm), 15W/M(10mm)
- Width: 8mm(480LEDs/M), 10mm(528LEDs/M)
- LED QTY: 480LEDs/M, 528 LEDs/M
- Lengths Available: 0.5M, 1M, 2M, 3M, 4M, 5M
- Colors: Warm White(3000K), Natural White(4000K), Cool White(6000K)
- IP Rating: IP20 Non-Waterproof
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The DC12V COB LED strip light uses the new COB technology to produce seamless linear lighting. With the high-density LED array design for high CRI, it is brighter, free of hot spots, and delivers uniform light for high-end lighting projects. The Light Strips use 9*22 mil LED chips that can increase brightness and improve heat dissipation. There are and products available; the 24V version has a lower voltage drop even at lengths over 5 meters. There are two models available: 480PCS LEDs per meter and 528 LEDs per meter, and the installer can choose the various lengths for your project. The standard length of the 12V COB LED Stripes is 5 meters per roll, with a maximum length of 50 meters per roll; it is cuttable to any length. The back has double-sided adhesive tape; removing the protector from the tape and sticking it to where you want to install it is easy. The installer can connect the dotless LED strips to an LED dimmer to adjust the brightness from 0% to 100%. Various emitting color products are available, and the installer can choose warm white, natural white, or cool white for different scenes. The Seamless Strip Lights are not waterproof and are recommended only for indoor applications.
Specifications
Working Voltage: DC12V/DC24V
LED Chip Brand: San An
LED Type: 2110
LED Size: 9*22 mil
Power: 10W/M(8mm), 15W/M(10mm)
Width: 8mm(480LEDs/M), 10mm(528LEDs/M)
LED QTY: 480LEDs/M, 528 LEDs/M
Luminous Flux: 950-1250LM/M(480LEDs/M), 1330-1750LM/M(528LEDs/M)
Luminous Efficiency: 90-120LM/W(480LEDs/M), 85-95LM/W(528LEDs/M)
Lengths Available: 0.5M, 1M, 2M, 3M, 4M, 5M
Colors: Warm White(3000K), Natural White(4000K), Cool White(6000K)
View Angle: 180°
Dimmable: YES
IP Rating: IP20 Non-Waterproof
Cuttable Length: For 480LEDs/M: 25mm(DC12V)/50mm(DC24V); For 528LEDs/M: 22.5mm(DC12V), 45.5mm(DC24V)
CRI: >

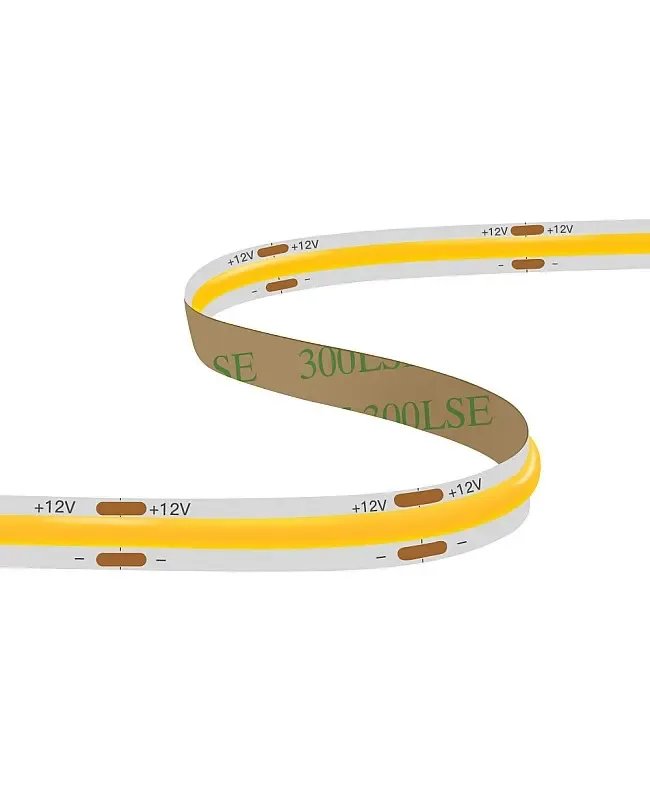

Flexible And Bendable
No Hot Spots And Visible Light Dots
Uniform Light Emission
Includes
1 * Dotless COB LED Strip Light
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
