RGBWW Alexa LED Strip Controller
LumaCircuit offers RGBWW Alexa LED Strip Controller as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Models: (RGB), (RGBW), (RGBWW) Size: 74.5*36*17mm(L*W*H) Output Current: 6A/Channel The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller Alexa LED strip controller allows users to control their LED lighting with voice commands through Amazon Alexa or Google Home. The installer can customize the lighting, changing the colors and brightness. The light controller Kit comes with a 2.4G rainbow remote control, which can be controlled by a smartphone APP and third-party voice commands, including Amazon Alexa and Google Assistant, after matching to 2.4G gateways.
- Models: (RGB), (RGBW), (RGBWW)
- Size: 74.5*36*17mm(L*W*H)
- Output Current: 6A/Channel
- Total Output Current: Max 12A
- Output Connection: Common Anode
- wireless controller Manual
- Color Saturation, Color Temperature And Brightness Adjustable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: RGBW
- Models: (RGB), (RGBW), (RGBWW)
- Size: 74.5*36*17mm(L*W*H)
- Working Voltage: -24V
- Output Current: 6A/Channel
- Total Output Current: Max 12A
- Control Distance: ≤30m
- Output Connection: Common Anode
- Working Temperature: -10-40℃
- LumaCircuit model: LC-STR-6F4QBV
- Dimensions found: 74.5x36x17mm / 17mm / 30m
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

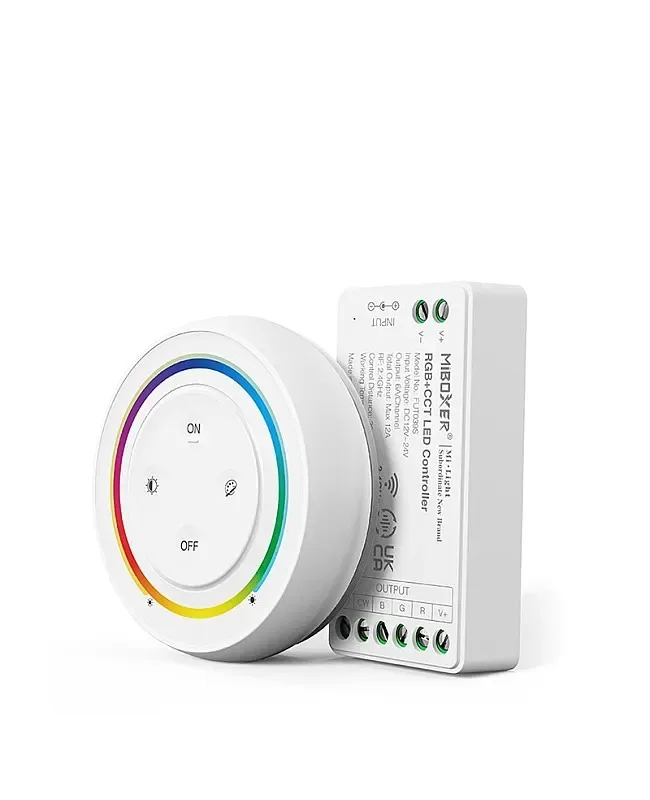

The wireless controller Alexa LED strip controller allows users to control their LED lighting with voice commands through Amazon Alexa or Google Home. The installer can customize the lighting, changing the colors and brightness. The light controller Kit comes with a 2.4G rainbow remote control, which can be controlled by a smartphone APP and third-party voice commands, including Amazon Alexa and Google Assistant, after matching to 2.4G gateways. There are 16 million colors available, and the installer can touch the remote to adjust the color saturation, color temperature, and brightness for various scenes. Adopts 2.4G transmitting technology, the control distance is up to 30 meters. The controller will receive the signals from the remote control and transmit them to other controllers within 30 meters; all of them will work in the same status. The installer can choose the Alexa strip controller with high and low PWM frequency options for various LED lights.
Quick Links
wireless controller Manual

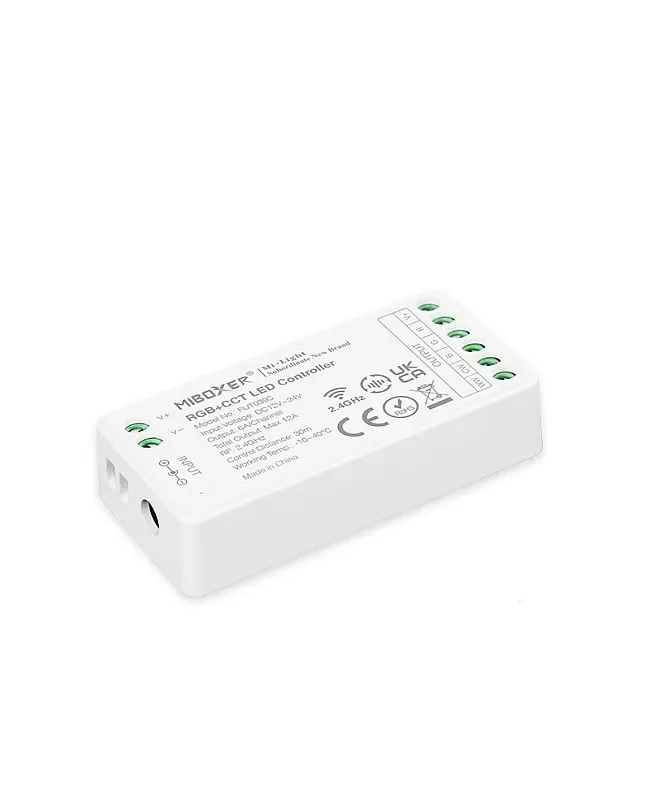

Controller Specifications
Models: (RGB), (RGBW), (RGBWW)
Size: 74.5*36*17mm(L*W*H)
Working Voltage: -24V
Output Current: 6A/Channel
Total Output Current: Max 12A
RF: 2.
Control Distance: ≤30m
Output Connection: Common Anode
16 Million Colors Available
Color Saturation, Color Temperature And Brightness Adjustable
4G Wireless Transmitting Technology
Support Smartphone APP And Third-Party Voice Control(2.4G Gateway Needed)
Can Work With Amazon Alexa And Google Assistant
PWM High Frequency And Low Frequency(500Hz) Switchable
Signal Transmitting And Modes Synchronization
Working Temperature: -10-40℃

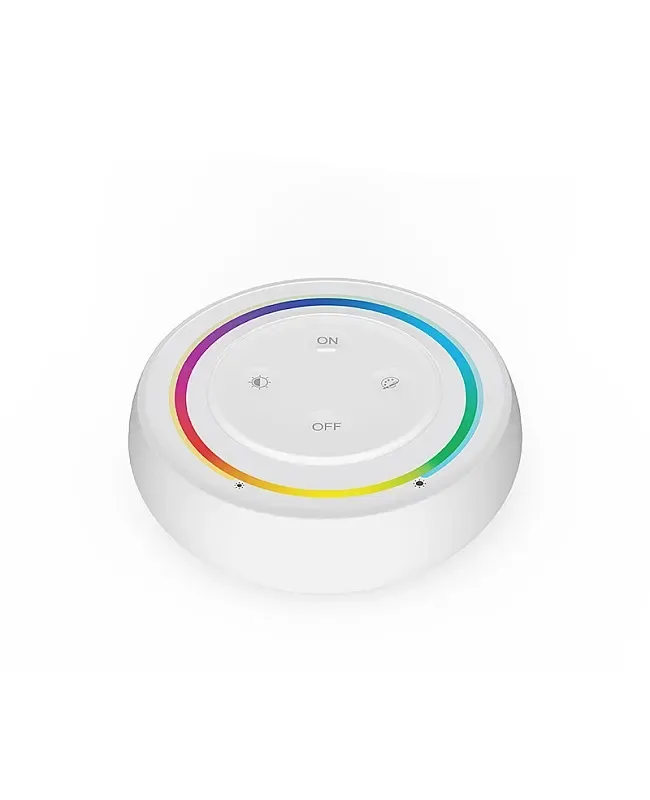

Remote Specifications
Colors: Black, White, Grey
Size: Φ70*24mm
Working Voltage: DC3V
Powered By 2PCS AAA Batteries
Transmitting Power: 6 dBm
Standby Power
RF: 2.
Modulation Method: GFSK
Control Distance: ≤30m
Magnetic Base Holder

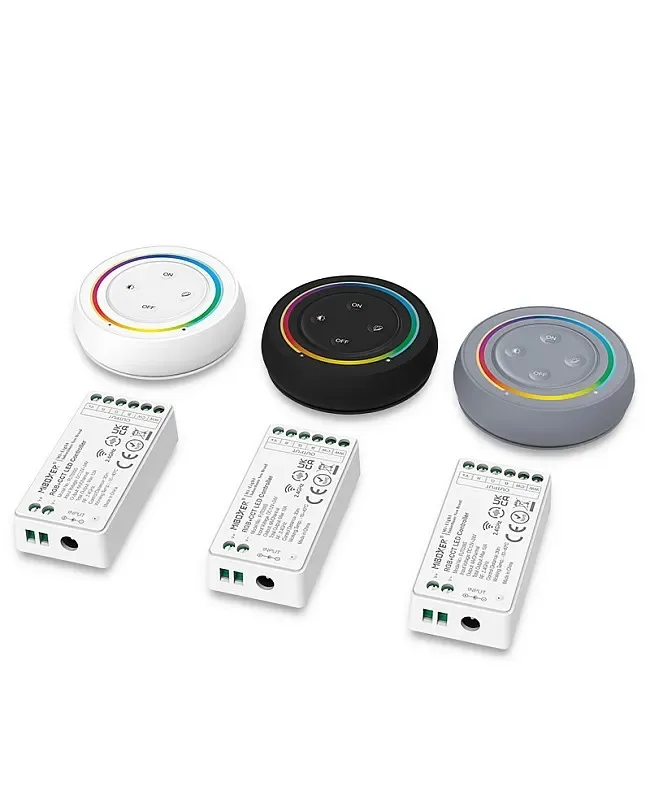

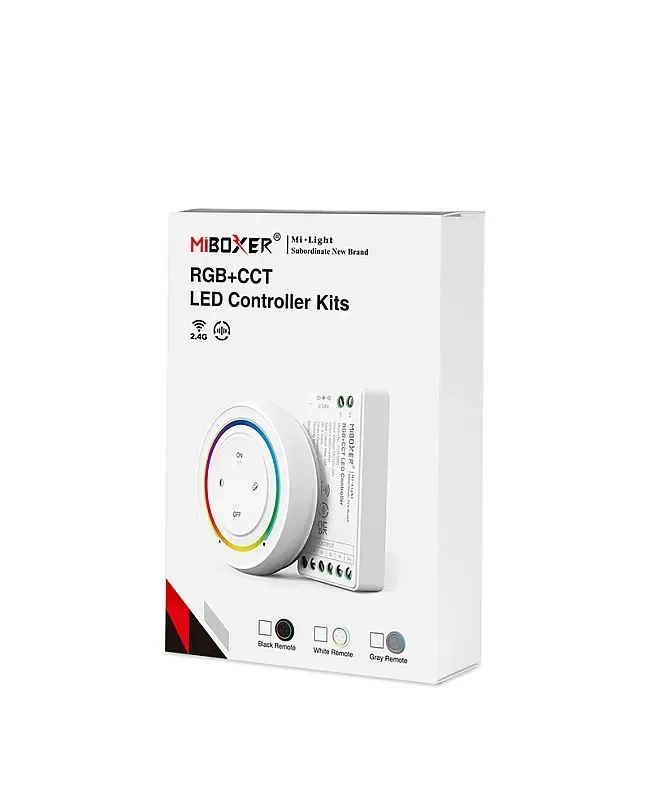

Includes
1 * Alexa LED Strip Controller
1 * 2.4G Rainbow Remote
1 * User Manual
