DC5V USB RGB TV LED Strip

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The DC5V USB RGB TV LED strips use the high-quality 5050 RGB SMD LEDs as the light source. Each LED includes the red, green, and blue LED chips. There are 30 LEDs per meter. The LEDs are mounted on a black dual-layer PCB board with epoxy coating and a waterproof level reaching IP65. The LED TV strips come with the mini LED controller, the are Mode, Speed, and Color. The installer can press the Mode key to change to color-changing mode and choose the dynamic working mode, 20 modes in total.
• LED Quantity: 30 LEDs Per Meter
• IP Rating: IP20 Non-waterproof, IP65
• 3 Keys Mini LED Controller With IR 24 Keys Remote
• 20 Modes In Total, 16 Static Colors And 4 Dynamic Modes
• Back With Double-Sided Adhesive Tape
• Applications: TV Or Display Backlights

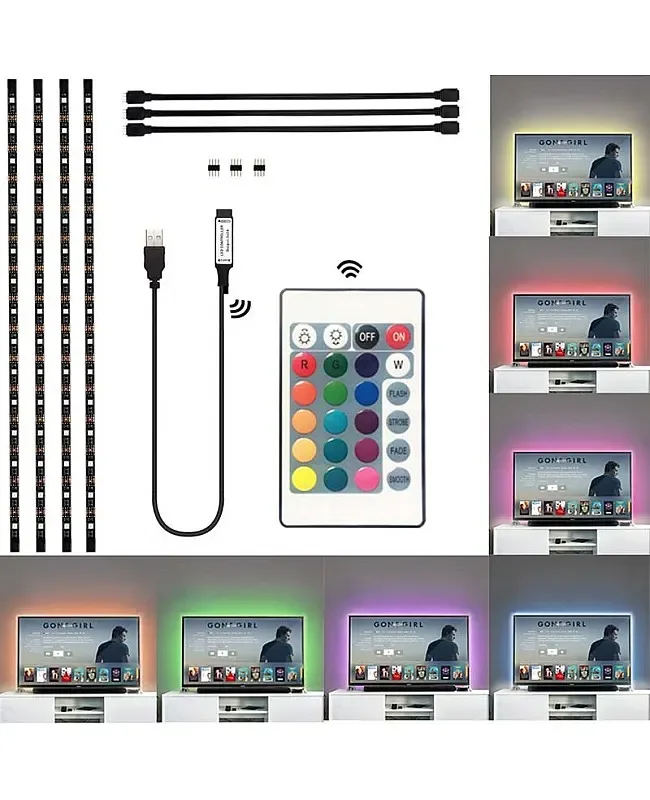

• 1 * Mini LED Controller With 24 Keys IR Remote

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 5 V
• Light engine: RGB
• Working Voltage: DC5V
• LED: 5050 SMD LED
• LED Quantity: 30 LEDs Per Meter
• Length: 4PCS 0.5 Meter
• Emitting Color: RGB
• IP Rating: IP20 Non-waterproof, IP65
• Applications: TV Or Display Backlights
• LumaCircuit model: LC-STR-5QFZLZ

Control and installation

Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.

Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

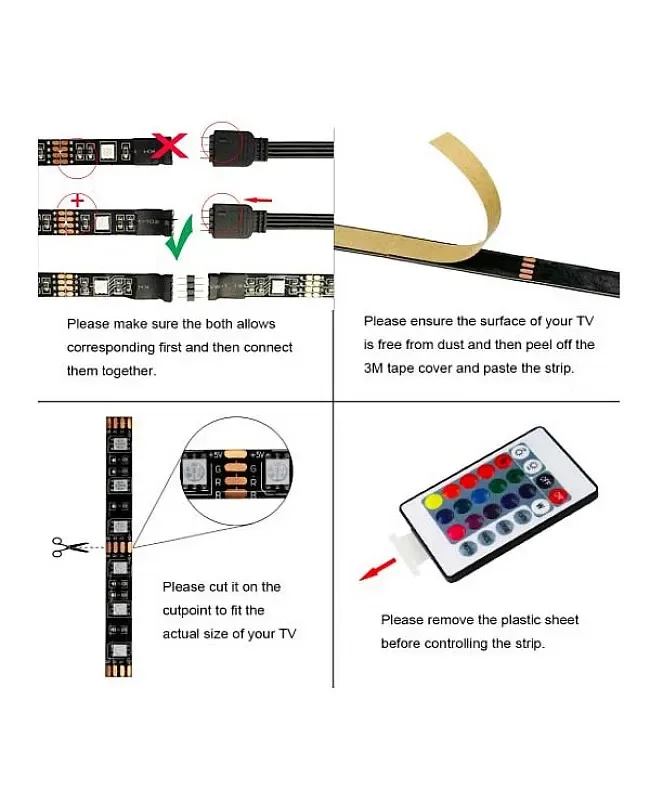

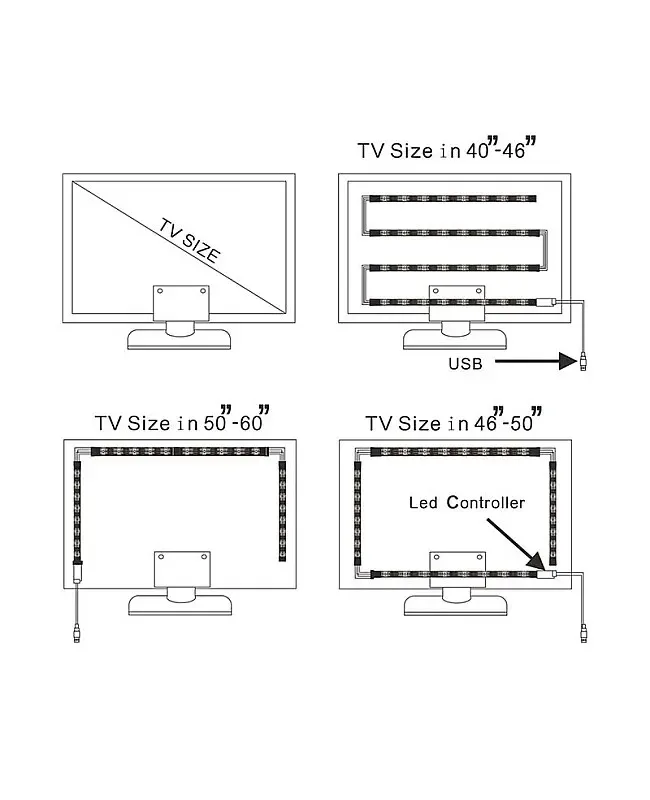

The DC5V USB RGB TV LED strips use the high-quality 5050 RGB SMD LEDs as the light source. Each LED includes the red, green, and blue LED chips. There are 30 LEDs per meter. The LEDs are mounted on a black dual-layer PCB board with epoxy coating and a waterproof level reaching IP65. The LED TV strips come with the mini LED controller, the are Mode, Speed, and Color. The installer can press the Mode key to change to color-changing mode and choose the dynamic working mode, 20 modes in total. Press the Speed key to adjust the brightness of static color, press the Color key to enter static mode, and change the static color. The other side of the mini LED controller with USB connector, the installer can connect it to the USB port of a TV or display directly, there are two types of remote available, the IR remote and RF remote, the installer can use both of the remote to turn on or off the LED light, change the static color and adjust the brightness, change the color changing mode. The installer can use the LED strips around or behind the TV or display, or on the back with double-sided tape, which is easy to install and use.

Specifications

Working Voltage: DC5V

LED: 5050 SMD LED

LED Quantity: 30 LEDs Per Meter

Length: 4PCS 0.5 Meter

Luminous Flux: 20lm/LED

Emitting Color: RGB

Angle View: 120°

IP Rating: IP20 Non-waterproof, IP65

Dimmable: YES

3 Keys Mini LED Controller With IR 24 Keys Remote

20 Modes In Total, 16 Static Colors And 4 Dynamic Modes

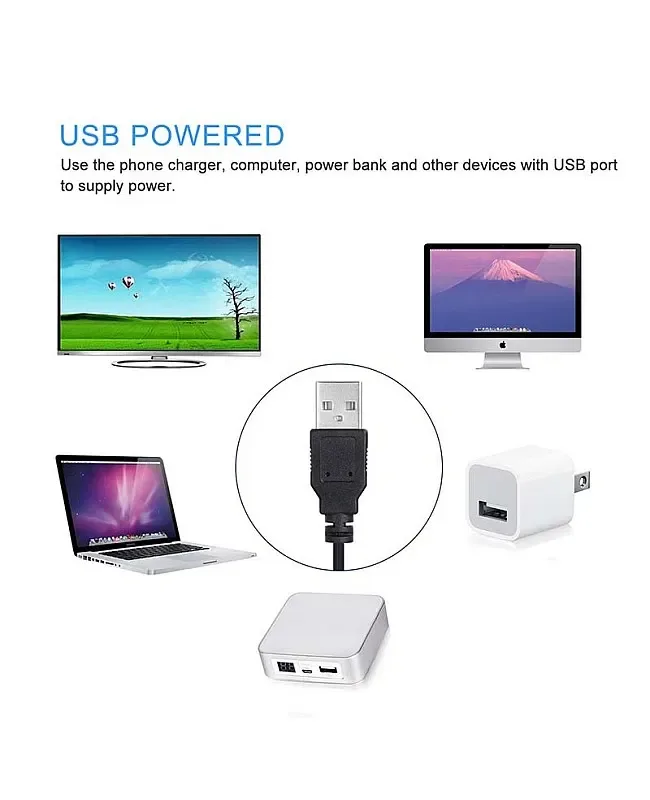

With USB Connector

Back With Double-Sided Adhesive Tape

Applications: TV Or Display Backlights

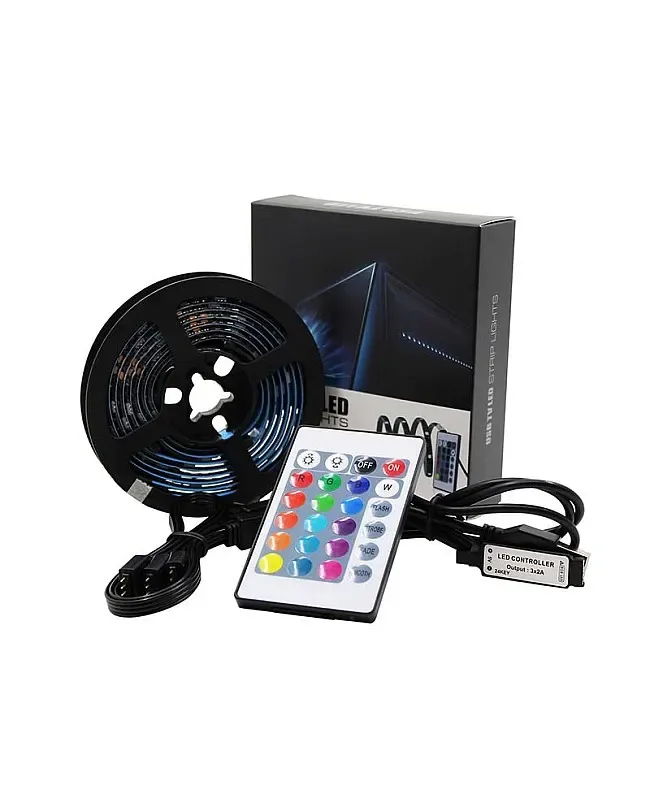

Includes

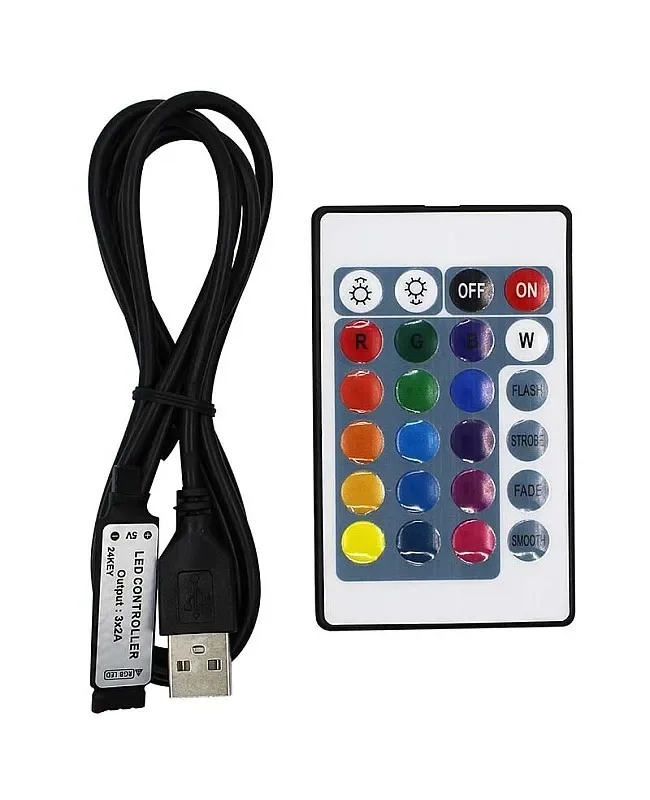

1 * Mini LED Controller With 24 Keys IR Remote

1 * LED Strip Kit
