Product details
High Density COB 4MM DC3V Battery LED Strip Lights 16.4FT/Roll
LumaCircuit offers High Density COB 4MM DC3V Battery LED Strip Lights 16.4FT/Roll as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. LED Chip Quantity: 480PCS/Meter Working Voltage: DC3V/DC5V/DC12V Colors: 3000K Warm White, 4000K Natural White, 6500K Cool White, Red, Green, Blue, Orange, Pink, Purple, ICE Blue, Yellow The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The battery COB LED strip lights are an excellent choice for those who need a reliable and efficient lighting solution. The working voltage is DC3V, which means it can be powered by batteries, making them an ideal choice for projects where a power source is not readily available. The width is only 4mm and can be widely used for lighting decoration in an ultra-narrow space, sand tables, toys, DIY projects, DIY cars, etc.
- LED Chip Quantity: 480PCS/Meter
- Working Voltage: DC3V/DC5V/DC12V

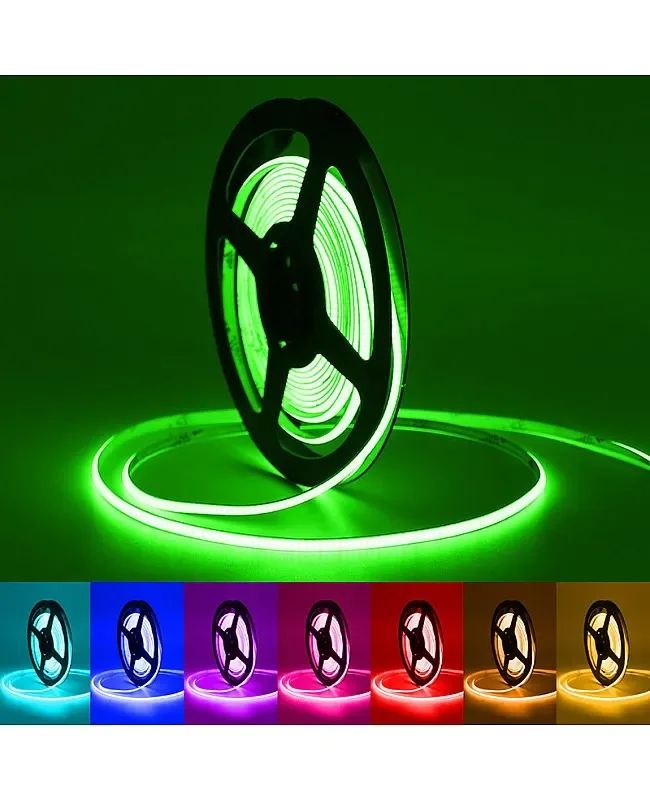

- Colors: 3000K Warm White, 4000K Natural White, 6500K Cool White, Red, Green, Blue, Orange, Pink, Purple, ICE Blue, Yellow
- Waterproof Level: IP20 Non-waterproof
- Minimum Cutting Length: 12.5mm
- Working Temperature: -20-+45℃
- Storage Temperature: -20-+60℃
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 12 V
- Light engine: CCT
- LumaCircuit model: LC-STR-2XDJCH
- LED Chip Brand: San An
- LED Chip: 1022
- LED Chip Quantity: 480PCS/Meter
- Length: 16.4FT/Roll
- Width: 4mm
- Working Voltage: DC3V/DC5V/DC12V
- Power: 5W/Meter

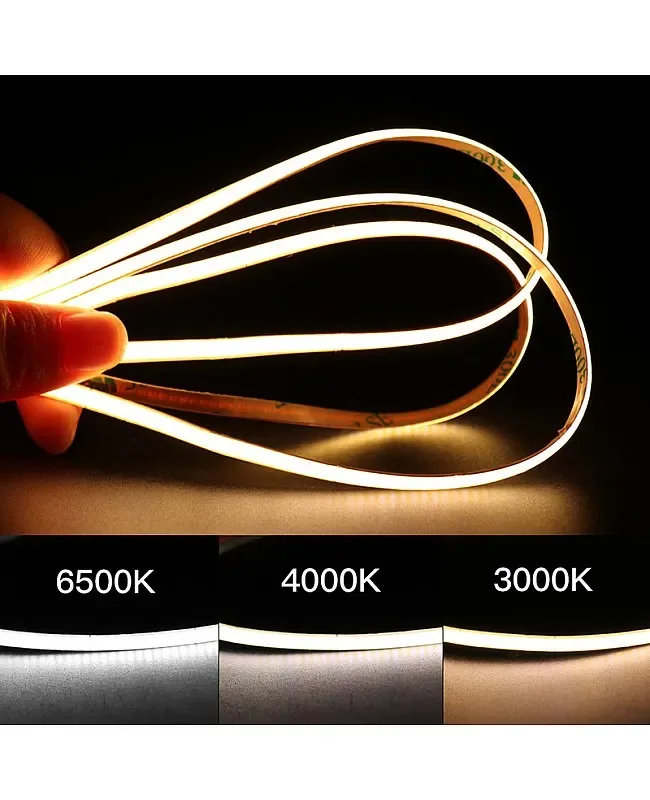

- Colors: 3000K Warm White, 4000K Natural White, 6500K Cool White, Red, Green, Blue, Orange, Pink, Purple, ICE Blue, Yellow
- Beam Angle: 180°
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

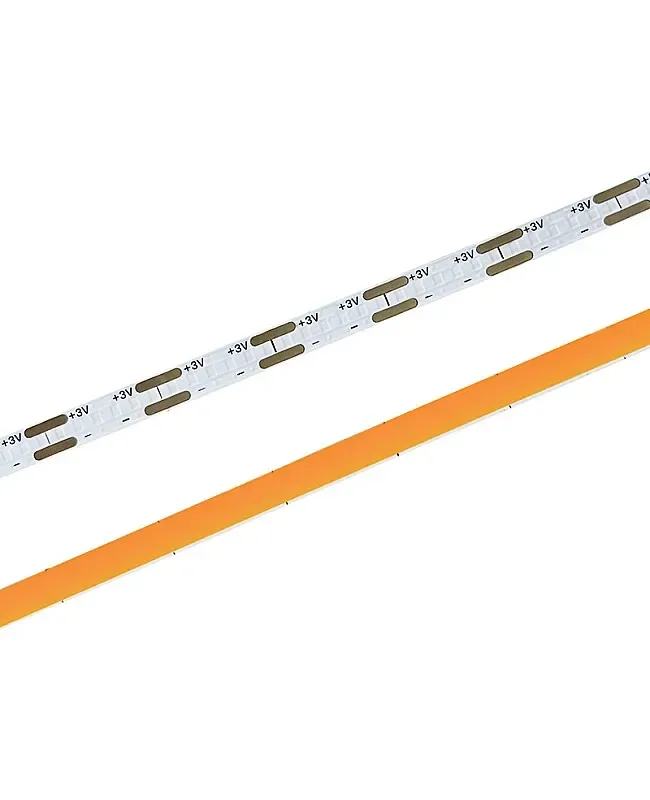

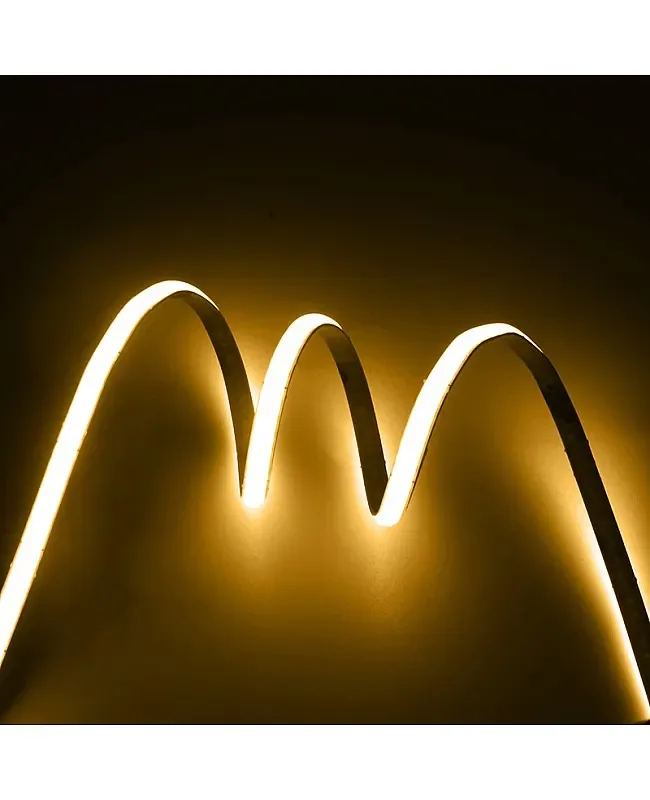

The battery COB LED strip lights are an excellent choice for those who need a reliable and efficient lighting solution. The working voltage is DC3V, which means it can be powered by batteries, making them an ideal choice for projects where a power source is not readily available. The width is only 4mm and can be widely used for lighting decoration in an ultra-narrow space, sand tables, toys, DIY projects, DIY cars, etc. It can be cut to any length for your project from the copper welding point and reconnected with wires or COB connectors, and the minimum cutting length is 12.5mm. High-density COB 12V LED strips use the newest chip-on-board technology, 480 PCS LED Chips per meter, flexible and bendable. Brighter than the SMD LED strips, no visible light dots and dark areas, uniform light emission, and a beam angle up to 180°. The color rendering index is over for quality color rendering. Only IP20 non-waterproof products are available and recommended for indoor applications. The back has double-sided adhesive tape, making it easy to mount them where you want to install them. It can connect to a light dimmer to adjust the brightness for various scenes.
Specifications
Model
LED Chip Brand: San An
LED Chip: 1022
LED Chip Quantity: 480PCS/Meter
Length: 16.4FT/Roll
Width: 4mm
Working Voltage: DC3V/DC5V/DC12V
Power: 5W/Meter
Colors: 3000K Warm White, 4000K Natural White, 6500K Cool White, Red, Green, Blue, Orange, Pink, Purple, ICE Blue, Yellow
Beam Angle: 180°
Dimmable: YES
Waterproof Level: IP20 Non-waterproof
CRI: >
Minimum Cutting Length: 12.5mm
Working Temperature: -20-+45℃
Storage Temperature: -20-+60℃
Includes
1 * Battery LED Strip Lights(16.4FT/Roll)
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
