Dimmable COB LED Strip 5V With USB Controller
LumaCircuit offers Dimmable COB LED Strip 5V With USB Controller as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Lengths Available: 0.5M, 1M, 2M Color Temperature: 4000K(Natural White) IP Rating: IP20 Non-Waterproof The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

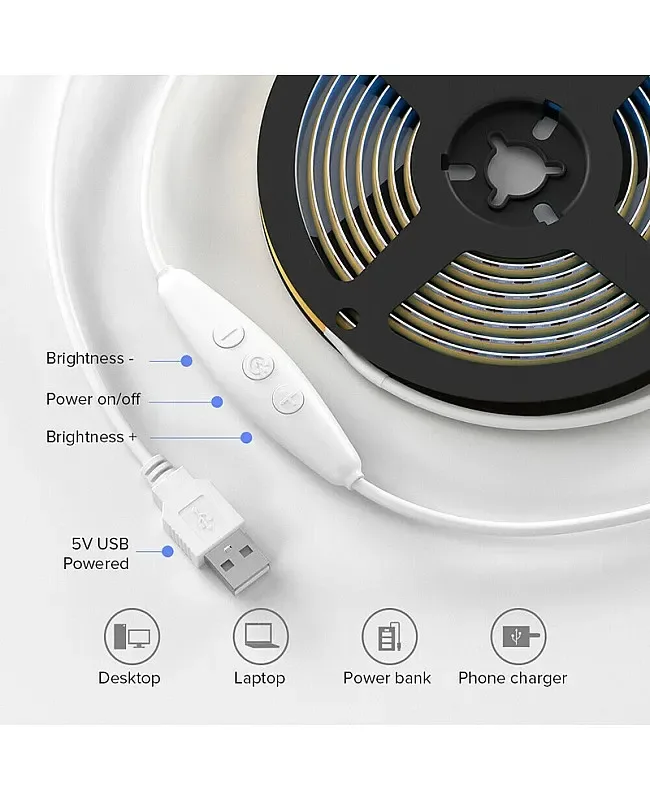

- The 5V COB LED strips with USB Controller are easy to connect to the USB port on a PC, laptop, power bank, or wall adapter to light up. There are three buttons on the inline controller, and the installer can use them to power ON/OFF the LED light and adjust the brightness from 1% to 100%.
- Lengths Available: 0.5M, 1M, 2M
- Color Temperature: 4000K(Natural White)
- IP Rating: IP20 Non-Waterproof
- No Hot Spots And Visible Light Dots
- More Bright, High CRI, Uniform Light Emission
- Back With Double-Sided Adhesive Tape
- Working Temperature: -20℃-+45℃
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V
- Light engine: COB
- Size: 8*1.5mm(W*H)
- Lengths Available: 0.5M, 1M, 2M
- Working Voltage: DC5V
- Power: 7W/M
- LED Type: 0922
- LED Chip Size: 9*22 mil
- LED QTY: 320 PCS/M
- Color Temperature: 4000K(Natural White)
- CRI: >
- IP Rating: IP20 Non-Waterproof
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

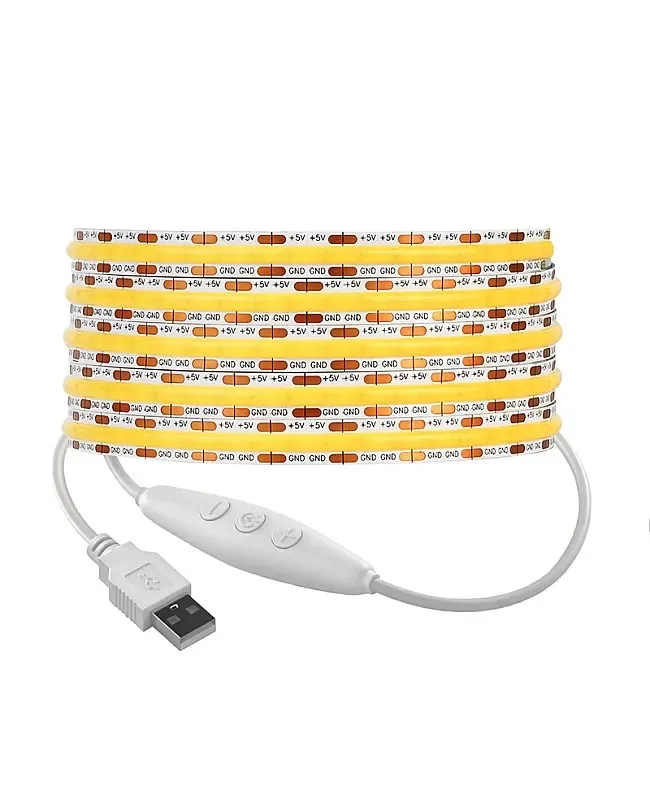

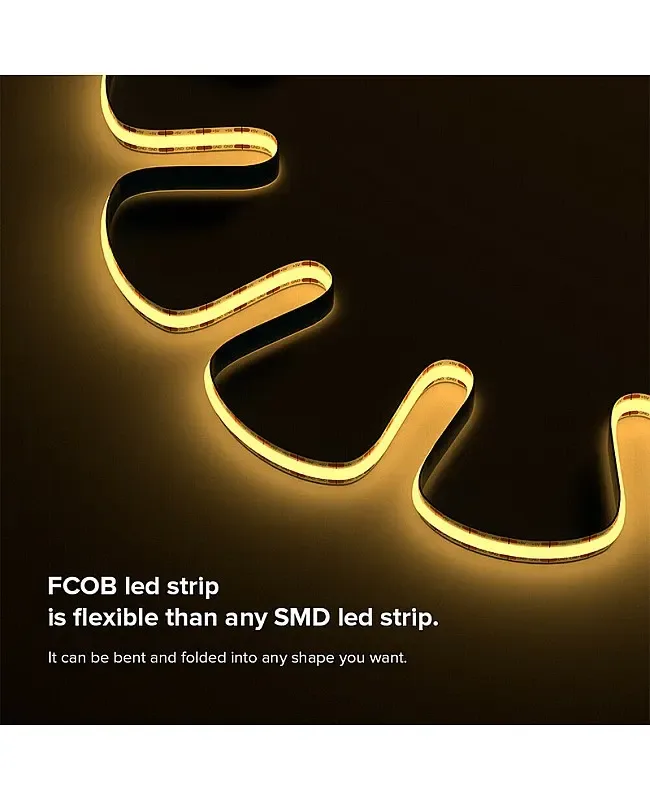

The 5V COB LED strips with USB Controller are easy to connect to the USB port on a PC, laptop, power bank, or wall adapter to light up. There are three buttons on the inline controller, and the installer can use them to power ON/OFF the LED light and adjust the brightness from 1% to 100%. The COB LED strips use 0922 LED Chips as the light source, with 320 pieces per meter, a high-density LED chip array to produce a seamless linear lighting effect, no hot spot, and no visible light dots, brighter, higher CRI, and uniform light emission. The 5V COB strip lights are more flexible than the SMD LED strips, and the installer can bend and fold them into any shape for your project. The back has double-sided adhesive tape; the installer can remove the protector from the tape and stick it freely where you want. The USB COB light strips are non-waterproof and recommended for high-end indoor lighting projects.
Specifications
Size: 8*1.5mm(W*H)
Lengths Available: 0.5M, 1M, 2M
Working Voltage: DC5V
Power: 7W/M
LED Type: 0922
LED Chip Size: 9*22 mil
LED QTY: 320 PCS/M
Color Temperature: 4000K(Natural White)
CRI: >
View Angle: 180°
Dimmable: YES
IP Rating: IP20 Non-Waterproof
USB Port Included
Flexible And Bendable
No Hot Spots And Visible Light Dots
More Bright, High CRI, Uniform Light Emission
Back With Double-Sided Adhesive Tape
Working Temperature: -20℃-+45℃
Includes
1 * USB COB LED Strip 5V
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
