Product details
24V Tunable White COB LED Strips High CRI
LumaCircuit offers 24V Tunable White COB LED Strips High CRI as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. The CCT COB LED strips use dual white LED chips and allow adjustment of the color temperature from 2700K warm white to 6500K cool white. The newest chip-on-board technology enables mounting 576 LED chips on a single meter PCB, a high-density feature that provides uniform illumination without visible light dots. The color rendering index is above indicating excellent color rendering and consistency. It provides a bright, comfortable visual experience. There are two IP rating products available: IP20, which is non-waterproof, and IP67, which is waterproof. The installer can choose them for various environments. The back of IP20 products has double-sided adhesive tape for easy surface mounting. The IP67 ones come with silicone clips that allow them to be mounted in wet environments for outdoor applications. To adjust color temperature and brightness, please connect to CCT LED dimmers. Working voltage: 24V DC / 12V DC The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The tunable white COB LED strips deliver ultra-smooth, dimmable white light with an adjustable color temperature feature, making them suited to applications that require precise light quality and ambiance control. Engineered with a high CRI (90+) and advanced COB technology, they eliminate hotspots and provide uniform illumination for residential, commercial, and architectural lighting applications.

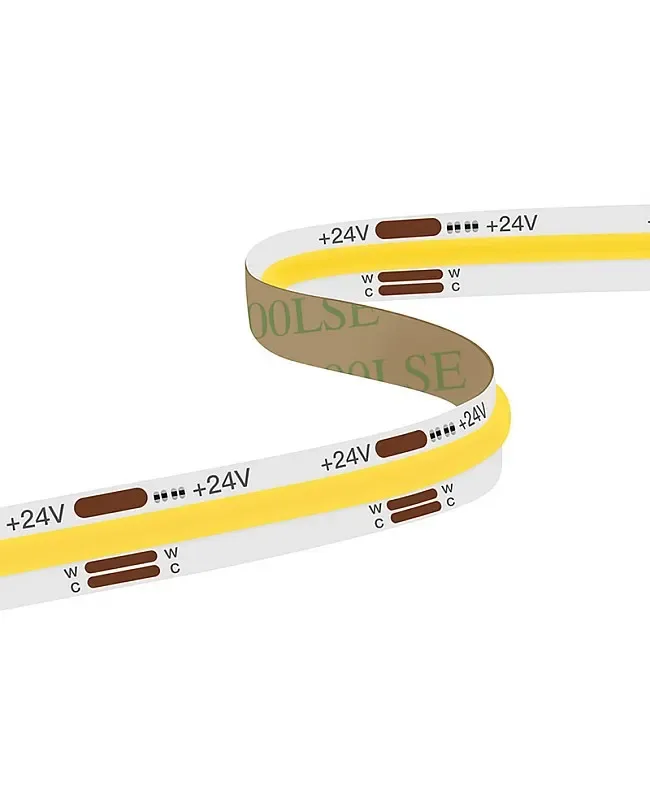

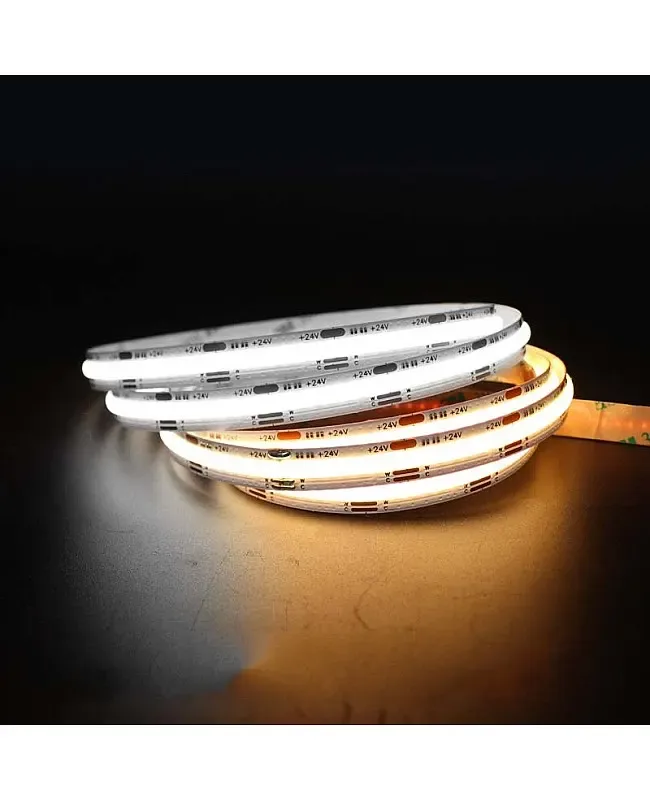

- The CCT COB LED strips use dual white LED chips and allow adjustment of the color temperature from 2700K warm white to 6500K cool white. The newest chip-on-board technology enables mounting 576 LED chips on a single meter PCB, a high-density feature that provides uniform illumination without visible light dots. The color rendering index is above indicating excellent color rendering and consistency. It provides a bright, comfortable visual experience.
- There are two IP rating products available: IP20, which is non-waterproof, and IP67, which is waterproof. The installer can choose them for various environments. The back of IP20 products has double-sided adhesive tape for easy surface mounting. The IP67 ones come with silicone clips that allow them to be mounted in wet environments for outdoor applications. To adjust color temperature and brightness, please connect to CCT LED dimmers.
- Working voltage: 24V DC / 12V DC
- PCB width: 10 mm ( 0.39" ) / 8 mm ( 0.31" ）
- Powers: 12W+12W ( 8mm ), 7.5W+7.5W ( 10mm ), 10W+10W ( 10mm )
- Color temperature range: 2700K - 6500K
- Color rendering index: +
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 12 V
- Light engine: CCT
- LumaCircuit model: LC-STR-OL2PMZ
- Working voltage: 24V DC / 12V DC
- LED brand: San An
- LED type: 1022
- LED density: 576 LEDs/m
- PCB width: 10 mm ( 0.39" ) / 8 mm ( 0.31" ）
- Powers: 12W+12W ( 8mm ), 7.5W+7.5W ( 10mm ), 10W+10W ( 10mm )
- Color temperature range: 2700K - 6500K
- Color rendering index: +
- IP rating: IP20 non-waterproof IP67 waterproof
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The tunable white COB LED strips deliver ultra-smooth, dimmable white light with an adjustable color temperature feature, making them suited to applications that require precise light quality and ambiance control. Engineered with a high CRI (90+) and advanced COB technology, they eliminate hotspots and provide uniform illumination for residential, commercial, and architectural lighting applications.

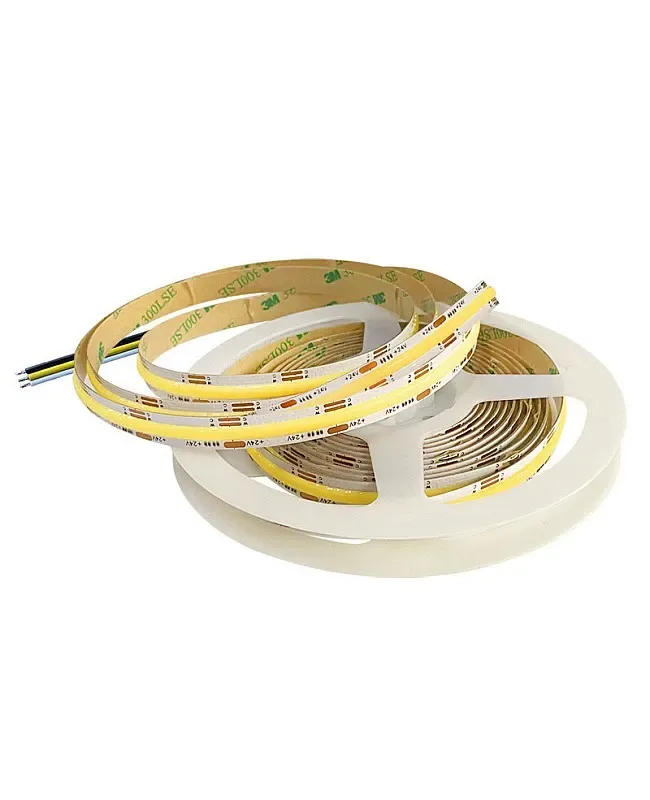

The CCT COB LED strips use dual white LED chips and allow adjustment of the color temperature from 2700K warm white to 6500K cool white. The newest chip-on-board technology enables mounting 576 LED chips on a single meter PCB, a high-density feature that provides uniform illumination without visible light dots. The color rendering index is above indicating excellent color rendering and consistency. It provides a bright, comfortable visual experience. The standard length is 5 meters per roll, with a maximum length of 50 meters per roll. The installer can cut them to any length to meet your needs.
There are two IP rating products available: IP20, which is non-waterproof, and IP67, which is waterproof. The installer can choose them for various environments. The back of IP20 products has double-sided adhesive tape for easy surface mounting. The IP67 ones come with silicone clips that allow them to be mounted in wet environments for outdoor applications. To adjust color temperature and brightness, please connect to CCT LED dimmers.
Specifications
Model: COB-CCT
Working voltage: 24V DC / 12V DC
LED brand: San An
LED type: 1022
LED density: 576 LEDs/m
PCB width: 10 mm ( 0.39" ) / 8 mm ( 0.31" ）
Powers: 12W+12W ( 8mm ), 7.5W+7.5W ( 10mm ), 10W+10W ( 10mm )
Color temperature range: 2700K - 6500K
Color rendering index: +
IP rating: IP20 non-waterproof IP67 waterproof
Angle view: 180°
Lighting efficiency: 100-110lm/m
Dimmable: YES
Luminous flux(lm): 500-1650lm
Cuttable length: 27.78 mm ( 1.09" )
Length: 5 meters ( 16.4ft ) per roll
Working temperature: -20℃-45℃
Includes
1 * Tunable white COB LED strip
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
