Pixel Individually Addressable 4 In 1 RGBW SK6812 LED Strip

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

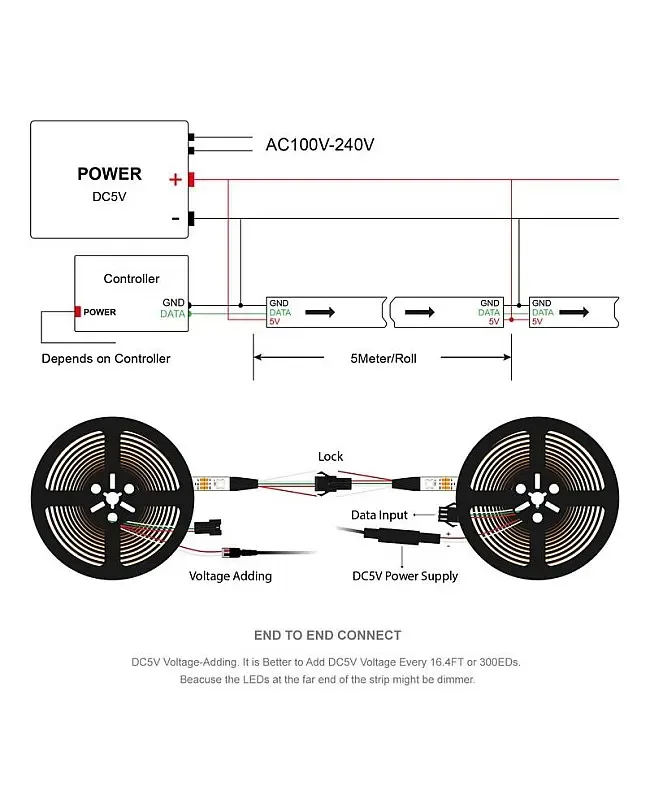

• The LEDs at the far end may be dimmer due to the added resistance and voltage drop the installer should add the same working voltage every 5 meters (16.4 ft) according to the actual situation to maintain the same brightness.
• LED Type: 5050 RGBW SMD LEDs

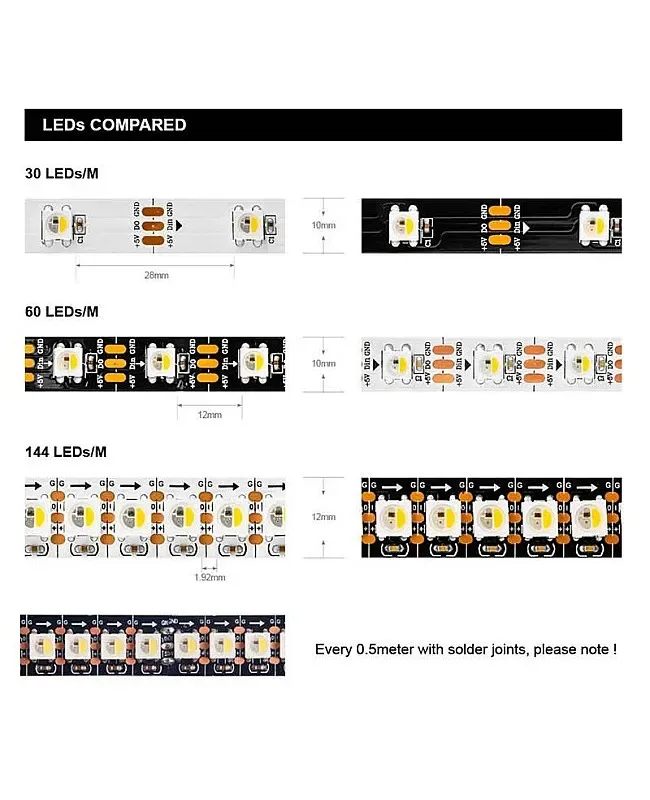

• LED QTY: 30LEDs/M, 60LEDs/M, 144LEDs/M
• IC QTY: 30PCS/M, 60PCS/M, 144PCS/M

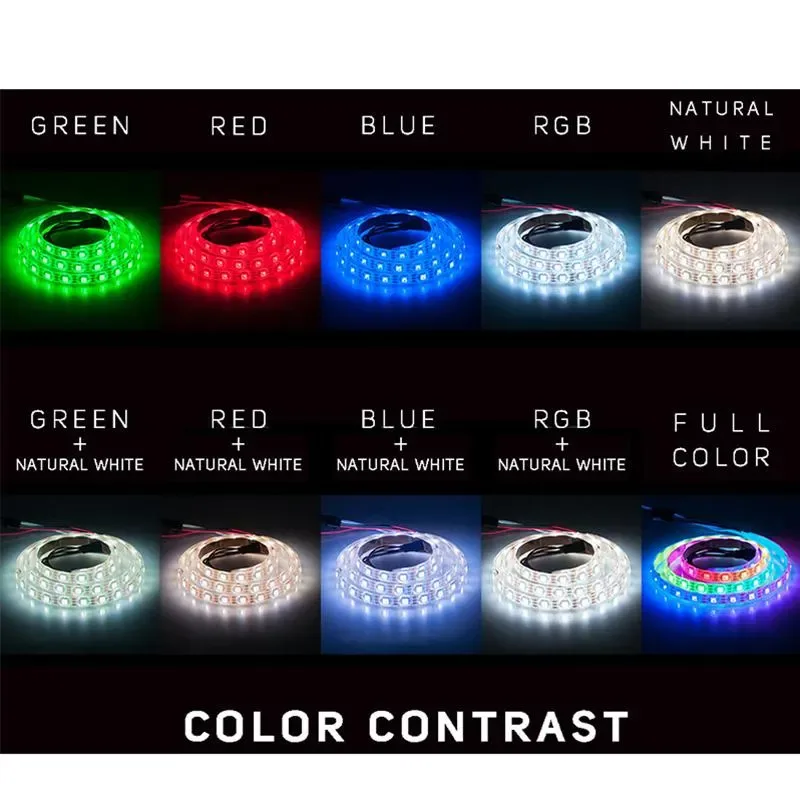

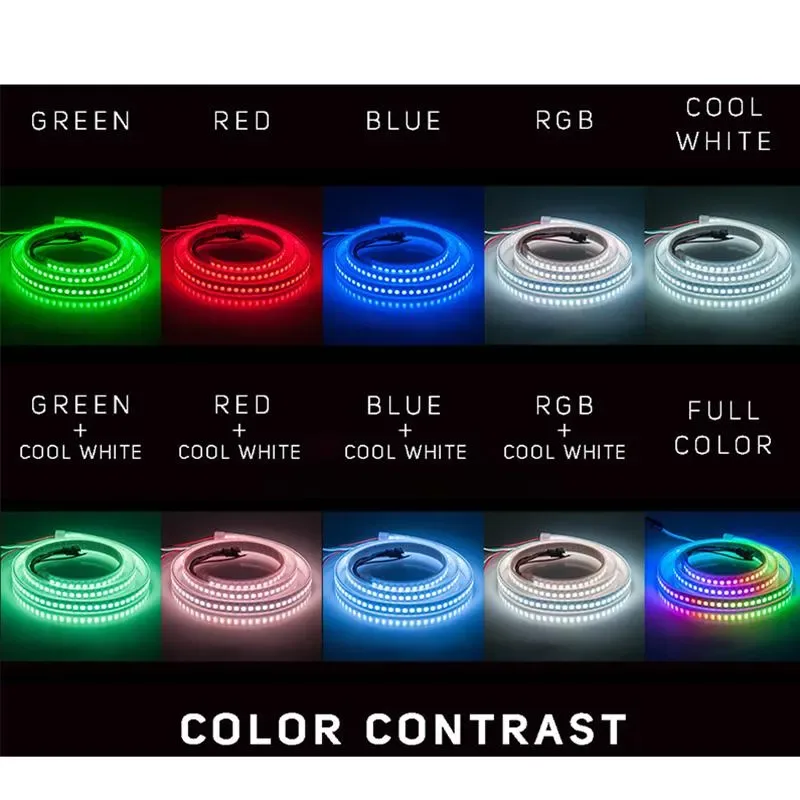

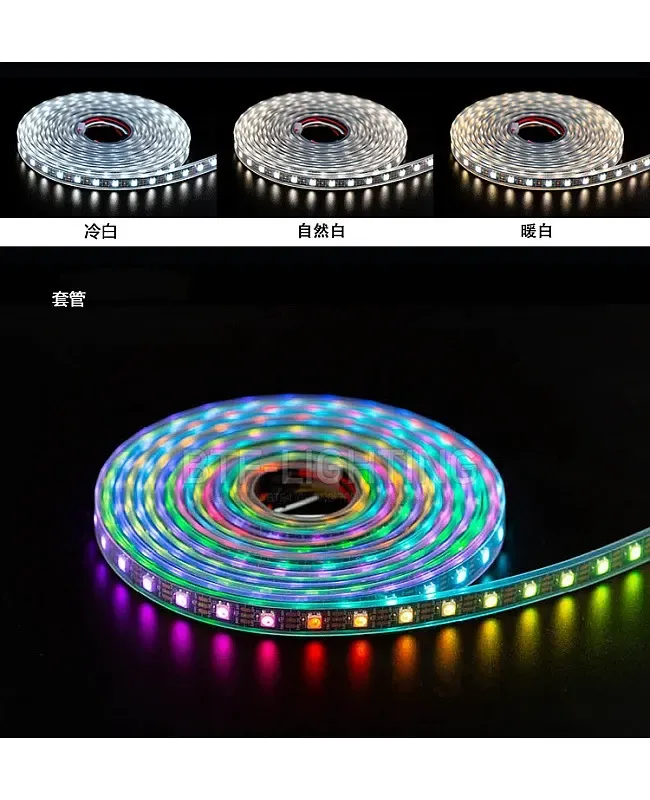

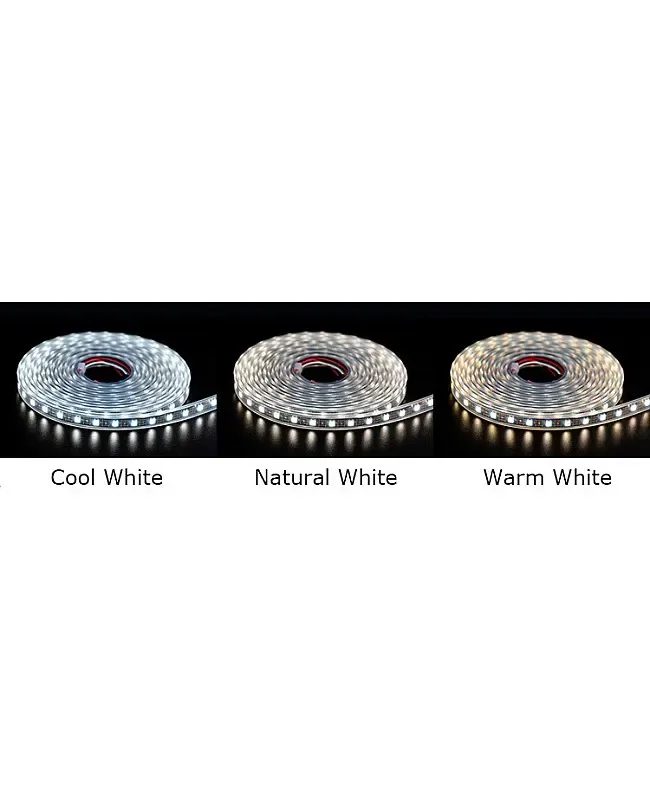

• Emitting Colors: RGB+Cool White(6000K-7000K)/RGB+Natural White(4000K-5000K)/RGB+Warm White(2700K-3000K)
• Width: 10mm(30LEDs/M, 60LEDs/M), 12mm(144LEDs/M)

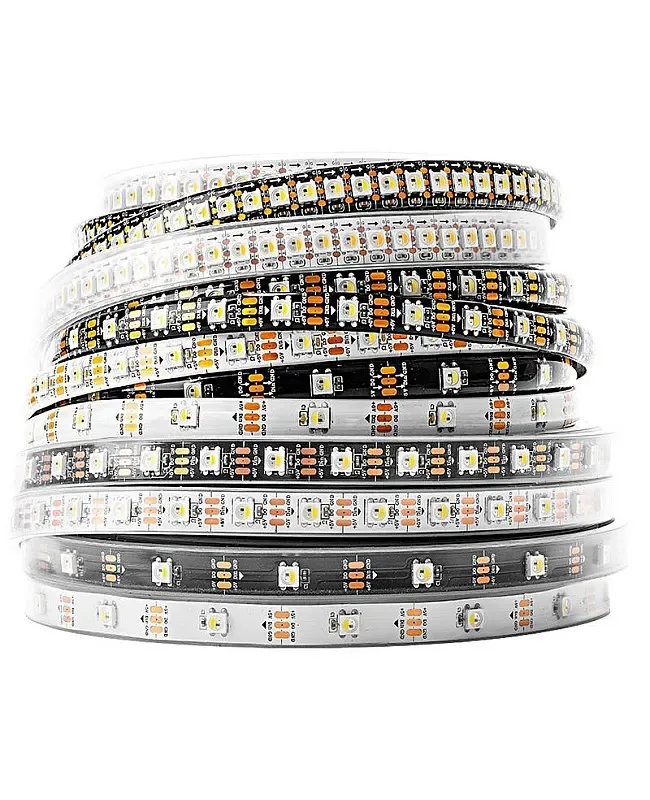

• Colors Of PCB Board: White/Black
• Working Temperature: -20℃-+50℃

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 5 V
• Light engine: RGBW
• WLED chip: WS2812B / SK6812
• Working Voltage: DC5V
• LED Type: 5050 RGBW SMD LEDs
• LED QTY: 30LEDs/M, 60LEDs/M, 144LEDs/M
• Color Order: G R B W
• Emitting Colors: RGB+Cool White(6000K-7000K)/RGB+Natural White(4000K-5000K)/RGB+Warm White(2700K-3000K)
• Power: 0.4W/LED
• Length: 1M, 5M
• Width: 10mm(30LEDs/M, 60LEDs/M), 12mm(144LEDs/M)
• Colors Of PCB Board: White/Black

Control and installation

Use this product on the WLED ambient route. Match the controller to the listed WS2812B / SK6812 LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.

Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The LEDs at the far end may be dimmer due to the added resistance and voltage drop the installer should add the same working voltage every 5 meters (16.4 ft) according to the actual situation to maintain the same brightness.

Specifications

Working Voltage: DC5V

LED Type: 5050 RGBW SMD LEDs

LED QTY: 30LEDs/M, 60LEDs/M, 144LEDs/M

IC QTY: 30PCS/M, 60PCS/M, 144PCS/M

View Angle: 120°

Grayscale Levels: 256

Dimmable: YES

Color Order: G R B W

Emitting Colors: RGB+Cool White(6000K-7000K)/RGB+Natural White(4000K-5000K)/RGB+Warm White(2700K-3000K)

Power: 0.4W/LED

Length: 1M, 5M

Width: 10mm(30LEDs/M, 60LEDs/M), 12mm(144LEDs/M)

Colors Of PCB Board: White/Black

Working Temperature: -20℃-+50℃

Wavelength: Red: 620-630nm; Green: 515-525nm; Blue: 460-470nm

Luminous Flux: Red: 0.5-1.0lm; Green: 2-3lm; Blue: 0.5-1.0lm; White: 5-7lm

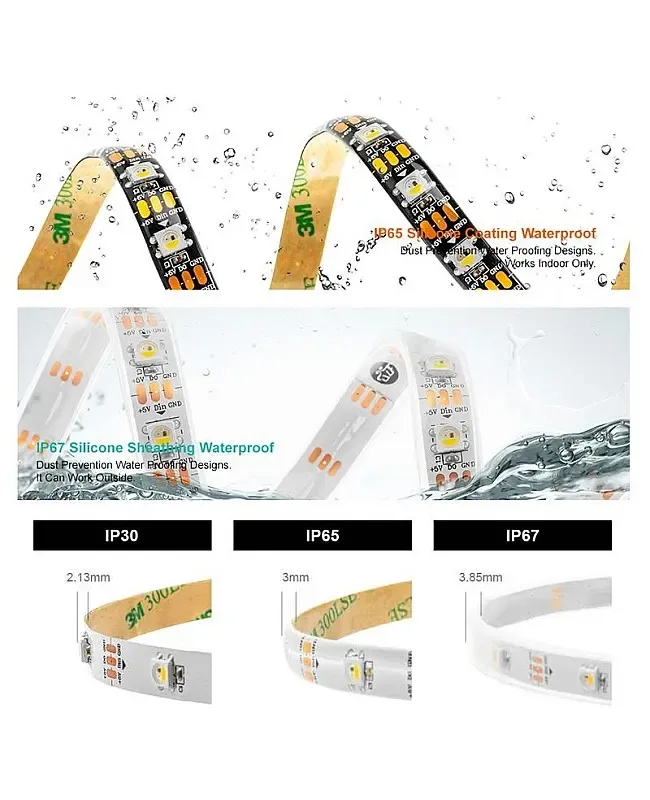

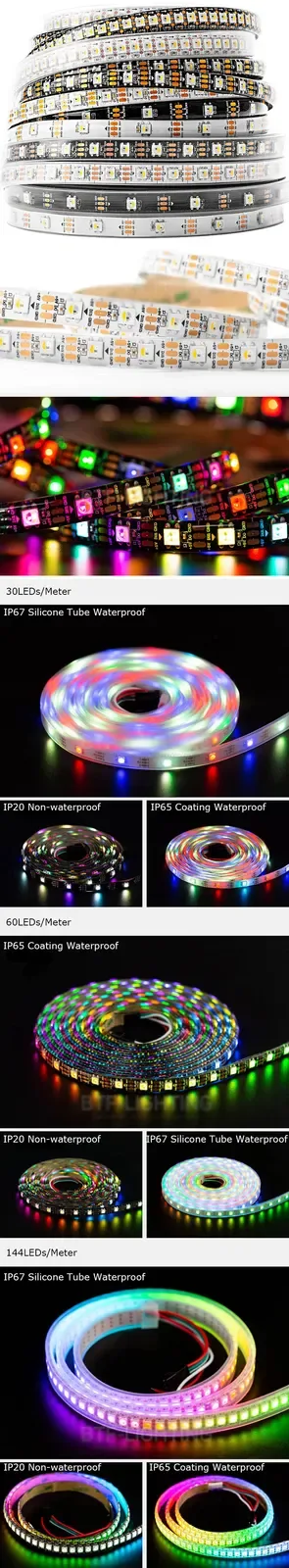

Waterproof Level: IP30 Non-waterproof, IP65 Coating Waterproof, IP67 Silicone Tube Waterproof

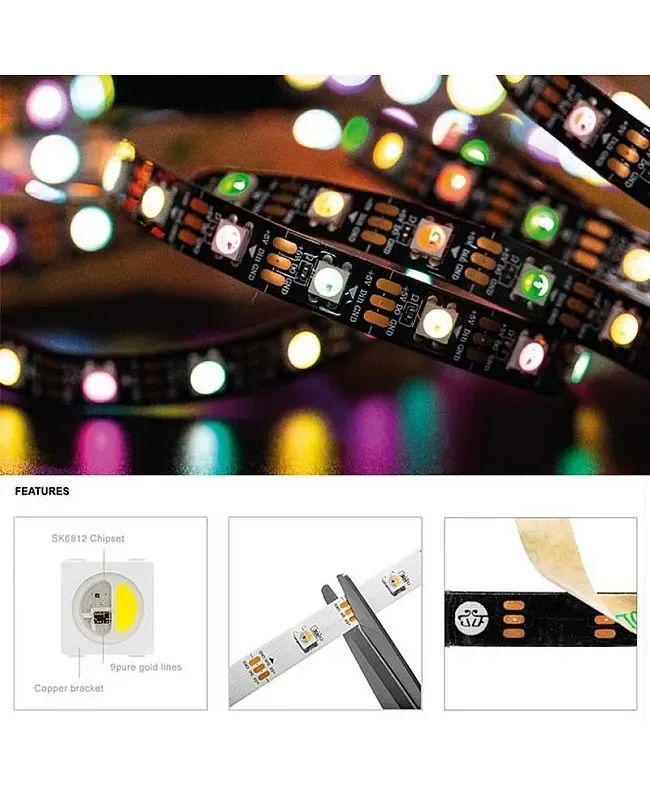

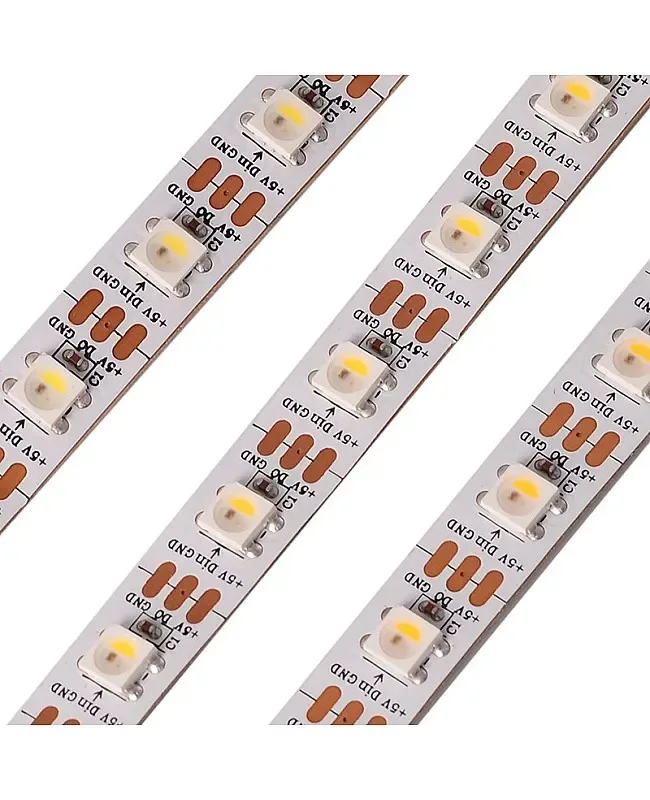

Every LED Is Cuttable

3 Pin JST-SM Connectors On Both Ends

Compatible With K- LED Controllers

Includes

1 * RGBW SK6812 LED Strip With 3 Pin Connector
