LED Light Tape S Shape 12V 5M 300LEDs

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

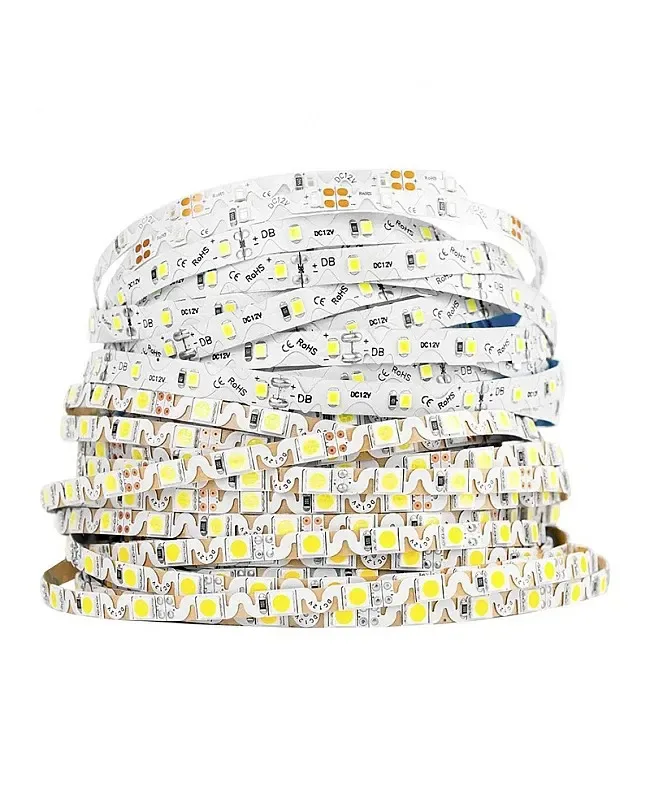

• The LED light tape has an S-shaped design and uses high-brightness 2835 or 5050 SMD LEDs as the light source. It can be widely used for channel letters, backlighting of billboards, or designing LED projects. Those LED strips allow much sharper horizontal turns than the standard LED lighting tapes, 60PCS SMD LEDs mounted on the dual-layer PCB boards, the installer can cut to the length you need from the cutting point.
• LED Type: 2835/5050 SMD LEDs
• LED Quantity: 60PCS/Meter
• Emitting Colors: Red, Blue, Yellow, Green, Warm White(3000K), Cool White(6500K)
• IP Rating: IP20 Non-waterproof
• Back With Double-sided Adhesive Tape
• Energy Saving And Environmentally Friendly
• Applications: Architectural/Accent/Cove/Under-Cabinet/Pathway/Decorative Lighting

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V
• Light engine: CCT
• LumaCircuit model: LC-STR-LEIC9W
• Length: 5 Meters/Reel
• Size: 6*1.6mm(W*H)
• LED Type: 2835/5050 SMD LEDs
• LED Quantity: 60PCS/Meter
• Working Voltage: DC12V
• Power: 6W/M
• Beam Angle: 120°
• Emitting Colors: Red, Blue, Yellow, Green, Warm White(3000K), Cool White(6500K)
• IP Rating: IP20 Non-waterproof

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The LED light tape has an S-shaped design and uses high-brightness 2835 or 5050 SMD LEDs as the light source. It can be widely used for channel letters, backlighting of billboards, or designing LED projects. Those LED strips allow much sharper horizontal turns than the standard LED lighting tapes, 60PCS SMD LEDs mounted on the dual-layer PCB boards, the installer can cut to the length you need from the cutting point. The back has double-sided adhesive tape, so it is easy to remove the protector from the tape and stick it on the place you want to install it. The installer can choose the LED type from 2835 and 5050, the 5050 LED light tapes are brighter than 2835's. There are various emitting color products available, the installer can take red, blue, yellow, green, warm white, and cool white. The 12V LED tape lights are non-waterproof, only recommended for indoor lighting projects. It's dimmable, the installer can connect them to a light dimmer to adjust the brightness from 1% to 100% for various scenes.

Specifications

Model

Length: 5 Meters/Reel

Size: 6*1.6mm(W*H)

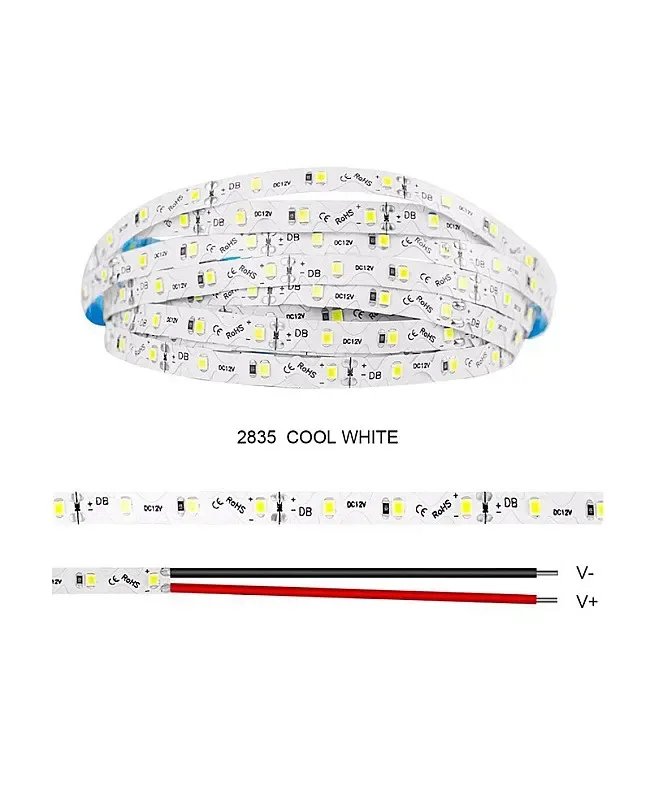

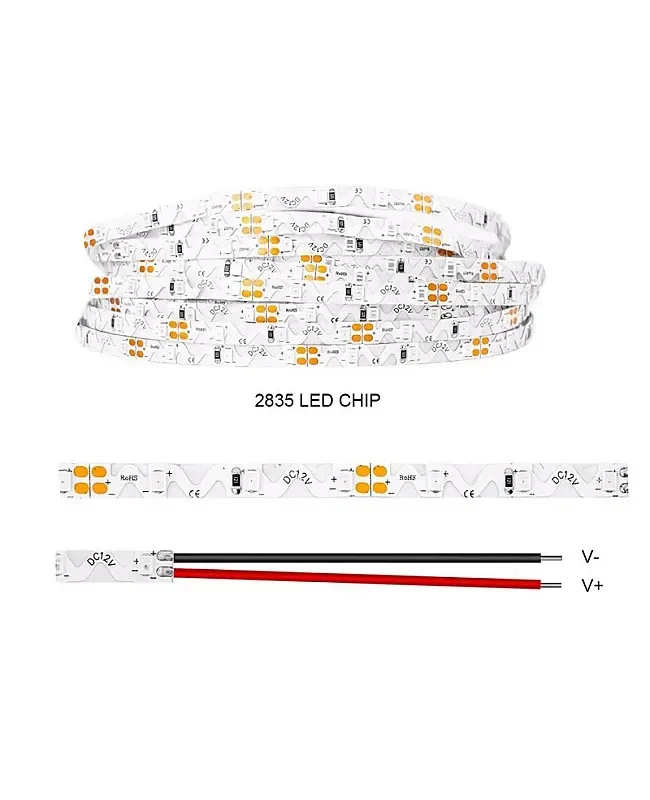

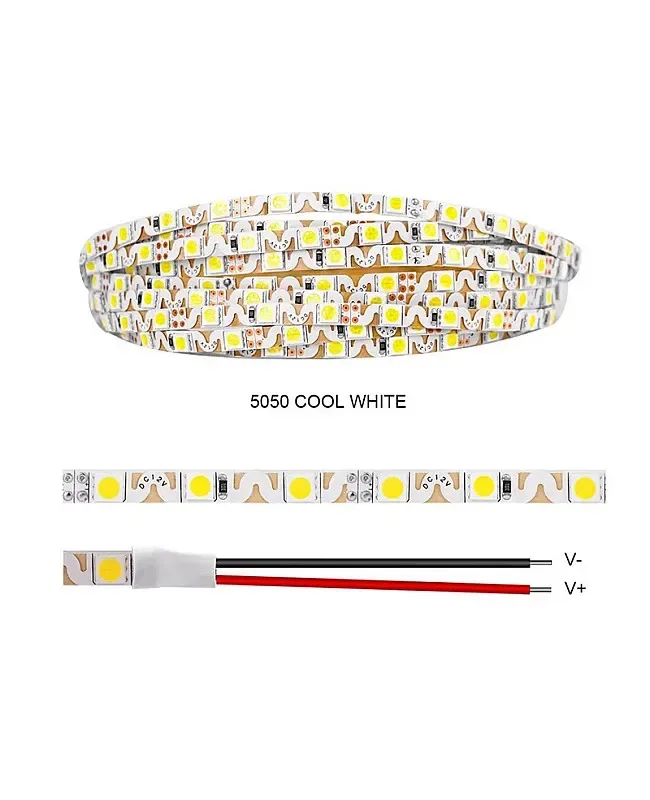

LED Type: 2835/5050 SMD LEDs

LED Quantity: 60PCS/Meter

Working Voltage: DC12V

Power: 6W/M

Beam Angle: 120°

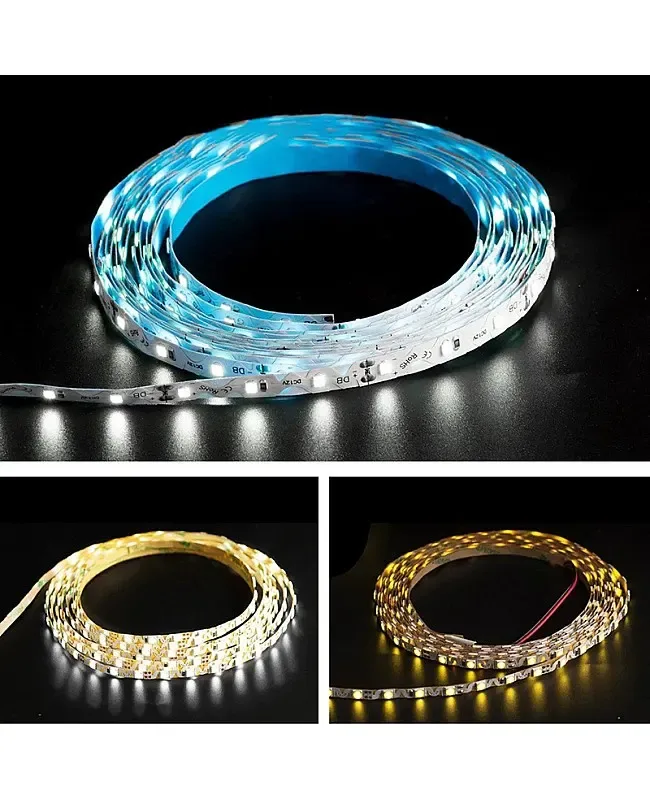

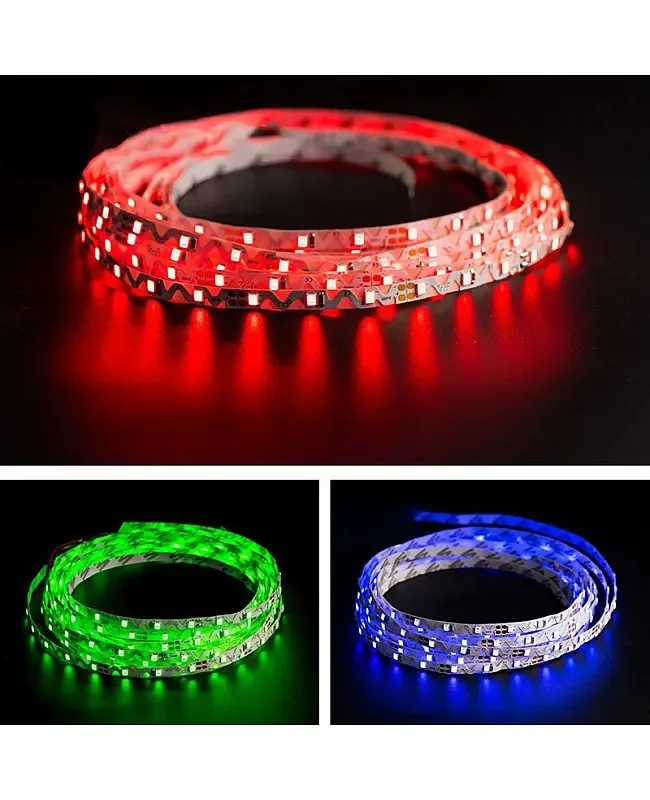

Emitting Colors: Red, Blue, Yellow, Green, Warm White(3000K), Cool White(6500K)

IP Rating: IP20 Non-waterproof

Cuttable: YES

Dimmable: YES

Back With Double-sided Adhesive Tape

Low Heat Consumption

NO UV Or IR Light

Energy Saving And Environmentally Friendly

Applications: Architectural/Accent/Cove/Under-Cabinet/Pathway/Decorative Lighting

Includes

1 * S Shape LED Light Tape(5M/Reel)
