3528 White LED Ribbon
LumaCircuit offers 3528 White LED Ribbon as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Color: Cool White(6000K), Neutral White(4000K) LED Quantity: 60 LEDs/Meter Luminous Flux: 7-8 LM/LED The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

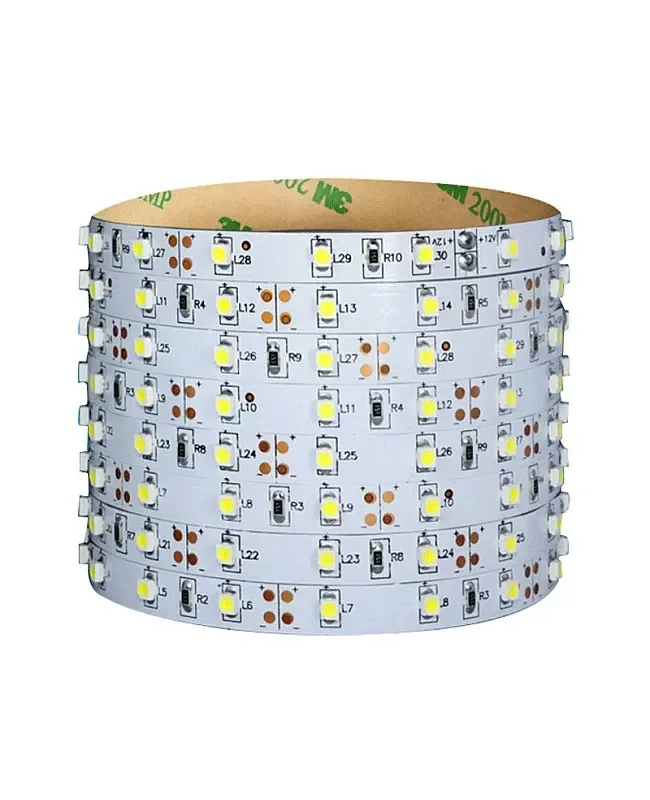

- The white 3528 LED ribbon uses the high-quality 3528 SMD LEDs as the light source, 60 LEDs per meter and 5 meters per reel, and the SMD LEDs are mounted on the double-sided FPC board, flexible and bendable. The LED Ribbon works in DC12V, needs an LED power supply with an output of to light them up, or connect to the LED dimmers to adjust the brightness. The installer can choose the various waterproof products, IP20, IP65, IP67 and IP68 available. The IP is non-waterproof and IP65 for indoor use only.
- Color: Cool White(6000K), Neutral White(4000K)
- LED Quantity: 60 LEDs/Meter
- Luminous Flux: 7-8 LM/LED
- IP Rating: IP20 Non-Waterproof, IP65, IP67, IP68
- Size Width: 8mm; thickness: 2mm
- Length available: 5 meters per reel
- Back With Double-Sided Adhesive Tape
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-STR-DH8WMN
- Color: Cool White(6000K), Neutral White(4000K)
- LED: 3528 SMD LED
- LED Quantity: 60 LEDs/Meter
- IP Rating: IP20 Non-Waterproof, IP65, IP67, IP68
- Voltage: DC12V
- Power: 4.8W/Meter
- Beam Angle: 120°
- Size Width: 8mm; thickness: 2mm
- Length available: 5 meters per reel
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

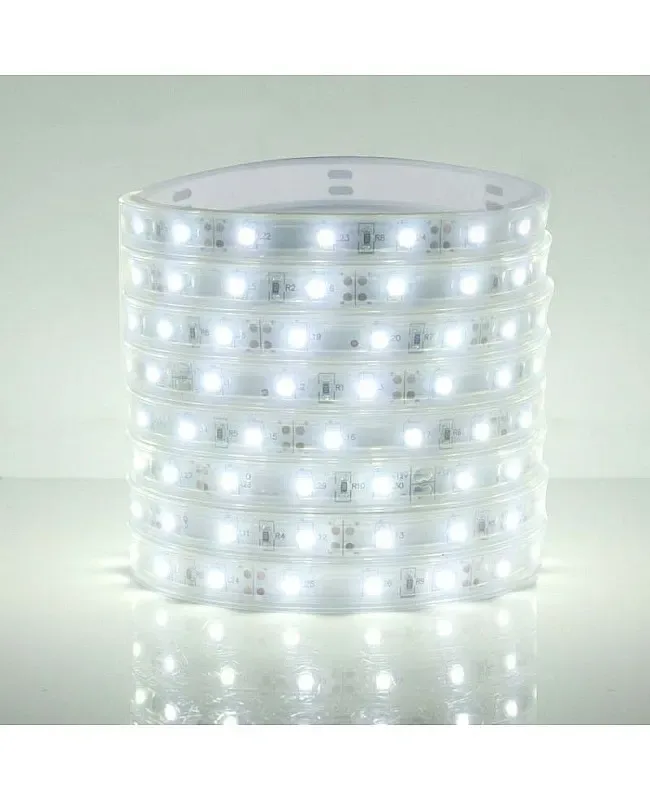

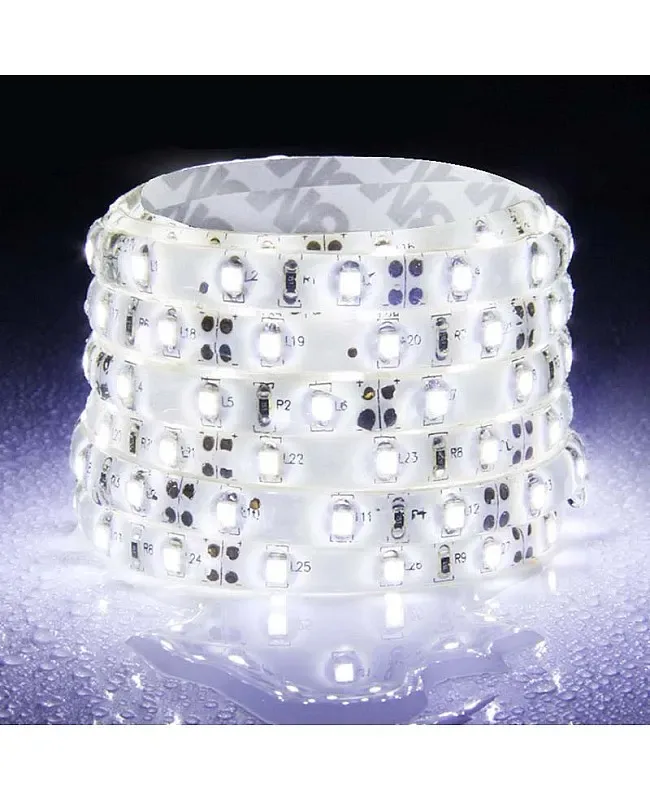

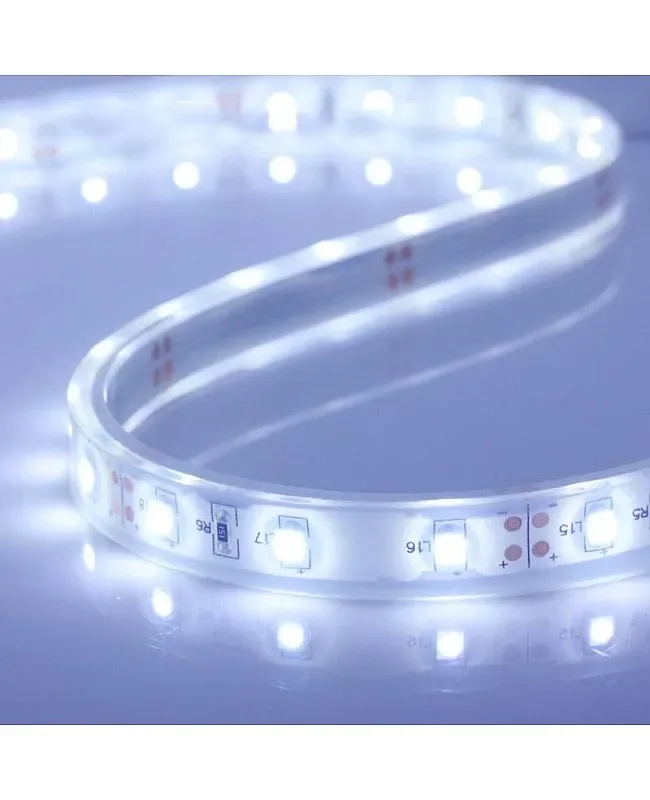

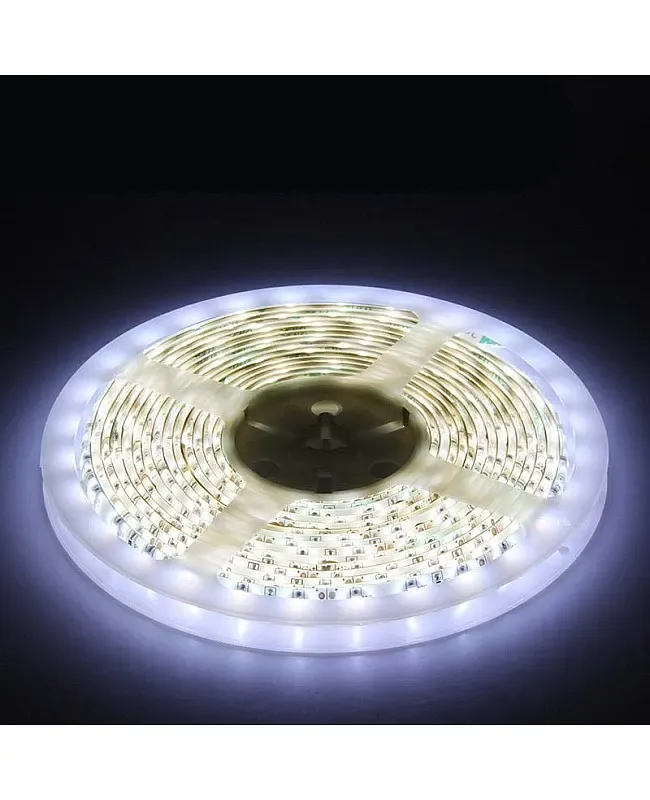

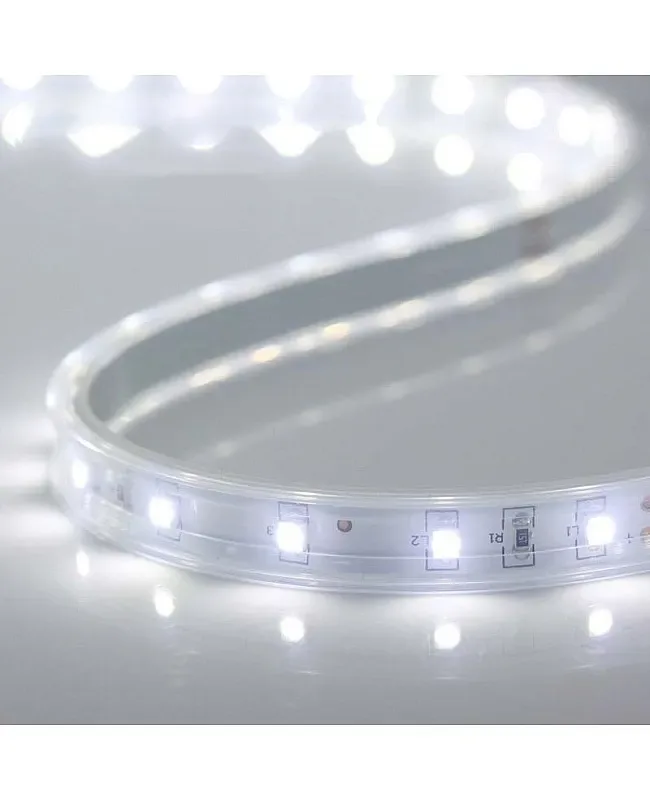

The white 3528 LED ribbon uses the high-quality 3528 SMD LEDs as the light source, 60 LEDs per meter and 5 meters per reel, and the SMD LEDs are mounted on the double-sided FPC board, flexible and bendable. The LED Ribbon works in DC12V, needs an LED power supply with an output of to light them up, or connect to the LED dimmers to adjust the brightness. The installer can choose the various waterproof products, IP20, IP65, IP67 and IP68 available. The IP is non-waterproof and IP65 for indoor use only. The back is with double-sided adhesive tape. Remove the protector from the tape and stick it where you want to install it. The IP67 and IP68 are for outdoor installations. They come with LED clips to fix them in wet places. The neutral white LED ribbons are cuttable and reconnectable, can be cut to any size for your project, and reconnect via the LED ribbon connectors.
Specifications
Manufacturer: TYoung
Color: Cool White(6000K), Neutral White(4000K)
LED: 3528 SMD LED
LED Quantity: 60 LEDs/Meter
Luminous Flux: 7-8 LM/LED
IP Rating: IP20 Non-Waterproof, IP65, IP67, IP68
Voltage: DC12V
Power: 4.8W/Meter
Beam Angle: 120°
Size Width: 8mm; thickness: 2mm
Length available: 5 meters per reel
Dimmable: YES
Back With Double-Sided Adhesive Tape
Cuttable And Reconnectable
Reel length
1 * 3528 White LED Ribbon( Per Reel)

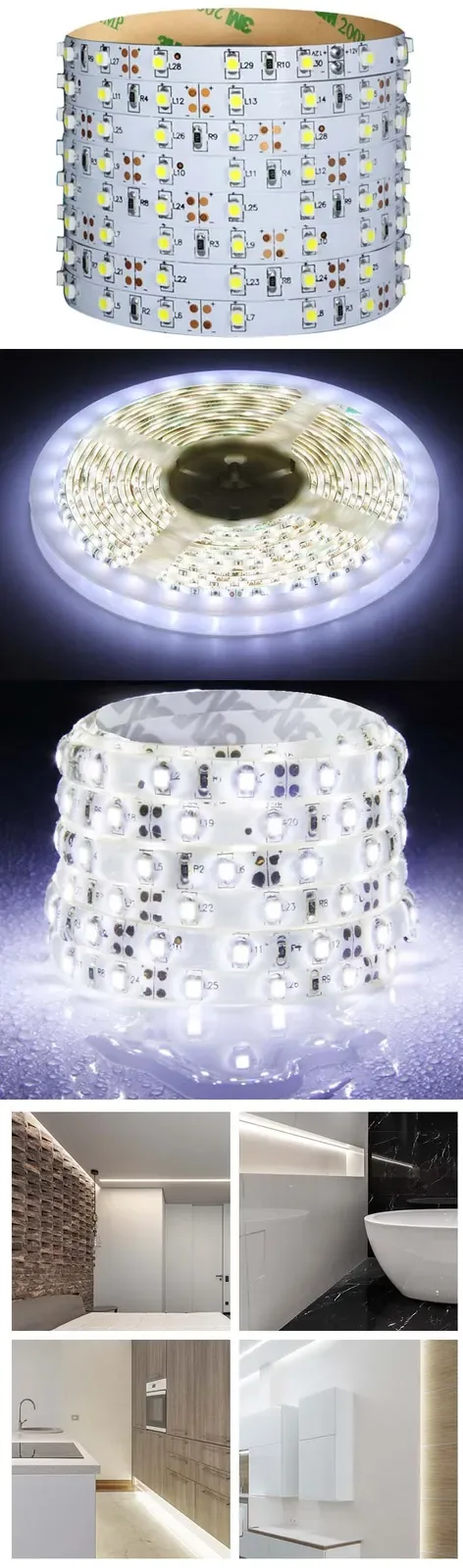

Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
