Zigbee RGB LED Light Strip Kit
LumaCircuit offers Zigbee RGB LED Light Strip Kit as a configurable LED strip for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Color Temperature Adjustable From 2700K To 6000K 3 Keys Zigbee LED Controller Included Can Be Used With Zigbee Speakers The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The Zigbee RGB LED light strip kit includes the LED strips, 3 keys controller and power supply, easy to install and use the strip kit uses high-quality 5050 SMD LEDs as the light source and the length is 2M, the light strip can be cut, it needs to be cut along the cutting mark, after cutting, it needs to be connected with Solderless LED Connectors. The Zigbee LED controller has 3 keys. The installer can press the buttons to turn on/off the LED lights, adjust the color temperature, and brightness.
- Color Temperature Adjustable From 2700K To 6000K
- 3 Keys Zigbee LED Controller Included
- Can Be Used With Zigbee Speakers
- Working Temperature: -20℃-45℃
- 1 * 3 Keys Zigbee Controller
- The Zigbee RGB LED Light Strip Kit, can be controlled by APP, remote control and Zigbee speakers to set the color, adjust the brightness and color temp.
- A production-ready controller family with a replaceable Zigbee control path.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-STR-PXM4BA
- Input Voltage: DC12V
- Color: RGB+CCT
- LED Strip length: 2M
- Power: 18W/M
- LED Type: 5050 SMD LEDs
- LED Quantity: 90LEDs/M
- IP Rating: IP20
- Beam Angle: 120°
- Power Plug: EU/US
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

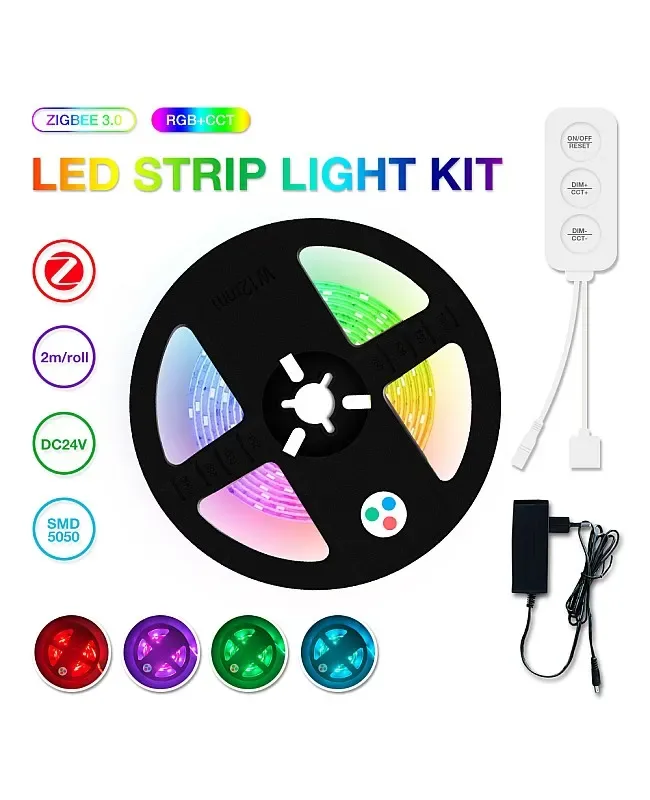

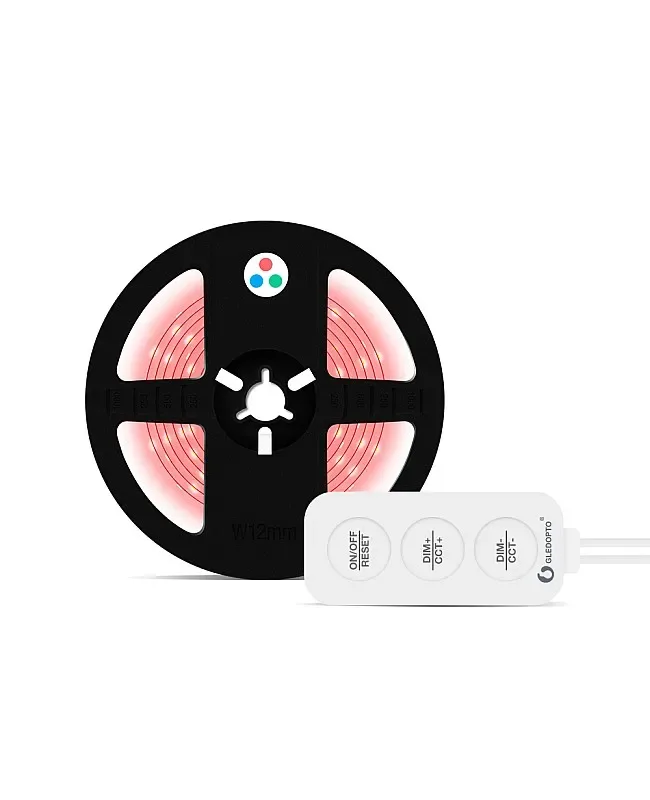

The Zigbee RGB LED light strip kit includes the LED strips, 3 keys controller and power supply, easy to install and use the strip kit uses high-quality 5050 SMD LEDs as the light source and the length is 2M, the light strip can be cut, it needs to be cut along the cutting mark, after cutting, it needs to be connected with Solderless LED Connectors. The Zigbee LED controller has 3 keys. The installer can press the buttons to turn on/off the LED lights, adjust the color temperature, and brightness. The controller can be controlled by 2.4G RF remote controls and smartphone APP voice control. It can also be used with Zigbee speakers to set the color and adjust the brightness and color temperature. There are 16 million colors available, color temp adjustable from 2700K to 6000K, and brightness adjustable from 1% to 100%. The back of the flexible LED lighting strips has double-sided adhesive tape; remove the protector on the tape and stick it on the place you want to install. There are 2 types of power plugs available, the installer can take the EU or the US.
Specifications
Model
Input Voltage: DC12V
Color: RGB+CCT
16 Million Colors Available
Color Temperature Adjustable From 2700K To 6000K
Brightness Adjustable
LED Strip length: 2M
Power: 18W/M
LED Type: 5050 SMD LEDs
LED Quantity: 90LEDs/M
IP Rating: IP20
Beam Angle: 120°
3 Keys Zigbee LED Controller Included
Smartphone APP Control
Voice Control
4G RF Remote Control
Can Be Used With Zigbee Speakers
Power Plug: EU/US
Working Temperature: -20℃-45℃

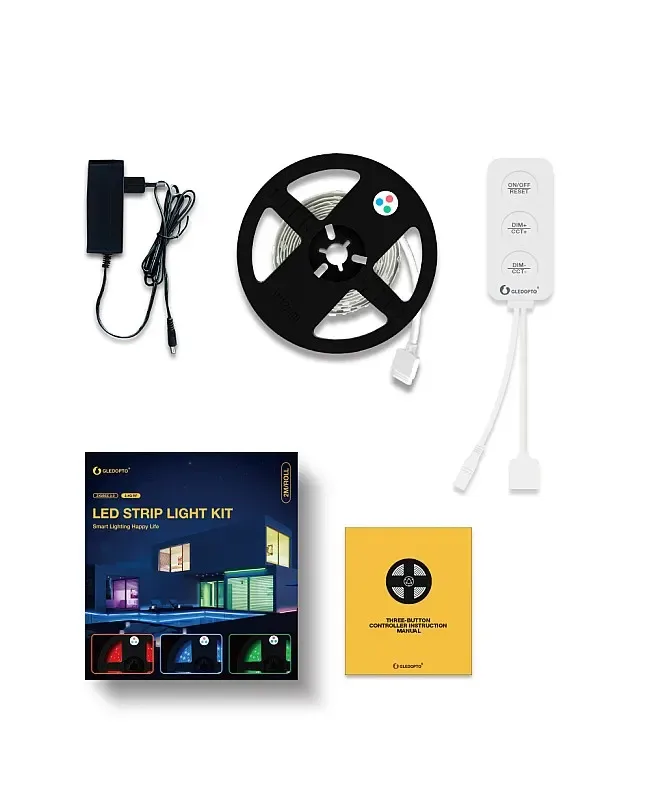

Includes
1 * 2M RGB LED Strips
1 * 3 Keys Zigbee Controller
1 * Power Supply
1 * User Manual
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
