DC12V 3528 60LEDs Per Meter LED Strip Light

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

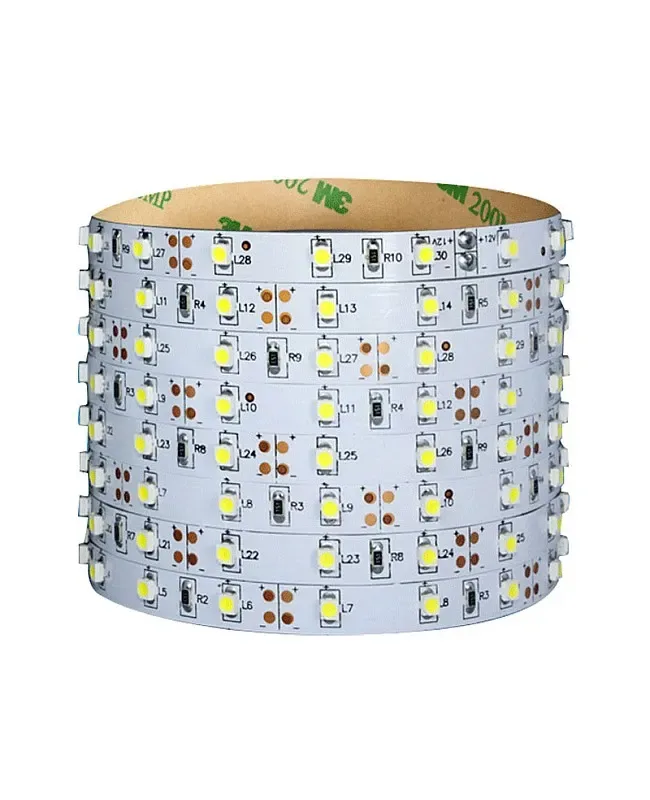

• The 3528 LED strip lights, 60LEDs per meter, use the 3528 SMD LEDs as the light source, the SMD LEDs mounted on the dual-layer PCB board, flexible and bendable, per reel, working in DC12V, need to work with the LED power supply that the output is DC12V, they are four types of waterproof LED strip lights available, IP20, IP65, IP67 and IP68.
• Color available: Warm white(3000K)/Cool White(6000K)/Natural White(4000K)/Red/Green/Blue/Yellow
• LED Quantity: 60 LEDs/Meter
• IP Rating: IP20(Non-waterproof)
• Size Width: 8mm; Thickness: 2mm
• 1*LED Strip Light(5M/Reel)
• A production-ready strip family with a replaceable Zigbee control path.
• The configured light engine is CCT.

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V
• Light engine: CCT
• LumaCircuit model: LC-STR-3YJXRI
• Color available: Warm white(3000K)/Cool White(6000K)/Natural White(4000K)/Red/Green/Blue/Yellow
• LED: 3528 SMD LED
• LED Quantity: 60 LEDs/Meter
• Beam Angle: 120°
• IP Rating: IP20(Non-waterproof)
• Working Voltage: DC12V
• Power: 4.8W
• Size Width: 8mm; Thickness: 2mm
• Length: Reel

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

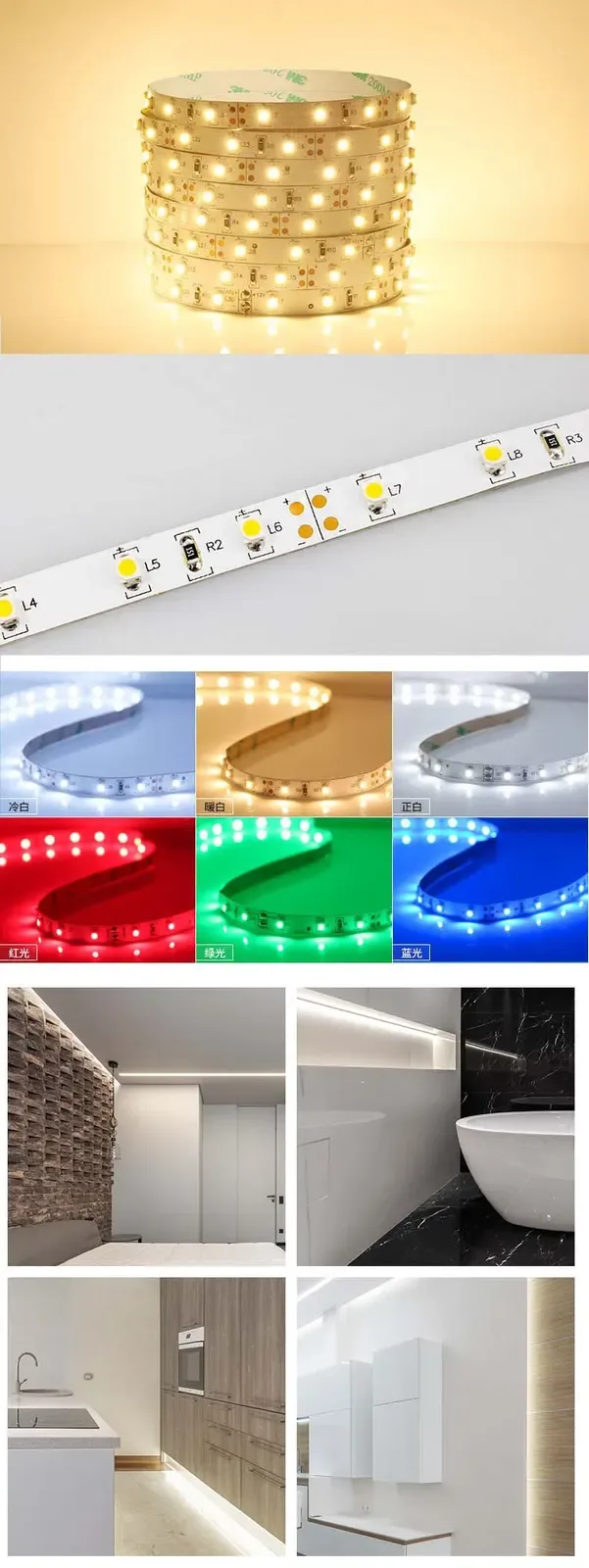

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

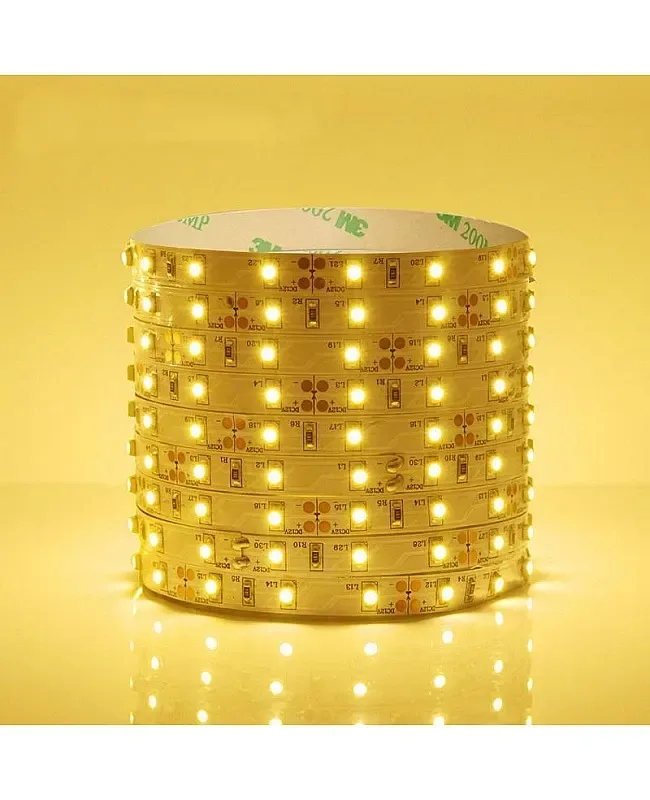

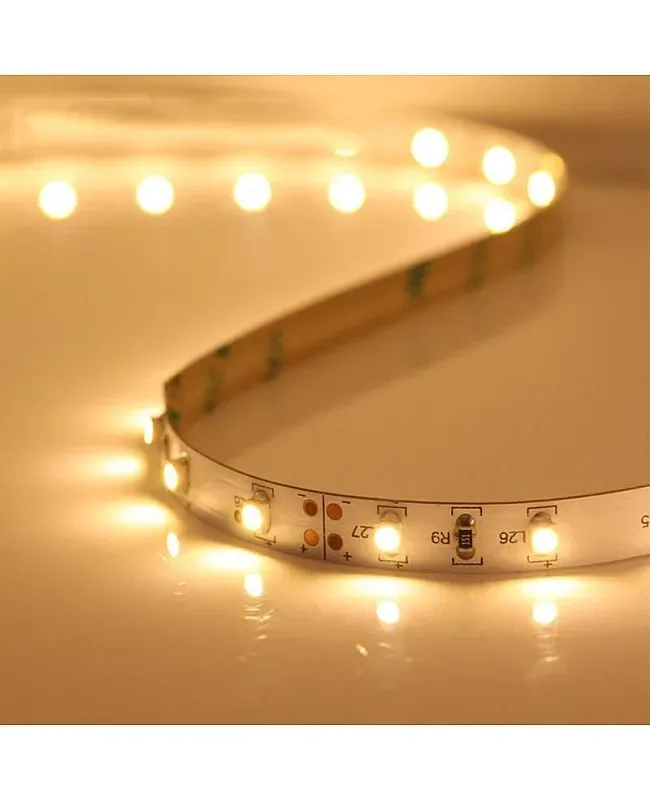

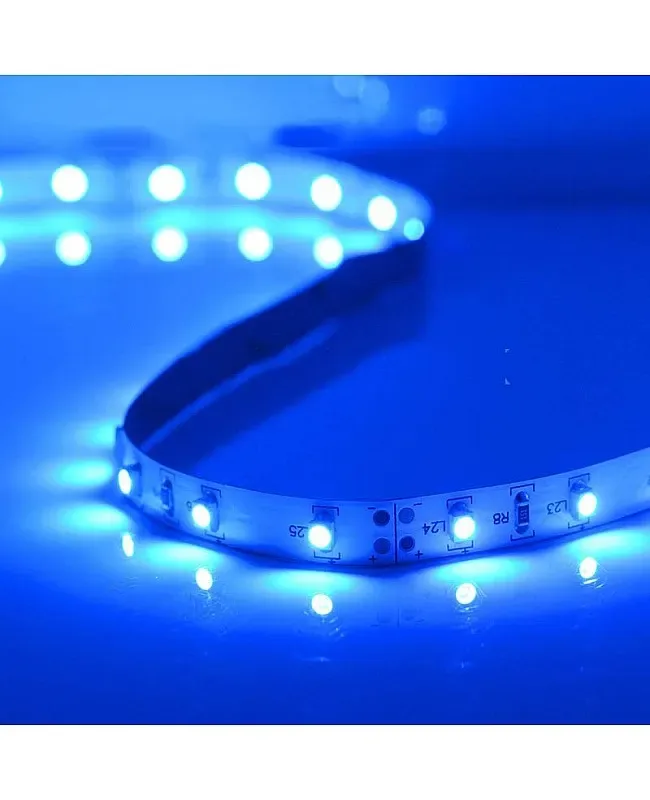

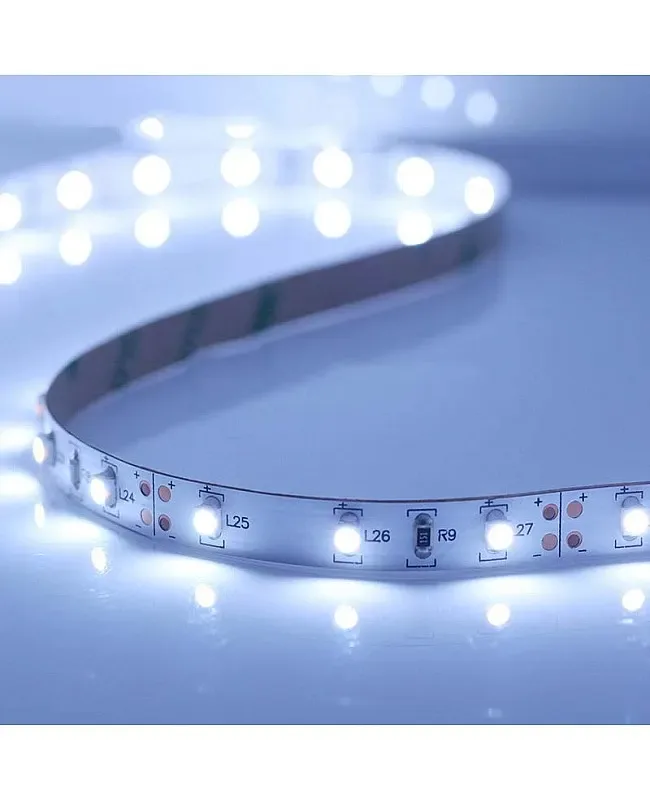

The 3528 LED strip lights, 60LEDs per meter, use the 3528 SMD LEDs as the light source, the SMD LEDs mounted on the dual-layer PCB board, flexible and bendable, per reel, working in DC12V, need to work with the LED power supply that the output is DC12V, they are four types of waterproof LED strip lights available, IP20, IP65, IP67 and IP68. IP20 and IP65 for indoor use, with double side adhesive tape on the backside, take off the protector and stick on the place you want to install, the IP67 and IP68 for outdoor installation, can use the LED clips to fix on the wet place you want to use, can cut the 3528 LED strips to any size for your project and reconnect them with the LED light connectors. Various emitting colors are available, including single color and RGB. The single-color 3528 LED strips can work with LED dimmers to adjust the brightness, and the RGB strip light can work with LED controllers to adjust the brightness of static colors or the speed of dynamic modes.

Specifications

LB-3528--60

Manufacturer: TYoung

Color available: Warm white(3000K)/Cool White(6000K)/Natural White(4000K)/Red/Green/Blue/Yellow

LED: 3528 SMD LED

LED Quantity: 60 LEDs/Meter

Beam Angle: 120°

IP Rating: IP20(Non-waterproof)

Working Voltage: DC12V

Power: 4.8W

Luminous Flux: 18lm/LED

Size Width: 8mm; Thickness: 2mm

Length: Reel

1*LED Strip Light(5M/Reel)
