4 In 1 Chip Color Changing 24V RGBW LED Strip Lights 5M/Roll

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

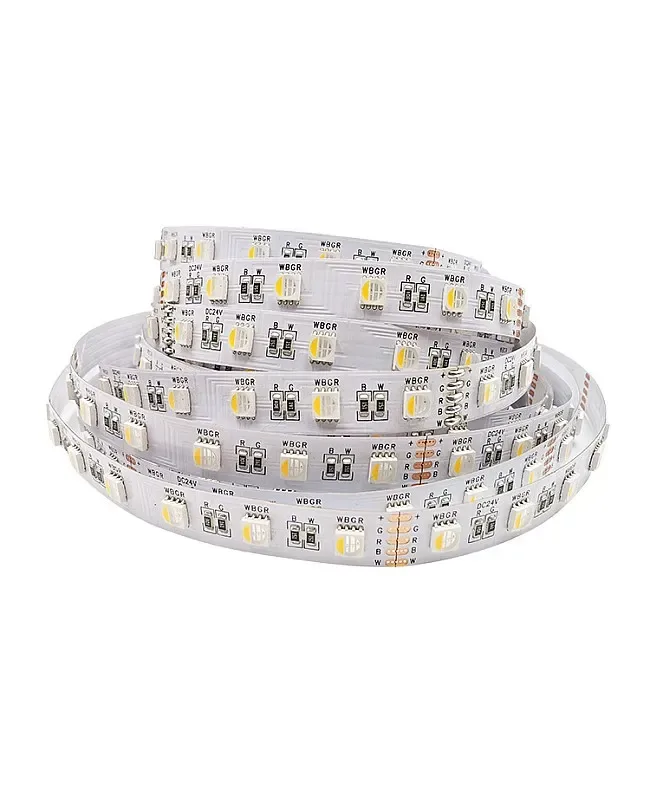

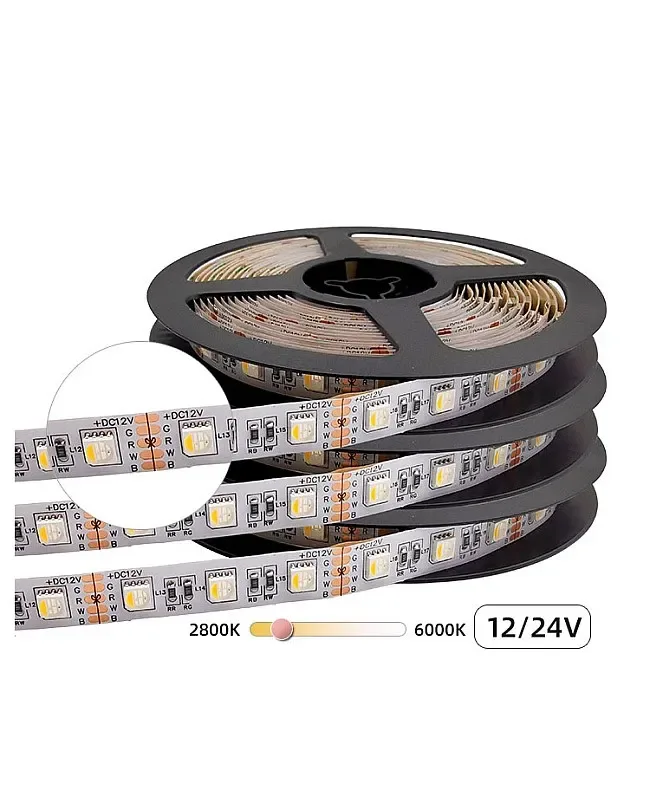

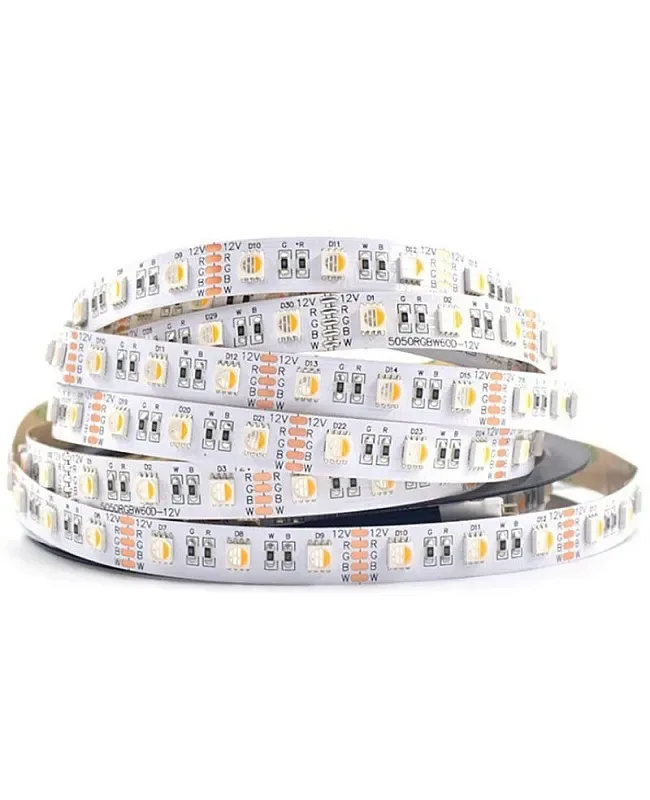

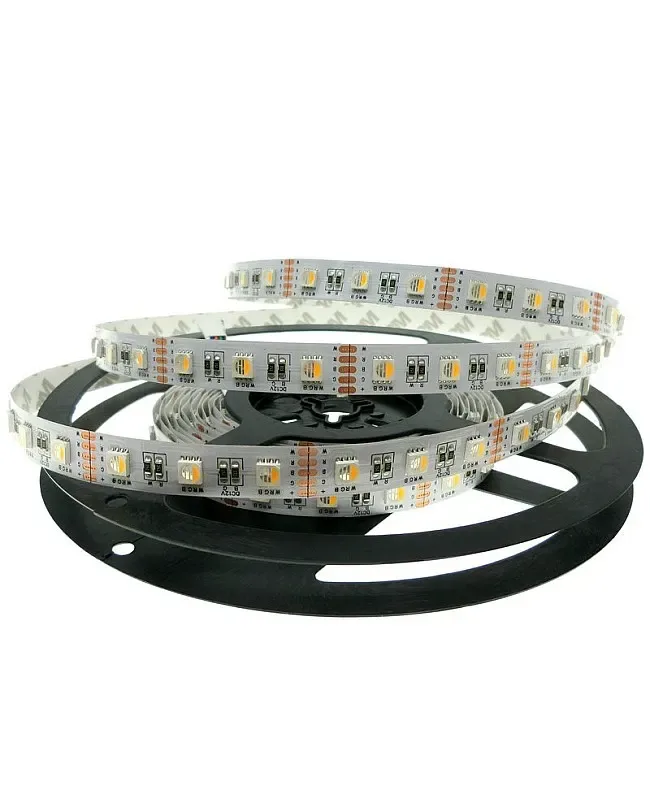

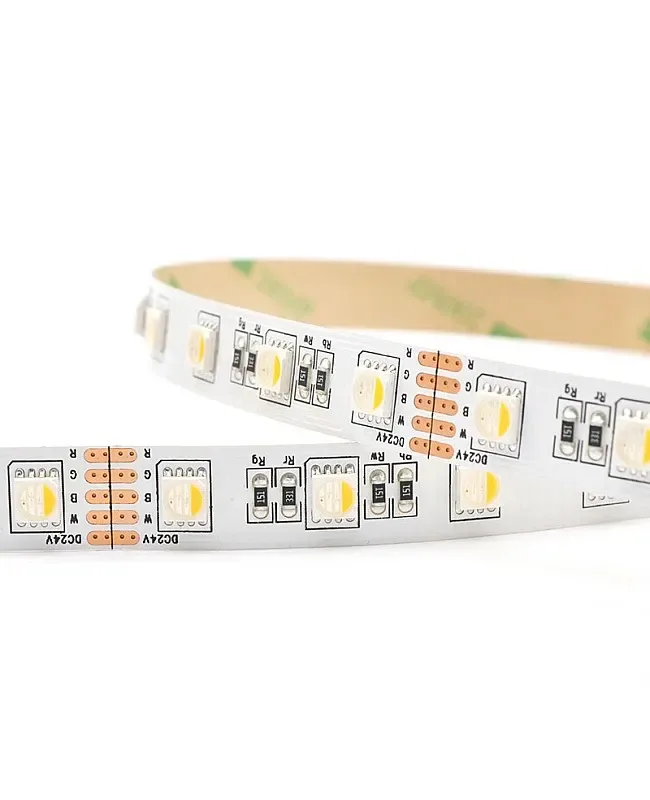

• The RGBW LED strip lights, 5 meters per reel, use the 4-in-1 5050 SMD LEDs as the light source to emit brilliant multi-color and white for enhanced ambient lighting. Each LED piece includes red, blue, green, and white or warm white chips; the RGB+white and RGB+warm white are available to ensure purer white tones and seamless color blending options.
• Thickness: 2mm ( IP20 ), 3mm ( IP65 ), 4mm ( IP67)
• Working Voltage: DC12V/DC24V
• LED Type: 4-In-1 5050 SMD LEDs
• LED Quantity: 60LEDs/M, 96LEDs/M, 120LEDs/M
• Wavelength: 465nm, 520nm, 625nm
• Waterproof Level: IP20 Non-waterproof, IP65, IP67, IP68
• 5Pin LED Connectors Included

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 24 V / 12 V
• Light engine: RGBW
• LumaCircuit model: LC-STR-9GU9KH
• Length: 5 Meters Roll
• PCB Board Width: 10mm
• Working Voltage: DC12V/DC24V
• LED Type: 4-In-1 5050 SMD LEDs
• LED Quantity: 60LEDs/M, 96LEDs/M, 120LEDs/M
• Beam Angle: 120°
• Power: 19.6W
• CRI(Ra): >80
• Wavelength: 465nm, 520nm, 625nm

Control and installation

Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.

Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

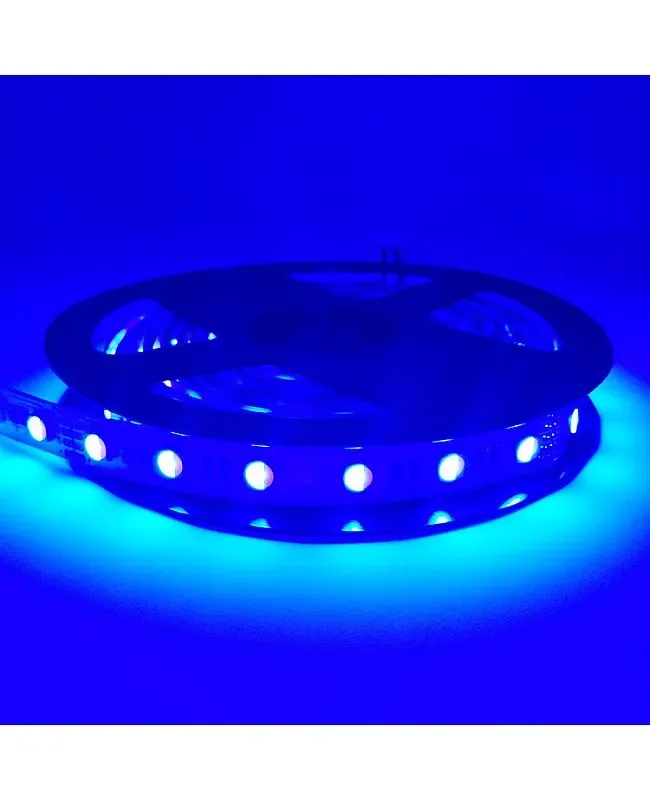

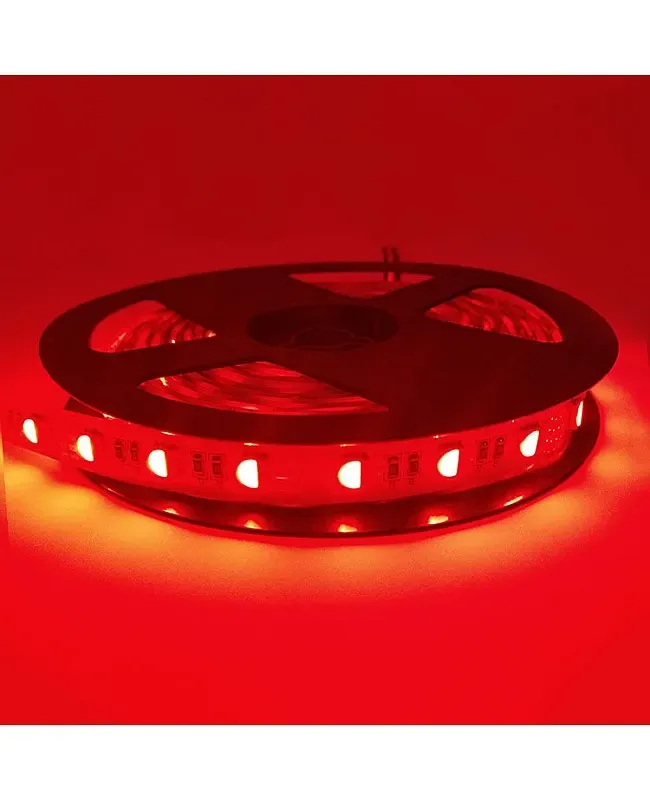

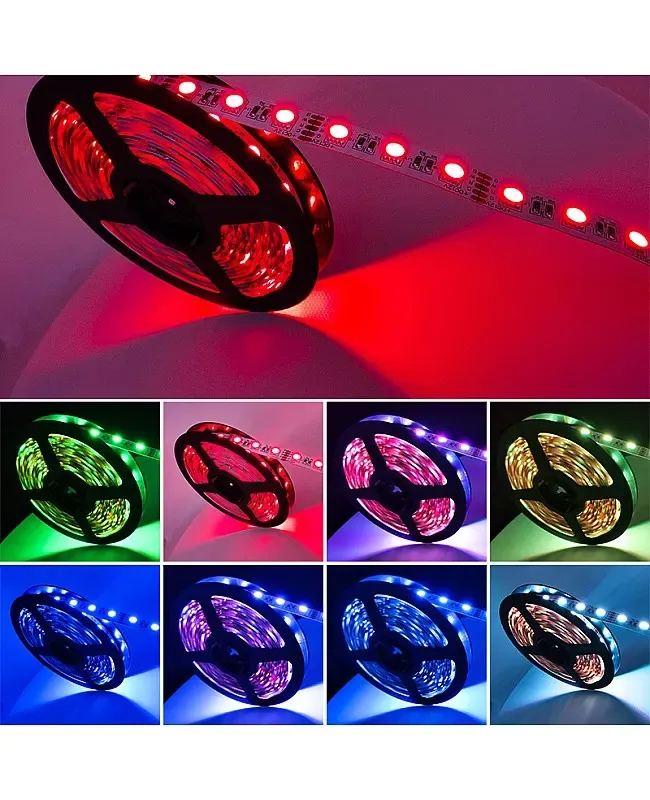

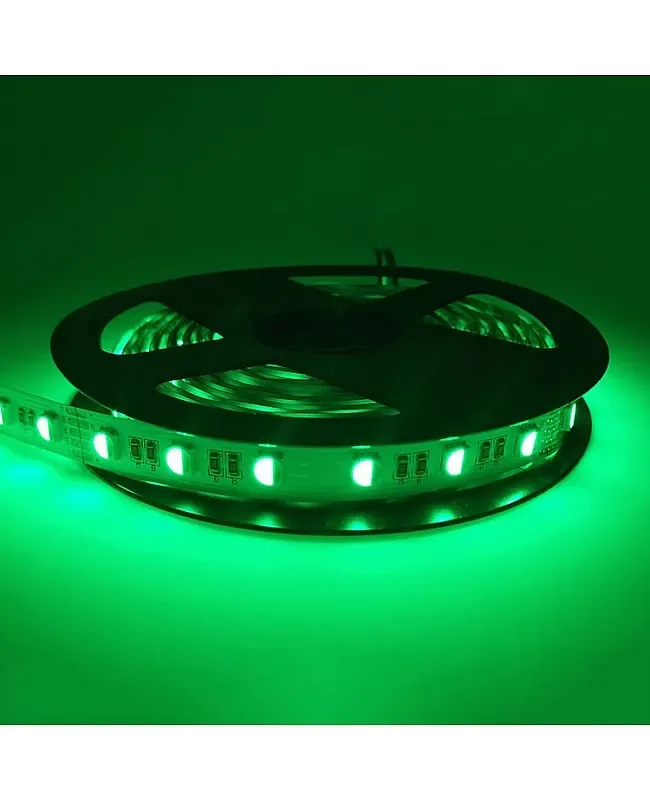

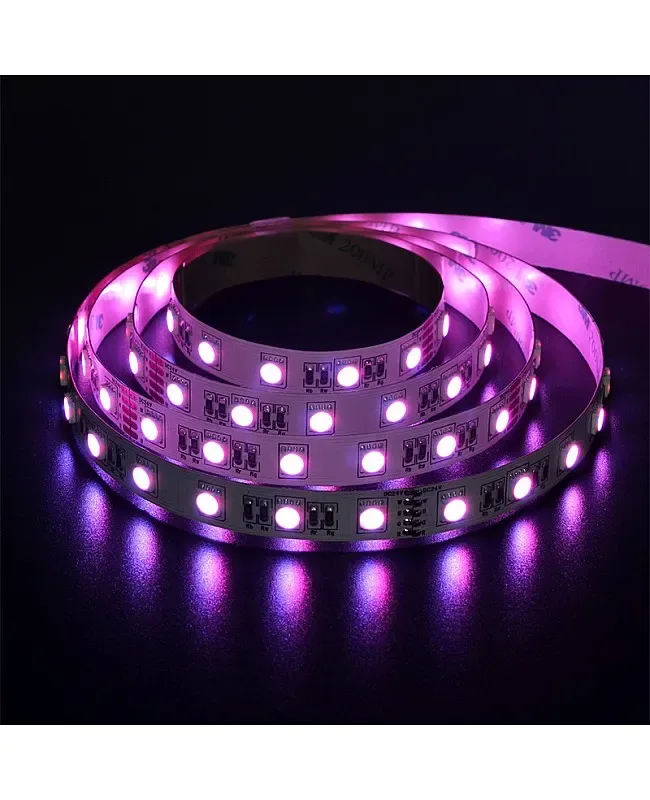

The RGBW LED strip lights, 5 meters per reel, use the 4-in-1 5050 SMD LEDs as the light source to emit brilliant multi-color and white for enhanced ambient lighting. Each LED piece includes red, blue, green, and white or warm white chips; the RGB+white and RGB+warm white are available to ensure purer white tones and seamless color blending options. Working on DC12V or DC24V, it is easy to connect the color-changing LED strips to an RGBW LED remote controller to light up, change the static and dynamic modes, or adjust the brightness. The back has double-sided adhesive tape, making removing the protector easy and sticking it to where you want to install it. The IP67 and IP68 are the best waterproof LED strip lighting, and the clips are used to mount them. There are 4 types of waterproof LED RGBW strip lights available; the installer can use the IP20 non-waterproof and IP65 surface-coated LED strips for indoor applications, and the IP67 and IP68 LED strips for outdoor lighting projects.

Specifications

Model

Length: 5 Meters Roll

PCB Board Width: 10mm

Thickness: 2mm ( IP20 ), 3mm ( IP65 ), 4mm ( IP67)

Working Voltage: DC12V/DC24V

LED Type: 4-In-1 5050 SMD LEDs

LED Quantity: 60LEDs/M, 96LEDs/M, 120LEDs/M

Beam Angle: 120°

Dimmable: YES

Power: 19.6W

Grayscale Levels: 256

CRI(Ra): >80

Wavelength: 465nm, 520nm, 625nm

Waterproof Level: IP20 Non-waterproof, IP65, IP67, IP68

5Pin LED Connectors Included

Flexible And Cuttable

Minimum Cuttable Length: 25cm/50mm

Power Factor: 0.6

Working Temperature: -20℃-+45℃

Includes

1 * RGBW LED Strip Lights(5M/Reel)
