Dimmable 5 IN 1 RGB+CCT LED Strip RGBWW

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

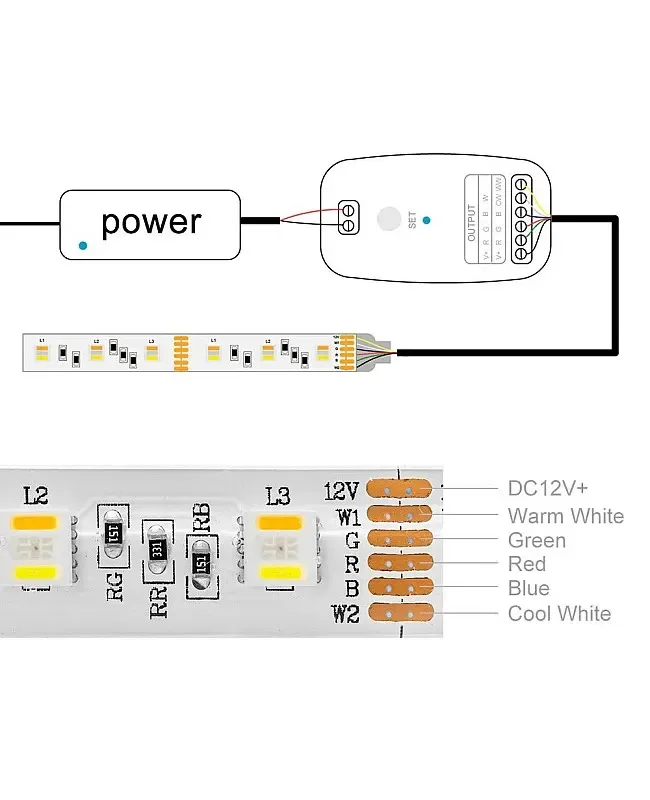

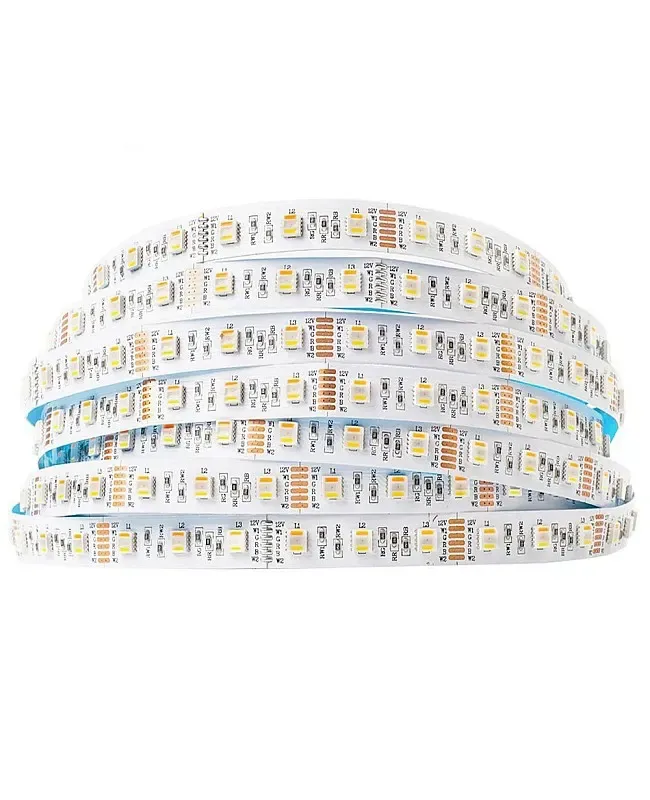

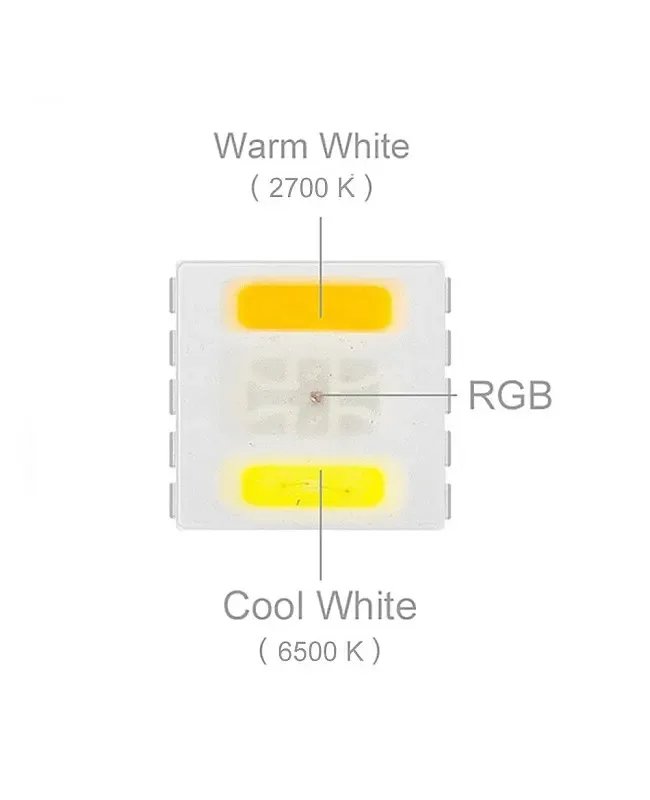

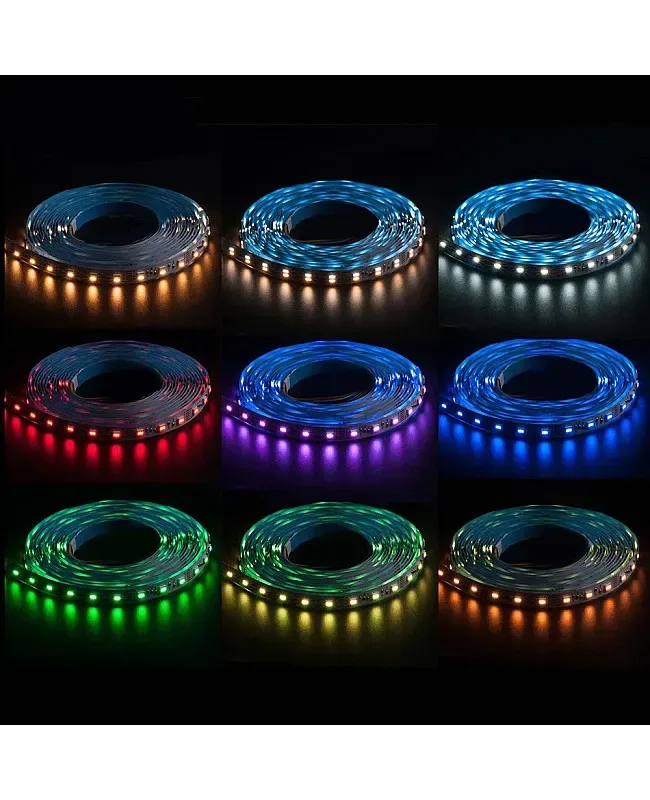

• The LED strip RGBWW uses the 5 in 1 5050 SMD LEDs as the light sources, and the LEDs combine red, blue, green, warm white, and white chips for seamless blending and the broadest range of color tones and color temperatures. The LEDs are mounted on the 12mm dual-layer PCB board and 60PCS LEDs per meter. The RGB+CCT LED strip Lights work on DC12V, making it easy to connect to an RGBWW LED controller to achieve the dynamic color-changing modes and adjust the color temperature.
• Working Temperature: -20℃-+45℃
• Size: 5000*12*1.6mm(L*W*H)
• LED Type: 5 In 1 5050 SMD LEDs
• LED Quantity: 60 LEDs/Meter
• Waterproof Level: IP20 Non-waterproof, IP65, IP67, IP68

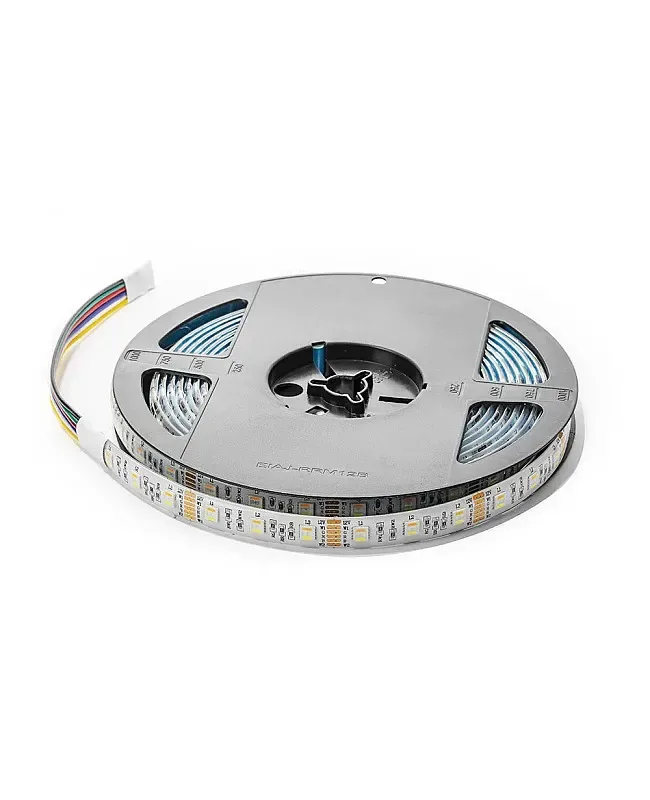

• 6 Pin Connectors Included
• The LED Strip RGBWW, which uses the 5 in 1 5050 SMD LEDs as the light source and combines red, blue, green, warm white and white colors for seamless blending and the widest range of color tones and color temperatures.

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V
• Light engine: RGB+CCT
• LumaCircuit model: LC-STR-7WVRJU
• Working Temperature: -20℃-+45℃
• Size: 5000*12*1.6mm(L*W*H)
• Working Voltage: DC12V
• LED Type: 5 In 1 5050 SMD LEDs
• LED Quantity: 60 LEDs/Meter
• Lumen: 3660 Lumen
• Power: 12W/Meter
• CRI(Ra): >80
• Beam Angle: 120°

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The LED strip RGBWW uses the 5 in 1 5050 SMD LEDs as the light sources, and the LEDs combine red, blue, green, warm white, and white chips for seamless blending and the broadest range of color tones and color temperatures. The LEDs are mounted on the 12mm dual-layer PCB board and 60PCS LEDs per meter. The RGB+CCT LED strip Lights work on DC12V, making it easy to connect to an RGBWW LED controller to achieve the dynamic color-changing modes and adjust the color temperature. There are 4 types of waterproof products available; the installer can use the IP20 non-waterproof and IP65 RGBWW LED strips for indoor lighting projects, and the IP67 and IP68 for outdoor applications. The RGB+CCT LED strips are flexible and cuttable, and the minimum cut length is 5cm. The installer can cut to any size for your project.

Specifications

Model

Working Temperature: -20℃-+45℃

Size: 5000*12*1.6mm(L*W*H)

Working Voltage: DC12V

LED Type: 5 In 1 5050 SMD LEDs

LED Quantity: 60 LEDs/Meter

Lumen: 3660 Lumen

Power: 12W/Meter

CRI(Ra): >80

Beam Angle: 120°

Waterproof Level: IP20 Non-waterproof, IP65, IP67, IP68

Color: RGB+CCT

Dimmable: YES

Minimum Cut Length: 5cm

Grayscale Levels: 256

6 Pin Connectors Included

Includes

1 * LED Strip RGBWW
