12V 144W Sinlge Color Mini LED Strip Amplifier
LumaCircuit offers 12V 144W Sinlge Color Mini LED Strip Amplifier as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Item Type: Mini LED Amplifier Working Temperature: -20 ℃-60 ℃ Max Power: 30W(DC5V), 72W(DC12V), 144W(DC24V) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The mini LED strip amplifier is designed for constant-voltage single-color LED strips. It has one output channel, a max output current of 6A, and a working voltage between DC5V and DC24V. The four wires on one side are the input end, where the installer can connect the LED dimmer and LED driver, and on the other side, where the installer can connect the single-color LED strips. This will allow you to keep the single-color LED strips with the same brightness for your project.
- Item Type: Mini LED Amplifier
- Working Temperature: -20 ℃-60 ℃
- Max Power: 30W(DC5V), 72W(DC12V), 144W(DC24V)
- Connecting Mode: Common Anode
- Static Power Consumption: <1W
- The Mini LED Strip Amplifier designed for constant voltage Single Color LED Strips, with one output channel design and the max output current up to 6A, allows keeping the Single Color LED Strips with the same brightness for your project.
- A serviceable controller component for a complete lighting BOM.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 5 V / 24 V
- LumaCircuit model: LC-STR-CFZSUH
- Working Temperature: -20 ℃-60 ℃
- Voltage: DC5V-DC24V
- Output Channel: 1
- Max Output Current: 6A
- Max Power: 30W(DC5V), 72W(DC12V), 144W(DC24V)
- Connecting Mode: Common Anode
- Static Power Consumption: <1W
- Wire Length: 10cm
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

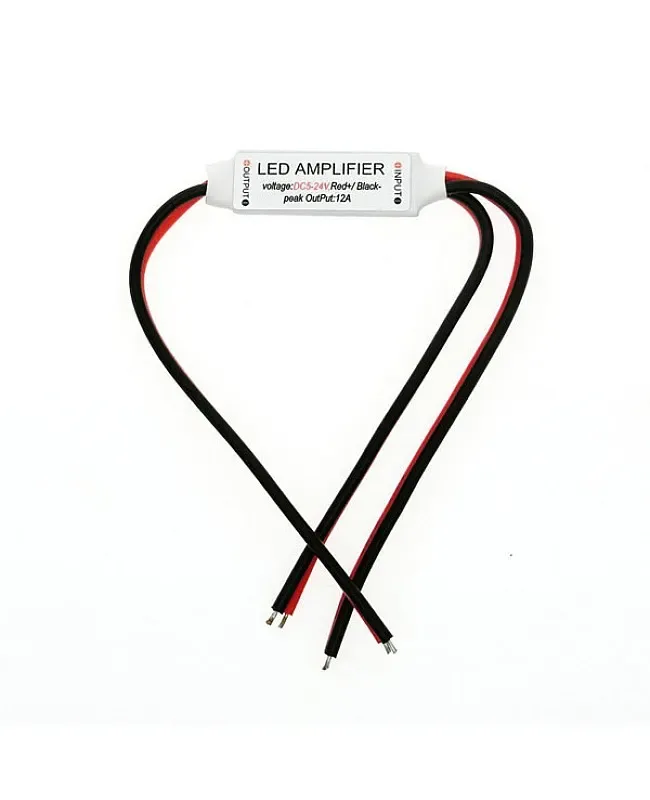

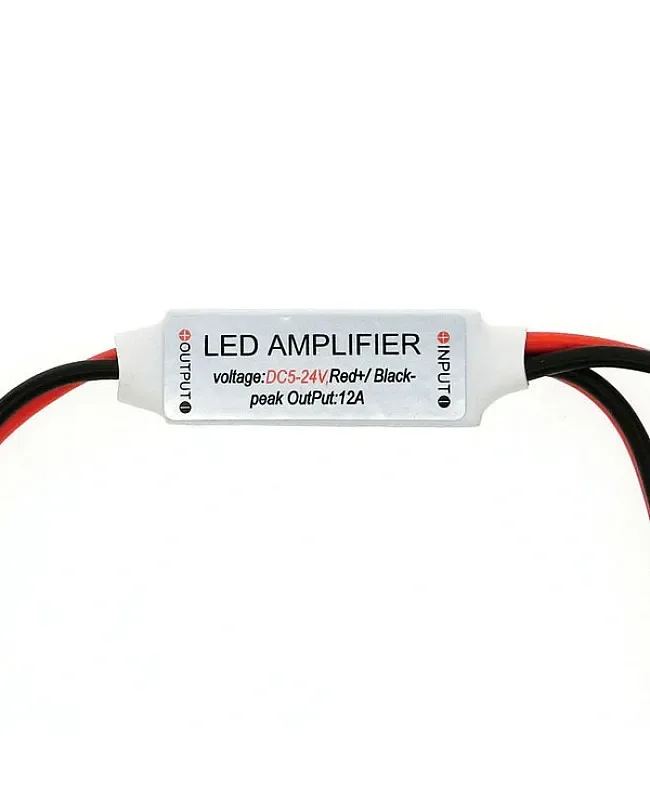

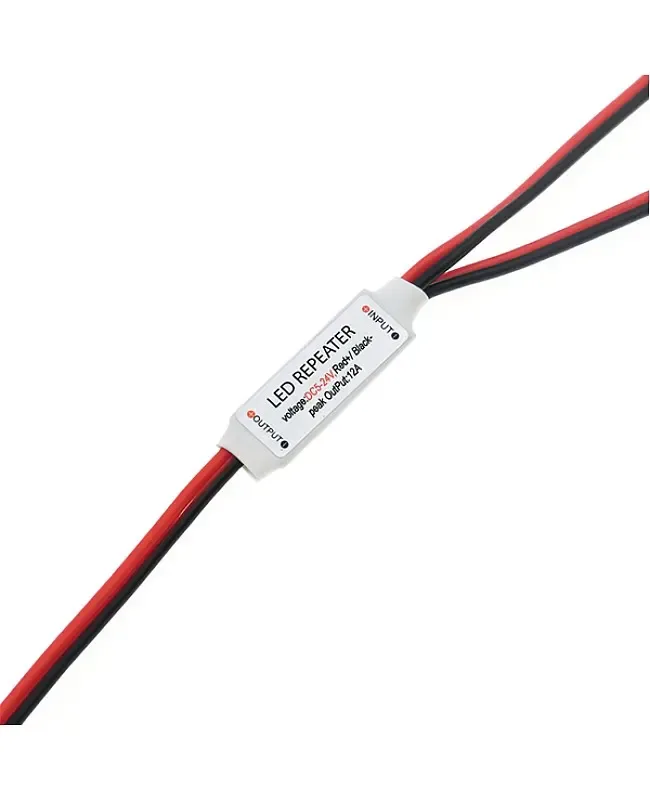

The mini LED strip amplifier is designed for constant-voltage single-color LED strips. It has one output channel, a max output current of 6A, and a working voltage between DC5V and DC24V. The four wires on one side are the input end, where the installer can connect the LED dimmer and LED driver, and on the other side, where the installer can connect the single-color LED strips. This will allow you to keep the single-color LED strips with the same brightness for your project. The installer can use it with 3528 or 5050 one-color LED strips.
Specifications
Manufacturer
Item Type: Mini LED Amplifier
Working Temperature: -20 ℃-60 ℃
Voltage: DC5V-DC24V
Output Channel: 1
Max Output Current: 6A
Max Power: 30W(DC5V), 72W(DC12V), 144W(DC24V)
Connecting Mode: Common Anode
Dimensions: **
Static Power Consumption: <1W
Wire Length: 10cm
Red: V+; Black: V
1 * Mini LED Amplifier
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
