Product details
DC12V 360W RGB LED Strip Amplifier
LumaCircuit offers DC12V 360W RGB LED Strip Amplifier as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Item Type: RGB LED Amplifier Working temperature: -20 ℃-60 ℃ Output Current: ≤10A(Each Channel) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

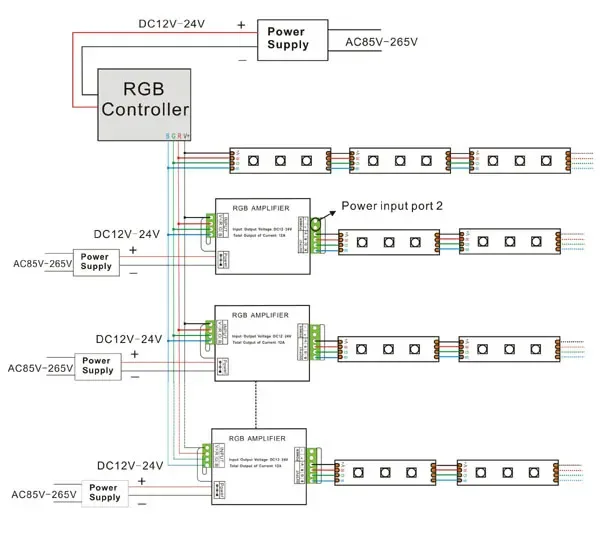

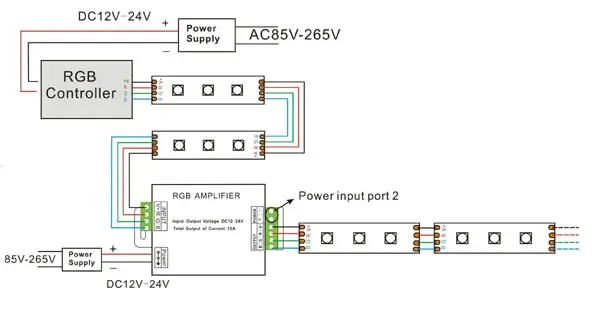

- The RGB LED Strip amplifiers have a metal shell design for better heat dissipation. They work on DC12V or DC24V, with a three-output-channel design, the max output current of each channel up to 10A, and max loading power up to 720W when working in DC24V. The RGB LED amplifier is compatible with all Hoion RGB LED controllers, receives and transmits the PWM signal, allowing more RGB LED strips to be driven, and can be connected to numerous RGB amplifiers together in theory.
- Item Type: RGB LED Amplifier
- Working temperature: -20 ℃-60 ℃
- Output Current: ≤10A(Each Channel)
- Max Output Power: 360W(DC12V), 720W(DC24V)
- Connecting Mode: Common Anode
- Static power consumption: <1W
- 1 * RGB LED Strip Amplifier
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 12-24 V / 24 V
- Light engine: RGB
- LumaCircuit model: LC-STR-3O53TB
- Working temperature: -20 ℃-60 ℃
- Dimensions: mm* mm* mm
- Voltage: DC12V-24V
- Output: 3 Channels
- Output Current: ≤10A(Each Channel)
- Max Output Power: 360W(DC12V), 720W(DC24V)
- Connecting Mode: Common Anode
- Static power consumption: <1W
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The RGB LED Strip amplifiers have a metal shell design for better heat dissipation. They work on DC12V or DC24V, with a three-output-channel design, the max output current of each channel up to 10A, and max loading power up to 720W when working in DC24V. The RGB LED amplifier is compatible with all Hoion RGB LED controllers, receives and transmits the PWM signal, allowing more RGB LED strips to be driven, and can be connected to numerous RGB amplifiers together in theory.
Specifications
Manufacturer: Hoion
Item Type: RGB LED Amplifier
Working temperature: -20 ℃-60 ℃
Dimensions: mm* mm* mm
Voltage: DC12V-24V
Output: 3 Channels
Output Current: ≤10A(Each Channel)
Max Output Power: 360W(DC12V), 720W(DC24V)
Connecting Mode: Common Anode
Static power consumption: <1W
Weight: 250g
1 * RGB LED Strip Amplifier
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
