Mini Inline CCT Tunable White LED Strip Controllers
LumaCircuit offers Mini Inline CCT Tunable White LED Strip Controllers as a configurable LED strip for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Connecting Method: Common Anode Static Power Consumption: <0.5W Output Power: DC5V: <30W; DC12V: <72W; DC24V: <144W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

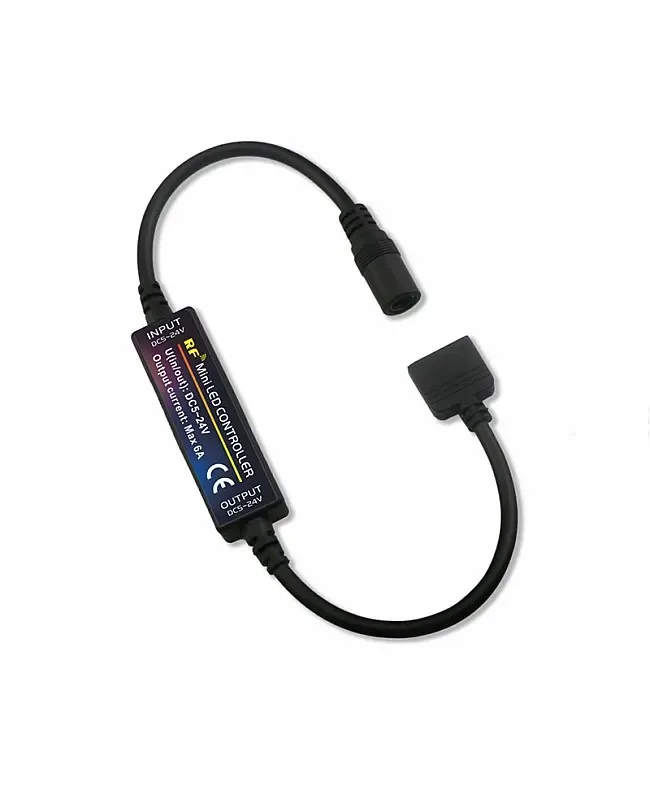

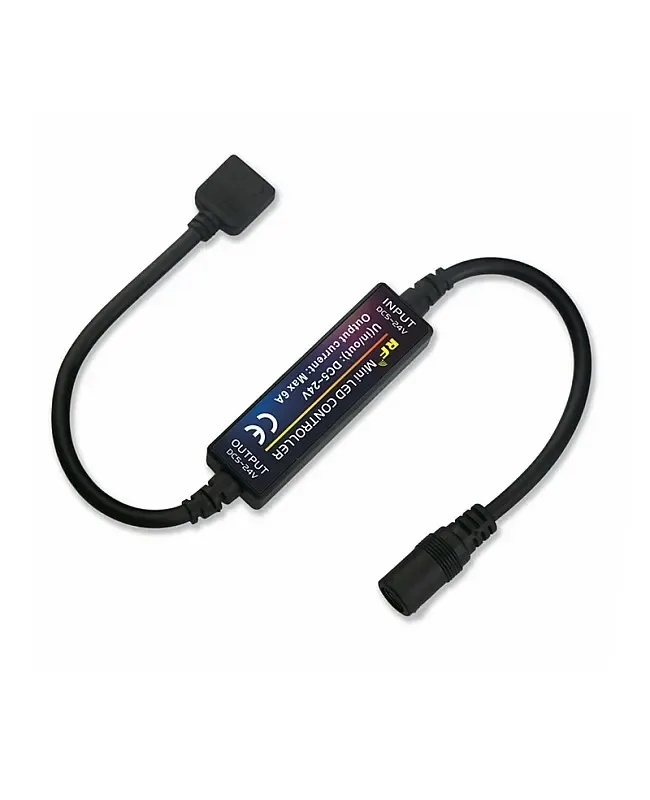

- The Mini Inline CCT tunable white LED strip controller has a female DC connector and a 4-pin connector, making it easy to connect to the LED transformer and CCT LED strips. The CCT LED controller is small, allowing installation in a narrow or small location. With two output channels designed and a max output current of up to 3A for each channel, the 17-key RF remote control is included.
- Connecting Method: Common Anode
- Static Power Consumption: <0.5W
- Output Power: DC5V: <30W; DC12V: <72W; DC24V: <144W
- DC Female Connector And 4 Pin Female Connector Included
- 17 Keys RF Remote Control Included
- Remote Control Distance: ≤20M
- Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5-24 V / 5 V / 12 V / 24 V
- Light engine: CCT
- Size: 55*22*13mm(L*W*H)
- Working Voltage: -24V
- Static Power Consumption: <0.5W
- Output Current: 2*3A
- Output Power: DC5V: <30W; DC12V: <72W; DC24V: <144W
- Remote Control Distance: ≤20M
- LumaCircuit model: LC-STR-8ND7C4
- Dimensions found: 55x22x13mm / 13mm / 20M
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

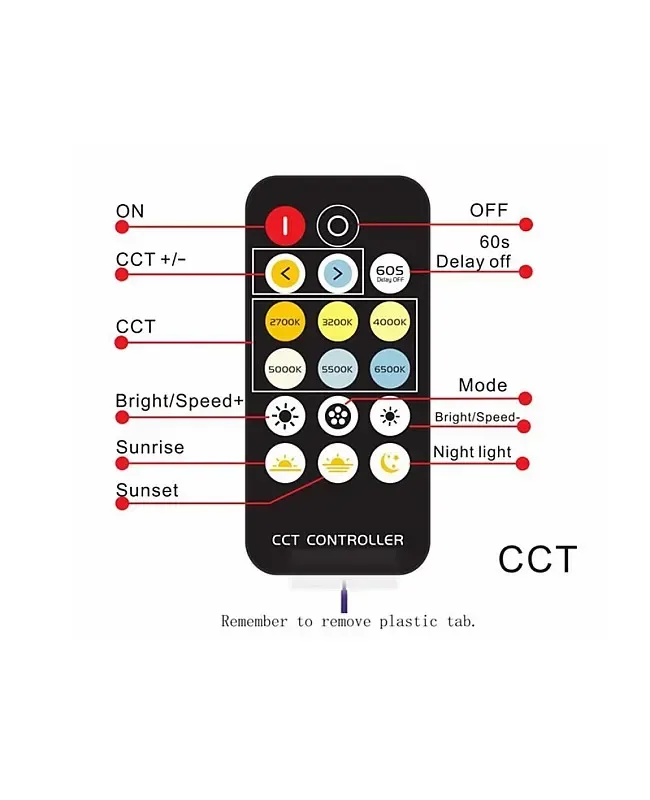

The Mini Inline CCT tunable white LED strip controller has a female DC connector and a 4-pin connector, making it easy to connect to the LED transformer and CCT LED strips. The CCT LED controller is small, allowing installation in a narrow or small location. With two output channels designed and a max output current of up to 3A for each channel, the 17-key RF remote control is included. The installer can use it to control the CCT LED light remotely, turn it on/off, and adjust the color temperature, static color brightness, and speed of dynamic modes. There are six static colors and six dynamic modes available. With the delay-off function, the installer can set the LED Light to turn off automatically after 60 seconds.
Specifications

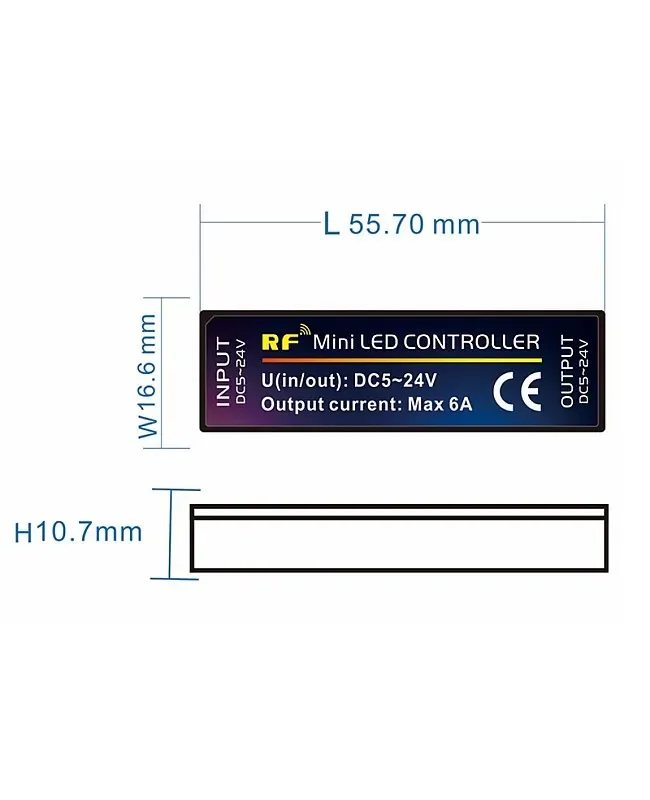

Size: 55*22*13mm(L*W*H)
Working Voltage: -24V
Connecting Method: Common Anode
Static Power Consumption: <0.5W
Output Current: 2*3A
Output Power: DC5V: <30W; DC12V: <72W; DC24V: <144W
0-100% Dimmable
DC Female Connector And 4 Pin Female Connector Included
17 Keys RF Remote Control Included
Remote Control Distance: ≤20M
Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
6 Static Colors And 6 Dynamic Modes Available
Includes

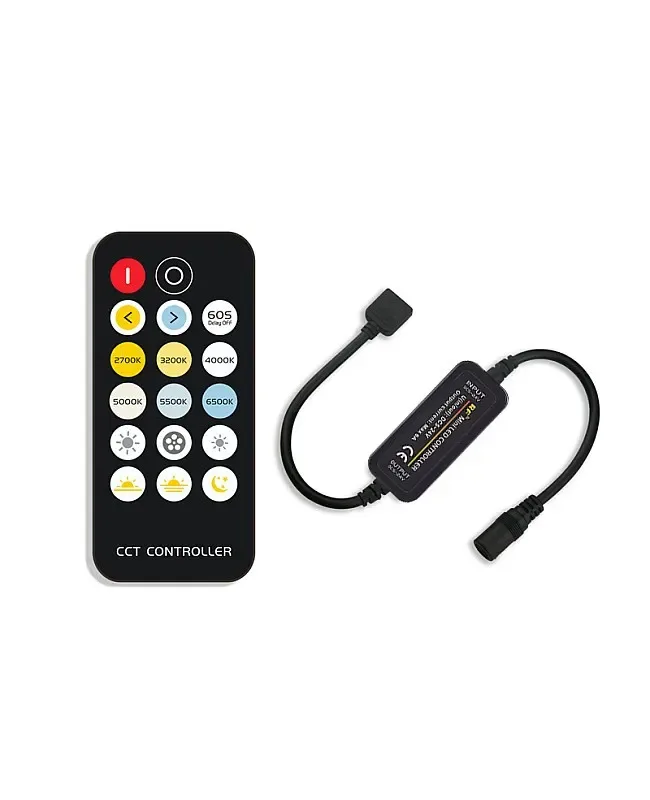

1 * Tunable White LED Strip Controller
1 * 17 Keys RF Remote Control
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
