Product details
DC5V LED Strip Lights For TV With Wifi LED Controller
LumaCircuit offers DC5V LED Strip Lights For TV With Wifi LED Controller as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. LED Quantity: 30 LEDs/Meter Working Power: 7.2W/Meter Flexible Dual Layer PCB Board The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

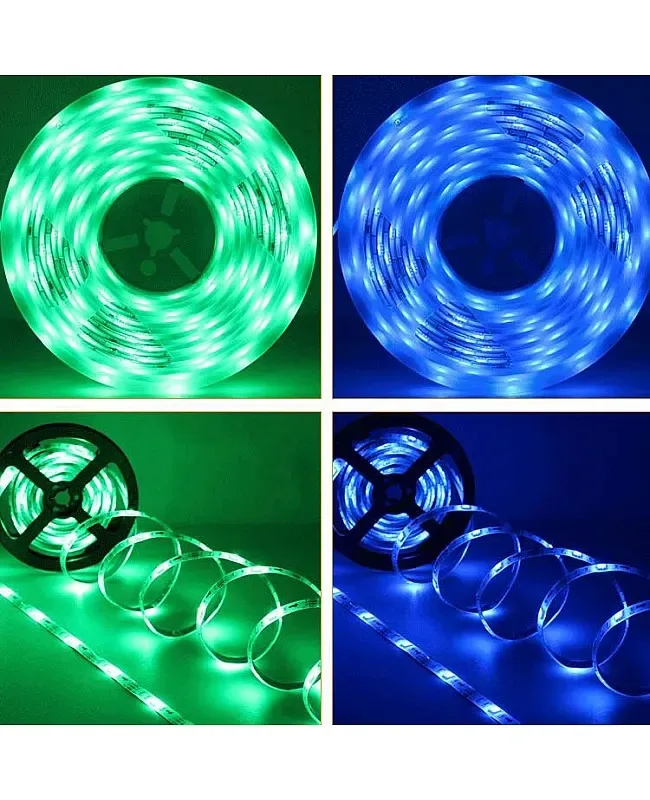

- The LED strip lights for TV use high-quality 5050 SMD LEDs as the light source, with 30 LEDs per meter. The LEDs were mounted on a dual-layer PCB board, flexible and durable, with epoxy-coated surfaces and a waterproof level up to IP65.
- LED Quantity: 30 LEDs/Meter
- Working Power: 7.2W/Meter
- Flexible Dual Layer PCB Board
- Back With Double-Sided Tape
- A mobile phone can be controlled through WiFi
- Voice Control Function Through Amazon Alexa, Google Assistant
- 24 Keys IR Remote Included
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V
- Light engine: RGB
- LED: 5050 SMD LEDs
- LED Quantity: 30 LEDs/Meter
- Length: 4PCS 0.5 Meter
- Working Voltage: DC5V
- Working Power: 7.2W/Meter
- CRI: >70
- IP Rating: IP65
- Emitting Colors: RGB
- Applications: Backlights for TV or Display, Holiday Decoration
- LumaCircuit model: LC-STR-5ZA8SM
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

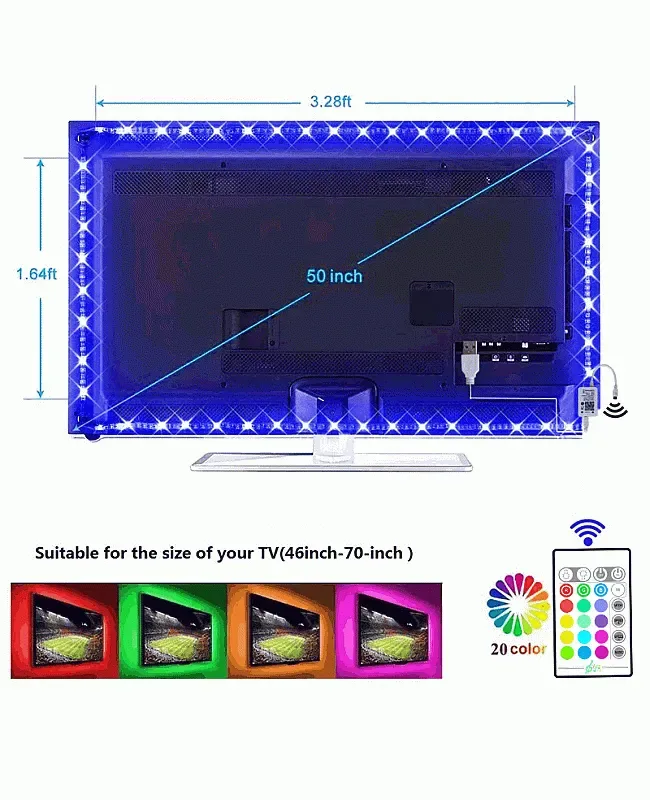

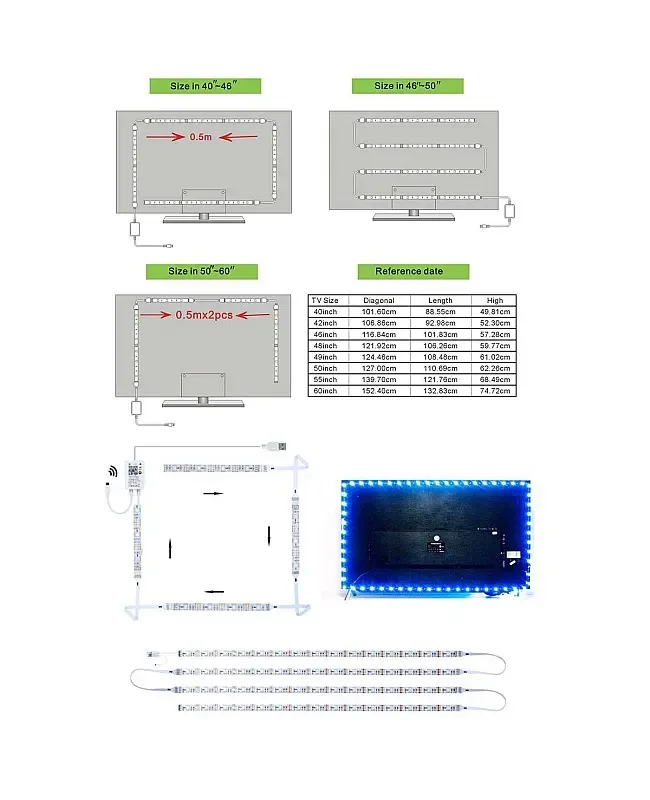

The LED strip lights for TV use high-quality 5050 SMD LEDs as the light source, with 30 LEDs per meter. The LEDs were mounted on a dual-layer PCB board, flexible and durable, with epoxy-coated surfaces and a waterproof level up to IP65. The LED strips working in DC5V, can connect to the TV or Display USB port directly to light them up, comes with 24 Keys IR remote to turn on or off the LED light remotely, set the static color and adjust the brightness, color the dynamic color changing mode and activate the music mode, the music mode allows the LED Strips color-changing follow the music the LED controller with WiFi module, the installer can control the LED light through the mobile phone by connecting via the WiFi. The back of the LED light will have double-sided tape, making it easy to install and use, and supporting voice control functions through Amazon Alexa and Google Assistant. The kit includes 4PCS 0.5-meter LED strips, take off the protector on the double-sided adhesive tape and stick on the back of the display or TV, easy to install and use.
Specifications
LED: 5050 SMD LEDs
LED Quantity: 30 LEDs/Meter
Length: 4PCS 0.5 Meter
Working Voltage: DC5V
Working Power: 7.2W/Meter
Angle View: 120°
IP Rating: IP65
Emitting Colors: RGB
Dimmable: YES
Flexible Dual Layer PCB Board
Back With Double-Sided Tape
A mobile phone can be controlled through WiFi
Voice Control Function Through Amazon Alexa, Google Assistant
24 Keys IR Remote Included
Applications: Backlights for TV or Display, Holiday Decoration

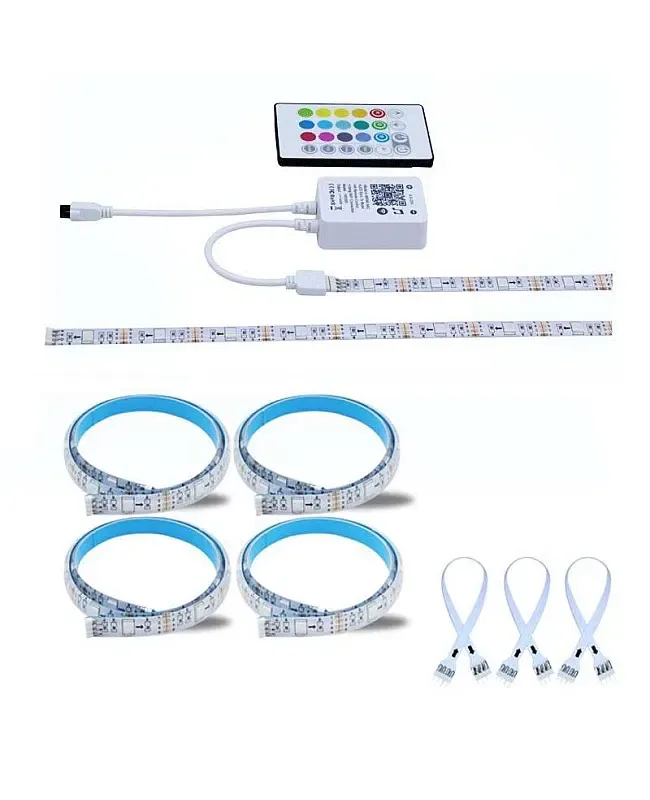

Includes
1 * LED Strips Light
1 * LED Controller
1 * Remote
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
