Product details

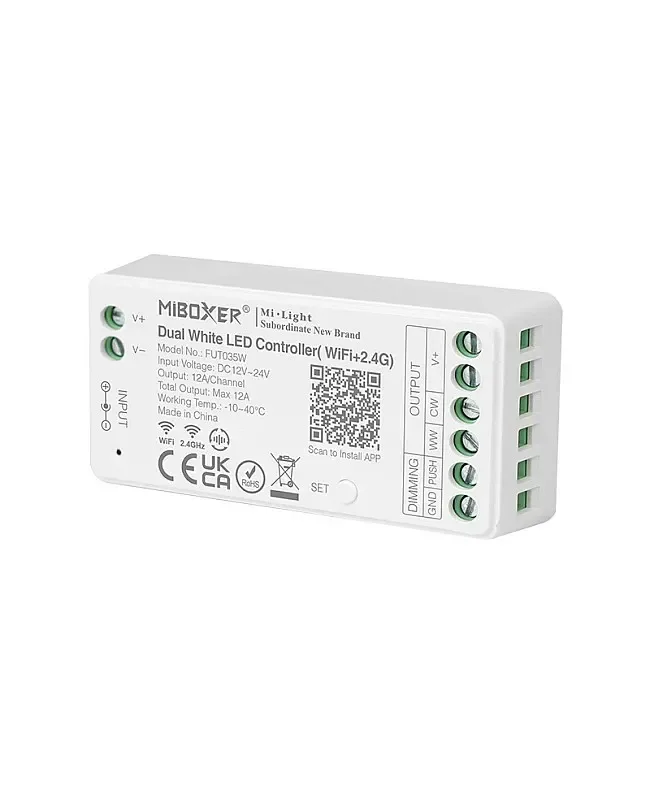

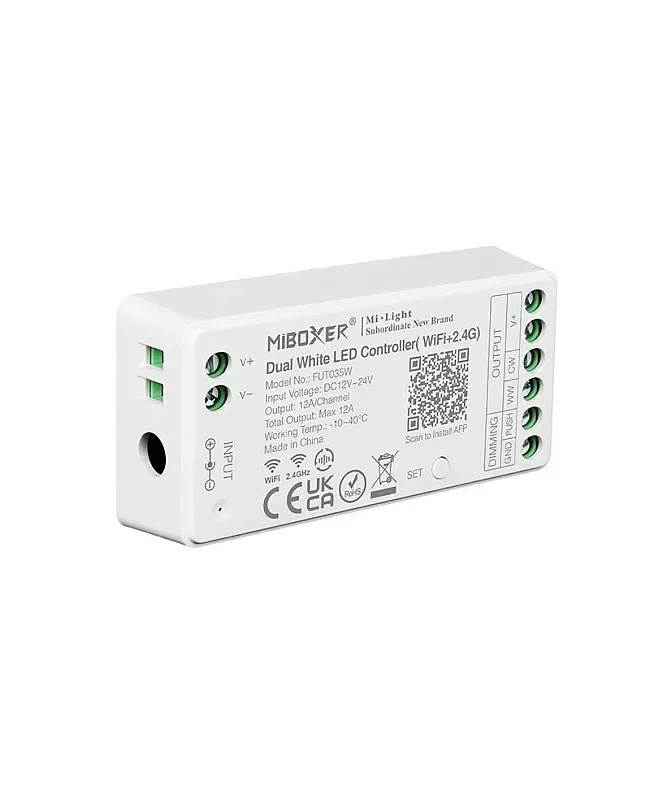

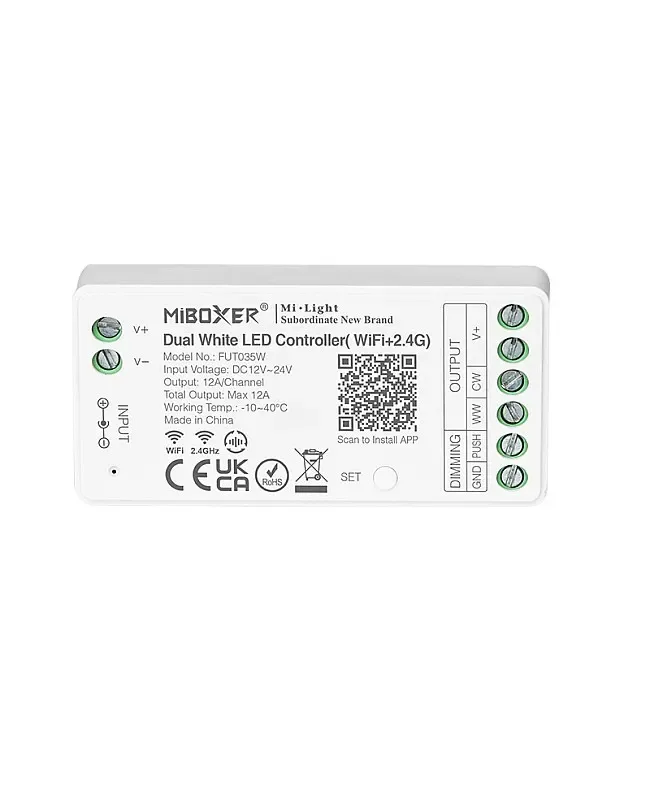

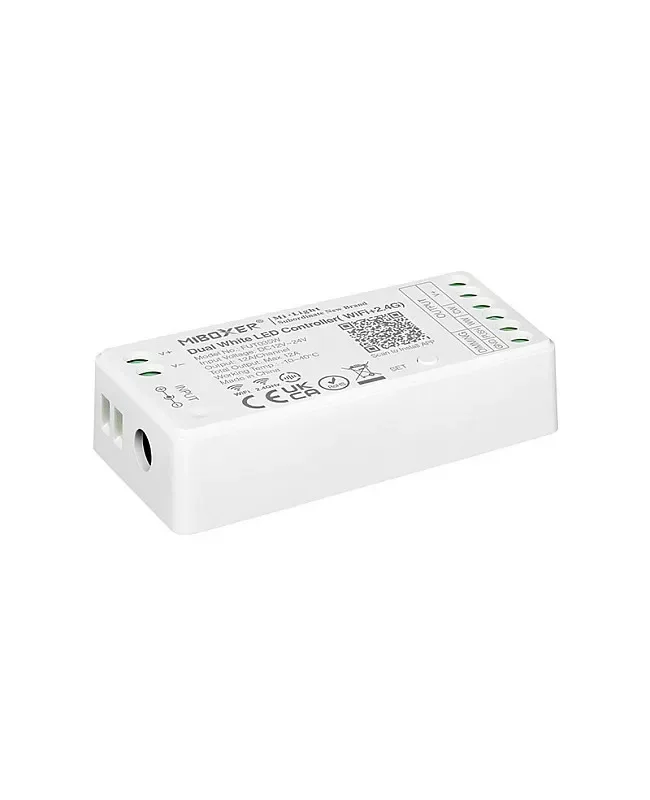

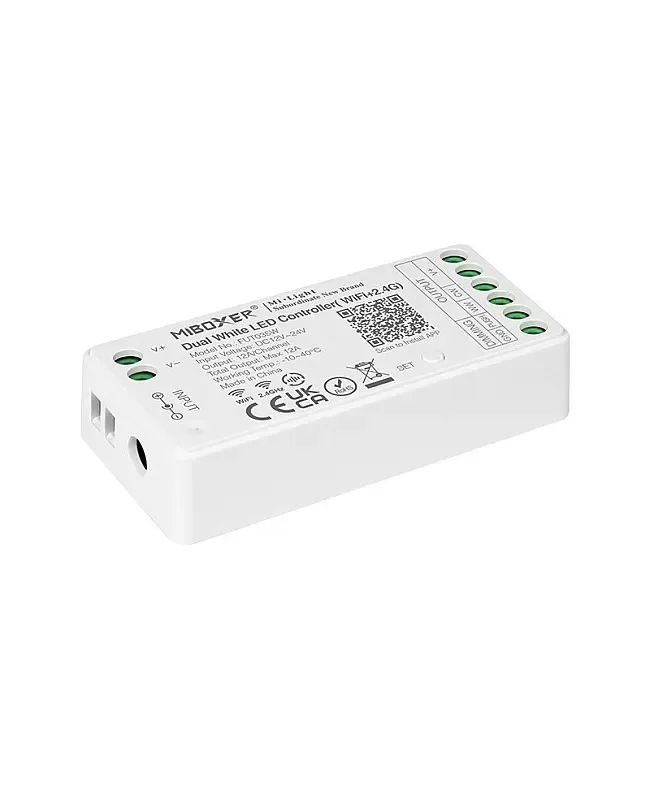

Dual White WiFi LED Strip Lights Controller
LumaCircuit offers Dual White WiFi LED Strip Lights Controller as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. wireless controller + Light Dimmer For Single Color And Tunable White (WiFi + 2.4G) Size: 74.5*36*17mm(L*W*H) Output Current: 12A/Channel The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller WiFi Bluetooth LED strip lights controller is designed for dual white LED lamps and LED strip lights. The installer can adjust the color temperature from 2700K to 6500K and the brightness from 1% to 100%. The wireless controller controllers with a WiFi and Bluetooth dual-module design enhance the distribution network experience and improve the distribution network success rate. It can be controlled by a smartphone APP, 2.4G RF remotes, and third-party voice commands.
- wireless controller + Light Dimmer For Single Color And Tunable White (WiFi + 2.4G)
- Size: 74.5*36*17mm(L*W*H)
- Output Current: 12A/Channel
- Total Output Current: Max 12A
- Brightness And Color Temperature Adjustable
- Support Third-Party Voice Control
- 4G RF Remote Controllable wireless controller T2
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: CCT
- Size: 74.5*36*17mm(L*W*H)
- Working Voltage: -24V
- Output Current: 12A/Channel
- Total Output Current: Max 12A
- 2.4G RF Remote Controllable: wireless controller T2
- Bluetooth Protocol: Bluetooth 4.2(Low Power Consumption)
- Remote Control Distance: ≤30m
- Working Temperature: -10-+40℃
- LumaCircuit model: LC-STR-YEC8X2
- Dimensions found: 74.5x36x17mm / 17mm / 30m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller WiFi Bluetooth LED strip lights controller is designed for dual white LED lamps and LED strip lights. The installer can adjust the color temperature from 2700K to 6500K and the brightness from 1% to 100%. The wireless controller controllers with a WiFi and Bluetooth dual-module design enhance the distribution network experience and improve the distribution network success rate. It can be controlled by a smartphone APP, 2.4G RF remotes, and third-party voice commands. It can work with Amazon Alexa and Google Assistant. The installer can set the state of lights according to the sun's change during one day, and multiple lamps can be grouped and controlled synchronously. The wireless controller Bluetooth controller supports music rhythm, and the lights will dance with the rhythm of the music, and the installer can enjoy a visual feast. The controller will receive and transmit the signals to the same devices within 30 meters, and all devices will work synchronously.
wireless controller + Light Dimmer For Single Color And Tunable White (WiFi + 2.4G)
Specifications
Size: 74.5*36*17mm(L*W*H)
Working Voltage: -24V
Output Current: 12A/Channel
Total Output Current: Max 12A
Brightness And Color Temperature Adjustable
Support Push Dimmable
Smartphone APP Control
Support Third-Party Voice Control
4G RF Remote Controllable wireless controller T2
WiFi Standard: IEEE 802.11 b/g/n 2.
Bluetooth Protocol: Bluetooth 4.2(Low Power Consumption)
RF: 2.
Remote Control Distance: ≤30m
APP Name: mobile app
WiFi + Bluetooth Dual Module Design
Music Rhythm: YES
Timing Function: YES
Falling Asleep/Waking Up Plan Setting
Do Not Disturb Mode
Tap-To-Run/Automation
Auto Transmitting Function
Biorhythm
Multiple Scenes Customization Settings
Group Control
Device Sharing
Working Temperature: -10-+40℃
Includes
1 * wireless controller Dual White WiFi Controller
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
