Product details

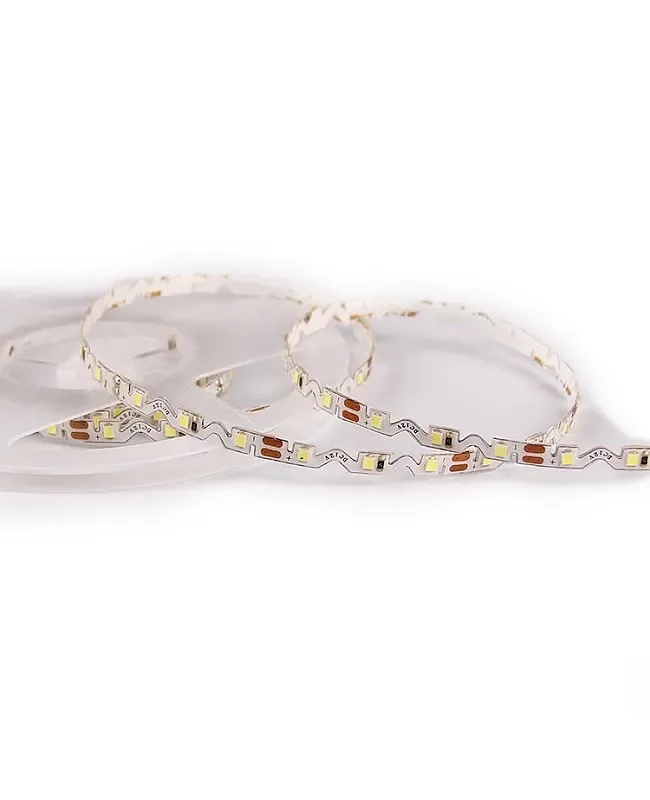

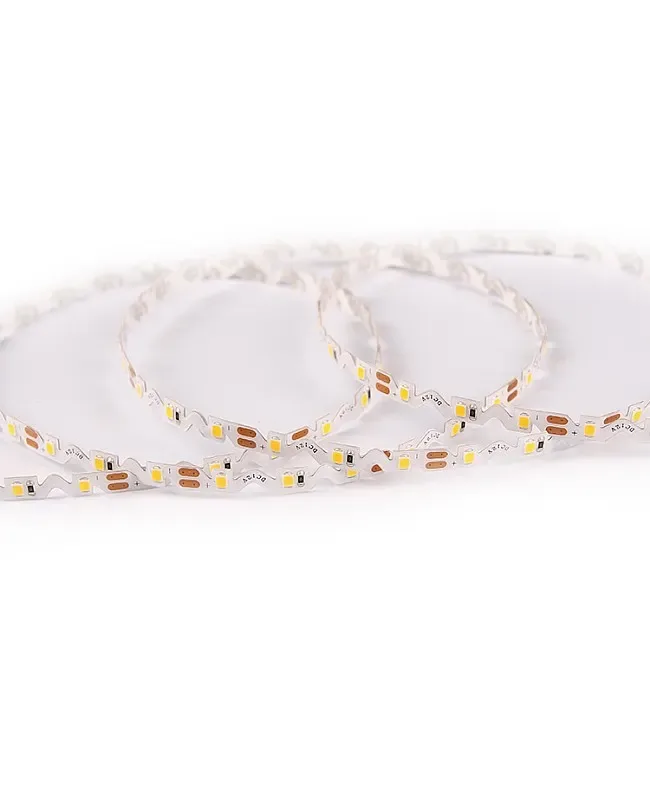

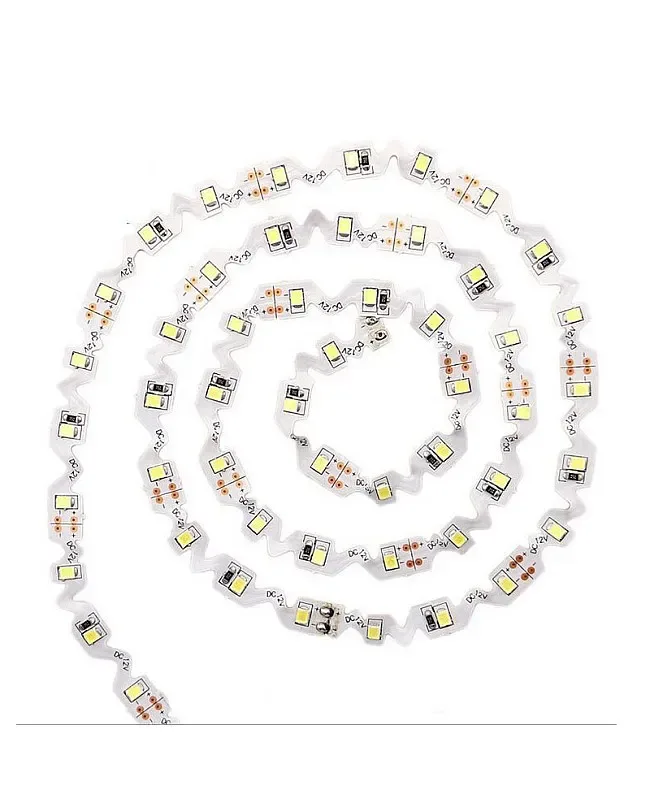

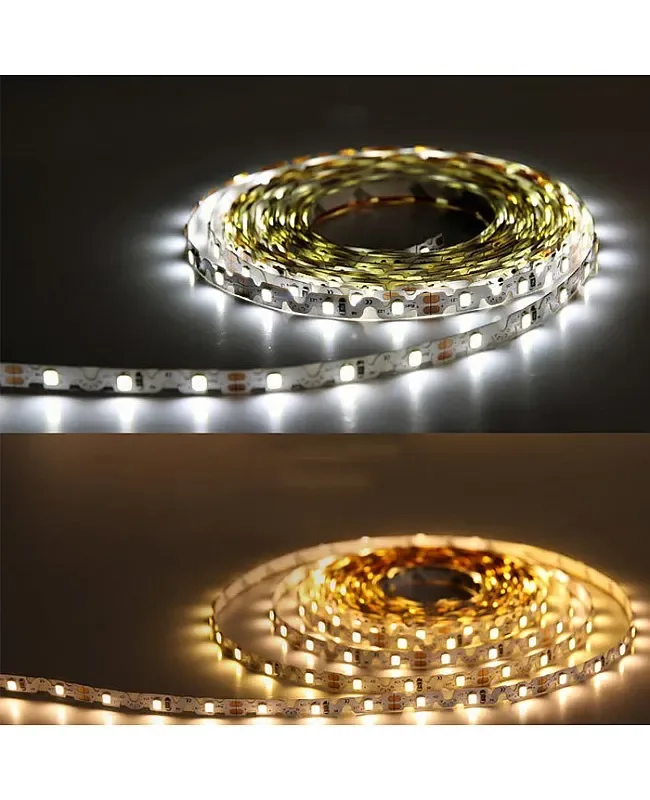

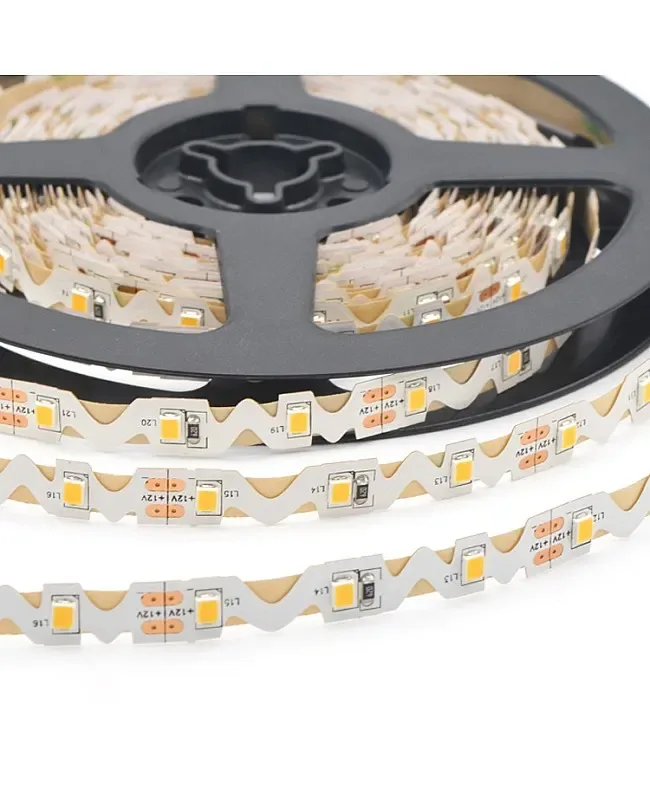

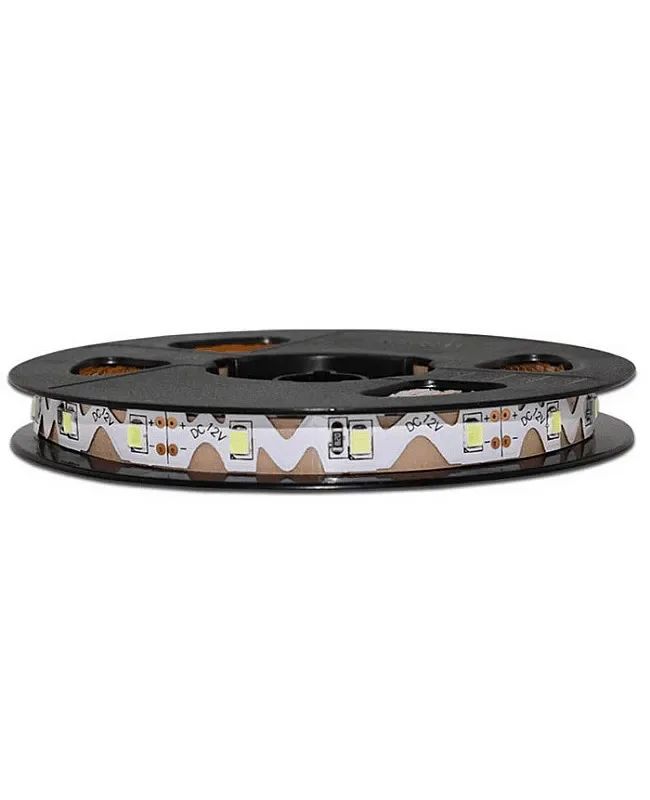

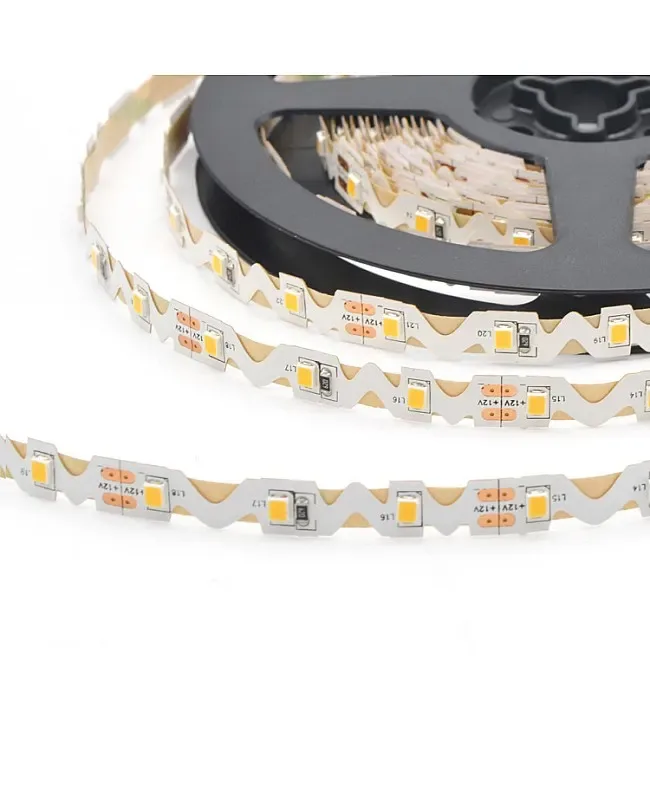

8MM 12V 2835 S Shape LED Strips
LumaCircuit offers 8MM 12V 2835 S Shape LED Strips as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. SMD Quantity: 60 LEDs/Meter Output Wattage: 12W/Meter Emitting Colors: Warm White, Cool White, RGB The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The S-shaped LED strips use high-quality 2835 SMD LEDs as the light source, 60 LEDs per meter and 5 meters per reel. The S-shaped LED strip light allows for bending to make bends and curves and to form shapes for your LED projects. The S-shaped LED strips working in DC12V can connect to the LED power supply directly or to an LED dimmer or LED controller to adjust the brightness or color-changing style. The 120-degree angle view provides excellent coverage and high brightness despite low power consumption.
- SMD Quantity: 60 LEDs/Meter
- Output Wattage: 12W/Meter
- Emitting Colors: Warm White, Cool White, RGB
- 1 * S Shape LED Strips(Reel)
- The S Shape LED Strips allows for bending to make bends, curves and to form shapes for your LED projects, working in DC12V can connect to the LED dimmer or LED controller to adjust the brightness or color changing style.
- A production-ready strip family with a replaceable Zigbee control path.
- The configured light engine is CCT.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- PCB Width: 8mm
- Length: Rell
- Working Voltage: DC12V
- Output Wattage: 12W/Meter
- Lumen: 20-24lm/LED
- Emitting Colors: Warm White, Cool White, RGB
- LumaCircuit model: LC-STR-IWT0D5
- Dimensions found: 8mm / 8MM
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The S-shaped LED strips use high-quality 2835 SMD LEDs as the light source, 60 LEDs per meter and 5 meters per reel. The S-shaped LED strip light allows for bending to make bends and curves and to form shapes for your LED projects. The S-shaped LED strips working in DC12V can connect to the LED power supply directly or to an LED dimmer or LED controller to adjust the brightness or color-changing style. The 120-degree angle view provides excellent coverage and high brightness despite low power consumption.
Specifications
PCB Width: 8mm
Length: Rell
SMD: 2835
SMD Quantity: 60 LEDs/Meter
Working Voltage: DC12V
Output Wattage: 12W/Meter
Lumen: 20-24lm/LED
Angle View: 120 Degree
Waterproof Level: IP20
Emitting Colors: Warm White, Cool White, RGB
Includes
1 * S Shape LED Strips(Reel)
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
